Mastering Engine Oil Extraction: A Comprehensive Guide

Changing your engine oil is a cornerstone of vehicle maintenance, ensuring your engine runs smoothly and lasts longer. Traditionally, this involved getting under the car and fiddling with a drain plug. However, a more modern and often more convenient method has gained popularity: engine oil extraction. This technique bypasses the need to access the underside of your vehicle, offering a cleaner and quicker alternative, provided you understand the process. But is it always better than the classic drain method? Let's delve into how to use an oil extractor effectively and explore the nuances of this popular maintenance task.

Extraction vs. Draining: What's the Difference?

The fundamental difference lies in how the old oil is removed. Draining involves unscrewing the oil drain plug at the bottom of the oil sump, allowing gravity to pull the oil out into a receptacle. This is the traditional method and is effective at removing most of the oil. Extraction, on the other hand, uses a pump and a thin tube inserted through the dipstick tube to suck the oil out of the sump. This method is often favoured for its ease of access and reduced mess.

While extraction is generally more convenient, especially for vehicles where accessing the drain plug is difficult, draining can sometimes remove more of the sludge and sediment that settles at the very bottom of the sump. However, with careful extraction technique, a significant amount of old oil can be removed effectively.

Types of Oil Extractors

Oil extractors come in various forms, each with its own operating mechanism. Understanding these differences is key to successful oil extraction:

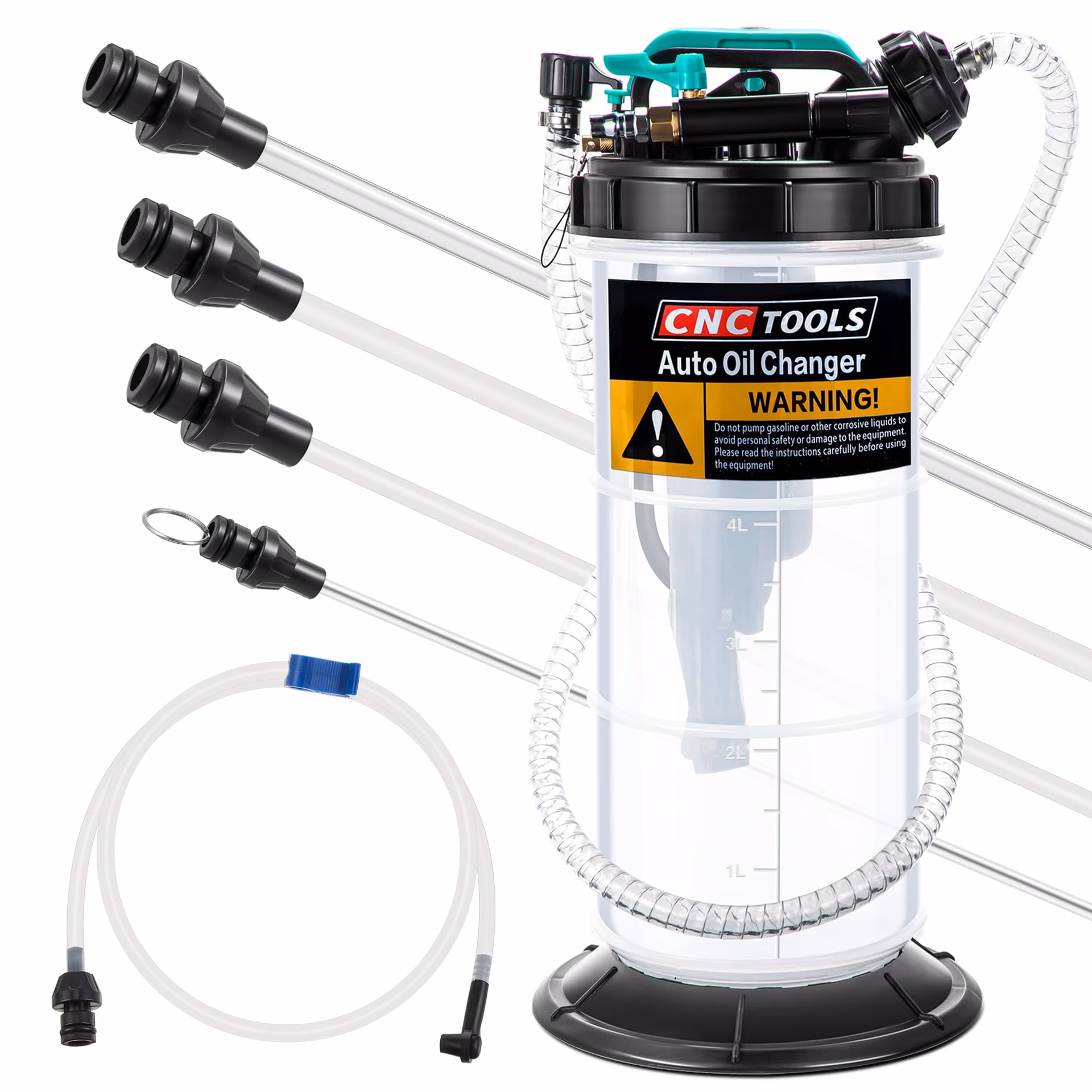

1. Manual Oil Extractors

These typically operate via a hand pump. You manually create a vacuum by pumping a handle, which then draws the oil into the extractor's reservoir. They are simple, require no external power, and are a great budget-friendly option. However, they can be more labour-intensive, especially for larger engines.

2. Pneumatic Oil Extractors

These units are powered by compressed air from an air compressor. They offer a faster and more powerful extraction process compared to manual ones. You connect the extractor to your air source, and the compressed air creates the vacuum needed to siphon the oil. They are efficient but require an air compressor.

3. Electric Oil Extractors

These are powered by your vehicle's battery. You simply connect the leads to the battery, switch on the pump, and it begins extracting the oil. They are the most convenient for many users, requiring minimal physical effort and no external compressor. However, they do draw power from your vehicle's battery.

How to Use an Oil Extractor: A Step-by-Step Guide

Regardless of the type of extractor you choose, the fundamental steps for changing your engine oil are similar. Here's a breakdown:

Tools and Materials You'll Need:

• New engine oil (correct grade and quantity for your vehicle)
• New oil filter
• Your chosen oil extractor tool
• A clean cloth or paper towels for wiping spills
• An air compressor (if using a pneumatic extractor)
• Appropriate wrenches or tools for the oil filter
• A funnel for adding new oil
• A suitable container for disposing of used oil

Step 1: Warm the Engine Oil

Before you begin, start your vehicle's engine and let it run for about 5-10 minutes. This warms the oil, making it less viscous and much easier to extract. Do not let the engine get too hot, as hot oil can cause burns. Allow it to cool slightly for a few minutes after shutting it off. Warming the oil also helps to mix any settled sediments with the oil, ensuring they are removed during extraction.

Step 2: Prepare the Vehicle and Insert the Extractor Tube

Once the engine has cooled sufficiently, open the bonnet (hood). Locate the engine oil filler cap and remove it. Then, find the engine oil dipstick and pull it out completely. Select the appropriate size extraction tube from your oil extractor kit. Gently insert the tube down through the dipstick tube. Continue lowering it until you feel it reach the bottom of the oil sump. The correct depth can vary between vehicles, but it's typically between 2 to 3 feet (approximately 60-90 cm). Ensure the tube is positioned to reach the lowest point possible in the sump.

Step 3: Connect the Oil Extractor

With the extraction tube correctly positioned, it's time to connect it to your oil extractor unit. Follow the manufacturer's instructions for your specific extractor type:

• Manual Extractors: Ensure the tube is securely attached to the pump's inlet.
• Pneumatic Extractors: Connect the air hose from your compressor to the designated inlet on the extractor.
• Electric Extractors: Connect the power leads to your vehicle's battery (usually the positive and negative terminals). If your extractor has a separate discharge tube, connect it now to the outlet port.

Some extractors may come with an extension tube that connects between the main unit and the extraction tube. If yours uses one, connect it at this stage.

Step 4: Start the Extraction Process

Now, the actual siphoning begins:

• Manual Extractor: Begin pumping the handle. You'll need to pump it around 20-30 times to build sufficient vacuum to start drawing the oil. Once the oil starts flowing, you may need to continue pumping periodically to maintain the vacuum.
• Pneumatic Extractor: Turn the valve or handle to allow compressed air to flow into the extractor. This will create the vacuum and begin sucking the oil up the tube.
• Electric Extractor: Simply press the "ON" button. The pump will start, and the oil will begin to be drawn into the reservoir.

Continue the process until you hear a gurgling sound from the tube or see bubbles appearing inside it. This indicates that most of the oil has been drawn out. To ensure maximum removal, gently move the extraction tube around the bottom of the sump. This helps to dislodge any oil clinging to the sides or bottom.

Step 5: Stop the Extractor and Remove the Tube

Once the oil flow significantly slows or stops, it's time to shut down the extractor:

• Manual Extractor: Stop pumping. If there's a pressure release valve, open it to release any remaining vacuum.
• Pneumatic Extractor: Turn the valve or handle to shut off the compressed air supply.
• Electric Extractor: Press the "OFF" button and then disconnect the power leads from the battery.

Carefully disconnect the extraction tube from the extractor unit. Pull the tube out of the dipstick tube and use a clean rag to wipe off any residual oil from the tube and the surrounding engine area. Pour the extracted old oil from the extractor's reservoir into a suitable disposal container.

Step 6: Replace the Oil Filter and Add New Oil

With the old oil removed, it's time to replace the oil filter. Using the appropriate oil filter wrench, unscrew the old filter. Before installing the new one, apply a thin film of new engine oil to the rubber gasket of the new filter. Screw the new filter on by hand until the gasket makes contact, then tighten it an additional 3/4 to a full turn, or as per the filter manufacturer's instructions. Do not overtighten.

Now, locate the engine oil filler cap you removed earlier. Using a funnel, carefully pour the correct amount and grade of new engine oil into the engine. Refer to your vehicle's owner's manual for the exact specifications. Once filled, replace the oil filler cap securely.

Step 7: Final Checks and Cleanup

Start the engine and let it run for a few minutes. Check for any leaks around the oil filter and filler cap. Shut off the engine and wait a few minutes for the oil to settle back into the sump. Remove the dipstick, wipe it clean, reinsert it fully, and then remove it again to check the oil level. Top up if necessary. Finally, clean your oil extractor thoroughly and store it safely for its next use. Proper cleaning will extend its lifespan significantly.

Important Tips for Effective Oil Extraction

To ensure a smooth and trouble-free oil change using an extractor, keep these tips in mind:

1. Avoid Cold Oil: As mentioned, always warm the engine oil. Cold oil is thick and difficult to extract, potentially slowing down the process and even causing the extractor to jam.
2. Monitor Air Pressure (Pneumatic): If you're using a pneumatic extractor, never exceed the maximum air pressure recommended by the manufacturer. Over-pressurisation can damage the pump's internal components.
3. Have Rags Ready: Spills can happen, especially when disconnecting tubes. Always have plenty of clean rags or paper towels on hand to wipe up any drips and keep your workspace clean.
4. Adequate Reservoir Capacity: Be aware of your extractor's reservoir capacity. Larger engines may contain more oil than your extractor can hold in a single go. Have extra containers ready to transfer the used oil as needed.
5. Prompt Disposal: Never leave used engine oil sitting in the extractor's tank for an extended period. Transfer it to an appropriate, sealed container for proper disposal at a recycling centre or designated waste oil facility.
6. Clean After Use: This is crucial for the longevity and efficiency of your oil extractor. Cleaning it immediately after use prevents oil residue from hardening, which can cause blockages and reduce the pump's performance over time.
7. Tube Positioning: Experiment slightly with the position of the extraction tube within the sump to ensure you're drawing out as much oil as possible. Sometimes a slight angle can help reach trapped oil.
8. Check Your Manual: Always consult your vehicle's owner's manual for the correct oil type, capacity, and any specific recommendations regarding oil changes. Similarly, refer to your oil extractor's manual for its specific operating and maintenance instructions.

Frequently Asked Questions

Q1: Can an oil extractor remove all the old oil?

An oil extractor can remove the vast majority of the oil, but it may not get every last drop that a gravity drain might. However, for most practical purposes, it's highly effective, especially when the tube is moved around the sump to collect residual oil.

Q2: Is it safe to use an oil extractor on any car?

Yes, oil extractors are generally safe to use on most vehicles. The primary requirement is that the dipstick tube is accessible and of a size that can accommodate the extractor tube. Always confirm the tube diameter and length are suitable for your vehicle.

Q3: How long does it take to extract engine oil?

The time can vary depending on the type of extractor, the engine's oil capacity, and how warm the oil is. Typically, it can take anywhere from 10 to 30 minutes to extract the oil from an average car engine.

Q4: Can I reuse the old engine oil after extracting it?

Absolutely not. Used engine oil is contaminated with combustion by-products, metal particles, and other debris. It loses its lubricating properties and should always be disposed of responsibly.

Conclusion

Engine oil extraction offers a convenient and cleaner method for performing a crucial part of your vehicle's maintenance. By understanding the different types of extractors and following the correct procedures, you can efficiently change your engine oil and help prolong the life of your engine. Remember to always prioritise safety, use the right tools, and dispose of used oil responsibly. With a little practice, mastering the oil extraction process will become a straightforward part of your car care routine.
