Oil Flange Refill Guide

Maintaining the correct oil levels in your vehicle is paramount for its smooth operation and longevity. One crucial aspect of this is understanding how to properly refill oil flanges, particularly after a fluid change or in the event of a leak. While the process might seem straightforward, attention to detail is key to preventing further issues and ensuring your vehicle runs at its best. This guide will walk you through the essential steps, from draining the old fluid to refilling with fresh lubricant, focusing on the practicalities of dealing with oil flanges.

Understanding Oil Flanges and Their Importance

Oil flanges are essentially connection points where oil is either added or drained from a component within your vehicle’s powertrain. They are often found on gearboxes, differentials, and transfer cases (like the PTU mentioned in your query). These flanges typically have a threaded plug, often referred to as a filler plug or drain plug, which allows access to the internal oil reservoir. The integrity of these flanges and their associated seals is vital. A compromised flange or a loose plug can lead to significant oil loss, resulting in increased wear, overheating, and potentially catastrophic component failure. Therefore, a thorough understanding of how to service them is a valuable skill for any car owner.

The Draining Process: A Clean Start

Before you can refill, you must ensure all the old, degraded oil has been removed. This is not just about emptying the reservoir; it’s about removing contaminants that can hinder the performance of new oil. When you initiate the draining process:

• Locate the drain plug: This is usually at the lowest point of the component to allow for complete drainage.
• Prepare your receptacle: Ensure you have an oil drain pan of sufficient capacity to catch all the old fluid.
• Remove the plug: Carefully undo the filler plug (or drain plug, depending on the design, but in your case, it's the filler plug you'll be undoing after draining). It’s advisable to use the correct size wrench to avoid stripping the head. As you loosen it, be prepared for the oil to start flowing.
• Allow complete drainage: Let the old fluid drain out thoroughly. This can take some time, especially if the oil is cold. The provided information mentions letting the old fluid drain out, "taking any last drillings with it." This highlights the importance of this step in removing any metal shavings or debris that may have accumulated, which can be detrimental to the internal components.

Sealing and Preparation for Refilling

Once the old oil has completely drained, the next critical step is to prepare the flange for the new oil. This involves re-sealing the drain plug (or refitting it if it was the drain plug you removed for draining) and ensuring a watertight and oil-tight seal. The information you’ve provided is very specific here: "Once all the old oil has drained, simply refit and tighten the bolt with a copper sealing washer under the flanged head." This is a crucial detail:

• Inspect the plug: Check the drain plug and its threads for any damage.
• Fit a new washer: Always use a new sealing washer. Copper washers are excellent for creating a tight seal and are often crushable, meaning they deform slightly to fill any imperfections in the mating surfaces. Reusing an old washer can lead to leaks.
• Tighten appropriately: Refit the plug with the new washer and tighten it securely. Overtightening can damage the threads, while undertightening will almost certainly lead to leaks. Refer to your vehicle's service manual for the correct torque specification if available.

The Refilling Process: Choosing and Adding the Right Oil

With the drain plug securely in place, you can now proceed to refill the component with fresh oil. The correct type and grade of oil are essential for the performance and longevity of the component.

Choosing the Right Oil

Your query specifically mentions refilling the PTU (Power Transfer Unit) with "fresh 75w90." This is a common and important specification for many manual transmissions, differentials, and transfer cases. The "75w" indicates its viscosity at cold temperatures, while "90" indicates its viscosity at higher operating temperatures. It's vital to always use the oil grade and specification recommended by your vehicle manufacturer. Using the wrong type of oil can lead to:

• Incorrect lubrication: Leading to increased wear on gears and bearings.
• Overheating: Particularly if the oil is too thick at operating temperatures.
• Compatibility issues: Some modern lubricants contain specific additives designed for certain types of gears (e.g., limited-slip differentials) that could be damaged by incompatible oils.

Always consult your vehicle’s owner’s manual or a reputable service manual to confirm the exact type of oil required for your PTU or any other component.

The Refilling Procedure

The process of refilling is generally straightforward, but precision is key:

• Locate the filler plug: As stated, you'll "undo the filler plug and refill." This plug is typically located on the side or back of the component, often at a level that allows the oil to fill to the correct point.

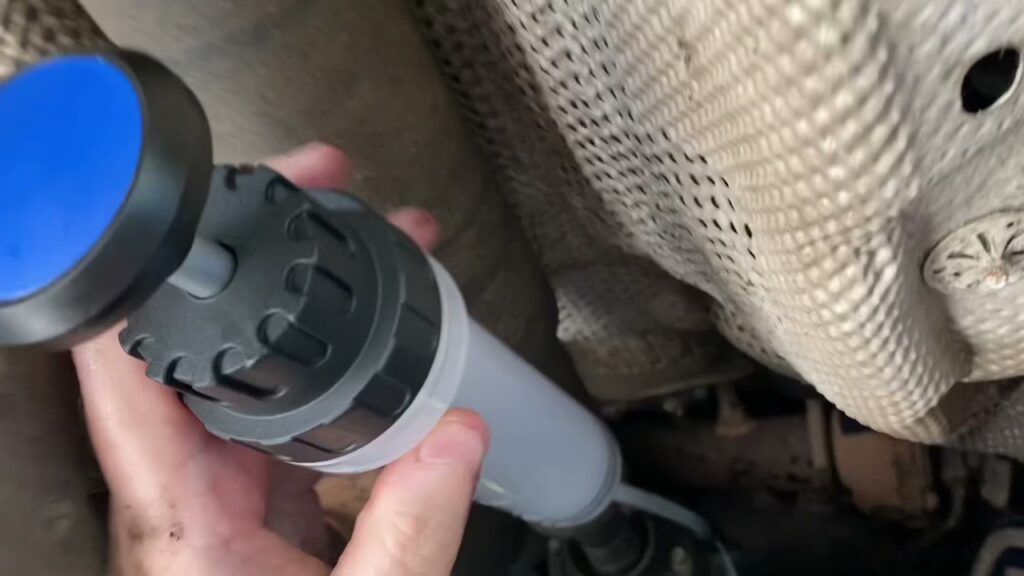

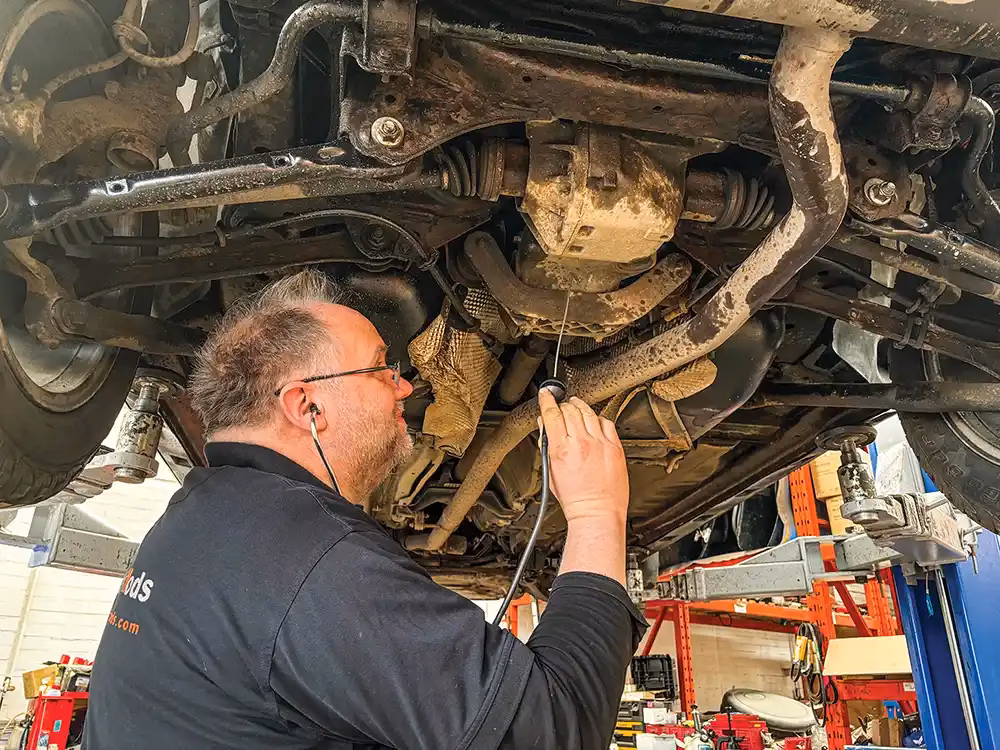

• Use a suitable filling method: Depending on the accessibility of the filler plug, you might use a funnel with a long, flexible tube, a hand pump, or a pressure filler. The goal is to introduce the oil cleanly and without spillage.
• Fill to the correct level: The general rule for many gearboxes and differentials is to fill until the oil just begins to trickle out of the filler hole. This ensures the component is neither overfilled nor underfilled. The provided text implies filling "through the bung on the back," which is the filler plug.
• Monitor the flow: As you add the oil, watch for it to start seeping out of the filler hole. Once it does, stop adding oil.
• Replace the filler plug: Once the oil has reached the correct level, clean around the filler plug hole and refit the plug. Again, ensure it is tightened appropriately, using a new sealing washer if required by the design.

Post-Refill Checks and Considerations

After completing the refill, it’s essential to perform a few checks to ensure everything is in order:

• Clean up: Wipe away any spilled oil from the component and surrounding areas.
• Start the engine: Start the vehicle and let the engine run for a few minutes. This allows the new oil to circulate.
• Check for leaks: While the engine is running and after it has been turned off, carefully inspect the filler plug and drain plug areas for any signs of leaks. A small weep might be acceptable immediately after a change, but persistent leaks indicate a problem with the sealing.
• Test drive: Take the vehicle for a short test drive. Listen for any unusual noises and pay attention to how the vehicle performs.
• Re-check oil level (if applicable): For some components, it might be necessary to re-check the oil level after the initial test drive, as the oil may settle or circulate differently once the component has been under load.

Common Mistakes to Avoid

Several common pitfalls can occur when refilling oil flanges. Being aware of these can help you perform the job correctly:

• Using the wrong oil: As discussed, this is a critical error that can lead to premature wear.
• Not draining completely: Leaving old, contaminated oil in the system will dilute the effectiveness of the new oil.
• Reusing old sealing washers: This is a primary cause of leaks after an oil change.
• Overtightening or undertightening plugs: Both can lead to leaks or damage to threads.
• Overfilling: While less common than underfilling, overfilling can cause excessive pressure within the component, leading to seal damage and leaks, and can also cause foaming of the oil, reducing its lubricating properties.

Frequently Asked Questions

Q1: How often should I check my vehicle's oil levels?
It’s recommended to check your engine oil level regularly, typically every few thousand miles or at least once a month. For other components like gearboxes and differentials, consult your owner's manual for the recommended service intervals.

Q2: What are the symptoms of low oil in a PTU?
Symptoms can include whining or humming noises, especially when accelerating or decelerating, increased vibration, difficulty shifting gears (if applicable), and in severe cases, a complete loss of drive or component failure.

Q3: Can I use a universal oil if the exact type isn't available?
It's strongly advised against using universal oils unless they explicitly meet the manufacturer's specifications for your vehicle. The specific additive packages in automotive oils are crucial for proper function and protection.

Q4: How do I know if I have a leak from the oil flange?
Look for oil stains on the ground beneath your vehicle, particularly around the component in question. You might also notice a burning oil smell if oil is dripping onto hot exhaust components.

Q5: What is the purpose of a copper sealing washer?
A copper sealing washer is designed to deform slightly when the plug is tightened, creating a very effective seal that prevents oil from leaking out. It's particularly useful for components that experience vibration.

Conclusion

Refilling oil flanges, such as the filler plug on a PTU with 75w90 oil, is a critical maintenance task. By carefully draining the old fluid, ensuring a proper seal with a new washer, and refilling with the correct grade of oil to the appropriate level, you can maintain the health and efficiency of your vehicle’s components. Always refer to your vehicle’s specific service manual for detailed procedures and specifications to ensure you carry out the maintenance correctly. Proper care and attention to detail in these seemingly small tasks will undoubtedly contribute to a longer and more reliable service life for your car.
