FJ Cruiser Gear Oil Change Guide

Keeping Your FJ Cruiser's Drivetrain Healthy: A Gear Oil Change

The gear oil in your Toyota FJ Cruiser's differential plays a crucial role in its performance and longevity, especially for those who put their rig through its paces off-road. This essential fluid minimises friction and wear on your differential gears, ensuring your vehicle powers forward reliably. Changing this oil is a straightforward maintenance task that not only saves you money but also provides valuable insight into your 4x4's internal workings. Understanding this process can be incredibly beneficial, especially when you're out on the trail and knowledge is power.

Choosing the Right Gear Oil

The first, and perhaps most important, decision is selecting the correct gear oil. For a 2007 Toyota FJ Cruiser, the manufacturer's manual specifies Hypoid gear oil APL GL-5. Many owners opt for synthetic lubricants for enhanced protection, especially in demanding off-road conditions. Amsoil Severe Gear SAE 75W-90 synthetic extreme pressure lubricant is a popular choice, formulated for severe duty applications. If your FJ Cruiser is equipped with an e-locker, you'll need approximately 3.01 to 3.12 quarts to adequately fill the rear axle housing.

Essential Parts and Tools

Before you begin, ensure you have the necessary parts and tools. The most critical parts are new drain and fill plug gaskets (part number 1215710010). It's highly recommended to replace these with every oil change to ensure a proper seal and prevent leaks. Trying to reuse old gaskets, especially if you're not performing an emergency trail repair, is a false economy. Consider purchasing a complete set of differential and transfer case gaskets for your FJ Cruiser, as these will also fit other Toyota models like the Lexus GX470 and 4Runner.

The tools you'll likely need are:

• 24mm socket and socket wrench
• Torque wrench
• Funnel with a flexible tube (a Hopkins FloTool 10704 Spill Saver Measu-Funnel is a good option)
• Shop rags
• Oil catch pan (a Blitz 11837 10 Quart Oil Drain is suitable)
• Nitrile or latex gloves (this job can be messy!)

The Step-by-Step Gear Oil Change Process

With your parts and tools gathered, it's time to get to work. Always perform this maintenance on a flat, level surface to ensure accurate draining and refilling.

Preparation: Clean the axle housing thoroughly with soapy water and a scrub brush to remove any accumulated road grime or trail dirt. This will prevent contaminants from entering the differential during the oil change.

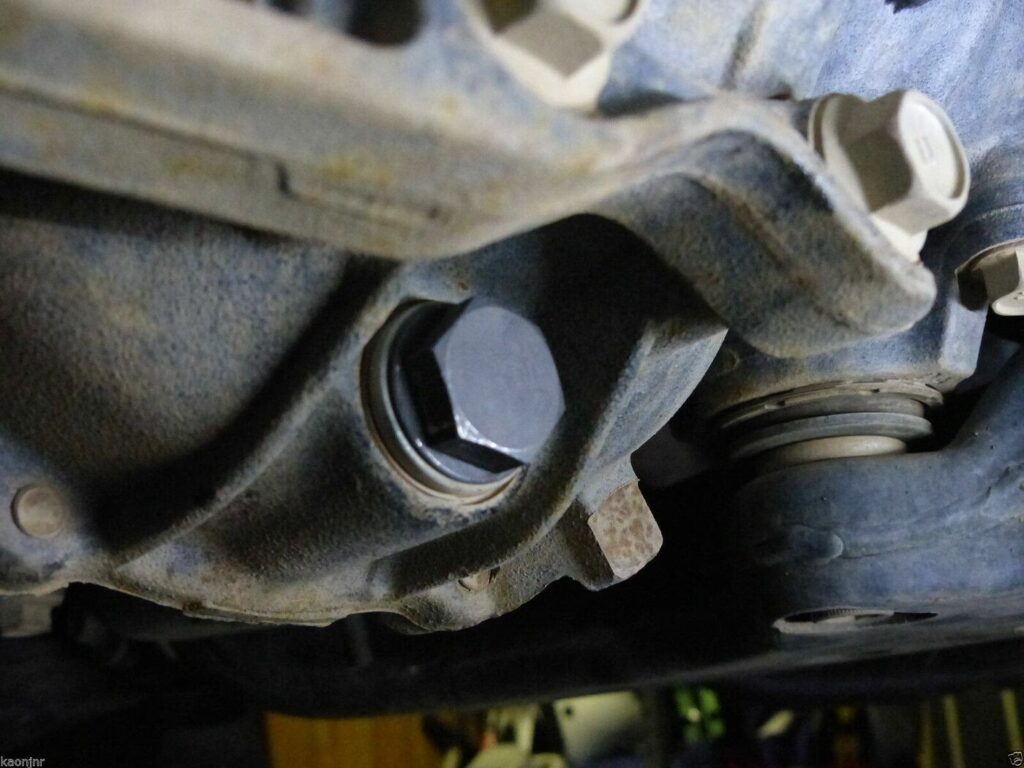

1. Remove the Fill Plug: Using your 24mm socket, carefully remove the fill plug, which is typically located in the middle section of the rear axle housing. Removing this plug first allows the housing to "breathe," which aids in a faster and more complete oil drain.
2. Remove the Drain Plug: Position your oil catch pan beneath the rear axle housing. Now, using the 24mm socket, remove the drain plug located at the very bottom of the housing. This is the moment to put on your gloves, as the old gear oil will start to flow out.
3. Inspect the Drain Plug: The drain plug usually has a magnetic insert designed to capture tiny metal shavings suspended in the oil. These shavings are a natural byproduct of gear wear. Inspect the plug carefully. Look for any large chunks of metal or excessive amounts of fine metal particles. The amount of material on the magnet can give you a good indication of the internal condition of your differential.
4. Drain the Old Oil: Even with the fill plug removed, it will take some time for all the old gear oil to drain out. This waiting period is a good opportunity to clean the drain and fill plugs, removing all the accumulated gunk and metal shavings. Ensure the plugs are clean and dry before reinstallation.
5. Reinstall the Drain Plug: Once the oil has completely drained, wipe the area around the drain plug opening clean. Re-insert the drain plug with a new gasket. Hand-tighten it first, then use your torque wrench to tighten it to the manufacturer's specifications. For a 2007 Toyota FJ Cruiser, the specified torque for both the drain and fill plugs is 36 foot-pounds (ft-lbs).
6. Refill with New Oil: This is where the funnel with the flexible tube comes in handy. Attaching the flexible tube to the bottle cap, as with the Hopkins FloTool, can make the process much cleaner and easier. Carefully squeeze the new gear oil into the axle housing through the fill hole. It can be a slow process with thick 90-weight oil. A good technique is to give the bottle a few long squeezes, allow air to flow back in, and then continue squeezing. You'll need to add approximately 3.01 to 3.12 quarts for an e-locker equipped FJ Cruiser.
7. Check the Fill Level: On a flat, level surface, the correct oil level is when the oil is just about to run out of the fill hole, or within about 5mm of the opening.
8. Reinstall the Fill Plug: Once the correct level is achieved, hand-tighten the fill plug with its new gasket. Then, use your torque wrench to tighten it to the specified 36 ft-lbs.
9. Final Checks: Wipe down the entire axle area to remove any residual oil. After a short test drive around the block, check again for any signs of leaks around the drain and fill plugs.

Understanding Your FJ Cruiser's Differential

The Toyota FJ Cruiser is renowned for its off-road prowess, and a key component contributing to this capability is its locking rear differential. This system is designed to overcome challenging terrain where one or both rear wheels might lose traction. When activated, the locking differential creates a rigid connection between the rear wheels, forcing them to rotate at the same speed. This ensures that power is delivered to the wheel with grip, allowing you to drive out of sticky situations like being stuck in mud or on uneven surfaces.

Engaging the locking rear differential is typically done via a switch on the dashboard, often labelled "RR DIFF LOCK." For optimal engagement, it's recommended to push the switch while gently applying the accelerator. To disengage, simply press the switch again. It's crucial to unlock the differential as soon as you regain traction and are driving on a normal surface to prevent excessive wear on the drivetrain components and tyres. For easier unlocking, try turning the steering wheel slightly while the vehicle is moving.

The FJ Cruiser comes standard with a rear locking differential, enhancing its off-road performance significantly. For even greater capability, aftermarket front-locking differentials can also be installed.

Common Questions and Considerations

How long does it take to change gear oil on a Toyota FJ Cruiser?

For an experienced individual with all the necessary tools and parts, a rear differential oil change on an FJ Cruiser can typically be completed in about 60 minutes. This includes the time for draining, cleaning, refilling, and torquing the plugs.

Does the FJ Cruiser have a differential?

Yes, the Toyota FJ Cruiser is equipped with a differential, and specifically a rear locking differential. This is a vital feature for its off-road capabilities, allowing it to maintain traction in challenging conditions.

Is Delvac gear oil good for FJ Cruisers?

While Delvac is a reputable brand, the critical factor is using oil that meets the manufacturer's specifications, which for the FJ Cruiser is APL GL-5. Many enthusiasts prefer synthetic oils like Amsoil for their superior performance in extreme conditions. Always check your owner's manual for the precise specifications. When travelling internationally, as one user noted, it can be practical to use oils that are widely available and commonly used by local garages to ensure ease of access and reasonable pricing.

Regularly changing your gear oil is a fundamental maintenance task that will contribute to the overall health and longevity of your Toyota FJ Cruiser. By following these steps, you can confidently maintain your rig and ensure it's ready for your next adventure.
