Brake Pad & Caliper Replacement Guide

Mastering Brake Maintenance: Your Guide to Replacing Pads and Calipers

The braking system is arguably the most critical safety feature on any vehicle. It's the component that allows you to control your speed and, more importantly, to stop effectively. Over time, wear and tear are inevitable, and the components that bear the brunt of this are your brake pads and, in some cases, the brake calipers. Knowing how to replace these parts is a valuable skill for any car owner, potentially saving you a significant amount on labour costs and ensuring your vehicle remains roadworthy. This guide will walk you through the process, focusing on the common procedures you'll encounter when tackling brake pad and caliper replacement on your vehicle, assuming you're based in the UK and dealing with typical front-wheel disc brake systems.

Understanding Your Braking System Components

Before diving into the replacement process, it's essential to understand the key players:

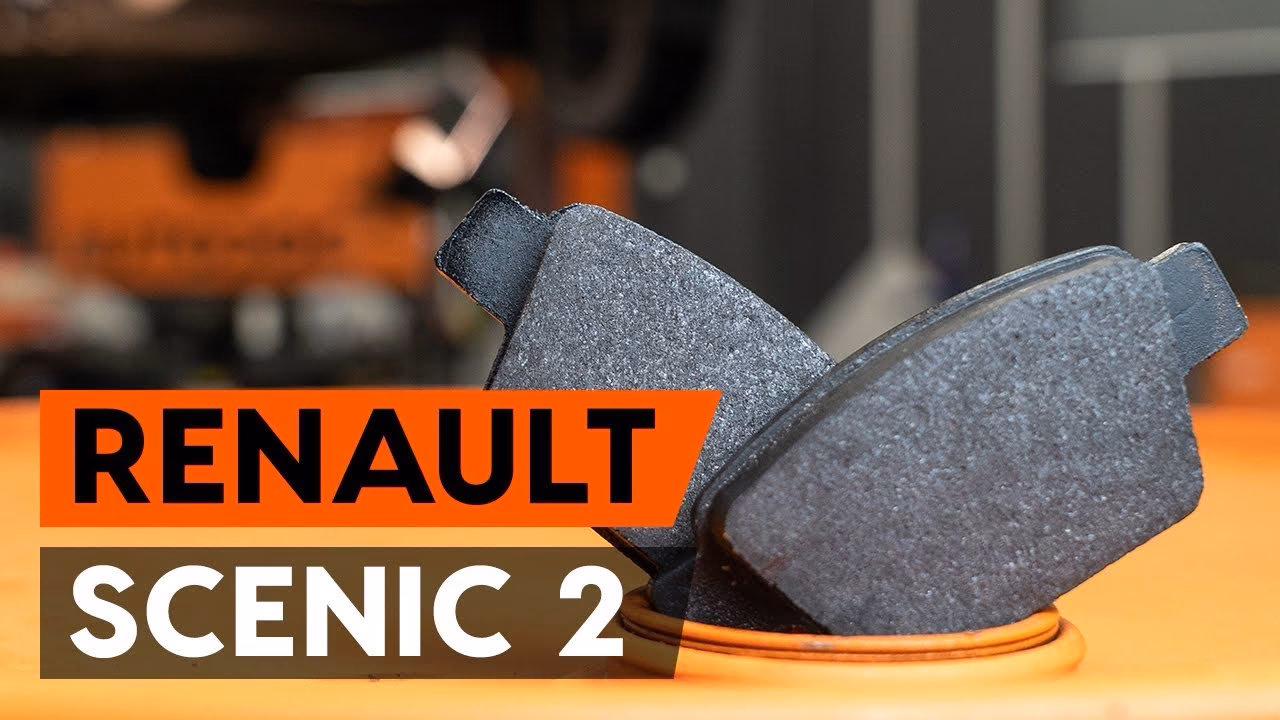

• Brake Pads: These are the friction material that presses against the brake disc (rotor) to slow the vehicle down. They are designed to wear out over time and are the most frequently replaced part of the braking system.
• Brake Calipers: The caliper houses the brake pads and acts like a clamp. When you apply the brakes, hydraulic fluid pushes pistons within the caliper, forcing the pads to grip the rotor. Calipers can sometimes seize or leak, necessitating replacement.
• Brake Discs (Rotors): These are the metal discs that the pads clamp onto. While this guide focuses on pads and calipers, it's often a good idea to inspect your discs for wear, scoring, or warping when you're doing this work.
• Brake Fluid: This hydraulic fluid transmits the force from your foot on the brake pedal to the calipers. It's crucial to maintain the correct level and condition of brake fluid.

When to Replace Brake Pads and Calipers

Several signs indicate it's time for new brake pads or potentially a caliper issue:

• Squealing or Grinding Noises: Most brake pads have a small metal wear indicator that squeals when the pad material is low. A grinding noise often indicates the pads have worn down to the metal backing plate, which can damage the discs.
• Reduced Braking Performance: If your car takes longer to stop or feels less responsive, your pads may be worn.
• Vibration or Pulsation: This can be a sign of warped brake discs, but sometimes a sticking caliper can cause uneven pad wear leading to similar symptoms.
• Brake Warning Light: Many modern cars have sensors that trigger a dashboard warning light when brake pads are critically low.
• Leaking Fluid: If you notice fluid under your car, particularly around the wheels, it could indicate a leaking brake caliper.
• Sticking Brake: If a wheel feels unusually hot after driving or the car pulls to one side under braking, a caliper may be sticking.

Essential Tools and Safety Precautions

Before you begin, gather the necessary tools and prioritise safety. Working on brakes involves critical safety systems, so meticulousness is paramount.

Tools You'll Need:

• New brake pads (ensure they are the correct type for your vehicle)
• New brake caliper (if replacing)
• Jack and axle stands (never rely solely on a jack)
• Wrench set (metric and imperial, depending on your vehicle)
• Socket set and ratchet
• Pry bar or large flathead screwdriver
• C-clamp or piston compression tool
• Wire brush
• Brake cleaner
• Anti-seize compound (optional, for caliper bolts)
• Gloves and eye protection
• Torque wrench (highly recommended for reassembly)
• Container for old brake fluid (if bleeding is required)

Safety First!

• Work on a level surface: Ensure your vehicle is parked on a flat, stable area.
• Engage the handbrake: Apply the handbrake firmly. If working on the rear brakes, you might need to chock the front wheels.
• Use axle stands: Once the car is jacked up, always support it with sturdy axle stands. Never get under a vehicle supported only by a jack.
• Wear protective gear: Gloves and eye protection are essential to protect yourself from brake dust and fluid.
• Understand your vehicle: Consult your vehicle's owner's manual or a repair manual for specific procedures and torque settings.

Step-by-Step Guide to Replacing Brake Pads

This process is generally applicable to most front-wheel disc brake systems. Rear brakes might have additional components like parking brake mechanisms.

Step 1: Prepare the Vehicle

Loosen the lug nuts on the wheel you'll be working on by about half a turn. Do not remove them yet. Jack up the vehicle at the designated jacking point for that corner and place an axle stand securely underneath the chassis or a strong frame point. Lower the vehicle onto the axle stand, ensuring it's stable. Now, remove the lug nuts and take off the wheel.

Step 2: Inspect the Caliper and Pads

You'll now see the brake caliper covering the brake disc. Identify the caliper mounting bolts, usually located on the back of the caliper. These often have dust caps that need to be removed. You may also find a retaining clip or pin holding the pads in place. Note the orientation of the pads and any shims or anti-squeal hardware.

Step 3: Remove the Caliper

To access the pads, you typically need to remove the caliper from the disc. This usually involves undoing the two caliper mounting bolts. On many vehicles, only the lower bolt acts as a pivot, allowing the caliper to be swung upwards. If both bolts need to be removed, or if the caliper is seized, you'll need to support the caliper to prevent strain on the brake line. A piece of wire or a dedicated caliper hanger is ideal. Never let the caliper hang by the brake hose, as this can damage the hose. Once the bolts are removed, you can carefully lift the caliper off the disc and pads.

Step 4: Remove the Old Brake Pads

With the caliper removed, the old brake pads should be visible. They are usually held in place by clips or simply slide out. You might need to use a pry bar or screwdriver to gently lever them out. Pay attention to how they are seated, especially if there are shims or anti-squeal plates attached.

Step 5: Compress the Caliper Piston(s)

This is a crucial step when replacing pads, and absolutely necessary if you're fitting new, thicker pads. The piston(s) in the caliper will need to be pushed back into the caliper body to make space for the new, thicker pads. You can use a C-clamp with an old brake pad placed against the piston to push it back gradually. Alternatively, a dedicated brake caliper piston compression tool makes this easier and safer. As you compress the piston, monitor the brake fluid reservoir under the bonnet; you may need to remove some fluid to prevent it from overflowing, especially if the fluid level is already high. Do not open the bleed nipple at this stage unless you intend to bleed the system, as this can introduce air.

Step 6: Install New Brake Pads

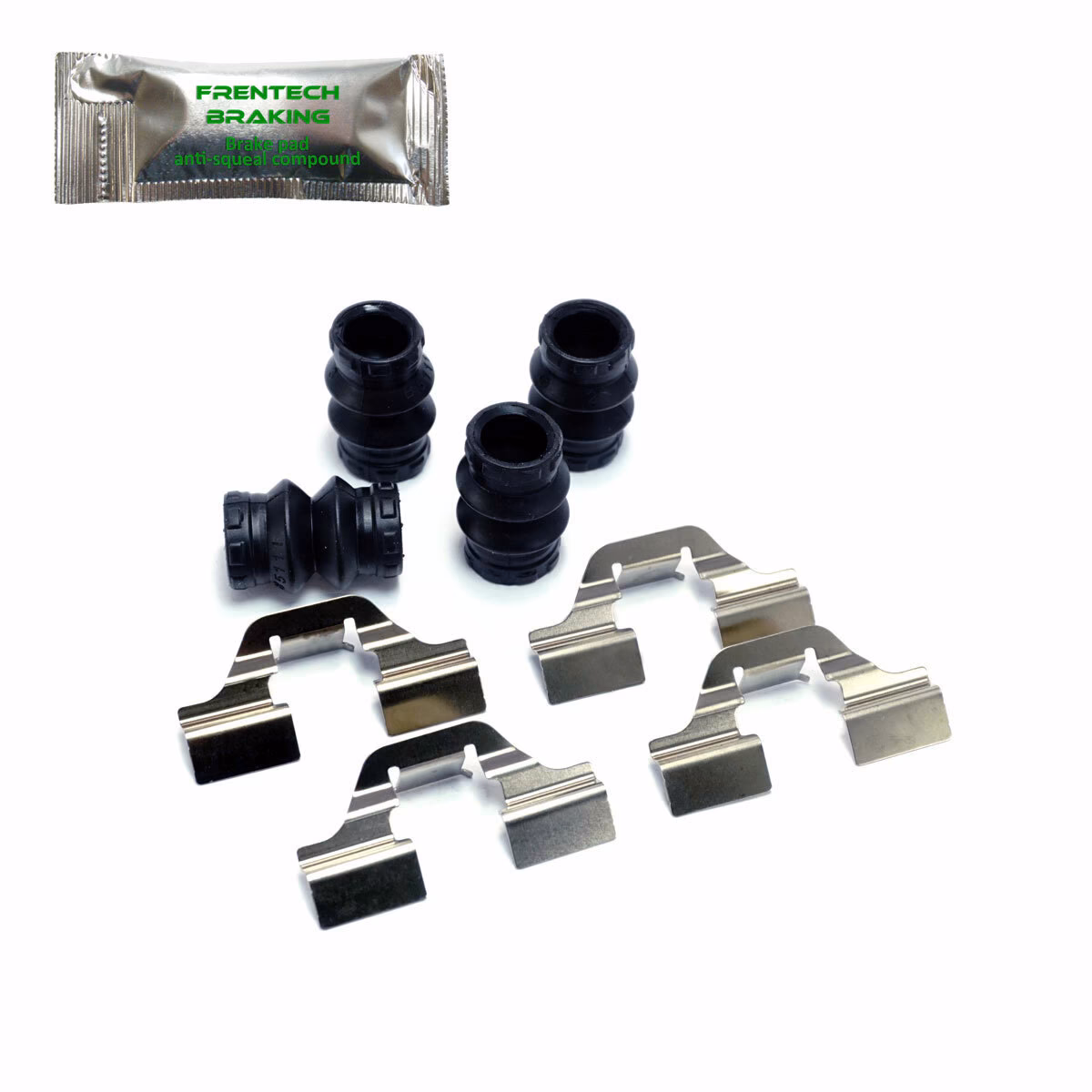

Clean the caliper bracket where the pads sit with a wire brush to remove any rust or debris. Apply a small amount of brake grease or anti-seize compound to the contact points of the new pads (where they slide in the bracket) and any shims. This helps prevent future squealing. Slide the new pads into the caliper bracket, ensuring they are seated correctly and in the same orientation as the old ones.

Step 7: Reassemble the Caliper

Carefully place the caliper back over the new pads and disc. Re-insert the caliper mounting bolts. If you removed both bolts, ensure they are threaded in correctly. Tighten the bolts to the manufacturer's specified torque setting using a torque wrench. If you only loosened the caliper to swing it up, swing it back down and re-secure the pivot bolt, again tightening to the correct torque.

Step 8: Reinstall the Wheel and Lower the Vehicle

Put the wheel back on the car and hand-tighten the lug nuts. Lower the vehicle off the axle stand. Once the car is on the ground, tighten the lug nuts in a star pattern to the manufacturer's specified torque. Now, repeat the entire process for the other side of the same axle. It's vital to replace brake pads in pairs on the same axle for even braking performance.

Step 9: Bedding In New Brake Pads

After replacing the pads, pump the brake pedal several times until it feels firm. This seats the pads against the discs and pushes the caliper piston back out. The first few miles of driving are critical for bedding in the new pads. Drive gently and avoid heavy braking. Most manufacturers recommend a series of moderate stops from around 30-40 mph down to 10 mph, without coming to a complete halt, followed by a period of normal driving. Consult your new pad's manufacturer for specific bedding-in procedures, as this process ensures optimal performance and longevity.

Replacing a Seized or Faulty Brake Caliper

If you've identified a caliper issue (leak, sticking, or significant corrosion), replacement is necessary. The process is similar to pad replacement, with a few extra steps:

Step 1: Remove the Caliper

Follow Steps 1-4 from the brake pad replacement guide. Once the caliper is off, you'll need to disconnect the brake line from the caliper. This usually involves a banjo bolt with copper washers or a flare nut fitting. Have a container ready to catch any escaping brake fluid. Be prepared for some fluid loss.

Step 2: Remove the Old Caliper

With the brake line disconnected and the caliper mounting bolts removed, the old caliper can be taken off the vehicle. If the caliper is seized onto its mounting bracket, you might need to carefully work it free.

Step 3: Prepare the New Caliper

New calipers often come with protective plugs in the fluid ports. Remove these just before installation. If your new caliper doesn't come with new mounting bolts or pins, it's good practice to replace them. Also, ensure you have new copper washers for the banjo bolt if applicable.

Step 4: Install the New Caliper

Connect the brake line to the new caliper. Use new copper washers if required and tighten the banjo bolt to the correct torque. Ensure the brake line is not twisted. Mount the caliper onto the bracket using its mounting bolts, tightening them to the specified torque. Install the new brake pads as described in Step 6 of the pad replacement guide.

Step 5: Bleed the Brake System

This is a crucial step after caliper replacement. Air will have entered the brake system when the line was disconnected. Bleeding removes this air and ensures proper hydraulic function. This is often a two-person job. One person pumps the brake pedal while the other opens and closes the bleed nipple on the caliper. Start with the caliper furthest from the master cylinder and work your way closer. Ensure the brake fluid reservoir is kept topped up during bleeding. If you're unsure about bleeding, it's best left to a professional.

Step 6: Final Checks and Bedding In

Once bled, re-check all connections for leaks and ensure all bolts are torqued correctly. Reinstall the wheel, lower the vehicle, and tighten the lug nuts. Then, pump the brake pedal until it feels firm. Follow the bedding-in procedure for the new pads as described earlier.

Common Issues and Troubleshooting

Frequently Asked Questions

Q1: How often should I replace my brake pads?

A: This varies greatly depending on your driving style and the type of pads fitted. A general guideline is every 20,000 to 40,000 miles, but you should always inspect them regularly. Listen for noises and check the pad thickness.

Q2: Can I replace just one brake pad?

A: No. Brake pads must always be replaced in pairs on the same axle (both front or both rear) to ensure even braking distribution and prevent uneven wear or pulling.

Q3: Do I need to replace my brake discs when I replace the pads?

A: Not always, but it's highly recommended if the discs are worn below their minimum thickness, are heavily grooved, or show signs of warping (pulsation). If the discs are in good condition, they can often be re-used.

Q4: Why is it important to bed in new brake pads?

A: Bedding in, or 'burnishing', ensures the pad material is evenly transferred to the disc surface. This process optimises braking performance, reduces noise, and prolongs the life of both pads and discs.

Q5: What happens if I don't replace worn brake pads?

A: Worn pads will significantly reduce your car's stopping power, increasing the risk of an accident. Eventually, the metal backing plate of the pad will grind against the brake disc, causing expensive damage to the discs and potentially the caliper.

Conclusion

Replacing brake pads and calipers is a rewarding DIY task that can save you money and give you peace of mind. However, it requires attention to detail, the right tools, and a commitment to safety. If at any point you feel uncomfortable or unsure about any step, it is always best to consult a qualified mechanic. Regular inspection and maintenance of your braking system are paramount to ensuring your safety and the safety of others on the road.
