DIY Mazda MX-5 ND Brake Pad Replacement Guide

Maintaining your Mazda MX-5 ND's braking system is paramount for both safety and performance. As a true driver's car, the MX-5 relies heavily on responsive and effective brakes to deliver that exhilarating, connected-to-the-road feel. Over time, brake pads wear down, reducing stopping power and potentially causing damage to other components if left unattended. Replacing them yourself is a rewarding DIY task that can save you a significant amount of money compared to garage labour costs, and it provides invaluable insight into your vehicle's mechanics. This guide will walk you through the process, ensuring you have the knowledge and confidence to tackle this essential maintenance job on your 2015+ (Mk4) MX-5.

Understanding Your MX-5's Braking System

Before diving into the replacement, it's beneficial to understand the basic components involved. Your MX-5’s braking system consists of brake pads, brake discs (rotors), calipers, and brake fluid lines. When you press the brake pedal, hydraulic pressure forces the caliper piston to squeeze the brake pads against the spinning brake disc, creating friction that slows and stops the wheel. Worn pads reduce this friction, increasing stopping distances and potentially leading to a dangerous situation. Regular inspection and timely replacement are key to maintaining optimal braking performance.

When to Replace Your Brake Pads

Several indicators suggest it's time for new brake pads:

• Squealing or Grinding Noises: Many pads have a wear indicator that emits a high-pitched squeal when they're low. A grinding noise indicates metal-on-metal contact, meaning the pads are completely worn and the disc is being damaged.
• Reduced Braking Performance: If your car takes longer to stop or the brake pedal feels spongy.
• Vibrations: A pulsing or vibrating sensation through the brake pedal or steering wheel can indicate warped discs, often caused by excessively worn pads or overheating.
• Visual Inspection: Most pads have a minimum thickness. If the friction material is less than 3mm-4mm thick, it’s time for replacement.

Tools and Materials You'll Need

Having the right tools makes the job much smoother and safer. Here’s a comprehensive list:

• New brake pads (ensure they are for your specific MX-5 ND model and axle – front or rear)
• Jack and jack stands (essential for safety)
• Wheel chocks
• Torque wrench
• Socket set (typically 14mm, 17mm, 19mm for caliper bolts and lug nuts)
• Breaker bar (for stubborn lug nuts)
• C-clamp or brake caliper piston compression tool
• Wire brush (for cleaning caliper brackets)
• Brake cleaner spray
• High-temperature brake grease (synthetic, silicone-based)
• Disposable gloves
• Eye protection
• Drain pan (if bleeding brakes, though not usually required for just pads)
• Shop rags or old towels
• Flathead screwdriver (optional, for prying)

Safety First: Crucial Precautions

Working on your vehicle's braking system requires strict adherence to safety protocols. Never compromise on these steps:

• Always work on a flat, level surface.
• Use wheel chocks on the wheels that will remain on the ground.
• Engage the parking brake.
• Always use jack stands to support the vehicle once it’s lifted. Never rely solely on a jack.
• Wear eye protection to guard against brake dust and chemicals.
• Wear gloves to protect your hands from grease, dirt, and brake fluid.
• Allow the brakes to cool down completely before starting work.

Step-by-Step Brake Pad Replacement Guide

1. Prepare the Vehicle

Park your MX-5 on a flat, stable surface. Engage the parking brake. If you're working on the front brakes, chock the rear wheels. If working on the rear, chock the front wheels. Using a breaker bar, slightly loosen the lug nuts on the wheel(s) you'll be removing while the car is still on the ground. This makes them easier to remove once the car is lifted.

2. Jack Up and Secure the Vehicle

Locate the designated jacking points on your MX-5 (refer to your owner's manual for precise locations). Place your jack under the jacking point and raise the vehicle until the wheel is off the ground. Carefully position jack stands under the appropriate support points near the jacking point, ensuring they are stable and secure. Slowly lower the vehicle onto the jack stands. Once the weight is fully on the stands, remove the jack (or leave it in place for extra security, but not bearing the full weight).

3. Remove the Wheel

With the vehicle safely on jack stands, fully unscrew the lug nuts and carefully remove the wheel. Set it aside in a safe place, out of your working area.

4. Inspect Brake Components

Before removing anything, take a moment to inspect the brake pads, discs, and caliper. Note the condition of the existing pads – how much friction material is left? Look at the brake disc for signs of excessive wear, deep grooves, cracks, or discolouration (blueing indicates overheating). Check the caliper for leaks or damage to the rubber boots.

Important Note on Disc Machining: If your brake discs show signs of uneven wear or significant runout (wobble), they may need machining. It is critical to note that excessive runout may result if the disc plate is removed from the vehicle then machined. Machine the disc plate while installed on the vehicle. This ensures concentricity with the hub, which is vital for smooth braking. If you don't have access to on-car machining equipment, or if the discs are below their minimum thickness specification (stamped on the disc's edge), they should be replaced entirely.

5. Remove Caliper Bolts

The brake caliper is typically held in place by two guide pin bolts, usually located on the back of the caliper. These are often 14mm or 17mm. Use your socket wrench to loosen and remove these bolts. Once removed, carefully slide the caliper off the disc and hang it securely using a wire or bungee cord from the suspension spring or frame. Never let the caliper hang by the brake hose, as this can damage the hose and lead to a dangerous brake fluid leak.

6. Remove Old Pads and Shims

With the caliper out of the way, you can now easily slide out the old brake pads from the caliper bracket. Note how they were installed, paying attention to any shims or anti-rattle clips. Remove these as well. Some MX-5 models may have retaining clips or springs that need to be carefully removed first.

7. Compress the Caliper Piston

Before installing new, thicker pads, the caliper piston needs to be retracted into the caliper bore. This creates space for the new pads. Place one of the old brake pads against the piston (to protect it) and use a C-clamp or a dedicated brake caliper piston compression tool to slowly and steadily push the piston back into the caliper. As you do this, keep an eye on the brake fluid reservoir under the bonnet – the fluid level will rise as the piston is pushed back. If it's at or near the 'Max' line, you may need to siphon off a small amount of fluid to prevent it from overflowing. Be careful not to let brake fluid drip onto painted surfaces, as it can damage paint.

8. Clean the Caliper Bracket

Use a wire brush to thoroughly clean any rust, dirt, and old grease from the caliper bracket, especially where the brake pads sit and slide. This ensures the new pads can move freely and prevents noise or uneven wear. Once cleaned, spray with brake cleaner to remove any remaining debris and allow it to dry.

9. Install New Shims and Pads

Apply a thin layer of high-temperature brake grease to the back of the new brake pads where they contact the caliper piston and the caliper bracket. Also, apply grease to the contact points of any new shims or anti-rattle clips supplied with your new pads. Install the shims onto the pads (if they weren't pre-attached) and then carefully slide the new pads into the caliper bracket, ensuring they are correctly oriented and sit flush. The inner pad (the one that contacts the piston) and the outer pad may be different, so pay attention to the manufacturer's instructions.

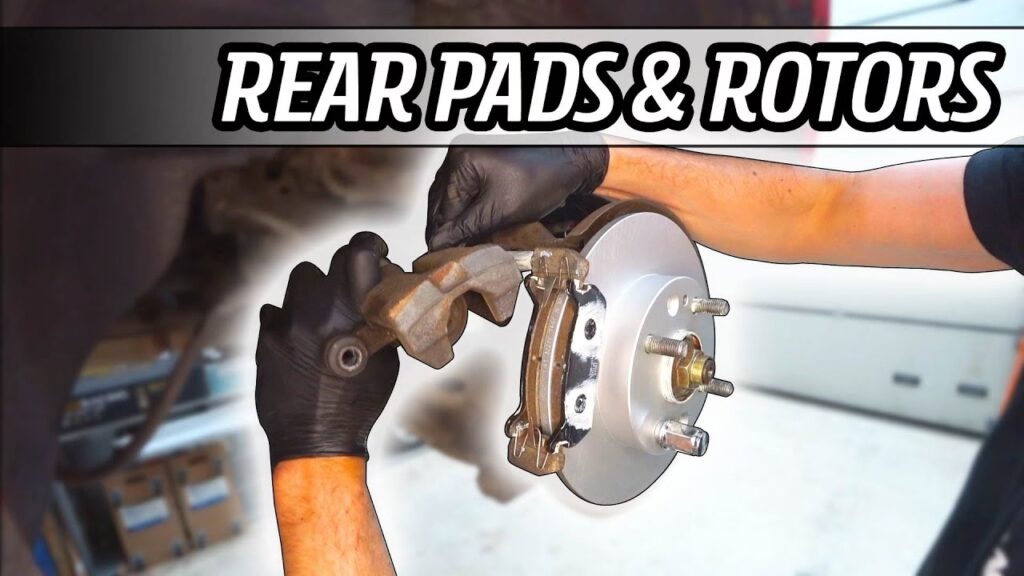

10. Reinstall the Caliper

Carefully slide the caliper back over the new brake pads and disc. Align the guide pin holes and reinsert the caliper guide pin bolts. Hand-tighten them first, then use your torque wrench to tighten them to the manufacturer's specified torque (consult your MX-5's service manual or a reliable online resource for the exact torque specification, as it's crucial for safety). Do not overtighten, as this can damage the bolts or caliper.

11. Reinstall the Wheel and Lower the Vehicle

Place the wheel back onto the hub and hand-tighten the lug nuts. Raise the vehicle slightly with the jack to remove the jack stands, then lower the car fully to the ground. Once on the ground, use your torque wrench to tighten the lug nuts to the specified torque in a star pattern. This ensures even pressure and prevents the wheel from coming loose.

12. Repeat for Other Wheels (If Applicable)

If you are replacing pads on more than one wheel (which is highly recommended to do axle by axle – both front or both rear, never just one side), repeat these steps for the remaining wheels.

13. Pump the Brake Pedal and Check Fluid

Before driving, get into the car and slowly and repeatedly pump the brake pedal. It will likely feel soft at first. This action pushes the caliper piston out, seating the new pads against the disc. Continue pumping until the pedal feels firm. With the engine off, check the brake fluid reservoir level again. Top it up to the 'Max' line if necessary using the correct type of brake fluid specified for your MX-5 (usually DOT3 or DOT4).

Bedding-In New Brake Pads

This is a critical step often overlooked, but vital for optimal performance and longevity of your new pads and discs. Bedding-in (also known as 'burnishing') helps transfer an even layer of friction material from the pad to the disc, creating a consistent braking surface and preventing issues like squealing and judder. The exact procedure can vary slightly depending on the pad manufacturer, so always check their recommendations. A common bedding-in procedure involves:

• Find a safe, open road where you can accelerate and brake without interruption.
• Perform 6-10 moderate stops from approximately 60 mph down to 10 mph. Do not come to a complete stop.
• Allow approximately 30 seconds between stops for the brakes to cool slightly.
• After these stops, drive for several minutes without braking to allow the system to cool down completely.
• Avoid harsh braking for the next 100-200 miles.

Common Issues and Troubleshooting

Squealing Brakes:

Often caused by improper bedding-in, lack of brake grease on contact points, or cheap pads. Ensure all shims and anti-rattle clips are installed correctly and that the caliper bracket is clean and lubricated.

Soft Brake Pedal:

Typically means there's air in the brake lines. While usually not necessary for just a pad replacement, if the fluid reservoir ran low or a line was opened, you might need to bleed the brake system. This involves removing air bubbles by opening bleed nipples at each caliper while depressing the brake pedal.

Vibrations/Judder:

Can indicate warped discs or uneven pad material transfer due to incorrect bedding-in. If discs were not replaced, check their runout. If they were replaced, re-do the bedding-in procedure carefully.

Comparative Table: Types of Brake Pads for MX-5 ND

Choosing the right brake pads can significantly impact your MX-5's braking feel and performance. Here's a comparison of common types:

Frequently Asked Questions (FAQs)

Q: How often should I replace brake pads on my MX-5 ND?

A: It varies greatly depending on driving style and conditions. For most drivers, front pads typically last 20,000-40,000 miles, while rear pads can last longer, often 40,000-60,000 miles. Always inspect them regularly and replace them when they reach their minimum thickness or show signs of wear.

Q: Can I replace just one brake pad?

A: No, always replace brake pads in axle sets (both front pads on the left and right, or both rear pads on the left and right). Replacing only one side would lead to uneven braking force, pulling, and premature wear on the new pad.

Q: Do I need to replace my brake discs when I replace pads?

A: Not always. If your discs are within the minimum thickness specification, free of deep grooves, cracks, or severe warping, they can often be reused. However, if they are worn, warped, or below minimum thickness, it's highly recommended to replace them to ensure optimal braking performance and pad life. Remember the note about on-car machining if you are only addressing runout.

Q: What is the purpose of brake grease?

A: High-temperature brake grease (often silicone-based) is used to lubricate the caliper guide pins and the areas where the brake pads slide against the caliper bracket. This prevents sticking, ensures smooth movement of components, and significantly reduces brake noise (squealing).

Q: My brake pedal feels soft after replacement. What should I do?

A: First, pump the brake pedal repeatedly with the engine off until it feels firm. This seats the pads against the discs. If it remains soft, it usually indicates air in the brake lines, which means the system will need to be bled. If you are unsure how to bleed brakes, it is best to consult a professional or refer to a dedicated guide.

Conclusion

Replacing the brake pads on your Mazda MX-5 ND is a manageable and highly beneficial DIY project. By following these detailed steps and prioritising safety, you can ensure your beloved roadster continues to stop as effectively as it goes, giving you confidence and peace of mind on every journey. Regular maintenance not only prolongs the life of your vehicle but also enhances your driving experience, keeping your MX-5 sharp and responsive for years to come.
