For any heavy machinery operating in demanding environments, the braking system is not merely a feature; it is the cornerstone of safety and operational efficiency. The JCB 3CX backhoe loader, renowned for its versatility and robust performance on construction sites, farms, and various other challenging terrains, relies heavily on a dependable braking system to ensure the well-being of its operator and those working nearby. Understanding the intricate components of your JCB 3CX's brakes, knowing when to inspect them, and recognising the signs of wear are absolutely vital for maintaining peak performance and, more importantly, preventing accidents. This comprehensive guide will delve into the various brake parts available for the JCB 3CX, outlining their functions, discussing common issues, and providing essential maintenance advice to keep your machine stopping reliably.
Understanding the JCB 3CX Braking System
The JCB 3CX typically employs a sophisticated wet disc brakes system, which is ideal for heavy-duty applications due to its durability and resistance to fading. Unlike dry disc brakes found in many passenger vehicles, wet disc brakes are sealed within an oil bath, offering superior cooling and protection from contaminants like dirt, dust, and water – common enemies on a construction site. This design significantly extends the lifespan of the brake components and ensures consistent braking performance even under continuous, heavy use. The system is hydraulically actuated, meaning that brake fluid transmits the force from the brake pedal to the braking mechanism at each wheel.
Each wheel typically has its own set of brake components, and often, the braking system can be engaged individually for each side, aiding in tighter turns and improved manoeuvrability on soft ground. However, for road travel and general operation, both sides are usually linked for synchronous braking. Understanding this fundamental design is the first step in appreciating the importance of each individual part within the system.
Key Brake Components for JCB 3CX Backhoe Loaders
Maintaining the braking system of your JCB 3CX involves understanding and periodically replacing several critical components. Here's a breakdown of the primary parts you'll encounter:
Brake Discs (Wet Disc Packs)
At the heart of the JCB 3CX's braking system are the wet brake discs. These are not single discs like those on a car but rather multi-plate assemblies often referred to as 'disc packs' or 'clutch packs'. They consist of multiple friction plates and steel separator plates stacked together and submerged in oil within the axle housing. When the brakes are applied, hydraulic pressure compresses these plates together, generating friction and slowing the wheel. Due to their design, they offer excellent heat dissipation and a much longer service life compared to dry systems. Over time, the friction material on these plates will wear down, reducing braking effectiveness and requiring replacement.

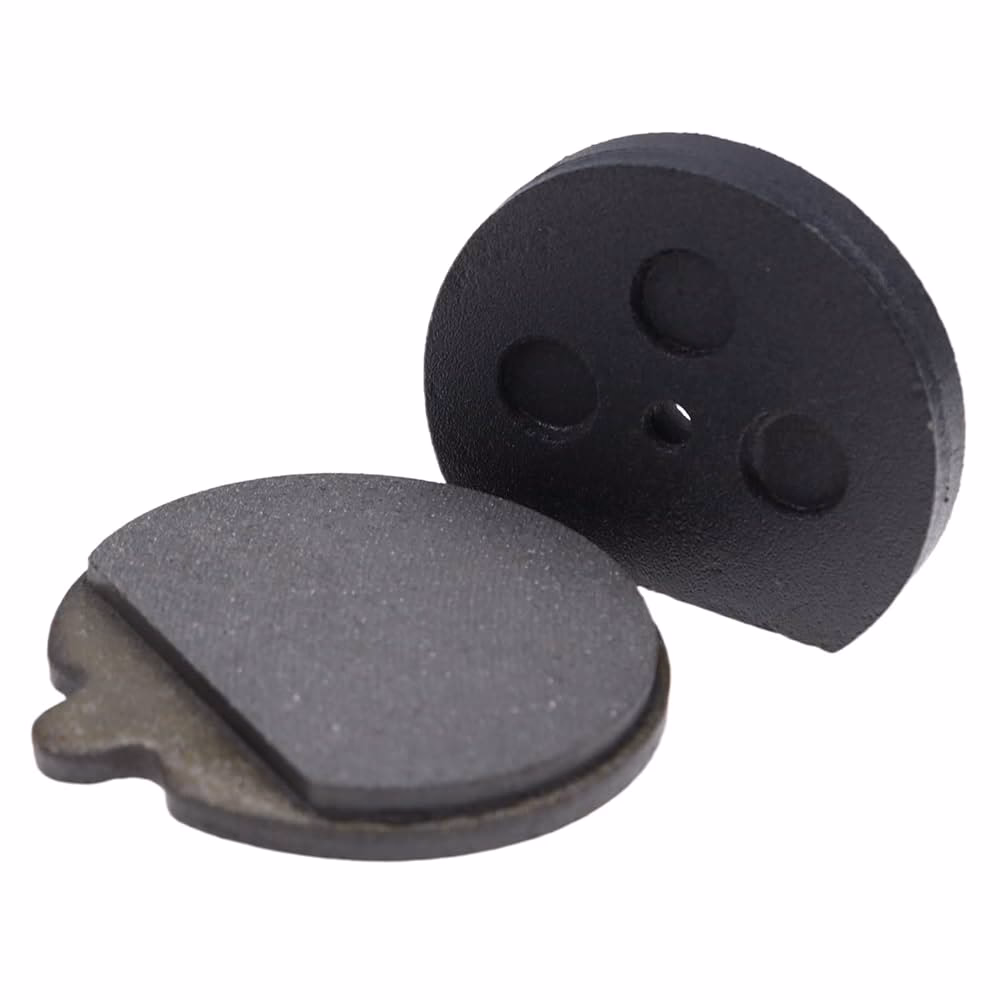

Brake Pads / Friction Plates
Within the wet disc packs, specific friction plates are designed to engage with the steel separator plates. These are essentially the equivalent of brake pads in a dry system, providing the necessary friction. Made from durable, heat-resistant materials, they are subject to wear and tear. Worn friction plates will lead to reduced braking force, increased stopping distances, and potentially damage to the steel plates if not replaced promptly. Identifying the correct friction plate material and design for your specific JCB 3CX model is crucial for optimal performance.
Brake Calipers / Actuators
While traditional calipers might not be explicitly visible on a wet disc system in the same way they are on a car, there are internal hydraulic actuation mechanisms that apply pressure to the disc packs. These internal actuators, often piston-driven, are responsible for pressing the friction plates against the steel plates. Leaks within these actuators or seized pistons can severely impair braking. Servicing these components often involves replacing seals and ensuring smooth operation of the pistons.
Master Cylinder
The master cylinder is the primary component that translates the mechanical force from your foot on the brake pedal into hydraulic pressure. It contains one or more pistons that move when the pedal is pressed, forcing brake fluid through the brake lines. A faulty master cylinder, often indicated by a spongy brake pedal or a pedal that slowly sinks to the floor, means it's not generating sufficient pressure, leading to poor braking. Replacing the master cylinder or its internal repair kit is a common repair.
Brake Hoses and Lines
These carry the hydraulic brake fluid from the master cylinder to the brake actuators at each wheel. Brake hoses, made of reinforced rubber, are used where flexibility is needed (e.g., connecting to the axle), while rigid steel lines run along the chassis. Over time, hoses can crack, swell, or chafe, leading to fluid leaks and a loss of brake pressure. Steel lines can corrode or become damaged. Any compromise in these lines is a serious safety concern and requires immediate attention.
Brake Fluid
Brake fluid is the lifeblood of the hydraulic braking system. It's a non-compressible fluid that transmits pressure efficiently. However, brake fluid is hygroscopic, meaning it absorbs moisture from the air over time. Water contamination lowers the fluid's boiling point, which can lead to 'vapour lock' (where the fluid boils, creating compressible gas bubbles, and the brakes fail) under heavy braking. Contaminated or old fluid also causes internal corrosion. Regular checking and replacement of brake fluid according to JCB's recommendations are paramount.
Parking Brake Components
The JCB 3CX also features a parking brake, which is crucial for securing the machine when stationary. This often operates independently of the main service brakes, sometimes as a separate dry disc or drum brake system on the driveshaft, or integrated into the wet brake system with a mechanical linkage. Components include the handbrake lever, cables, and potentially a separate disc and caliper or drum and shoes. Worn cables, stretched linkages, or worn friction material on the parking brake can lead to the machine rolling when parked, posing a significant hazard.
Seals and Gaskets
Throughout the braking system, various seals and gaskets are used to prevent fluid leaks and keep contaminants out, particularly within the wet brake housing and hydraulic cylinders. These small but critical components are often made of rubber or similar materials and can degrade over time due to heat, age, or chemical exposure. Replacing worn seals is often part of a larger brake repair or overhaul, ensuring the integrity of the hydraulic system.
Brake Repair Kits and Overhaul Kits
For comprehensive brake maintenance, various repair and overhaul kits are available. These kits typically include a collection of common wear items like friction plates, steel plates, seals, O-rings, and sometimes springs or pistons, making it convenient to perform a complete overhaul of a specific brake assembly. Using genuine JCB parts or high-quality aftermarket equivalents ensures compatibility and reliability.
Why Genuine or Quality Aftermarket Parts Matter
When it comes to brake components for your JCB 3CX, quality is non-negotiable. Opting for genuine JCB parts ensures that the components are manufactured to the precise specifications and rigorous quality standards set by the original equipment manufacturer. This guarantees perfect fitment, optimal performance, and the highest level of safety. While aftermarket parts can be a more budget-friendly option, it's crucial to choose reputable suppliers who adhere to strict quality controls. Inferior parts may not withstand the demanding conditions of heavy machinery, leading to premature wear, reduced braking efficiency, and potentially dangerous failures. Always verify the quality and compatibility before purchasing any brake component.
Common Brake Issues and Warning Signs
Being proactive in identifying brake issues can save you significant repair costs and, more importantly, prevent accidents. Here are some common signs that your JCB 3CX's brakes may need attention:
- Spongy or Soft Brake Pedal: This often indicates air in the hydraulic lines, low brake fluid, or a failing master cylinder.
- Grinding, Squealing, or Rubbing Noises: These sounds usually point to severely worn brake discs or friction plates, indicating metal-on-metal contact.
- Machine Pulling to One Side During Braking: This suggests uneven braking force, possibly due to a seized caliper, contaminated brake fluid affecting one side, or an issue with one brake assembly.
- Increased Stopping Distance: A noticeable increase in the distance required to bring the machine to a halt is a clear sign of brake wear or a system malfunction.
- Brake Fluid Leaks: Puddles under the machine or a dropping brake fluid reservoir level indicate a leak in the lines, hoses, or seals.
- Vibration or Pulsation Through the Brake Pedal: While less common in wet brake systems, this can indicate warped discs (though less likely) or issues with the hydraulic pressure.
- Warning Lights: Many modern JCB 3CX models have dashboard warning lights for low brake fluid or brake system faults. Never ignore these.
Brake Maintenance Best Practices
Regular and thorough maintenance is key to extending the life of your JCB 3CX's braking system and ensuring its reliability. Here’s what you should be doing:
- Routine Inspections: Regularly check brake fluid levels and inspect hoses and lines for any signs of wear, cracks, bulges, or leaks. Listen for unusual noises during operation.
- Brake Fluid Changes: Follow JCB's recommended service intervals for brake fluid replacement. This typically involves draining the old fluid and refilling with fresh, uncontaminated fluid to prevent moisture build-up and corrosion.
- Bleeding the Brake System: If air enters the brake lines (e.g., after replacing components or if fluid levels drop too low), the system will need to be bled to remove the air and restore proper pedal feel.
- Parking Brake Adjustment: Periodically check and adjust the parking brake to ensure it holds the machine securely on inclines.
- Professional Servicing: For complex brake component replacements, internal wet brake servicing, or diagnosing tricky issues, it's always best to consult a qualified JCB technician. They have the specialised tools and expertise to perform these tasks safely and correctly.
- Using the Correct Fluid: Always use the type of brake fluid specified in your JCB 3CX operator's manual. Using the wrong fluid can damage seals and compromise braking performance.
Comparative Table: JCB 3CX Brake Component Functions
To further clarify the role of each part, here's a comparative overview:
| Component | Primary Function | Common Issue Signs | Maintenance Tip |
|---|---|---|---|
| Wet Disc Packs (Friction/Steel Plates) | Generate friction to slow/stop the machine. | Grinding noises, increased stopping distance. | Replace as a set when worn; use quality parts. |
| Master Cylinder | Converts pedal force to hydraulic pressure. | Spongy pedal, pedal sinks to floor, poor braking. | Check fluid level; replace if leaking or failing. |
| Brake Hoses/Lines | Transmit hydraulic fluid to brakes. | Leaks, cracks, bulging, loss of pedal pressure. | Inspect visually for damage; replace immediately if compromised. |
| Brake Fluid | Transmits hydraulic force; lubricates components. | Dark colour, low level, spongy pedal (due to moisture). | Check level regularly; replace per manufacturer's schedule. |
| Parking Brake System | Secures machine when stationary. | Machine rolls, ineffective holding on inclines. | Adjust cable tension; replace worn shoes/pads. |
| Seals & Gaskets | Prevent fluid leaks and contamination. | Visible fluid leaks around components. | Replace during any major component overhaul. |
Frequently Asked Questions (FAQs)
How often should JCB 3CX brakes be inspected?
It's advisable to conduct a visual inspection of your JCB 3CX's brake system components, including fluid levels and visible hoses/lines, as part of your daily or weekly pre-operation checks. A more thorough inspection by a qualified technician should be performed at least annually or every 500-1000 operating hours, depending on the intensity of use and the manufacturer's recommendations in your specific JCB 3CX service manual. Regular professional checks can identify wear before it becomes a critical issue.
What type of brake fluid should I use for my JCB 3CX?
Always refer to your specific JCB 3CX operator's manual for the precise brake fluid specification. JCB backhoe loaders typically require a high-quality hydraulic brake fluid, often meeting DOT3 or DOT4 standards, or a specific JCB-branded fluid designed for their wet brake systems. Using the incorrect type of fluid can lead to seal degradation, reduced braking efficiency, and costly system damage. Never mix different types of brake fluid.
Can I replace JCB 3CX brake parts myself?
While some basic maintenance tasks, like checking fluid levels and visual inspections, can be performed by an experienced operator, complex brake component replacement, especially involving the internal wet disc packs or master cylinder, should ideally be left to qualified mechanics or JCB service technicians. The braking system is critical for safety, and improper installation or bleeding can lead to catastrophic failure. Specialist tools and knowledge of hydraulic systems are often required.
What are the most common signs of worn brakes on a JCB 3CX?
The most common signs include a noticeable increase in stopping distance, a spongy or soft brake pedal, grinding or squealing noises when applying the brakes, the machine pulling to one side during braking, or a drop in the brake fluid level accompanied by visible leaks. Any of these symptoms warrant immediate investigation to prevent further damage or an accident.
Are aftermarket brake parts safe for JCB 3CX?
Quality aftermarket brake parts from reputable suppliers can be a viable and cost-effective alternative to genuine JCB parts. However, the key word here is 'quality' and 'reputable'. Always ensure that any aftermarket parts meet or exceed OEM specifications and are specifically designed for the JCB 3CX. Inferior parts may compromise braking performance and safety, leading to premature failure and potentially higher costs in the long run. When in doubt, it's always safer to opt for genuine JCB components, especially for critical safety systems like brakes.
In conclusion, the braking system of your JCB 3CX backhoe loader is a complex and critically important assembly that demands consistent attention and proper maintenance. By understanding the role of each component, recognising the signs of wear, and adhering to a proactive maintenance schedule, you can ensure your machine operates safely and efficiently for years to come. Investing in quality parts and professional servicing where necessary isn't just about prolonging the life of your equipment; it's about protecting lives and maintaining productivity on the job site.
