There's nothing quite like the charm of an Alfa Romeo, but like any finely tuned machine, they demand a bit of attention. When your dashboard lights up with a 'service interval expired' warning, it can be a tad perplexing, especially if you're already on top of your maintenance. And if you're using a diagnostic tool like MultiEcuScan (MES) and finding yourself scratching your head over which reset button to press, you're certainly not alone. This guide aims to demystify the process for your Alfa Romeo 159, specifically addressing the common confusion between service and oil change resets, and explaining what happens to your car's Engine Control Unit (ECU) after a battery disconnection.

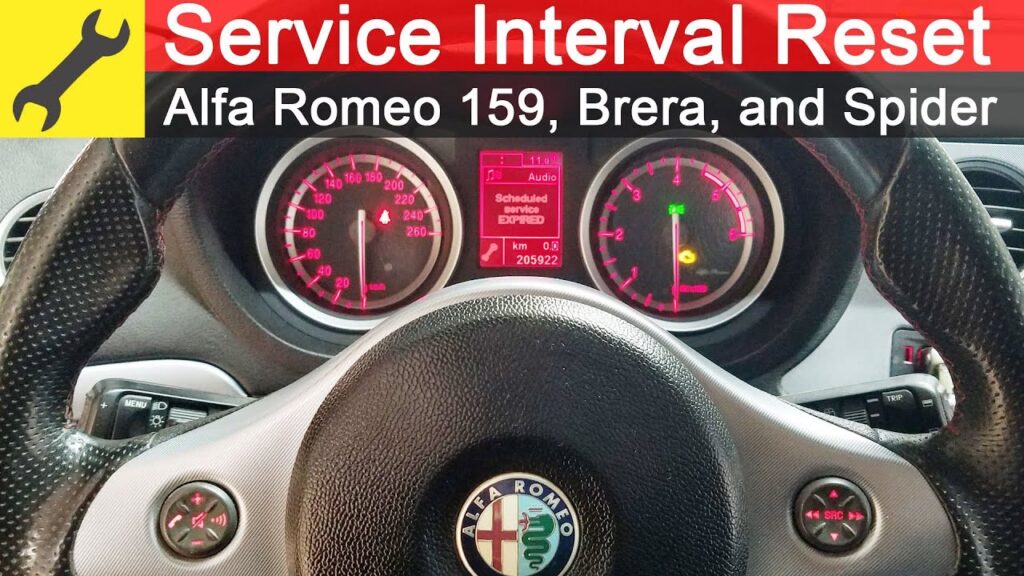

Decoding the 'Service Interval Expired' Message on Your Alfa 159
Modern vehicles, including your Alfa 159, are equipped with sophisticated systems to remind you when it's time for maintenance. These reminders are typically based on mileage, time, or even engine operating conditions (like oil degradation). The 'service interval expired' message is your car's way of telling you that it believes it's due for a general check-up and service.
However, what often confuses owners, especially those using aftermarket diagnostic tools, is the distinction between a 'service interval reset' and an 'oil change reset'. In many cars, particularly those from the Fiat/Alfa Romeo group, these two functions are often intertwined or, in some cases, the 'oil change reset' is the primary action that clears the general service reminder.
Service vs. Oil Change: A Crucial Distinction (or Lack Thereof)
Historically, a 'service' might have encompassed a broader range of checks and fluid changes, whilst an 'oil change' was a specific task. In your Alfa 159, especially the 1.9 JTDm 16v, the ECU often tracks the oil degradation percentage. Once this reaches a certain threshold (or a specific mileage/time is met), it triggers a warning. Resetting the 'oil change' counter usually resets the degradation percentage and tells the car that fresh oil has been put in. For many Alfas, this action *also* clears the general service warning, as the oil change is considered a cornerstone of routine servicing.
The reason you might only find an 'oil change' command in MultiEcuScan and not a separate 'service interval' reset is often because the vehicle's ECU is designed to treat the oil change as the primary service event that requires a reset. The 'service interval expired' warning you're seeing could very well be a direct consequence of the oil degradation counter reaching its limit, even if it's not yet flashed up a dedicated 'oil change' warning.
MultiEcuScan (MES) is an incredibly powerful tool for Alfa Romeo owners, offering deep access to various ECUs. If you have the full paid version, you certainly have the capability to perform the necessary resets. The key is knowing where to look, as the terminology isn't always perfectly intuitive.
Step-by-Step Guide for Resetting Service/Oil Interval with MES:
- Connect to Your Vehicle: Plug your MES interface into your Alfa 159's OBD-II port (usually located under the steering wheel or in the centre console).
- Launch MultiEcuScan: Open the software on your laptop.
- Select Vehicle & ECU: Choose 'Alfa Romeo 159' from the vehicle list. Then, crucially, you need to select the correct ECU. For service and oil resets, you'll typically be looking at the Engine Control Unit (e.g., '1.9 JTDm 16V Bosch EDC16C39'). Sometimes, certain service functions might reside in the 'Body Computer' (BCM) as well, so if you can't find it in the engine ECU, check there.
- Connect to ECU: Click the 'Connect' button.
- Access Adjustments/Adjustments Tab: Once connected, navigate to the 'Adjustments' or 'Adjustments/Actuators' tab within the ECU interface. This is where most reset functions are located.
- Locate the Reset Function: Scrutinise the list of available adjustments. You are looking for something along the lines of:
- 'Oil Change Reset'
- 'Service Reset' (less common as a standalone item for this specific warning)
- 'Maintenance Interval Reset'
- 'Reset Oil Degradation Counter'
Given your observation, the 'Oil Change' command is the most likely candidate. For many Alfa 159s, performing the 'Oil Change' reset is the correct procedure to clear the 'service interval expired' warning, as it resets the underlying counters that trigger it.
- Execute the Command: Select the appropriate reset function and follow the on-screen prompts. MES will usually ask for confirmation before performing the reset. Ensure your ignition is on (engine off) unless otherwise specified by MES.
- Verify the Reset: After performing the reset, disconnect MES. Start the car and check the dashboard. The 'service interval expired' warning should now be gone. You can also reconnect MES and check the oil degradation parameter again; it should have reset to 100% or close to it.
It's entirely plausible that last time you serviced the car, you reset the oil counter, and because no warnings were displayed at the time, you assumed it covered everything. Given your meticulous 10k mile/1-year service interval, which is excellent practice, the car's internal counter may have just caught up to its pre-programmed limit, triggering the warning now.
Why Regular Servicing is Paramount
Beyond simply clearing a dashboard warning, adhering to regular service intervals is vital for the longevity and performance of your Alfa 159. A 10,000-mile or 1-year interval, whichever comes first, is a robust approach, often surpassing manufacturer minimums for diesel engines that can be prone to oil dilution and DPF issues if oil isn't changed frequently. Regular servicing ensures:
- Optimal Engine Health: Fresh oil, filters, and fluid checks prevent premature wear.
- Reliability: Catching minor issues before they become major breakdowns.
- Fuel Efficiency: A well-maintained engine runs more efficiently.
- Safety: Checks on brakes, tyres, and steering are critical.
- Resale Value: A full service history adds significant value.
Don't just clear the light; ensure the service has actually been performed!
ECU Reset After Battery Change: The Drive Cycle Explained
Another common scenario that can lead to confusion or apparent performance issues is disconnecting the car's battery. When you disconnect the battery, the Engine Control Unit (ECU) loses its volatile memory. This means it forgets certain learned parameters like fuel trims, idle settings, and the status of its various diagnostic monitors. Whilst the car will certainly start and drive, it might not run optimally initially, and crucially, certain OBD II diagnostic monitors might not be 'ready' – which can be an issue for MOTs or emissions tests.
What is a Drive Cycle?
A 'drive cycle' is a specific set of driving conditions designed to allow all of the car's onboard diagnostic (OBD II) monitors to run and complete their self-tests. These monitors check various systems, such as the catalytic converter, oxygen sensors, evaporative emissions system, and misfire detection. After a battery disconnection, these monitors reset to an 'incomplete' or 'not ready' state. For your car to pass an emissions test, or simply to ensure all systems are functioning as expected, these monitors need to complete their cycles and report 'ready'.
The time it takes for an ECU to reset and for all monitors to become 'ready' is not a fixed duration (e.g., 20 minutes or an hour). Instead, it depends entirely on successfully completing the necessary driving conditions, which can vary significantly between vehicle manufacturers and models.
Generic OBD II Drive Cycle
Whilst specific procedures vary, a general OBD II drive cycle often looks something like this. This sequence is designed to put the vehicle through a wide range of operating conditions:
- Preparation: Ensure the fuel tank is between 1/4 and 3/4 full. Start the engine when it's cold (below 30°C / 86°F) and allow it to warm up until the engine coolant temperature is at least 70°C (160°F). This typically takes 1 to 3 minutes.
- High-Speed Cruise: Accelerate gently to 64-88 km/h (40-55 MPH) using approximately 25% throttle. Maintain this steady speed for about five minutes. This allows the oxygen sensor and catalyst monitors to run.
- Deceleration & Idle: Decelerate without using the brake (coast down) to 32 km/h (20 MPH) or less, then bring the vehicle to a complete stop. Allow the engine to idle for 10 seconds.
- Restart & Repeat: Turn the ignition off and wait for one minute. Restart the engine.
- Second High-Speed Cruise: Accelerate gently again to 64-88 km/h (40-55 MPH) at 25% throttle. Maintain this speed for two minutes.
- Final Deceleration & Idle: Decelerate by coasting down to 32 km/h (20 MPH) or less, then stop the vehicle. Allow the engine to idle for 10 seconds. Turn the ignition off and wait one minute.
Completing this cycle, or a similar one specific to your Alfa, should allow most, if not all, readiness monitors to set.
Understanding Manufacturer-Specific Cycles (e.g., GM example)
The detailed GM drive cycle you provided illustrates just how specific these procedures can be. Whilst this is not for your Alfa, it highlights the various conditions (cold start, idle with load, specific acceleration/deceleration rates, steady speed holds) that are required to set different monitors.
For instance, the GM cycle explicitly mentions:
- Cold Start Criteria: Engine coolant temperature below 50°C (122°F) and within 6°C (11°F) of ambient air temperature.
- Idle with Load: Running the engine for two and a half minutes with the air conditioner and rear defroster on to test O2 heater, Passive Air, Purge 'No Flow', Misfire, and Fuel Trim.
- Specific Acceleration/Deceleration: Half throttle to 55mph, then steady speed, then coasting down without braking or clutching.
- Catalyst Monitor: May require 5 complete driving cycles if the catalyst is marginal or the battery has been disconnected.
This level of detail underscores that simply driving 'normally' might not be enough to set all monitors. If you've recently disconnected your battery and are experiencing unexpected behaviour or failing an MOT emissions check due to 'not ready' monitors, consulting an Alfa-specific drive cycle (often found in workshop manuals or online forums) is advisable.
How Long Does it Take?
The duration isn't about time on the clock, but about completing the specific conditions. For some cars, a single, comprehensive drive cycle might be enough. For others, especially if certain monitors are 'stubborn' (like the EVAP or catalyst monitor), it might take several complete cycles over a few days of mixed driving. MultiEcuScan can be used to check the status of your readiness monitors under the 'F9 - Readiness' tab in the Engine ECU, allowing you to see which ones are 'complete' or 'not complete'. This is incredibly useful for diagnosing why a warning light might persist or why your car isn't passing an emissions test.
Troubleshooting and FAQs
What if the 'Service Interval Expired' warning persists after resetting the oil counter in MES?
If the warning persists after performing the 'Oil Change Reset' in MES, double-check that you connected to the correct ECU (Engine Control Unit or possibly Body Computer) and that the command executed successfully. Sometimes, a hard reset (disconnecting the battery for 15-20 minutes, then reconnecting and performing a drive cycle) might be necessary as a last resort, but always try the MES method first. Also, ensure there are no underlying fault codes that might be preventing the reset or triggering a new warning.
Can I reset the service light without a diagnostic tool?
Some older vehicles or simpler service reminders can be reset via dashboard button sequences. However, for your Alfa 159 with its sophisticated ECU and oil degradation monitoring, a diagnostic tool like MultiEcuScan is almost certainly required to properly clear the 'service interval expired' warning and reset the relevant counters. Attempting a manual reset might only clear a basic mileage counter, not the deeper oil degradation parameter.
What is 'Oil Degradation Percentage' and why is it important?
Modern diesel engines, particularly those with Diesel Particulate Filters (DPFs), can experience 'oil dilution'. This occurs when diesel fuel bypasses the piston rings during DPF regeneration cycles and mixes with the engine oil. This dilutes the oil, reducing its lubricating properties and effectiveness. The oil degradation percentage is the ECU's calculated estimate of how much the oil has degraded. When it reaches a critical level (e.g., 30-35% degraded), it triggers an oil change or service warning. Resetting this counter in MES tells the car that fresh, undiluted oil has been installed, allowing the calculation to start anew.
| Feature | Oil Change Reset | General Service Reset (if separate) |
|---|---|---|
| Primary Purpose | Resets oil degradation counter, mileage/time since last oil change. | Resets overall mileage/time since last comprehensive service. |
| Commonly Found In MES for Alfa 159 | Yes (often the main reset for service lights) | Less common as a distinct, separate function for the 'service interval expired' warning. |
| Impact on Dashboard Warning | Often clears 'Service Interval Expired' and 'Oil Change' warnings. | Would clear 'Service Interval Expired' warning. |
| Affected Parameters | Oil degradation, oil change mileage/time. | General service mileage/time. |
| Necessity After Battery Disconnect | No, this is a maintenance reset, not an ECU re-learning process. | No. |
In conclusion, when your Alfa 159 flashes that 'service interval expired' message, don't panic. With your MultiEcuScan, the 'oil change' reset function is very likely the key to clearing it, as it directly addresses the underlying oil degradation counter that often triggers this warning in diesel Alfas. Remember to always perform the actual service first, and for any post-battery-disconnect quirks, a proper drive cycle will help your ECU re-learn and set all its vital monitors. Happy motoring!
