Essential Guide to Fiat Panda Gearbox Oil

Ensuring your Fiat Panda's gearbox is properly lubricated is paramount for its longevity and smooth operation. Often overlooked in routine maintenance, the correct gearbox oil plays a vital role in reducing friction, dissipating heat, and protecting the intricate internal components from wear. Unlike engine oil, which is frequently changed, gearbox oil typically has a much longer service life, leading many owners to forget about it entirely. However, neglecting this crucial fluid can lead to noisy operation, difficult gear changes, and ultimately, expensive damage. This comprehensive guide will walk you through everything you need to know about selecting, checking, and topping up the oil in your beloved Fiat Panda's gearbox, ensuring it continues to perform reliably for years to come.

The Unseen Culprit: Perished CV Boots

Before you even consider checking or topping up your Panda's gearbox oil, there's a critical inspection that must take precedence: the condition of your CV boots. These often-overlooked rubber or plastic covers, found at each end of the drive shafts, are designed to protect the constant velocity (CV) joints from dirt, water, and debris, while also sealing in the lubricating grease. For the Fiat Panda, however, their integrity is even more crucial as they often seal the gearbox oil itself, particularly on the inner joints where the driveshafts enter the gearbox.

The most common cause of low gearbox oil levels, and subsequently a noisy or poorly shifting gearbox, isn't necessarily a leak from a main seal, but rather perished or split CV boots. Over time, due to age, exposure to the elements, or physical damage, these boots can crack, tear, or become brittle. When this happens, the generous 2.4 litres of oil your Panda's gearbox should contain can rapidly diminish to a mere 350ml or so. This drastically reduced volume is nowhere near enough to adequately lubricate the gears, bearings, and synchronisers within the gearbox, leading to excessive wear, increased heat, and the tell-tale signs of a struggling transmission. Therefore, always conduct a thorough inspection of both inner and outer CV boots before attempting any oil-related maintenance. If they are compromised, they must be replaced immediately, and only then should you proceed with checking and refilling the gearbox oil.

Checking and Topping Up Your Panda's Gearbox Oil

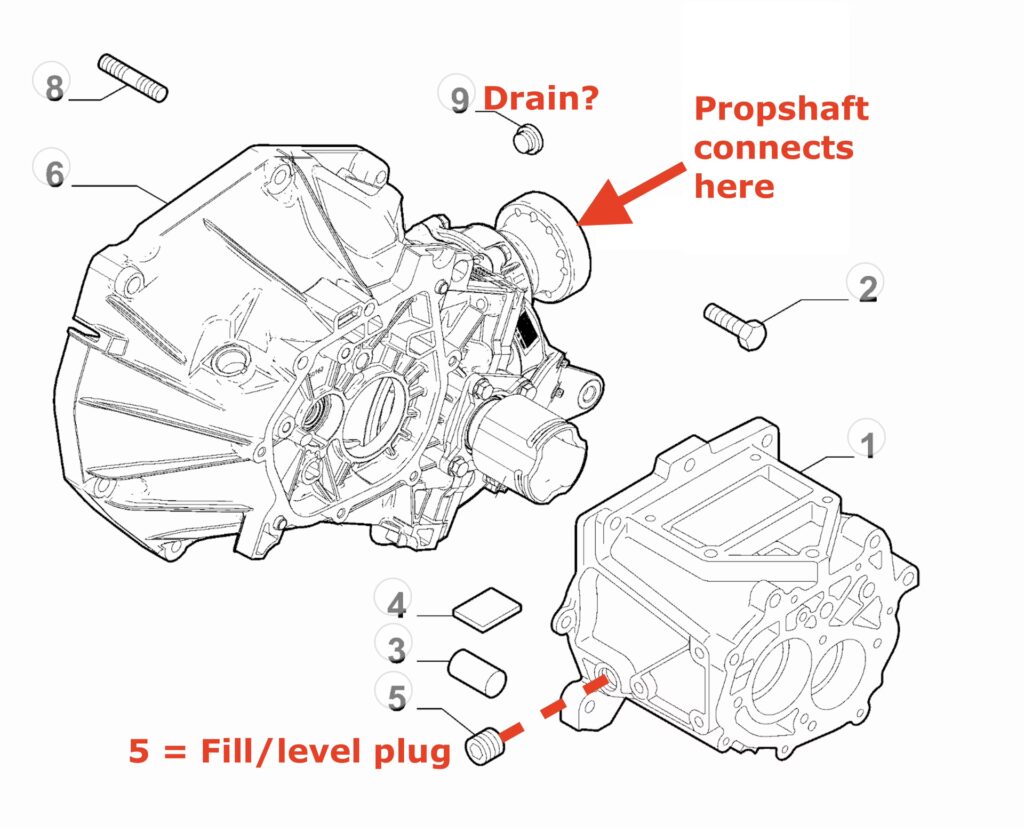

Once you've confirmed your CV boots are in good order, or have replaced them if necessary, you can proceed with checking and topping up the gearbox oil. The process is relatively straightforward, but requires the correct tools and a little patience. Both the fill and drain plugs on the Fiat Panda gearbox require a 12mm Allen key or a 12mm hex bit socket to undo and tighten. These plugs are typically located on the side of the gearbox casing. The drain plug is usually at the bottom, allowing the oil to be completely drained, while the filler plug is situated higher up, often on the front or side of the casing, accessible from underneath the car.

To check the level or top up, locate the filler plug. With the vehicle safely raised and level, remove this plug. The correct level for a Fiat Panda gearbox is when the oil just begins to dribble out of the filler hole. This indicates that the gearbox is full to its specified capacity, which is approximately 2.4 litres for most front-wheel-drive Panda models. When refilling, you continue to pump or pour oil into the filler hole until it starts to overflow. This method ensures you have the optimal amount of lubricant for effective operation. It's crucial not to underfill, as this leads to inadequate lubrication, but also not to overfill, which can cause excessive pressure, foaming, and potential seal damage. Always ensure the vehicle is level when performing this check to get an accurate reading.

Selecting the Correct Gearbox Oil: A Crucial Choice

Choosing the correct gearbox oil for your Fiat Panda is not merely a matter of finding "any" gear oil. The internal components of older gearboxes, like those found in the Panda, often include 'yellow metals' such as brass or bronze, commonly used in synchroniser rings. Modern extreme pressure (EP) additives found in many contemporary gearbox oils, particularly those with higher GL ratings, can be corrosive to these yellow metals over time. Using the wrong oil can literally "eat away" at these vital components, leading to premature wear, difficult gear changes, and ultimately, gearbox failure. Therefore, adhering to the original specifications or using oils specifically formulated for older transmissions is paramount.

Recommended Oils for Your Fiat Panda Gearbox:

• ZC90 (SAE 80w/90 GL3): This is the original specification oil for many Fiat Panda gearboxes. It provides the correct viscosity and additive package for optimal protection of the internal components, including yellow metals. While it can be challenging to source this exact oil today, it remains the benchmark for compatibility.
• "Classic" 20W50 Engine Oil: Surprisingly, in the absence of suitable gear oil, some owners have resorted to using classic 20W50 engine oil in their Panda gearboxes. While it can function as a lubricant, it's not ideal. The primary drawback is that engine oils are not formulated to withstand the high shear forces and specific lubrication requirements of meshing gears. This can cause the oil's molecular structure to break down more rapidly, leading to reduced lubrication and necessitating much more frequent changes. It should generally be considered a temporary or emergency solution rather than a long-term choice.
• Millers Oils Classic Gear Oil 80w90 GL4: This is an excellent alternative. While it carries a GL4 specification, which is generally considered safe for yellow metals, Millers Oils specifically guarantees that this particular product will not harm any metals in older gearboxes. This provides significant peace of mind for classic car owners. A real-world example provided by an owner using this oil in a Seat Marbella (which shares many mechanical similarities with the Panda) reported no issues after 5,000 miles, with the gearbox performing as well as when the oil was introduced. This makes it a highly recommended option.
• Morris Lubricants Golden Film AG90 Gear Oil: Another superb choice, this oil meets all the original requirements and is the correct specification for Panda gearboxes. Crucially, it is specifically formulated to be safe for 'golden metals', ensuring the longevity of your gearbox's internal components. This oil is designed with older transmissions in mind and offers robust protection.

A Word of Caution on Modern GL5 Oils:

Most modern oils of EP GL5 specification and over "claim" they do not harm gearboxes with yellow metals. However, the concentration of extreme pressure (EP) additives in GL5 oils is significantly higher than in GL3 or GL4 oils. While some manufacturers have developed GL5 oils that are theoretically safe for yellow metals, there's still a risk involved with older gearboxes. Some individuals have used modern-day EP GL5 oil in Panda gearboxes without immediate apparent issues. However, if you choose to do this, it would be entirely at the vehicle keeper's own risk. Given the availability of proven, safe alternatives, it is generally not something recommended to toy with, as the consequences of corrosion can be irreversible and costly.

Special Considerations for the Fiat Panda 4x4

It's important to note that the gearbox oil requirements differ for the Fiat Panda 4x4 models. Due to the integrated transfer case and different demands placed on the transmission system, these variants require a specific lubricant. For the 4x4 Panda, the recommended oil is EP 85w/140. Always ensure you are using the correct specification for your particular Panda model to ensure optimal performance and protection.

How Full IS Full on a Panda Gearbox?

For those of you who wish to know "how full IS full on a Panda gearbox," the short answer is precisely as described earlier: when you can't put any more oil in the gearbox because it starts to dribble out of the oil filler hole. This method ensures the gearbox is filled to its exact design capacity, approximately 2.4 litres, providing adequate lubrication without overfilling. The fill plug's location is typically accessed from underneath the car, looking upwards towards the gearbox casing, usually positioned on the front or side.

When to Change Your Fiat Panda Gearbox Oil

While gearbox oil has a longer lifespan than engine oil, it is by no means a "fill for life" fluid. Over time, it degrades due to heat, shear forces, and contamination from microscopic metal particles. Although the provided information doesn't specify a precise interval, gearbox oil changes are an essential part of routine service and replacement schedules for your Fiat Panda. Some routine service actions, such as changing the engine oil, might seem obvious, but changing the gearbox oil is just as necessary. Regular checks of the oil level and condition, especially after addressing any CV boot issues, are highly recommended. If the oil appears dark, cloudy, or has a burnt smell, it's definitely time for a change, regardless of mileage.

Does Replacing a Fiat Panda Gearbox Break the Bank?

While proper oil maintenance can significantly extend the life of your Panda's gearbox, there may come a time when a replacement is necessary. The good news is that replacing a Fiat Panda gearbox doesn't have to break the bank. The UK's network of licensed Fiat Panda breakers often provides quality used gearboxes at a fraction of the cost of new parts from main dealers. These parts are typically tested and guaranteed, offering a cost-effective and environmentally friendly solution. The availability of pre-owned gearboxes from salvaged vehicles means you can often find a compatible unit much quicker than waiting for new parts, especially for older or discontinued models. Choosing a used gearbox from a reputable breaker is a smart way to get your Panda back on the road without excessive expense, while also contributing to recycling efforts.

Recommended Gearbox Oils for Fiat Panda: A Comparison

Frequently Asked Questions (FAQs)

Q: Why is my Fiat Panda gearbox noisy or low on oil?

A: The most common reason for low oil or a noisy gearbox in a Fiat Panda is perished or split CV boots. These boots seal the gearbox oil, and when they fail, oil leaks out, leading to insufficient lubrication. Always check your CV boots first.

Q: How much oil does a Fiat Panda gearbox require?

A: A Fiat Panda gearbox typically requires approximately 2.4 litres of oil. You fill the box until oil starts to dribble out of the oil filler hole, indicating it's at the correct level.

Q: What tools are needed to check/fill Panda gearbox oil?

A: Both the fill and drain plugs on the Panda gearbox require a 12mm Allen key or a 12mm hex bit socket to undo and tighten.

Q: Can I use modern GL5 oil in my classic Panda gearbox?

A: While some modern GL5 oils claim to be safe for yellow metals, they contain higher concentrations of EP additives which can potentially corrode the brass/bronze components in older gearboxes. It is generally not recommended without careful consideration and would be at the vehicle keeper's own risk. Safer, purpose-designed classic oils are available.

Q: How often should I change my Panda's gearbox oil?

A: While there's no fixed interval provided, gearbox oil should be part of your routine service schedule. It has a longer life than engine oil but does degrade. Regularly checking the level and condition, especially if the oil appears dark or has a burnt smell, is crucial.

Q: Is the oil different for a 4x4 Panda?

A: Yes, Fiat Panda 4x4 models require a different gearbox oil. The recommended specification for 4x4 Pandas is EP 85w/140 due to their different transmission design and integrated transfer case.

Ensuring your Fiat Panda's gearbox is correctly lubricated with the appropriate oil is a simple yet profoundly impactful aspect of its maintenance. By understanding the critical role of CV boots, using the right type and amount of oil, and performing regular checks, you can significantly extend the life of your gearbox, ensuring smooth shifts and reliable performance for many years to come. Don't let gearbox oil become an afterthought; it's the lifeblood of your Panda's transmission.
