Essential Guide to Fiat Ducato Gearbox Oil Changes
Maintaining your Fiat Ducato is crucial for its longevity and optimal performance, and one of the most overlooked yet vital tasks is changing the gearbox oil. This guide specifically addresses the Fiat Ducato X250 models, manufactured between 2006 and 2014. A properly maintained gearbox ensures smooth gear changes, reduces wear and tear on internal components, and can prevent costly repairs down the line. This process, while seemingly straightforward, requires attention to detail and the correct procedure to avoid damaging your vehicle. Let's delve into how you can effectively tackle this essential maintenance task.
Why Change Your Gearbox Oil?
Over time, gearbox oil degrades. It loses its lubricating properties due to heat, contamination from microscopic metal particles generated by gear meshing, and potential moisture ingress. This degradation can lead to increased friction, overheating, and premature wear of gears, bearings, and synchroniser rings. Regular oil changes are a proactive measure to counteract these effects, ensuring the smooth operation of your transmission and extending its service life. Think of it as giving your gearbox a fresh lease of life, keeping those gears meshing perfectly.
What You'll Need: Essential Tools and Materials
Before you begin, gather all the necessary items to ensure a seamless process:
- New Gearbox Oil: Consult your Fiat Ducato owner's manual for the specific type and quantity of oil required. Using the incorrect oil can cause significant damage.
- Wrench Set: You'll need the correct size socket or wrench to remove the drain and fill plugs.
- Drain Pan: A sufficiently large container to collect the old, used oil. Ensure it can hold more than the stated gearbox oil capacity.
- Funnel: A long-necked funnel to easily refill the gearbox with new oil.
- Gloves: To protect your hands from oil and dirt.
- Rags or Paper Towels: For cleaning up spills.
- Jack and Axle Stands: To safely lift and support the vehicle. Never work under a vehicle supported only by a jack.
- Wheel Chocks: To prevent the vehicle from rolling.
- Torque Wrench: Recommended for tightening the drain and fill plugs to the manufacturer's specified torque.
- Breaker Bar (Optional): If the drain or fill plugs are particularly tight.
Step-by-Step Procedure: Changing the Gearbox Oil
The process involves accessing the gearbox from underneath the vehicle, draining the old oil, and refilling with fresh oil. Here's a detailed breakdown:
1. Prepare the Vehicle
Park your Fiat Ducato on a level surface. Engage the handbrake and place wheel chocks behind the rear wheels to prevent any movement. It's advisable to warm up the gearbox oil slightly by running the engine for a few minutes; warm oil flows more easily, but be cautious as components will be hot.
2. Safely Lift the Vehicle
Using your jack, lift the front of the vehicle high enough to comfortably access the underside of the gearbox. Once lifted, securely place axle stands under the chassis at the designated jacking points. Slowly lower the vehicle onto the axle stands. Double-check that the vehicle is stable and secure before proceeding. This step is critical for your safety.
3. Locate the Drain Plug

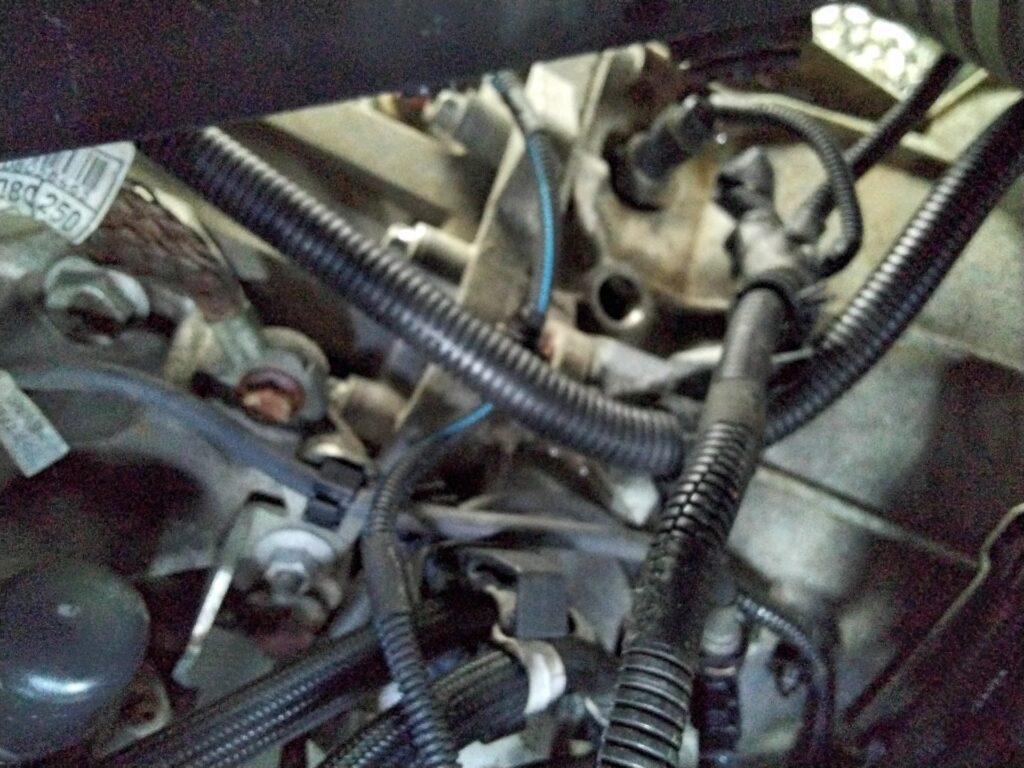

Crawl underneath the vehicle and locate the gearbox casing. You will find a drain plug, typically at the lowest point of the gearbox casing. It's often a hex-headed bolt. Place your drain pan directly beneath the plug, ensuring it's positioned to catch the stream of oil.
4. Drain the Old Oil
Using the appropriate wrench, carefully unscrew the drain plug. Be prepared for the oil to start flowing out immediately. Allow the old oil to drain completely. This may take several minutes. Once the flow has reduced to a slow drip, you can proceed.
5. Replace the Drain Plug
Once all the old oil has drained, clean the drain plug and the area around the hole with a rag. Screw the drain plug back into the gearbox casing by hand to avoid cross-threading. Then, use your wrench to tighten it. If you have a torque wrench, tighten it to the manufacturer's specified torque setting. Overtightening can strip the threads, while undertightening can lead to leaks.
6. Locate the Fill Plug (Breather)

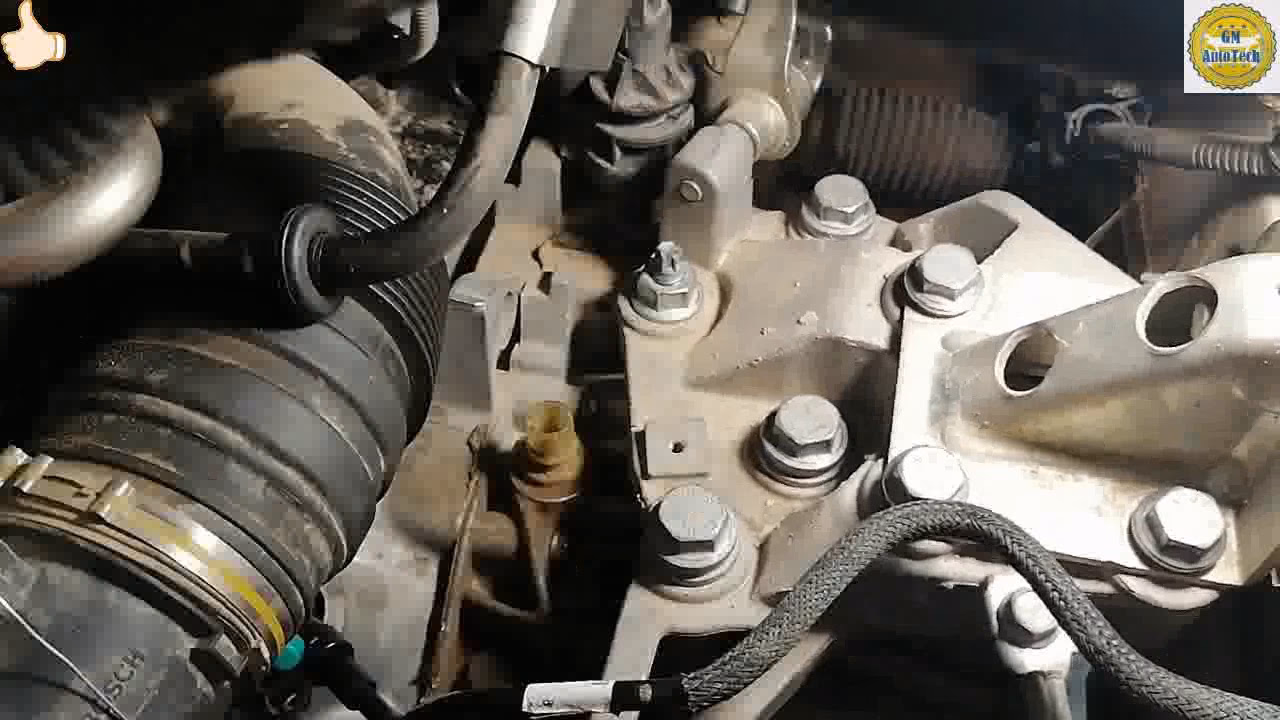

Now, you need to locate the fill plug. This is usually found on the side of the gearbox casing, often higher up than the drain plug. On the Fiat Ducato X250, this is often referred to as the 'breather' or fill point. You might need to open the bonnet and look within the engine bay for this access point. It will also be a hex-headed bolt or plug.
7. Refill with New Gearbox Oil
Attach your funnel to the fill plug opening. Insert the funnel into the gearbox. Carefully pour the correct type and amount of new gearbox oil into the gearbox. The correct oil level is typically achieved when oil starts to trickle out of the fill hole, or by checking the dipstick if your model has one (though many gearboxes do not). Refer to your owner's manual for the precise fill level and capacity.
8. Replace the Fill Plug
Once the gearbox is filled to the correct level, remove the funnel and clean the fill plug. Screw the fill plug back into place by hand, then tighten it securely with your wrench. Again, if you have a torque wrench, use the manufacturer's specified torque.
9. Lower the Vehicle and Clean Up
Carefully jack the vehicle back up slightly, remove the axle stands, and then slowly lower the vehicle back to the ground. Clean up any spilled oil from the gearbox and surrounding areas with your rags. Dispose of the old oil responsibly at a local recycling centre or auto parts store.
10. Final Checks
Start the engine and let it run for a few minutes. Gently engage each gear while the clutch is pressed. Check for any unusual noises or difficulties. After a short drive, re-check underneath for any signs of leaks around the drain or fill plugs.
Common Pitfalls and How to Avoid Them
Even with a detailed guide, mistakes can happen. Here are some common issues:
- Using the Wrong Oil: This is perhaps the most critical error. Always adhere to the manufacturer's specifications for oil type and viscosity. Using the wrong oil can lead to poor lubrication, increased wear, and transmission failure.
- Not Draining Completely: Residual old oil can contaminate the new oil, reducing its effectiveness. Ensure you allow ample time for the gearbox to drain thoroughly.
- Cross-Threading Plugs: Always start screwing in the drain and fill plugs by hand to ensure they are properly aligned before using a wrench.
- Overtightening/Undertightening Plugs: Use a torque wrench if possible to ensure plugs are tightened to the correct specification. Overtightening can damage threads, while undertightening can cause leaks.
- Working Under an Unsafely Supported Vehicle:Safety is paramount. Never rely solely on a jack. Always use sturdy axle stands.
How Often Should You Change Gearbox Oil?
The recommended interval for changing gearbox oil can vary depending on your Fiat Ducato's age, mileage, and usage. As a general guideline, refer to your owner's manual. Many manufacturers recommend a gearbox oil change every 50,000 to 100,000 miles, or every 4-5 years, whichever comes first. However, if you frequently tow heavy loads or drive in demanding conditions, you may need to change it more often. Listen to your gearbox – any unusual noises, grinding, or difficulty shifting gears are signs that the oil may need changing sooner.
Troubleshooting Common Gearbox Issues
While changing the oil can resolve some minor issues, persistent problems might indicate deeper issues:
| Symptom | Possible Cause | Solution |
|---|---|---|
| Difficulty shifting gears | Low oil level, old/degraded oil, worn synchroniser rings | Check and top up/change oil. If persists, may require professional inspection. |
| Grinding noise when shifting | Worn synchroniser rings, insufficient lubrication | Change oil. If noise continues, internal gearbox damage is likely. |
| Whining or humming noise | Low oil level, worn bearings, incorrect oil viscosity | Check and top up/change oil. If noise persists, bearings may be worn. |
| Oil leaks | Loose drain or fill plug, damaged seals or gaskets | Tighten plugs, inspect and replace seals/gaskets if necessary. |
Frequently Asked Questions (FAQ)
Q1: How much gearbox oil does a Fiat Ducato X250 typically need?
A1: The exact quantity can vary slightly, but it's usually around 2.5 to 3 litres. Always consult your owner's manual for the precise specification and capacity.
Q2: Can I use universal gearbox oil?
A2: It is strongly advised against using universal gearbox oil unless it explicitly states it is compatible with your Fiat Ducato's specific gearbox requirements. Using the incorrect specification can lead to serious damage.
Q3: What is the correct oil level?
A3: For most manual transmissions, the correct oil level is when it reaches the bottom of the fill plug hole. If you fill it until it starts to overflow from the fill plug, it's generally correct. Check your manual for specifics.
Q4: Do I need to change the gearbox oil if I only use the vehicle for short trips?
A4: Yes, the oil still degrades over time due to heat and potential moisture ingress, even with infrequent use. Following the recommended service intervals is important for maintaining the gearbox's health.
Conclusion
Changing the gearbox oil on your Fiat Ducato X250 is a manageable DIY task that offers significant benefits for your vehicle's transmission system. By following these steps carefully, using the correct materials, and prioritising safety, you can ensure your gearbox continues to perform smoothly and reliably for many miles to come. Regular maintenance is the key to a long-lasting and trouble-free ownership experience.
