Hydraulic Reservoir: A Simple Guide

Keeping Your Hydraulic System in Tip-Top Shape

The hydraulic system is the lifeblood of many pieces of machinery, providing the power to move arms, lift loads, and operate attachments. At its heart is the hydraulic oil reservoir, the storage tank for the vital fluid that makes it all happen. Ensuring this reservoir is correctly filled and maintained is crucial for the longevity and efficient operation of your equipment. This article will guide you through the process of topping up your hydraulic oil reservoir, understanding the right type of oil to use, and the importance of regular maintenance, including filter changes and battery care, which can indirectly affect your hydraulic system.

Checking the Hydraulic Oil Level: A Step-by-Step Approach

Regularly checking the hydraulic oil level is a fundamental aspect of routine maintenance. Doing this before it drops to critical levels can prevent costly damage and downtime. Here’s how to do it correctly:

1. Preparation is Key: Before you even think about touching the reservoir cap, take a moment to clean the area around it. Dust, dirt, and other debris can easily find their way into the hydraulic system if you’re not careful. Use a clean cloth or brush to remove any contaminants from the reservoir cap and the surrounding filler neck. This simple step is incredibly important for preventing contamination of the hydraulic fluid.
2. Accessing the Reservoir: Carefully unscrew the reservoir cap. Typically, this will be clearly labelled. Refer to your equipment’s manual if you are unsure of its location or how to remove it.
3. Observing the Oil Level: Once the cap is off, look down the filler neck. You should be able to see the oil level. It’s important to check this when the system is cold, meaning the engine has not been running recently. When cold, the ideal oil level should be approximately 4 inches (or 10 cm) below the top of the filler neck. Overfilling can be just as detrimental as underfilling, so aim for this specific range.
4. Topping Up with the Right Fluid: If the oil level is low, it’s time to add more. However, it is absolutely critical to use the correct type of hydraulic oil. For this particular system, the recommendation is to use either Mobil 1™, 15W-50 synthetic oil or Castrol Syntec™ 5W-50 oil. DO NOT use conventional oils. Synthetic oils offer superior performance and protection across a wider range of temperatures, which is vital for hydraulic systems. Always consult your equipment’s manual to confirm the exact specifications for your model.
5. Securing the Reservoir: After adding the oil, screw the reservoir cap back on securely. Ensure it is tight to prevent any leaks or further contamination.

The Importance of the Hydraulic Oil Filter

The hydraulic oil filter is a critical component that removes contaminants from the hydraulic fluid, protecting sensitive components within the system. Over time, the filter becomes saturated with debris and needs to be replaced to maintain optimal performance.

When to Change the Hydraulic Oil Filter

The recommended interval for changing the hydraulic oil filter is typically every 250 hours of operation. However, it’s always best to refer to your equipment’s service manual for the manufacturer’s specific recommendations. A clogged filter can restrict oil flow, leading to reduced system efficiency and potential component damage.

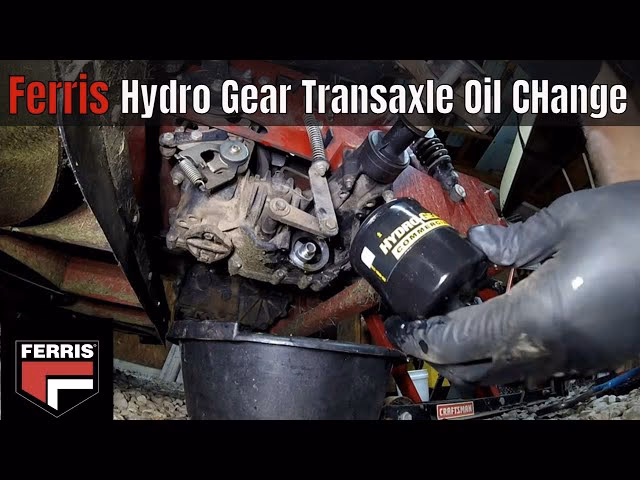

The Filter Replacement Process

Changing the hydraulic oil filter might seem straightforward, but it requires a bit of care:

Important Note: Removing the oil filter from its base will inevitably drain the hydraulic oil reservoir. Therefore, it is essential to have a suitable container ready to catch any spilled oil. For safety and to ensure the job is done correctly, Ferris recommends this be a dealer-only service item. If you are not comfortable performing this task, it is advisable to seek professional assistance.

1. Locating the Filter: The transmission oil filter (often referred to in conjunction with the hydraulic system) is typically located at the rear of the battery compartment, usually found under the seat.
2. Preparing the New Filter: Before installing the new filter, lubricate the rubber gasket on the new filter base with a few drops of clean transmission oil. This ensures a good seal. Then, fill the new filter about half full with the recommended oil. This pre-filling helps to reduce the amount of air introduced into the system when you start the engine.
3. Removing the Old Filter: Clean the area around the filter base thoroughly. Then, carefully remove the old filter. It is important to note that you should NOT drain the entire hydraulic system oil if it’s not necessary. The act of removing the filter will naturally allow some oil to drain.
4. Installing the New Filter: Thread the new filter onto the filter base by hand. Once the gasket makes contact with the mounting surface, tighten it an additional 3/4 of a turn. Avoid overtightening, as this can damage the gasket or the filter housing.
5. Post-Installation Checks: After changing the filter, start the unit and run it for several minutes. Crucially, check the transmission oil level again and top up if necessary.

Dealing with Air in the Hydraulic System

IMPORTANT NOTE: Be aware that after changing the filter, air can be introduced into the hydraulic system. This trapped air can affect the responsiveness and smooth operation of the control levers. You may need to repeat the process of running the unit for a few minutes and checking the oil level until all the air is purged from the system. This is often referred to as ‘bleeding’ the hydraulic system. Listen for any unusual noises that might indicate air in the system.

Battery Maintenance and its Connection to Hydraulics

While not directly part of the hydraulic fluid, the battery plays a vital role in the overall operation of machinery that relies on hydraulic systems. A well-maintained battery ensures that the electrical components that control hydraulic functions, such as solenoids and pumps, receive consistent and adequate power.

Understanding Your Battery

The note provided indicates that the unit is equipped with a maintenance-free BCIU1 battery. This type of battery is designed to require minimal user intervention. However, even maintenance-free batteries benefit from periodic cleaning to ensure good electrical contact.

Cleaning the Battery and Cables

To access the battery, you may need to move the hydraulic oil reservoir. This highlights the interconnectedness of different maintenance tasks. Here’s how to clean the battery and cables:

1. Gaining Access: First, carefully remove the hydraulic oil reservoir mounting hardware. Gently move the reservoir forward to fully expose the battery compartment.
2. Disconnecting the Battery: It is crucial to disconnect the battery cables correctly. Always disconnect the negative (black) cable first. This prevents accidental short circuits.
3. Cleaning Terminals: Use a wire brush to clean both the battery terminals and the ends of the cables until they are shiny and free of corrosion. Clean connections are essential for efficient power transfer.
4. Reinstalling the Battery: Once cleaned, carefully reinstall the battery. When reattaching the cables, connect the positive (red) cable first, followed by the negative (black) cable.
5. Protecting Connections: To further prevent corrosion and ensure good conductivity, coat the cable ends and battery terminals with petroleum jelly or a non-conducting grease specifically designed for automotive use.
6. Restoring the Reservoir: Finally, reposition the hydraulic oil reservoir back to its original location and secure it firmly in place using the mounting hardware that you removed earlier.

Troubleshooting Common Hydraulic Issues

Why is my hydraulic oil level dropping?

A consistently dropping hydraulic oil level usually indicates a leak somewhere in the system. Inspect all hoses, seals, cylinders, and the reservoir itself for any signs of oil seepage. Even a small leak can lead to significant fluid loss over time.

What happens if I use the wrong type of hydraulic oil?

Using the wrong type of oil can lead to a range of problems. Conventional oils may not offer the same thermal stability or lubricating properties as synthetics, potentially causing increased wear on components. Incorrect viscosity can also affect the performance of pumps and cylinders, leading to sluggish operation or a complete failure of the hydraulic system.

How do I know if my hydraulic oil filter needs changing?

Besides following the recommended service interval (e.g., every 250 hours), you might notice a decrease in the responsiveness of your hydraulic controls, or the fluid itself may appear discoloured or contain visible debris when you check the reservoir. A clogged filter can also lead to increased pressure within the system.

Conclusion

Maintaining the hydraulic oil reservoir and its associated components is a straightforward but vital task. By regularly checking the oil level, using the correct synthetic oil, changing the filter at the recommended intervals, and ensuring your battery is in good condition, you can significantly extend the life of your hydraulic system and ensure your machinery operates at peak performance. Always prioritize safety and refer to your equipment's specific service manual for detailed instructions and recommendations.
