Ferguson FE35: Your Definitive Guide

The Ferguson FE35 stands as a pivotal model in the history of agricultural machinery, bridging the gap between the iconic 'Little Grey Fergie' (TE20 series) and the modern Massey Ferguson tractors. Manufactured by the Massey Harris Ferguson Company, the FE35 was produced for a relatively short period, from 1956 until partway through 1957. It was during this latter part of 1957 that production transitioned to the Massey Ferguson badge and the now-familiar red and grey livery of the MF35. However, it is the original FE35, with its distinctive colour scheme of grey tinwork and wheels contrasted with golden castings, that captured the hearts of many. This striking livery earned the tractor a plethora of affectionate nicknames, including "Grey Bronze," "Golden Grey," "Gold Bellies," "Grey & Gold," "Gold Standard," "Golden Belly," "Golden Bird," and even "Goldbauch" in Germany. A particularly charming moniker from Sweden is "Guldkalv," translating to "The Golden Calf." This article delves into the specifics of the Ferguson FE35, from its production details and serial number system to its mechanical features and common owner queries.

Production Years and Transition

The Ferguson FE35 was produced between 1956 and 1957. The transition from the Ferguson FE35 to the Massey Ferguson MF35 was a significant one, not just in branding but also in colour. While the FE35 sported its signature grey and gold paintwork, the MF35 adopted the more recognisable red tinwork with grey wheels and bonnet. This transition period in 1957 saw the continuation of production under the Massey Ferguson name, even as the FE35 badging and colour scheme persisted for a time. Understanding the exact production dates can be crucial for collectors and restorers, as it often dictates the specific components and aesthetics of the tractor.

Understanding the Serial Number System

The serial numbers for the Ferguson FE35 are preceded by three letters, each denoting specific characteristics of the tractor. This coding system is invaluable for identifying the original specification of a particular machine:

• First Letter: Chassis Type
  • S = Standard
  • V = Vineyard
  • J = Industrial
• Second Letter: Engine Type
  • G = Petrol
  • H = High Altitude Petrol
  • D = 23C Diesel
  • N = 3-A-152 Diesel
  • K = Vapourising Oil (VO)
  • L = Lamp Oil
• Third Letter: Variation
  • F = Single Clutch
  • M = Dual Clutch

For example, a serial number starting with 'SDM' would indicate a Standard chassis, Diesel engine (specifically the 23C), and a Dual clutch. The data specifications and torque settings for the FE35 are generally aligned with those of the later Massey Ferguson 35, particularly concerning the four-cylinder models.

Engine Options and Performance

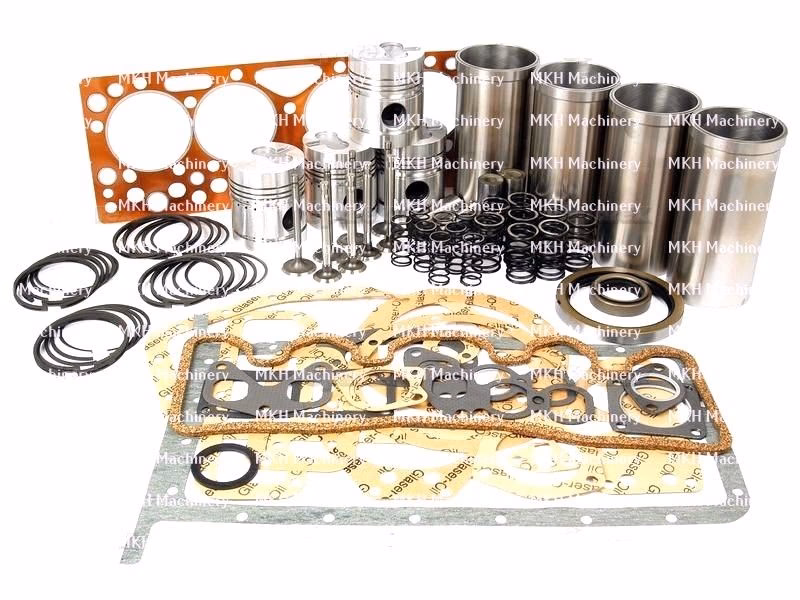

The Ferguson FE35 was available with a range of engine options to suit different farming needs. The most notable and perhaps most talked-about engine was the Standard 23C diesel. These engines, while powerful, were notoriously difficult to start, especially as they aged and wear increased. Owners of diesel FE35s often seek ways to improve starting performance, which can involve adjustments to pre-combustion chambers, injector settings, and the fuel pump. Resources such as engine rebuild DVDs specifically for the MF35 (23C) engine can be highly beneficial for addressing these starting challenges.

Other engine options included petrol and vapourising oil (VO) variants. The VO engines, in particular, were designed to run on heavier fuels and often featured a thermostat to maintain a hotter engine operating temperature, aiding in the vaporisation process. It's important to note that running VO engines on petrol exclusively might require ensuring the correct petrol thermostat is fitted, as an incorrect one could lead to overheating. The lubricating properties of VO are also a factor to consider when comparing it to petrol.

Notable Improvements and Features

The FE35 represented a significant step forward from its predecessors in the TE range. Key improvements included:

• Independent Brakes: Offering better control and safety.
• Dual Lever Control for Hydraulic Lift: Providing more precise management of implements.
• Live PTO (Deluxe Versions): This was a game-changer, allowing the Power Take-Off (PTO) to operate independently of the tractor's forward speed. This greatly enhanced the tractor's versatility for tasks like muck spreading, harvesting root crops, and baling, where consistent PTO speed is crucial.

The "live PTO" feature, in particular, transformed the utility of the tractor, making it a more efficient tool for a wider array of agricultural operations. Many owners have shared fond memories of using these tractors for demanding tasks like ploughing.

Colour Schemes and Identification

The iconic grey and gold colour scheme of the FE35 is perhaps its most defining visual characteristic. The contrast between the grey tinwork, wheels, and the golden castings created a truly unique and attractive tractor. The "Ferguson" badge, often finished in silver and gold, completed this distinctive look. As mentioned, the colour was often referred to as gold, but many sources suggest it was closer to a copper hue, leading to nicknames like "Copperbelly" in South Africa. It's not uncommon to find FE35s that have been repainted in the later MF35 red and grey livery, or even with variations in the original colour application. Some owners have noted that the grey used on the FE35 might be a slightly lighter shade than that found on the earlier TE20 models.

Common Questions and Troubleshooting

The online forums and comment sections related to the Ferguson FE35 are filled with practical advice and shared experiences from owners. Here are some frequently asked questions and common issues:

Timing the 23C Diesel Engine

Timing the fuel injector pump on the 23C diesel engine is frequently cited as a difficult task. While descriptive text can only go so far, visual guides, such as engine rebuild DVDs, are often recommended for accurately setting the timing of the camshaft and injector pump. Ensuring correct timing is crucial for optimal performance and preventing engine damage.

Oil Leaks from Transmission Belly Pan

A common query involves oil leaks from a small hole in the transmission belly pan. This hole is often a factory-made feature. If oil is leaking from it, it could be either engine oil or transmission oil. Identifying the source usually requires removing the underside panel and inspecting with a light. Leaks often indicate a failing seal, typically requiring the tractor to be split between the bell housing and clutch housing to replace the seal. Oil on the clutch can necessitate its replacement as well.

Hydraulic System Issues

Problems with the three-point linkage and front loader not working are not uncommon. Initial troubleshooting often involves checking the PTO operation, as this indicates if the hydraulic pump is receiving drive. If the hydraulics attempt to lift but judder, the issue might lie within the control valve sticking. Working the control lever, accessible via the right-hand side cover, can sometimes free it. Milky oil in the hydraulic system, caused by water ingress, can accelerate wear on components like the control valve, highlighting the importance of regular oil changes, even if the tractor has low hours.

Engine Starting Difficulties

As previously mentioned, the 23C diesel engine can be challenging to start. Beyond fuel system and timing adjustments, some owners explore fitting alternative starter motors that offer higher torque, leading to faster engine cranking. While direct experience with specific conversions can be limited, suggestions often point towards aftermarket suppliers like Sparex, who may offer heavy-duty starter options for the 23C engine.

Paint Codes and Colour Information

Owners often seek the correct paint codes for the distinctive grey and gold/copper livery. While official manufacturer codes can be hard to obtain, some enthusiasts have found suitable alternatives through automotive paint suppliers. For instance, NAPA codes like 99L3740 for grey and 99N-22138 for bronze/gold have been suggested. The exact shade of gold is often debated, with many agreeing it leans more towards a copper tone.

Dashboard Gauges

The dashboard layout on the FE35 can vary. While diesel models typically feature a Tractometer, oil pressure gauge, and ammeter, they do not usually have a temperature gauge. Temperature gauges were generally reserved for the petrol and VO variants, which had a sensor and corresponding gauge fitted.

Ferguson FE35 vs. Massey Ferguson 35

While mechanically very similar, especially the four-cylinder diesel models, the key distinctions lie in the branding and colour scheme. The FE35 is the gold-standard (pun intended) for collectors of the original grey and gold tractors. The transition to the MF35 in late 1957 marked the adoption of the red and grey livery and eventually the iconic Massey Ferguson triple-triangle badge. It's worth noting that some early MF35s retained Ferguson badging, and even the FE35 designation on their compliance plates, making precise identification a fascinating aspect of owning these vintage machines. The six-stud half-shaft housing, used on the gold-belly models, was also a feature of the early production run before being replaced by the 12-stud type.

Conclusion

The Ferguson FE35 is more than just a tractor; it's a piece of agricultural heritage. Its unique colour scheme, robust build, and the improvements it brought over previous models cemented its place in the hearts of farmers and collectors alike. Whether you're a seasoned restorer or a new owner, understanding its production history, serial number system, and common characteristics is key to appreciating and maintaining this iconic machine. The "Golden Calf" of the tractor world continues to turn heads and evoke a sense of nostalgia, a testament to its enduring appeal.
