The Feeler Gauge: Unlocking Automotive Precision

In the intricate world of automotive mechanics, engineering, and general workshop tasks, the margin for error is often incredibly small. Precision isn't just a preference; it's an absolute necessity for optimal performance, safety, and longevity of components. Whether you're fine-tuning an engine, ensuring critical machinery runs smoothly, or meticulously assembling parts, measuring those tiny, crucial gaps can be a real challenge. This is precisely where the unassuming yet incredibly powerful feeler gauge steps in, transforming guesswork into exactitude. This blog post delves into the profound importance, diverse applications, and operational simplicity of the feeler gauge, revealing why this essential tool should be a cornerstone of every toolkit.

Understanding the Ingenious Feeler Gauge

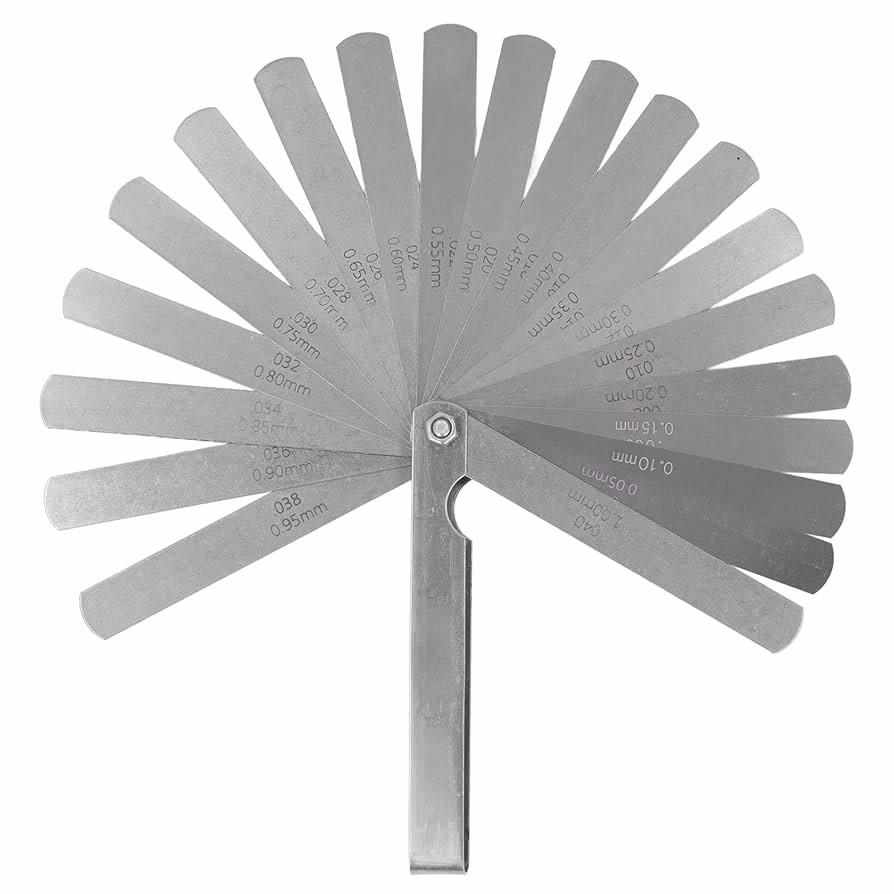

At its heart, a feeler gauge is a straightforward yet remarkably effective measuring instrument. It comprises a collection of thin, flat metal blades, each meticulously crafted to a specific, uniform thickness. These blades, typically forged from durable materials such as high-carbon steel or stainless steel, are designed with one primary purpose: to accurately measure minute gaps or clearances between two distinct parts. Each blade is clearly etched with its precise thickness, usually presented in either thousandths of an inch (imperial) or millimetres (metric), allowing for unambiguous and precise measurement readings.

The term 'feeler' gauge itself is highly descriptive of its operational principle. Unlike optical or electronic measuring devices, this tool relies on tactile feedback. The user selects a blade believed to be close to the gap's size and gently slides it into the space. The 'feel' of the blade – whether it slides in too easily, too tightly, or with a perfect, slight resistance – indicates the accuracy of the measurement. This tactile engagement is what makes the feeler gauge so intuitive and reliable for measuring clearances that are often too small for conventional rulers or calipers.

Why Precision Matters: The Importance of the Feeler Gauge

The feeler gauge isn't just another tool; it's a guarantor of precision. In mechanical systems, even a minuscule deviation from the recommended clearance can have significant consequences. An engine valve set with too wide a gap might result in excessive noise and reduced power, while too narrow a gap could lead to burnt valves. Similarly, incorrect clearances in machinery can cause premature wear, increased friction, and ultimately, component failure. The feeler gauge provides the means to achieve and verify these critical dimensions with unparalleled accuracy, directly impacting performance, reliability, and safety.

It fills a vital niche where other measuring devices simply cannot operate. Its slender blades can access tight spaces that are inaccessible to calipers or micrometers, making it the go-to tool for internal clearances. This makes it indispensable for tasks where visual inspection alone is insufficient, and where the exact dimension of a gap is paramount to the correct functioning of a system. Its ability to provide consistent and repeatable measurements makes it a trusted companion for professional mechanics and dedicated DIY enthusiasts alike.

Diverse Applications: Where the Feeler Gauge Shines

The versatility of the feeler gauge is truly remarkable, finding its place across a multitude of industries and applications. Its primary use cases often revolve around ensuring optimal mechanical operation:

• Engine Maintenance: This is arguably one of the most common and critical applications. When adjusting the clearance between engine valves and rocker arms, a feeler gauge is essential to set the gap within the manufacturer's specified range. This ensures proper valve lift, efficient combustion, and prevents damage. It's also crucial for setting spark plug gaps and older breaker point gaps.
• Carburettor Tuning: For vehicles with carburettors, precise adjustments are key to fuel-air mixture. Feeler gauges are used to set various internal gaps, ensuring the carburettor delivers the correct mixture for smooth, efficient engine operation.
• Brake Components: In the automotive industry, feeler gauges can be employed to check the thickness of brake pads or to measure the gap between brake components, such as the rotor and caliper, ensuring optimal braking performance and preventing safety hazards.
• Machinery and Equipment Alignment: Beyond vehicles, feeler gauges are invaluable for measuring small clearances in industrial machinery. They help verify the alignment of parts, ensuring smooth operation, reducing friction, and preventing premature wear and tear on expensive components.
• Gasket Installation: When installing gaskets, especially in critical areas, feeler gauges can be used to measure the clearance between mating surfaces. This guarantees a proper fit, preventing leaks and ensuring the integrity of the seal.
• General Engineering and Manufacturing: In broader engineering and manufacturing contexts, feeler gauges are fundamental for checking clearances between moving parts like bearings, shafts, or gears, ensuring that all components operate within their designed tolerances.

Mastering the Technique: Working Principle and Correct Usage

Using a feeler gauge effectively is a skill that, once acquired, becomes second nature. Here's a step-by-step guide to its straightforward working principle:

1. Prepare the Surfaces: Before beginning, ensure the surfaces you are measuring are clean and free from oil, grease, or debris. Any foreign material can lead to inaccurate readings.
2. Choose the Correct Blade: Feeler gauge sets come with a range of blades of varying thicknesses. Based on the manufacturer's specifications for the gap you're measuring, select a blade that is close to the expected size. If unsure, start with a thinner blade and gradually move to thicker ones.
3. Insert the Blade: Gently insert the selected blade into the gap between the two parts. The key here is 'gentle'.
4. Test for Fit: The blade should slide into the gap with a slight, consistent drag or resistance. It should not be so loose that it slides freely, nor so tight that you have to force it, which could damage the blade or provide a false reading.
5. Adjust and Re-test: If the blade fits too easily, the gap is larger than the blade's thickness. Try the next thicker blade. If the blade doesn't fit at all, or requires significant force, the gap is smaller. Try the next thinner blade. Continue this process until you find the blade that provides that perfect, snug fit with just a hint of drag.
6. Read the Measurement: Once you've identified the blade that fits correctly, read the thickness marked on it. This is your accurate measurement of the gap or clearance.

Remember, consistency is key. Always use the same 'feel' when testing, and avoid twisting or bending the blades, as this can affect their accuracy over time.

The Undeniable Advantages of This Simple Tool

The widespread adoption and enduring relevance of feeler gauges stem from a compelling list of advantages they offer:

• Unmatched Precision: As highlighted, feeler gauges excel at measuring small gaps with extreme precision, often down to a thousandth of an inch or a hundredth of a millimetre. This level of accuracy is critical for fine-tuning and ensuring optimal mechanical function.
• Exceptional Durability: Crafted from high-strength materials like stainless steel or carbon steel, feeler gauges are built to withstand the rigours of workshop environments. With proper care, they offer remarkable durability and a long service life.
• Broad Versatility: Their utility spans across countless applications, from intricate automotive engine work to general machinery maintenance. This versatility makes them an indispensable tool in any mechanic's or engineer's arsenal.
• Outstanding Affordability: Compared to many other precision measuring instruments, feeler gauges are remarkably inexpensive. This affordability makes high-precision measurement accessible to everyone, from professional workshops to home DIY enthusiasts, offering exceptional value.
• Remarkable Ease of Use: Despite their precision, feeler gauges are incredibly simple to operate. Their straightforward design requires minimal training or experience, making them an ideal tool for both seasoned professionals and beginners.

Exploring Types of Feeler Gauges

While the basic principle remains the same, feeler gauges come in various forms to suit different applications. The two most common types are conical and parallel:

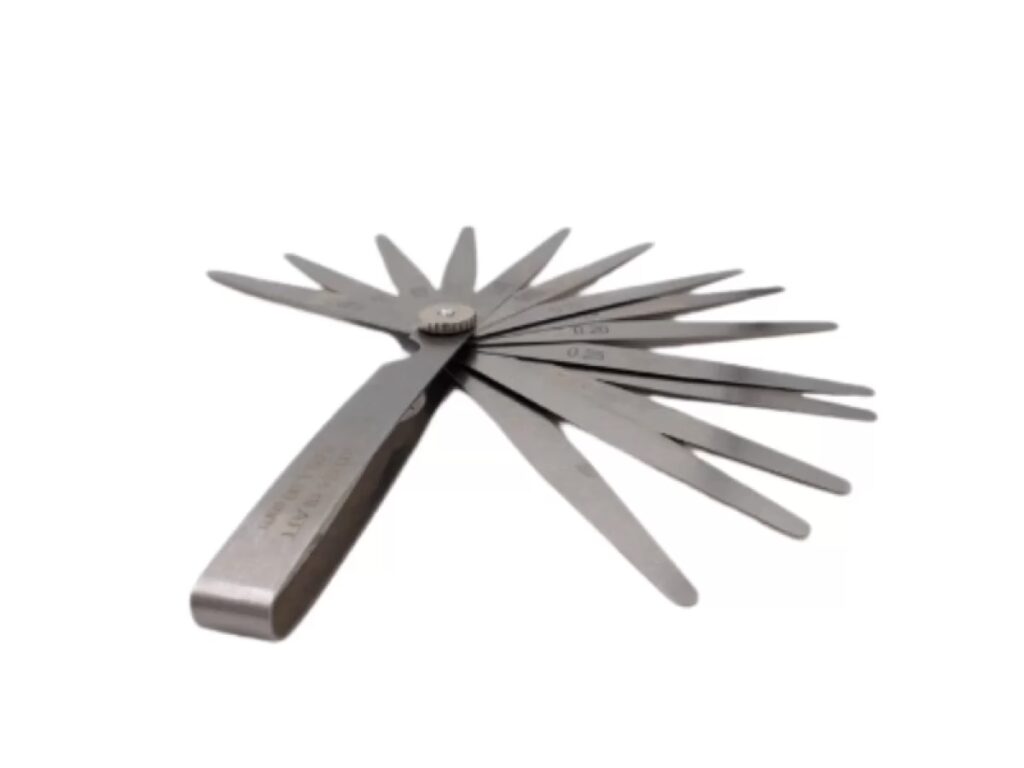

• Conical Feeler Gauges: These gauges feature blades that are pointed or tapered at one end and rounded at the other. This conical shape can be advantageous for inserting into very tight or awkwardly shaped gaps, allowing for easier initial entry before the full thickness of the blade engages.
• Parallel Feeler Gauges: In contrast, parallel feeler gauges have blades that maintain a uniform width and thickness right up to their rounded end. This design is excellent for measuring consistent, straight gaps and is perhaps the most common type found in general automotive and mechanical sets.

Comparative Table: Conical vs. Parallel Feeler Gauges

Maintaining Your Feeler Gauge for Lasting Accuracy

To ensure your feeler gauge continues to provide accurate measurements for years to come, a little maintenance goes a long way:

• Keep it Clean: After each use, wipe down the blades with a clean cloth to remove any oil, grease, or dirt. This prevents corrosion and ensures accurate readings for future tasks.
• Store Properly: Always store your feeler gauge in its protective case or holder. This prevents the delicate blades from bending, kinking, or being damaged, which would compromise their accuracy.
• Avoid Forcing: Never force a blade into a gap. This can bend or deform the blade, rendering it inaccurate. If a blade doesn't fit with gentle pressure, try a thinner one.
• Check for Wear: Periodically inspect your blades for any signs of wear, nicks, or bends. Worn blades should be replaced or the entire set if heavily damaged, as they can no longer guarantee accuracy.

Frequently Asked Questions About Feeler Gauges

What is the smallest or largest gap a feeler gauge can measure?

Feeler gauges are designed for very small gaps. Individual blades can be as thin as 0.03 mm (0.0015 inches) and typically go up to about 1.0 mm (0.040 inches). For larger gaps, multiple blades can be combined, or alternative measuring tools like calipers might be more appropriate.

Can I use a feeler gauge for spark plug gaps?

Absolutely! Setting the spark plug gap is one of the most common and important applications for a feeler gauge. It ensures the correct distance for the spark to jump, optimising ignition and engine performance.

How do I know which blade to use if I don't have a specification?

Always try to find the manufacturer's specification. If unavailable, start with a blade you believe is slightly too thin and work your way up until you find the blade that provides a slight, consistent drag. This is a common method for general gap assessment, but for critical applications, always seek out the exact specification.

What's the difference between an imperial and a metric feeler gauge?

The primary difference is the unit of measurement. Imperial feeler gauges have blades marked in thousandths of an inch (e.g., 0.005", 0.010"), while metric feeler gauges are marked in millimetres (e.g., 0.10 mm, 0.25 mm). Many sets now offer both imperial and metric markings on the same blades for greater versatility.

Why are they called 'feeler' gauges?

They are called 'feeler' gauges because their operation relies on the user's tactile 'feel' to determine when the correct blade thickness fits snugly into a gap. The slight drag or resistance felt is the key indicator of an accurate measurement.

Conclusion: An Indispensable Tool for the Modern Mechanic

In conclusion, the feeler gauge, though simple in its construction, is an absolutely indispensable tool for anyone who demands accuracy and precision in their work. From the intricate adjustments required in automotive engine maintenance to the critical alignment of industrial machinery, this humble instrument plays a pivotal role in ensuring proper functioning, enhancing safety, and extending the lifespan of valuable equipment. Its combination of affordability, durability, versatility, and ease of use makes it a standout performer in any toolkit.

By mastering the correct application and care of your feeler gauge, you unlock the ability to achieve highly accurate measurements that directly translate into improved performance and greater reliability for whatever project you're tackling. For both the seasoned professional mechanic and the enthusiastic DIYer, the feeler gauge remains a testament to the power of simplicity in solving complex measurement challenges, guaranteeing that crucial clearances are always spot on.
