Mastering Maintenance of Traffic Plans

Undertaking any work within a city's right-of-way necessitates a robust plan to manage traffic effectively and ensure the safety of both the public and the workforce. This is where a Maintenance of Traffic (MOT) plan becomes not just a recommendation, but a critical requirement. In the City of Fort Lauderdale, for instance, any activity impacting public thoroughfares demands strict adherence to an approved MOT plan, aligning with stringent standards set forth by governing bodies like the Florida Department of Transportation (FDOT) and the Manual of Uniform Traffic Control Devices (MUTCD).

The responsibility for compliance rests squarely on the applicant's shoulders. This means ensuring the MOT plan is not only created but also meticulously followed from the moment work commences until its completion. The plan must be readily available on-site throughout the entire construction period, serving as the definitive guide for traffic control operations. Failing to have an approved plan, or deviating from its stipulations, can lead to significant delays, penalties, and, most importantly, compromised safety.

When is an MOT Plan Essential?

The fundamental trigger for requiring a Maintenance of Traffic plan is any work conducted within a public right-of-way. This encompasses a broad spectrum of activities, including but not limited to:

• Road construction and resurfacing
• Utility work (water, sewer, electrical, telecommunications)
• Streetscape improvements
• Special events impacting traffic flow
• Building construction with potential sidewalk or lane closures
• Landscaping and tree trimming within the right-of-way
• Any activity requiring temporary or permanent alteration of traffic patterns, pedestrian walkways, or bicycle lanes.

Essentially, if your project involves encroaching upon or altering the normal flow of traffic or pedestrian movement in public spaces, an MOT plan is a prerequisite.

Key Components of an MOT Plan

A comprehensive MOT plan is a detailed document designed to minimise disruption and maximise safety. While specific requirements can vary based on the complexity of the project and local regulations, several core components are universally critical:

1. Traffic Control Devices (TCDs)

This section details the specific signs, signals, barriers, and markings that will be used to guide traffic and pedestrians. It must adhere to the latest edition of the FDOT's Design Standards and Part IV of the MUTCD. Examples include:

• Warning Signs: 'Road Work Ahead', 'Detour', 'Lane Closed'.
• Channelizing Devices: Cones, drums, barriers (e.g., Jersey barriers).
• Pavement Markings: Temporary lines for lane shifts or closures.
• Traffic Signals: Temporary signals or flaggers to manage intersections.

2. Phasing and Scheduling

The plan outlines the sequence of operations and how traffic control will be implemented in different phases of the project. This ensures that closures and detours are managed logically and efficiently, minimising the duration of disruption.

3. Detour Routes

For any closure, clear and effective detour routes must be identified and communicated. This involves providing adequate signage for drivers to navigate alternative routes seamlessly. The plan should include diagrams or maps illustrating these detours, often overlaid on an aerial map for clarity.

4. Pedestrian and Bicycle Accommodation

Safe passage for pedestrians and cyclists must be a priority. The plan should detail how sidewalks will be maintained or how safe alternative pedestrian and bicycle routes will be provided around the work zone.

5. Public Notification

Effective communication with the public is vital. This may involve advance notice through mailers, local media, or website postings about upcoming closures and detours. The MOT plan should outline the proposed communication strategy.

6. Flagger Operations

If flaggers are to be used, the plan must specify their placement, training (certification is often mandatory), and the procedures they will follow. This includes the type of signs they will use (e.g., 'STOP/SLOW' paddles).

7. Emergency Vehicle Access

Ensuring that emergency vehicles can still access the area or have a clear path through the work zone is paramount. The MOT plan must address this critical consideration.

The Approval Process: A Step-by-Step Guide

Navigating the approval process for an MOT plan can seem daunting, but understanding the steps involved makes it manageable. Using the City of Fort Lauderdale's LauderBuild system as an example:

1. Obtaining the Necessary Forms

The first step is to download the official MOT/TTC (Traffic Control for Transportation) Form and any accompanying guidelines. These forms are usually available on the relevant city or county department's website.

2. Completing the Application

Fill out the MOT/TTC Form and the Required Signature page completely and accurately. Incomplete applications are a common reason for delays, so meticulous attention to detail is crucial. Ensure all sections are addressed.

3. Securing Department Signatures

Prior to submitting the application, obtain the necessary signatures from relevant city and county departments. The provided contact information within the application guidelines is essential for identifying the correct individuals or departments to approach.

4. Compiling Supporting Documentation

Beyond the core MOT form, several supporting documents are typically required:

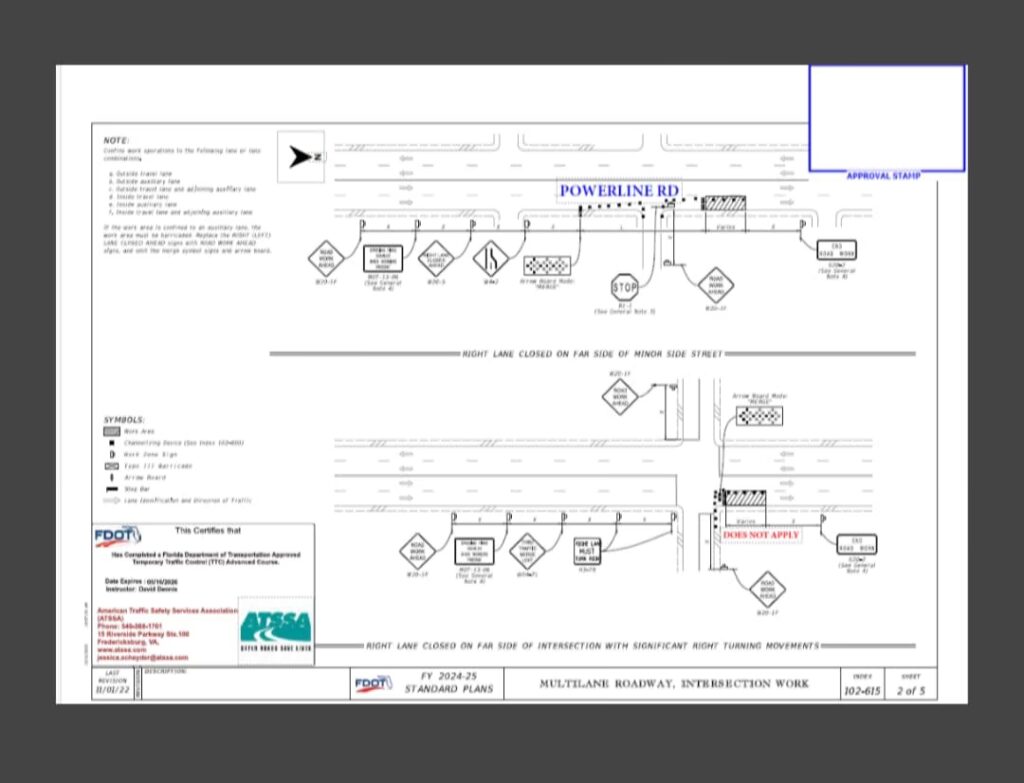

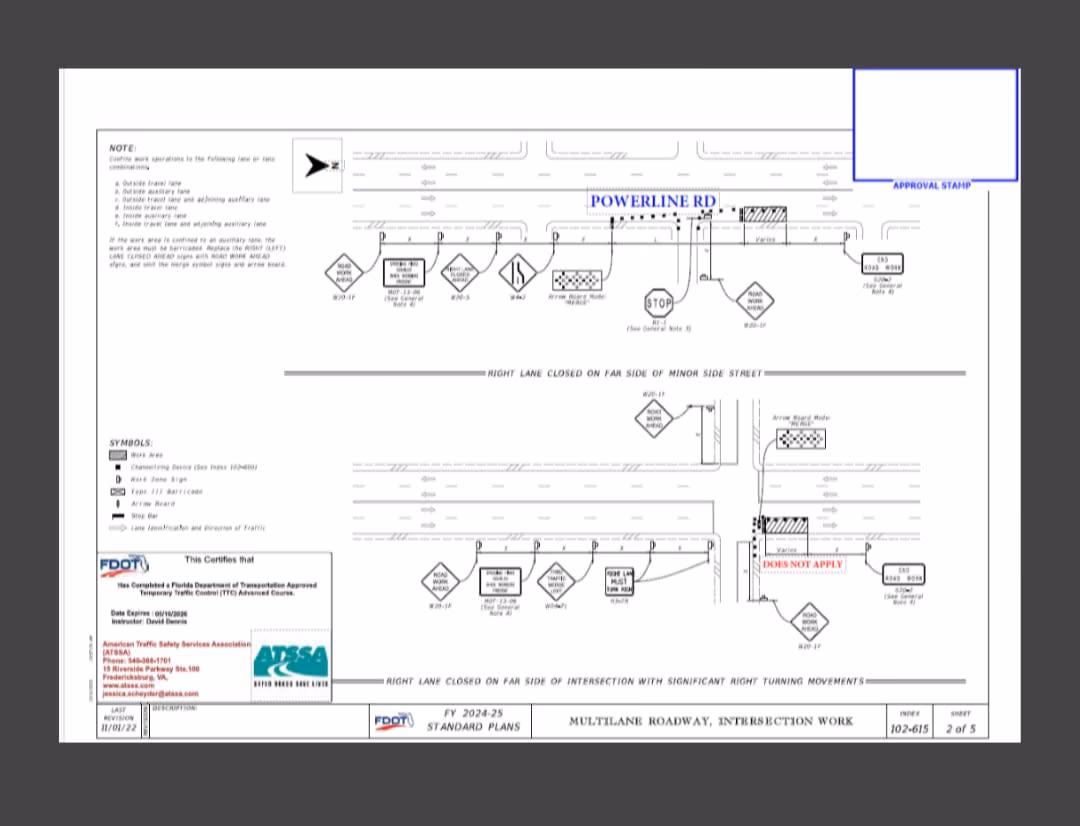

• MOT/TTC Plan: This is the detailed drawing of the traffic control setup, often overlaid on a color aerial map.
• FDOT Index Drawings and/or MUTCD Typical Applications: These provide standardised layouts for common traffic control scenarios, especially for detours.
• Certifications: Copies of current certifications for any personnel designated as Traffic Control Technicians or Supervisors.
• Plan of Work: While sometimes optional, providing a general plan of the construction activities is highly preferred as it contextualises the MOT requirements.
• County and State Approvals: If the project falls under the jurisdiction of multiple authorities, their respective approvals may be needed.
• Crane and Parking Mitigation: If cranes are being used or parking needs to be managed, specific mitigation plans might be required.

5. Online Submission via LauderBuild

In many modern municipalities, like Fort Lauderdale, MOT applications are submitted and managed online. Platforms like LauderBuild streamline this process. Users can typically submit new applications, upload supporting documents, and track the status of their submissions.

6. Understanding Approval Timelines

Be prepared for processing times. The City of Fort Lauderdale, for example, states that approvals may take up to three weeks from the receipt of all required documents. It's important to note that any rejected submission that is corrected and resubmitted is often treated as a new application, potentially incurring another three-week waiting period. Complex plans requiring extensive coordination can take even longer.

7. Permit Issuance and Access

Once approved, the MOT plan becomes part of the overall project permit. Approved applications are typically accessible through the same online portal (e.g., LauderBuild) once the main construction permit is issued by the relevant department, such as the Department of Sustainable Development.

Leveraging Tools for Better Planning

LauderBuild: Your Digital Hub

LauderBuild serves as a comprehensive online portal for accessing various city services. For MOT/TTC applications, its benefits include:

• Online Submission and Updates: Submit and manage your MOT applications conveniently.
• Document Management: Upload and review all necessary supporting documents.
• Permit Tracking: Monitor the progress of your MOT application alongside other permits.
• Code Case Review: Access information related to building codes and compliance.
• Payment Processing: Handle any associated fees or fines.
• Violation Reporting: Report potential MOT violations observed in the field.

Registering for a user account on LauderBuild is highly recommended to unlock the full suite of services and ensure a smoother experience.

LauderStreet: Visualising Closures

The City's LauderStreet map is an invaluable tool for planning and coordination. This mobile-friendly, searchable map provides real-time information on road and sidewalk closures within the city's right-of-way. By using LauderStreet during your MOT application process, you can:

• Identify Overlapping Closures: Check for existing or upcoming closures at your project location and time.
• Avoid Conflicts: Prevent scheduling conflicts that could exacerbate traffic disruptions.
• Plan Detours Effectively: Understand current traffic patterns and potential impacts of your proposed detours.
• Access Closure Details: View information on the reason, duration, and detour routes for existing closures.
• Monitor Real-time Impact: The map integrates with Google's traffic layer, allowing you to see the immediate effect of closures on traffic flow.

Proactively checking LauderStreet and coordinating with the city can significantly reduce the overall impact of multiple concurrent projects on the local transportation network.

Ensuring Ongoing Compliance

The approved MOT plan is not a document to be filed away and forgotten. Continuous adherence throughout the project lifecycle is essential. This includes:

• Regular Inspections: Site personnel should regularly inspect the work zone to ensure that TCDs are in place, visible, and functioning as intended.
• Adaptability: Unforeseen circumstances can arise. The MOT plan should be flexible enough to allow for minor adjustments, provided they are documented and communicated to the relevant authorities if they constitute a significant change. Major deviations will likely require a revised plan submission and approval.
• Training: Ensure all personnel involved in traffic control are properly trained and certified, and understand their roles and the importance of the MOT plan.
• Reporting: Any incidents or significant issues related to traffic control should be reported promptly according to established procedures.

Frequently Asked Questions (FAQs)

Q1: How long does it typically take to get an MOT plan approved?

A1: Approval times can vary, but in the City of Fort Lauderdale, it can take up to three weeks from the submission of all required documents. Complex projects or resubmissions may take longer.

Q2: What happens if my MOT plan is rejected?

A2: If your plan is rejected, you will receive feedback on the reasons for rejection. Correcting the issues and resubmitting the plan will be treated as a new submission, potentially restarting the approval timeline.

Q3: Can I use standard MUTCD drawings for my MOT plan?

A3: Yes, you can use MUTCD typical applications, often provided as FDOT Index Drawings, as a basis for your plan, especially for common detour scenarios. However, your plan must be tailored to your specific site conditions and approved by the relevant authorities.

Q4: Who is responsible for maintaining the traffic control devices?

A4: The applicant or contractor undertaking the work is responsible for the proper placement, maintenance, and removal of all traffic control devices as specified in the approved MOT plan.

Q5: What if my project only involves a minor sidewalk closure?

A5: Even minor closures within the public right-of-way typically require an MOT plan. It ensures that pedestrian safety is managed, and the appropriate TCDs are used to guide people around the closure.

Q6: Can I start work before my MOT plan is approved?

A6: No, work cannot commence within the right-of-way until the MOT plan is approved and the plan is on-site. Proceeding without approval can lead to significant penalties and work stoppages.

In conclusion, a well-conceived and approved Maintenance of Traffic plan is the cornerstone of safe and efficient work within public rights-of-way. By understanding the requirements, diligently preparing the necessary documentation, utilising available digital tools, and ensuring continuous compliance, project managers can navigate the process successfully, minimising disruption and safeguarding the public.
