Revitalising Your Farmall H: A Deep Dive into Inframe Overhaul Kits

The Farmall H, a true workhorse of American agriculture, produced by International Harvester from 1939 to 1953, is renowned for its durability and versatility. Powering these iconic machines is the robust International Harvester C-152 engine, a 2.5-litre, four-cylinder unit that came in gasoline, distillate, and kerosene variants. When the time comes to restore the heart of your Farmall H, an inframe overhaul kit is an indispensable resource. This comprehensive guide will demystify what goes into such a kit, specifically for the C-152 engine in late-model Farmall H tractors (serial number after 391357 with standard rod diameter of 2.98 inches), and what you can expect during an engine rebuild.

Understanding the Farmall H Engine

Before delving into the specifics of an overhaul kit, it's crucial to understand the engine it serves. The Farmall H, and its successor the Farmall Super H, relied on the International Harvester C-152 engine. This engine, with a displacement of 2.5 litres (2,492 cm² or 152.1 cubic inches), featured a bore of 86.0 mm (3.39 inches) and a stroke of 108.0 mm (4.25 inches). The compression ratios varied depending on the fuel type: 5.9:1 for gasoline, 4.75:1 for distillate, and 4.5:1 for kerosene. The Farmall Super H, produced from 1953 to 1954, featured a slightly larger C164 engine with a displacement of 2.7 litres. This article focuses on the C-152 engine found in the Farmall H.

The C-152 engine is a liquid-cooled, four-stroke, inline engine. Its design prioritised reliability and ease of maintenance, which contributed to the Farmall H's widespread popularity. Over decades of service, wear and tear are inevitable, making an inframe overhaul a vital procedure for maintaining performance and extending the tractor's operational life.

What is an Inframe Overhaul Kit?

An inframe overhaul kit is a collection of essential engine components designed to replace the most critical wear items within the engine's "frame" – essentially, the lower end of the engine. This typically includes parts related to the cylinders, pistons, crankshaft, and connecting rods. Performing an inframe overhaul allows for the replacement of these parts without the need to remove the entire engine from the tractor chassis, saving significant labour time and effort.

The kit mentioned in the provided information is specifically for a NEW Inframe Overhaul kit for a C152 engine in a Farmall H with late serial numbers (after 391357) and a standard rod diameter of 2.98 inches. This specificity is important, as engine components can vary between different serial number ranges or specific tractor models.

Components of a Farmall H Inframe Overhaul Kit

A typical inframe overhaul kit for a Farmall H's C-152 engine is designed to address the most common areas of wear. Based on the information provided, the kit includes the following critical components:

• Cylinder Kits (x4): These are the heart of the engine's power generation. Each kit usually contains a cylinder sleeve and a piston with its corresponding piston rings. The specified kit includes 3.437-inch bore kits with dome-top pistons, which are crucial for proper combustion and compression. The sleeves provide a smooth, durable surface for the pistons to travel within.
• Wrist Pins: Also known as piston pins, these connect the piston to the connecting rod. They are precision-engineered components that must withstand significant reciprocating forces.
• Rod Bearings: These bearings sit between the connecting rod and the crankshaft journals. They are critical for smooth rotation and reducing friction. The kit provides rod bearing sets, and importantly, allows for customisation of sizes.
• Main Bearings: These bearings support the crankshaft within the engine block. Like rod bearings, they are subject to immense pressure and wear. The kit includes main bearing sets, with the same customisation options as rod bearings.

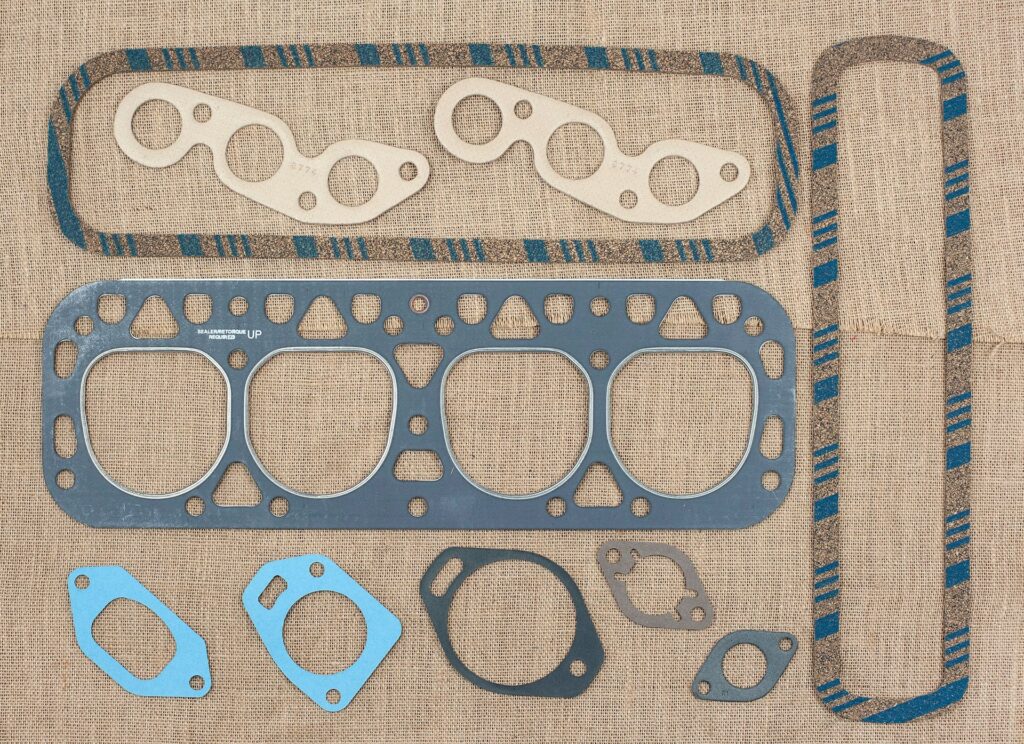

• Head Gasket Set: This vital set includes various gaskets and seals necessary for reassembling the cylinder head onto the engine block. A quality head gasket set ensures proper sealing of combustion chambers, coolant passages, and oil passages, preventing leaks and maintaining compression.
• Oil Pan Gasket: This gasket seals the oil pan to the bottom of the engine block, preventing oil leaks.

It's important to note that while this kit covers the core inframe components, a complete engine rebuild might necessitate additional parts not typically included in an inframe kit, such as camshafts, oil pumps, water pumps, or timing gears. Always consult your tractor's service manual for a complete list of parts required for your specific overhaul.

Key Considerations and Customisation

One of the most significant advantages of a well-assembled overhaul kit is the inclusion of precisely matched components. For instance, the cylinder kits with the correct bore size and piston type are essential for optimal engine performance. The mention of dome top pistons suggests a specific design that might influence compression or combustion characteristics.

A critical aspect of ordering this kit is the ability to specify bearing sizes. Engine bearings are precision components, and replacement often requires selecting sizes that account for wear on the crankshaft journals. The availability of rod and main bearings in sizes such as .002, .010, .020, and .030 inches allows mechanics to choose the best fit for a worn crankshaft, ensuring proper oil clearance and longevity. This customisation is a testament to the importance of precise fitting in engine rebuilding.

Note: Always measure your crankshaft journals accurately before ordering bearings to ensure you select the correct undersize if necessary.

When to Consider an Inframe Overhaul

Several signs indicate that your Farmall H's C-152 engine may be due for an inframe overhaul:

• Excessive Smoke: Blue smoke often indicates oil burning in the combustion chamber, usually due to worn piston rings or valve seals.
• Loss of Power: Reduced engine power and torque can be a symptom of low compression, often caused by worn cylinder liners, pistons, or rings.
• Increased Oil Consumption: If you find yourself frequently topping up the oil, it's a clear sign of internal engine leaks, typically past the piston rings or valve guides.
• Knocking or Ticking Noises: Unusual noises, particularly knocking sounds from the bottom end, can point to worn rod or main bearings, indicating a need for immediate attention.
• Overheating: While not always directly related to inframe components, a severely worn engine can sometimes contribute to overheating due to inefficient combustion and potential coolant leaks if the head gasket is compromised.

The Rebuild Process: An Overview

Performing an inframe overhaul involves several key steps:

1. Disassembly: Drain the oil and coolant. Remove the oil pan, oil pump, and connecting rod caps. Carefully push the pistons and connecting rods out through the top of the cylinder bores. Remove the main bearing caps and lift the crankshaft out.
2. Cleaning and Inspection: Thoroughly clean all removed engine components. Inspect the cylinder bores for wear, scoring, or damage. Check the crankshaft journals for wear, pitting, or out-of-roundness. Examine the connecting rods and main bearing caps for any signs of stress or damage.
3. Component Installation: Install the new cylinder sleeves (if applicable to the kit) and pistons with new rings. Lubricate the cylinder walls and piston rings liberally with assembly lube. Install the new rod bearings and main bearings, ensuring correct orientation and lubrication. Carefully position the crankshaft and install the main bearing caps with the correct torque specifications. Reattach the connecting rods with new rod bearings and torque the rod caps.
4. Reassembly: Install the new head gasket set and reassemble the cylinder head. Reinstall the oil pump, oil pan with its new gasket, and all other ancillary components.
5. Initial Start-up and Break-in: Fill the engine with fresh oil and coolant. Perform a careful initial start-up, checking for oil pressure and any immediate leaks. Follow a recommended break-in procedure, which typically involves running the engine at varying moderate speeds under light load for a specific period to allow the new components, especially the piston rings, to seat properly.

Major Kits vs. Inframe Kits

It's worth noting the mention of "Major kits." A major overhaul kit typically includes all the components of an inframe kit, plus additional parts needed for a more comprehensive rebuild. This might include valves, valve springs, guides, camshaft components, timing gears, and front and rear crankshaft seals. If your Farmall H has significant wear in areas beyond the lower end, a major kit might be a more suitable, albeit more involved, option.

Comparison Table: Farmall H Engine Options

To better understand the context of the C-152 engine, here's a comparison with its successor, the C164:

Frequently Asked Questions (FAQs)

Q1: Do I need to remove the engine from the tractor for an inframe overhaul?
No, the primary advantage of an inframe overhaul is that it can be performed with the engine still mounted in the tractor. Components like the oil pan and connecting rods are accessible from underneath.

Q2: Can I use a generic overhaul kit for my Farmall H?
It is highly recommended to use a kit specifically designed for the Farmall H and its C-152 engine, paying attention to serial number ranges. Using a generic kit may result in incorrect fitment and potential engine damage.

Q3: What are the most common bearing sizes needed for a Farmall H?
The common undersizes for worn crankshafts are .010 inches and .020 inches. However, it's crucial to measure your crankshaft journals to determine the exact size required. The kit offers .002, .010, .020, and .030 inch options.

Q4: Does the kit include a new crankshaft?
Typically, an inframe overhaul kit does not include a new crankshaft. The crankshaft is inspected for wear and damage, and if necessary, it can be machined to accept undersized bearings or replaced entirely. Major overhaul kits also generally do not include crankshafts.

Q5: What is the significance of the 3.437-inch bore size?
The 3.437-inch bore size refers to the diameter of the cylinder liners and pistons included in the kit. This is a standard or possibly a slightly oversized dimension for the C-152 engine, and it's crucial that this matches your engine's requirements or the intended machining specifications.

Conclusion

An inframe overhaul kit for your Farmall H's C-152 engine is a crucial investment for maintaining the longevity and performance of this classic tractor. By understanding the components included, the importance of precise fitment, and the signs that indicate a need for overhaul, you can ensure your Farmall H continues to be a reliable asset for years to come. Whether you're performing the work yourself or entrusting it to a professional, having the right parts is the first step towards a successful engine restoration.
