Car Fan Motor Replacement: A Comprehensive Guide

A properly functioning fan motor is crucial for your car's health and your comfort. Whether it's the radiator fan keeping your engine cool under pressure or the blower motor ensuring a comfortable cabin temperature, a faulty fan can quickly turn a pleasant drive into a stressful ordeal. This comprehensive guide will walk you through diagnosing issues with both types of fan motors and provide step-by-step instructions on how to replace them, empowering you to tackle this common car repair yourself.

Understanding Your Car's Fan Systems

Your vehicle typically has two primary fan systems, each serving a distinct, vital purpose:

The Radiator Cooling Fan

This fan is positioned near the radiator and is responsible for drawing air through the radiator fins to cool the engine's coolant. It's especially critical when the car is stationary or moving slowly, as there isn't enough natural airflow to cool the radiator effectively. Radiator fans are typically switched on in one of two ways:

• Ignition Switched: Some older or simpler systems have the fan running continuously whenever the ignition is on and the engine is working.
• Thermostatically Controlled: More common in modern vehicles, these fans activate only when the engine coolant temperature rises above a pre-set threshold, triggered by a thermostatic switch. They switch off once the coolant has cooled down again.

To check its operation, listen for it cutting in and out, and keep an eye on your temperature gauge. If your engine shows signs of overheating, stop safely and check if the fan is working. For thermostatically controlled fans, you might need to let the engine idle for a while to reach operating temperature.

The Interior Blower Fan

Located typically under the dashboard, the blower fan is part of your car's heating, ventilation, and air conditioning (HVAC) system. It circulates air through the vents, allowing you to control the cabin temperature and airflow. A common symptom of a failing blower fan is reduced airflow, strange noises, or a complete lack of air coming from the vents.

Diagnosing Fan Motor Faults

Before you jump into replacing a fan motor, it's essential to correctly diagnose the fault. The problem might not always be the motor itself.

Initial Checks: Fuses and Manual Spin

Start by checking the fuse box for a blown fuse. A blown fuse often indicates an electrical overload, which could be caused by a faulty motor drawing too much current, or simply a short circuit elsewhere. If a fuse is blown, do not replace it immediately, as the new one might blow again if the underlying issue isn't resolved.

For the interior blower fan, try spinning the fan manually. This might involve temporarily removing an air duct or the cabin air filter. If the fan spins freely and smoothly, the problem is likely electrical. If it feels stiff, sticky, or has rough spots, the motor's internal bearings are likely seized, indicating a mechanical failure and a definite need for replacement.

Electrical System Checks

If the fuses are intact and the fan spins freely, it's time to test the electrical circuit. You'll need a circuit tester or a multimeter for these steps.

Checking the Radiator Fan Circuit

1. Motor Terminals: With the ignition on, use a circuit tester to check for current at the motor terminals. If the motor is fed via a thermostatic switch, you can also try connecting the motor's feed terminal directly to the battery positive terminal. If there's current at the motor but it doesn't spin, the motor itself is at fault.
2. Thermostatic Switch: If the motor isn't getting power, the thermostatic switch might be faulty. With the ignition on, disconnect the leads from the thermo-switch and briefly touch them together (short-circuit them). If the fan motor now works, the switch is faulty. If not, use your circuit tester on the feed wire to the thermo-switch to ensure current is flowing to it.
3. Relay: The relay acts as an electrical switch for the fan. With the ignition on, short-circuit the thermo-switch terminals (e.g., by placing a screwdriver across them, without disconnecting the leads). Listen for a click from the relay, indicating it's operating. Test for current at the 'live' lead to the relay. If current is present here, but the fan motor lead terminal has no current when the thermo-switch is bypassed, the relay is faulty and needs replacing.
4. Earthing Point: A common cause of electrical issues is a poor earth connection. Check that the earthing point for the fan circuit is clean and tight.

Checking the Blower Fan Circuit

1. Voltage at Motor: With the ignition key in the accessory (ACC) mode and the fan switch on high, back-probe the hot line into the fan motor. You should see 12 volts. Also, ensure both the hot and ground wires are securely attached. Some vehicles switch from the ground side of the motor, so check your car's wiring diagram if unsure.
2. Resistor Pack: If the fan only works on certain speeds (often just the highest setting), or not at all, the problem is likely with the resistor pack. This component drops the voltage to control the fan's speed. These resistors generate a lot of heat and are typically mounted in the airflow path from the fan. If the fan motor struggles or seizes, the resistor can overheat and fail. Replacing the resistor pack (which is usually inexpensive and easy to swap) is a good first step if you suspect this issue.
3. Wiring Diagram: If you have no power to the motor, consult your car's handbook for a wiring diagram to trace the power supply from the switch, through the resistor pack (if applicable), to the motor.

Symptoms and Potential Causes Table

Replacing the Radiator Fan Motor

Once you've confirmed the radiator fan motor is faulty, follow these steps for replacement:

1. Safety First: Always disconnect the car's battery before starting any electrical work. This prevents accidental shorts and protects you from electric shocks.
2. Access the Motor: Locate the fan motor assembly. It's usually mounted on a shroud behind the radiator. Disconnect the wiring terminals or plug from the motor. Free any wires from clips or fixings on the fan shroud or nearby bodywork.
3. Remove the Assembly: The motor and fan typically come off as a single assembly. In some cases, you might need to remove the fan shroud or even the radiator itself to gain enough access. Consult your car's service manual for specific removal instructions.
4. Separate Components: A new motor is often supplied without the fan blade. You'll need to carefully separate the fan blade from the old motor. Clean any parts you intend to reuse, such as the fan blade or shroud, by degreasing them or even repainting if necessary.
5. Install New Motor: Attach the old fan blade to the new motor. Ensure it's securely fastened and balanced.
6. Pre-Test (Optional but Recommended): Before full installation, connect the new motor's leads directly to the battery (positive to positive, negative to negative). Be careful, as the motor will kick as it starts, and there might be a spark upon connection. This confirms the new motor is operational.
7. Reinstall: Mount the new motor and fan assembly back into position. Reconnect all wiring terminals, ensuring they are clean and tight. Secure any wires with clips.
8. Reconnect Battery: Reconnect the car battery. Test the fan by running the engine to operating temperature or by activating it manually if possible.

Replacing the Interior Blower Fan Motor

Replacing the blower fan motor can be a bit more fiddly due to its location, often requiring you to work in tight spaces under the dashboard.

1. Safety First: Disconnect the car's battery.
2. Locate and Access: The blower motor is typically located in the passenger footwell, often behind the glove box or under the dashboard. You may need to remove trim panels, the glove box, or even some ducting to gain access.
3. Disconnect Wiring: Disconnect the electrical connector from the motor.
4. Remove Old Motor: The motor is usually held in place by a few screws or clips. Remove these fasteners. You might have to manoeuvre the motor out carefully, as space can be limited. Sometimes, the fan blade is permanently attached to the motor shaft; other times, you'll need to transfer the old blade to the new motor.
5. Install New Motor: If the new motor doesn't come with a fan, transfer your old fan blade assembly to the new motor. Ensure it's secure. Carefully snake the new motor into place, ensuring no wiring harnesses are in the path of the fan blades.
6. Reassemble: Reattach all mounting hardware, ensuring it's snug. Reconnect the electrical connector. If your old motor had any sound insulation, reinstall it. Avoid using duct tape for insulation, as under-dash temperatures can dry it out; RTV (room-temperature-vulcanising) silicone gasket sealer is a better option.
7. Reconnect Battery and Test: Reconnect the battery. Turn on the ignition and test the blower fan on all speed settings to ensure it operates correctly and quietly.

Changing a Thermostatic Switch (Radiator Fan)

If your diagnosis pointed to a faulty thermostatic switch, here’s how to replace it:

1. Drain Coolant: The thermostatic switch is typically located in the radiator bottom tank, thermostat housing, or cylinder head. You'll need to drain enough coolant from the radiator until its level is below where the switch is fitted. Catch the coolant in a clean container if you plan to reuse it. (See a guide on 'How to flush an engine radiator' for draining procedures).
2. Disconnect and Remove: If a rubber cover is fitted over the back of the switch, ease it off. Then, disconnect the electrical connections. The switch is usually threaded into its mounting point and can be unscrewed with an appropriate spanner. Be aware it might be very tight, so take care not to distort the surrounding metal, especially if it's in the radiator bottom tank.
3. Install New Switch: Always fit a new sealing washer with the new thermostatic switch. Screw the new switch into place, ensuring it's snug but not overtightened. Reconnect the electrical connections and replace any rubber covers.
4. Refill Coolant: Refill the cooling system with the appropriate coolant, bleeding any air as per your car's manual.
5. Test: Run the engine to operating temperature and confirm the radiator fan cuts in and out as expected.

Sourcing Replacement Parts

Finding the right replacement part is crucial. Here are your options:

• Aftermarket Retailers: Local auto-parts stores and online retailers are often the most convenient and cost-effective options. Ensure you provide your car's make, model, year, and engine size to get the correct part. Be prepared for potential ordering errors; double-check part numbers.
• Dealerships: For most late-model cars, a dealership can source the exact OEM (Original Equipment Manufacturer) part, though expect to pay a premium.
• Restoration Market: If you have a very old or unusual car, you might need to look to specialist restoration suppliers.
• Scrapyards/Breakers: As a last resort, you might find a used part at a scrapyard. If using a used motor, it's highly recommended to clean and lubricate its bearings before installation. For the fan end of the armature, you can spin the shaft and clean it with brake cleaner, then apply a few drops of oil. The other end is often inaccessible, but a trick is to drill a small hole (e.g., 1/16-inch) in the stamped-steel end cap, inject a sparing amount of oil, then seal the hole with silicone gasket sealer.

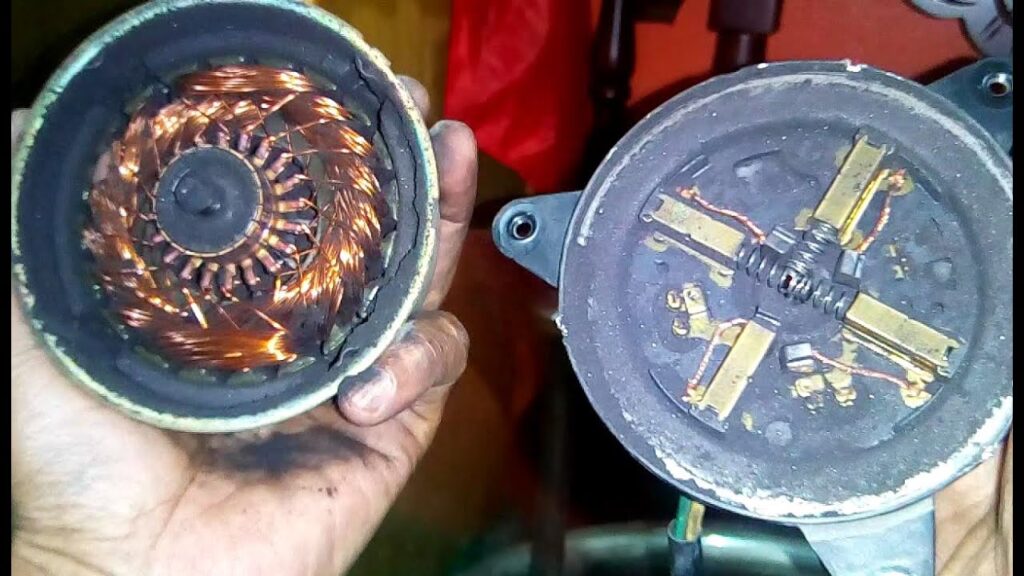

• Motor Rebuilders: If you can't find a new or used motor, or if it's a rare part, an electric motor shop might be able to rebuild your fried motor. They can disassemble, inspect, and often rewind windings, true up the commutator, clean/lube/replace bushings, and replace brushes for a surprisingly small amount of money.

Frequently Asked Questions (FAQs)

Q1: Can I drive my car with a broken radiator fan?

A: It is highly unadvisable. Driving without a functioning radiator fan can quickly lead to your engine overheating, which can cause severe and costly damage, such as a blown head gasket or warped cylinder head. If your radiator fan isn't working, it's best to stop driving and address the issue immediately.

Q2: Can I drive my car with a broken blower fan?

A: Yes, you can technically drive your car with a broken interior blower fan as it doesn't affect the engine's operation or safety systems. However, you will lose the ability to heat, cool, or defrost your cabin effectively, which can be uncomfortable and, in cold or humid conditions, impair visibility through the windscreen.

Q3: Why did my fan motor fail?

A: Fan motors typically fail due to wear and tear on their internal components, such as bearings or brushes. Over time, dirt, corrosion, and continuous operation can cause friction, leading to the motor seizing or burning out. Electrical issues like voltage spikes, shorts, or a failing resistor pack can also contribute to motor failure.

Q4: How long does it take to replace a fan motor?

A: The time required varies significantly depending on your car's make and model, the type of fan motor (radiator vs. blower), and your mechanical experience. A radiator fan motor might take 1-3 hours, while a blower motor, due to its often awkward location, could take 2-4 hours or more. Always allow extra time for unexpected issues.

Q5: Is it safe to test a new motor by connecting it directly to the battery?

A: Yes, it is a common and effective way to test a new motor before installation. However, exercise extreme caution. The motor will 'kick' due to torque, and there will be a noticeable spark when you make the connection. Ensure the motor is on a stable surface and you are wearing appropriate personal protective equipment, such as safety glasses.

By following these guidelines and taking the necessary precautions, you can confidently diagnose and replace a faulty fan motor, restoring your vehicle's cooling capabilities and cabin comfort. Remember, patience and attention to detail are key to a successful DIY repair.
