BMW F30 Brake Pad Sensor Guide

Congratulations on your new BMW 320d (F30)! It's a fantastic car, and understanding its maintenance needs is key to keeping it running smoothly. You've correctly identified that the iDrive system is alerting you to worn rear brake pads and likely the associated sensors. Let's delve into the world of BMW brake pad wear sensors, their locations, and what you need to know about replacing them.

Understanding Brake Pad Wear Sensors

Modern vehicles, especially premium brands like BMW, incorporate sophisticated systems to monitor the condition of critical components. Brake pad wear sensors are a prime example. These small, yet vital, electronic devices are designed to detect when your brake pads have reached a minimum thickness, signalling the need for replacement. This proactive approach helps prevent damage to your brake discs and ensures you maintain optimal stopping power.

How Do They Work?

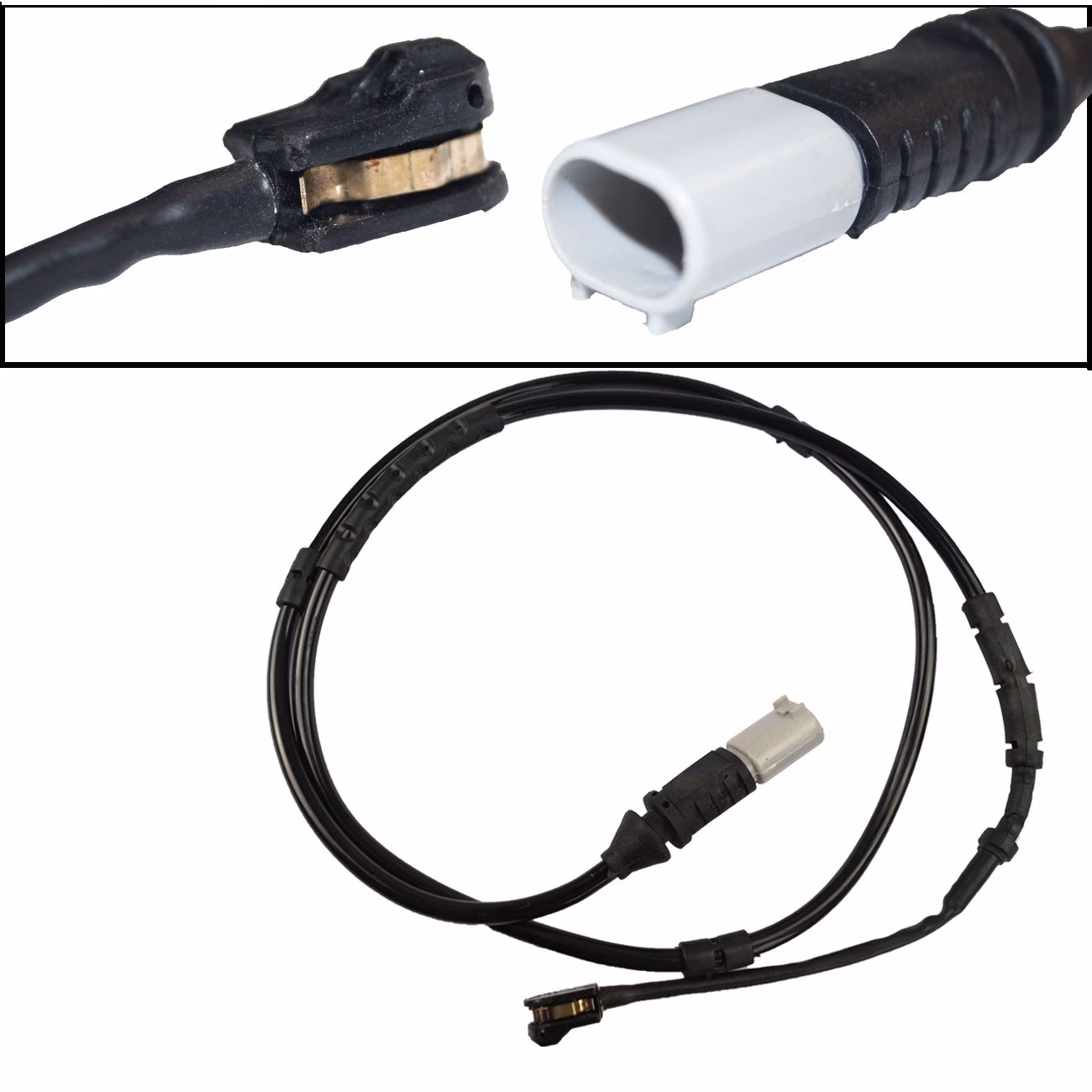

Brake pad wear sensors are typically made of a conductive material, often a simple wire or a metallic loop embedded within the brake pad backing plate. As the brake pad material wears down with use, it eventually reaches the sensor. At this point, the sensor is either broken or short-circuited, triggering a warning light on your dashboard and a message via the iDrive system. This is why, as you've suspected, you'll often need to replace the sensor along with the brake pads – the old sensor has done its job and is no longer functional.

Sensor Quantity and Location on the BMW 320d (F30)

Your question about the number of sensors per axle is a common one. For your BMW 320d (F30), the system typically uses one brake pad wear sensor per axle. This means:

• Front Axle: There is one sensor for the front brakes.
• Rear Axle: There is one sensor for the rear brakes.

This single sensor is strategically placed to monitor the wear on the brake pad that will wear out the quickest on that axle. While both front and rear brakes are crucial, the front brakes generally do the majority of the stopping work, often leading to them wearing out slightly faster than the rear brakes. However, BMW's system is designed to alert you to the earliest signs of significant wear on either axle.

Location of the Front Brake Pad Wear Sensor

The front brake pad wear sensor is typically located on the near-side front wheel (the side closer to the kerb, or the passenger side in right-hand drive markets). It's usually positioned on the inner brake pad of the front brake caliper. To access it, you would typically need to remove the front wheel and then inspect the brake caliper assembly.

Location of the Rear Brake Pad Wear Sensor

Similarly, the rear brake pad wear sensor is usually found on the near-side rear wheel (again, the passenger side in right-hand drive markets). It's mounted on the inner brake pad of the rear brake caliper. Accessing it requires removing the rear wheel.

It's important to note that while one sensor per axle is standard, there can be minor variations depending on specific model years or optional brake packages. However, for a 2014 BMW 320d (F30), the one-sensor-per-axle configuration is overwhelmingly common.

Replacing the Brake Pad Wear Sensors

When your iDrive system indicates a need to replace the brake pads and sensors, it's a straightforward process for a competent DIY mechanic or a professional. Here's a general overview:

Tools and Materials Needed:

• New brake pads (correct for your BMW 320d F30)
• New brake pad wear sensor (front and/or rear, as needed)
• Jack and jack stands
• Lug wrench or torque wrench
• Socket set and wrenches
• C-clamp or piston compressor
• Brake cleaner
• Wire brush
• Gloves and safety glasses
• Torque wrench (highly recommended for wheel lug nuts)

Step-by-Step Replacement (General):

1. Safety First: Park the car on a level surface, engage the parking brake, and chock the wheels that will remain on the ground.
2. Loosen Lug Nuts: Loosen the lug nuts on the wheel you'll be removing, but don't remove them completely yet.
3. Jack Up the Vehicle: Use your jack to lift the vehicle at the designated jacking point and support it securely with jack stands.
4. Remove Wheel: Fully remove the lug nuts and take off the wheel.
5. Inspect Brakes: Examine the brake pads and disc for wear and damage.
6. Locate Sensor: Identify the old brake pad wear sensor. It's usually clipped into a small hole on the side of the brake pad or its backing plate, with a wire running back towards the vehicle's wiring harness.
7. Disconnect Sensor: Carefully disconnect the sensor's connector from the wiring harness.
8. Remove Old Sensor: Gently pull or unclip the old sensor from the brake pad. Sometimes, a small amount of force is needed.
9. Install New Sensor: Clip the new sensor into the designated spot on the new brake pad. Ensure it's securely seated. The new sensor will typically have a small plastic clip that fits into a corresponding hole.
10. Compress Caliper Piston: Before you can fit the new, thicker brake pads, you'll need to retract the brake caliper piston(s). Use a C-clamp or a dedicated brake piston tool to gently push the piston back into the caliper body. Be careful not to damage the dust boot.
11. Install New Pads: Fit the new brake pads into the caliper.
12. Reconnect Sensor: Connect the new sensor's connector to the vehicle's wiring harness.
13. Reassemble: Reinstall the wheel, tighten the lug nuts by hand, then lower the vehicle. Once on the ground, tighten the lug nuts to the manufacturer's specified torque using a torque wrench.
14. Repeat for Other Side/Axle: Repeat the process for the other side of the same axle if necessary, and for the other axle if both were due.
15. Bedding In: After replacing brake pads, it's crucial to 'bed them in' to ensure optimal performance. This involves a series of moderate stops from around 60-80 mph (100-130 km/h), followed by gentle driving without coming to a complete halt for a short period. This helps transfer a thin layer of pad material to the disc surface. Consult your new brake pad manufacturer's instructions for specific bedding-in procedures.

Resetting the Service Indicator

After replacing the pads and sensors, the iDrive system will need to be reset to acknowledge the new components. The exact procedure can vary slightly, but generally involves navigating through the vehicle's settings:

1. Turn the ignition on (without starting the engine).
2. Navigate to the "Vehicle Info" or "Settings" menu on iDrive.
3. Find the "Service Requirements" or "Brake Check" option.
4. Select the relevant brake circuit (front or rear) and follow the on-screen prompts to reset the service interval.

If you're unsure about the reset procedure, the owner's manual or a quick online search for your specific BMW model year and iDrive version should provide detailed instructions.

When to Replace Sensors

As a general rule, you should always replace the brake pad wear sensor whenever the iDrive system indicates a need to replace the brake pads. This is because the sensor is designed to be a single-use item – once it triggers the warning, it's effectively 'used up'. Attempting to reuse an old sensor after the warning has been triggered will likely result in the warning light remaining on, even with new pads installed.

Troubleshooting Common Issues

If you've replaced the pads and sensors and the warning light persists, here are a few things to check:

• Incorrect Sensor: Ensure you have the correct part number for your vehicle.
• Loose Connection: Double-check that the sensor connector is securely plugged into the vehicle's wiring harness.
• Damaged Wiring: Inspect the wiring leading from the sensor to the connector for any signs of damage, pinching, or fraying.
• Faulty New Sensor: While rare, new parts can sometimes be faulty.
• Reset Procedure: Confirm you have followed the correct reset procedure for your iDrive system.
• Brake Pad Thickness: Although unlikely if you've just replaced them, ensure the new pads are indeed correctly installed and not faulty themselves.

Frequently Asked Questions (FAQs)

Q1: Do I need to replace both sensors if only one axle is showing a warning?

A1: It's generally recommended to replace the sensor on the axle that is triggering the warning. However, if your front brakes are also approaching a similar wear level, it might be prudent to address them proactively to avoid another iDrive notification soon after. For your 50,000 km milestone, it's quite possible the front brakes will need attention relatively soon.

Q2: Can I drive with a worn brake pad sensor warning?

A2: Yes, you can continue to drive for a short period, but it is highly recommended to replace the brake pads and sensors as soon as possible. The warning indicates that the pads are at a critical thickness, and continuing to drive can lead to damage to your brake discs, which are significantly more expensive to replace than brake pads. It also compromises your braking performance.

Q3: Do I need to replace the brake discs at the same time as the pads and sensors?

A3: This depends on the condition of your brake discs. If the discs are within the manufacturer's minimum thickness specification and do not have excessive run-out, scoring, or glazing, they can often be reused. However, it's always best to have them inspected by a qualified mechanic when replacing the pads. If the pads have been driven too long after the sensor warning, the discs may be damaged and require replacement.

Q4: What happens if I don't replace the sensor?

A4: If you replace the pads but not the sensor (especially if the warning was triggered), the iDrive warning light will remain illuminated. The system won't reset until a functional sensor is detected.

Q5: Is it possible to reset the warning without replacing the sensor?

A5: No, if the sensor has been triggered (meaning the warning light is on), it cannot be reset without replacing the sensor. The sensor itself is a sacrificial component.

By understanding the function and location of your BMW 320d's brake pad wear sensors, you can confidently address this common maintenance item, ensuring your vehicle remains safe and performs at its best.
