F1 Braking Systems: The Ultimate Deceleration

When a junior Formula 1 driver gets behind the wheel of an F1 car for the first time, and is asked what the most impressive aspect is, the overwhelming majority will cite the brakes. Considering the phenomenal power output of nearly 1000hp and the brutal cornering forces exceeding 4g, it is the braking performance, capable of generating over 5g of deceleration, that truly captures the imagination. Bringing a car from a staggering 200mph to a near standstill in mere seconds is a testament to a sophisticated interplay of aerodynamic downforce, mechanical engineering, and advanced electronics.

Unparalleled Performance

A contemporary F1 car's braking system is a marvel of engineering, comprising brake discs, calipers, a brake pedal, and master cylinders, all interconnected by robust pipework. The rear brakes are further governed by a sophisticated brake-by-wire (BBW) unit. Despite the immense stopping power achievable, the regulations heavily scrutinise and limit the braking system's potential to ensure a degree of parity and safety across the field.

Consider the scenario approaching the infamous 13th turn at Montreal's Circuit Gilles Villeneuve. A driver might be braking from over 210mph, yet they will only be applying the brakes for approximately 2.09 seconds, reducing their speed to around 83mph over a mere 122 meters – that's roughly 20 car lengths! This astonishing feat is not solely down to the brakes; it requires the immense grip provided by wide Pirelli slick tyres, colossal amounts of downforce generated by the car's aerodynamic package, and significant physical strength from the driver's legs.

The ability to achieve such extreme 5g braking forces is fundamentally enabled by the car's exceptional grip at the tyre contact patch. To maximise this braking potential, the driver applies the most significant force at the initial phase of braking, when the downforce is at its peak. However, the braking application is not a simple on/off switch. As the car slows and downforce diminishes, the driver must progressively ease off the brake pedal to maintain a delicate balance between the retarding force and the available grip, preventing a lock-up.

This intricate blend of downforce, tyre technology, and the braking system itself solidifies Formula 1 cars as the most efficient decelerating machines in the world of motorsport.

Discs and Calipers: The Heart of the System

The entire braking process hinges on the 'bite' of the brake pads on the discs. Formula 1 cars exclusively use carbon discs and pads, paired with six-piston calipers crafted from aluminium alloys. The choice of carbon fibre for discs and pads is driven by two primary factors, dispelling the myth that steel brakes are inherently less potent. Firstly, carbon fibre is significantly lighter than steel, a crucial consideration in F1 where every gram counts. Secondly, and perhaps more importantly, carbon fibre exhibits superior performance at the extreme temperatures generated during braking compared to steel. Pioneered in F1 by Gordon Murray at Brabham in the early 1980s, initially appearing on aircraft, the primary drawback of carbon discs is their considerable cost. However, in the relentless pursuit of performance, any weight saving is deemed worth the investment, making carbon disc brakes the ubiquitous choice since early development challenges were overcome.

The evolution of disc and pad pairings has been rapid. Both components are manufactured from the same friction material, ensuring they wear at a similar rate. Maintaining an optimal working temperature is the critical challenge for these brakes. If too cool (below 300°C), the brakes lack sufficient bite; if too hot (exceeding 1000°C), the material oxidises, leading to increased wear. Keeping heat within the brakes is managed through carefully designed brake ducts, which is generally less of an issue. However, overheating remains a significant concern. Prolonged exposure to extreme temperatures can cause the carbon material to oxidise excessively, thinning the disc to a point where catastrophic failure becomes a real possibility. Early designs featured radial cooling holes, similar to those found on steel discs. As teams learned to exploit the materials further, the demand for cooling increased, leading to a commensurate rise in the number of cooling holes. From around 100 holes in 2005 to approximately 1500 in 2019, the current designs are at the limit where further increases would compromise the structural integrity of the disc. These limitations are further constrained by regulations stipulating a maximum disc thickness of 32mm and a diameter capped at 278mm. These rules serve to curb the development of even more powerful and expensive braking systems, while also ensuring the discs can be housed within the regulation 13-inch wheel rims. Astonishingly, at these dimensions, an F1 brake disc weighs a mere 1200 grams!

During the first practice session, a new set of discs and pads are 'bedded in' – a process to ensure optimal performance. They are then removed and a fresh set is fitted for qualifying and the race. Meanwhile, a used set is often installed for the remainder of free practice, giving these high-performance components a lifespan of only around 500 miles. The primary suppliers of these brake materials to F1 teams are Brembo and Carbone Industrie.

The Disc Bell and Cooling Ducts

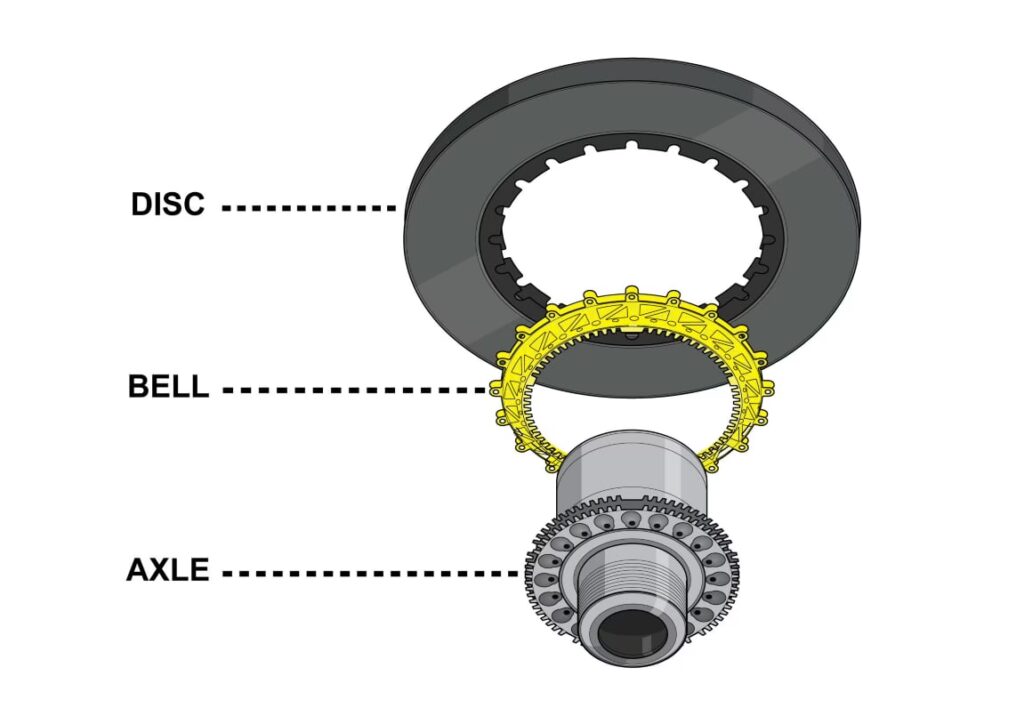

The brake disc is mounted to the axle via an intermediate ring known as a 'disc bell'. This is a precision-machined component that features internal splines matching those on the brake disc and the axle. While the splines are primarily responsible for transferring torque, bolts are also used. However, the holes required for these bolts introduce stress into the assembly, which is a critical consideration. Teams may manufacture their own disc bells, or the brake manufacturer may supply them. Regardless, the precision of this component is paramount to prevent stress concentrations that could lead to disc or bell failure.

Cooling air for the disc is channelled around the upright assembly via carbon fibre ducting and directed into the cooling holes within the disc itself. Each team employs its own unique methods for achieving this, either by directing air directly to the disc or routing it through channels within the disc bell before it enters the disc. This highlights the constant innovation within the sport, even in seemingly established areas.

Calipers: The Gripping Force

Gripping the brake disc is the caliper, another heavily regulated component designed to limit its performance potential. Current F1 regulations permit only one caliper per corner, featuring six pistons and two mounting points, all constructed from aluminium-based alloys. Despite these limitations, continuous iterative design sees calipers becoming ever stiffer for decreasing weights. The use of Finite Element Analysis (FEA) software packages is critical in the design of the caliper body, ensuring optimal strength-to-weight ratios. Equally, the thermal stresses experienced by the caliper are meticulously researched using advanced simulation tools. Heat builds up within the caliper body as the disc rotates through its central channel, making the caliper hottest near the outermost opposing piston pairs. To combat this, the caliper bodies are 'skeletonised' – featuring drillings and openings around the piston bores to save weight and aid heat rejection. Even the pistons themselves incorporate a ring of radial drillings to cool both the piston and the brake fluid behind it, mitigating the heat transfer from the carbon friction material.

Similarly, the carbon brake pads can also feature drillings designed to insulate the caliper from the intense heat generated during braking. Constructed from aluminium-lithium alloys or other aluminium alloys with a stiffness limit of 80 GPa, the caliper bodies are typically machined from solid billets. Brembo is currently the dominant manufacturer in this area, with AP Racing also being a common supplier. Other notable suppliers include 920e for Racing Point and Akebono for McLaren.

Although the regulations mandate six-piston calipers, teams can opt for fewer pistons. Since the introduction of the 2014 regulations, which significantly boosted the capabilities of the Energy Recovery System (ERS), the rear brakes are often underutilised at certain circuits. They are primarily engaged during the initial heavy braking phase, with the majority of the deceleration coming from the regenerative braking effect of the MGU-K. Consequently, teams may choose to fit four-piston rear calipers to save weight and optimise the balance of braking effort and cooling requirements for the rear axle.

The Brake Pedal: Driver Interface

If the discs and calipers represent the sharp end of the braking system, then the entire process originates from the humble brake pedal. Modern F1 brakes are no longer power-assisted; therefore, the hydraulic pressure required to operate the master cylinders must be generated entirely by the driver's physical effort on the pedal. Furthermore, drivers exclusively use their left foot for braking, requiring them to exert approximately 125kg of force on the pedal for maximum braking effort. Achieving such a high load with precision using muscle alone is challenging. Fortunately, the immense g-forces experienced during braking also act on the driver's left leg, augmenting their muscular effort to achieve the necessary 125kg of pressure.

Typically, the brake pedal itself is now constructed from carbon fibre and designed to each team's specific requirements. It is a critical safety component, yet remarkably lightweight. The footplate is ergonomically shaped to suit the driver's preference, ensuring their foot remains securely in position even over bumps and through high-speed corners. Additionally, different pedal designs can be employed to alter the leverage ratio between the pedal and the master cylinders, catering to individual driver needs.

Currently, the brake pedal actuates two master cylinders, one for the front brakes and one for the rear. These cylinders generate the hydraulic pressure that travels through the brake lines to the respective calipers. Each master cylinder has a separate supply of brake fluid from reservoirs mounted within the car's nose cone. This dual-circuit system dates back to an era when brake failures were more common, and it remains a crucial safety feature today. Should one circuit fail, the car would still retain a degree of controllability with the remaining front or rear brakes.

Master Cylinders and Brake Bias

The master cylinders themselves are miniature examples of F1 complexity. While fundamentally still consisting of a piston compressing fluid within a cylinder to generate pressure, the contemporary master cylinder is a two-stage device. It features a stepped piston; the initial stroke compresses the first piston, creating a rapid and significant pressure increase. This quickly moves the brake pads into contact with the disc and then applies the necessary pressure for maximum initial braking. The second piston then takes over to maintain this pressure throughout the remainder of the braking event. Master cylinders are typically supplied by the caliper manufacturer, although this is not always the case.

With separate master cylinders for the front and rear brakes, a mechanism is required to balance the pressure distribution between them, adapting to the car's weight distribution and the available grip. While master cylinders may have different bore sizes, the primary method for adjusting this balance is the adjustable bias bar mechanism. One end of each master cylinder is attached to a pivoting beam known as a bias bar. The pivot point is aligned with the brake pedal. If both master cylinders are equidistant from the pivot along the bias bar, a 50%-50% split in braking effort is achieved. By adjusting the bar to offset one master cylinder relative to the other, the front-to-rear brake bias can be varied. This adjustment was traditionally made by the driver using a hand-operated adjuster, often seen on the steering wheel, allowing them to fine-tune the balance throughout a lap. While the bias bar still exists, the advent of brake-by-wire systems has made bias adjustment far more accessible, typically via buttons on the steering wheel.

An additional consideration with brake bias is not just the static split of front-to-rear braking but also how this bias ideally needs to shift dynamically during the braking event. As the car's rear becomes lighter due to weight transfer during prolonged braking, the bias should ideally adjust to compensate. This was historically achieved through the geometry of the pedal and bias bar, but it is now more readily managed by the brake-by-wire system.

Brake fluid is transmitted under pressure through pipework from the master cylinders to each caliper, often routed along the wishbone legs. Flexible braided pipes are used in areas requiring movement, while rigid pipes maintain system pressure elsewhere.

Brake-by-Wire (BBW): The Electronic Revolution

Since 2014, coinciding with changes to the Energy Recovery Systems (ERS), the use of a Brake-by-Wire (BBW) system has been permitted for the rear brakes. As the ERS-K unit recovers energy during braking, the drag effect of the MGU-K acts as a form of braking, contributing to the car's deceleration. However, this regenerative braking effort is not constant; it varies depending on the ERS settings and the charge level of the battery.

This fluctuating braking contribution from the ERS could lead to imbalanced braking for the driver, with unpredictable rear braking assistance. To address this, the FIA permits the BBW system to manage the rear brakes. While a conventional rear master cylinder still exists at the pedal, the brake line terminates at the BBW unit, typically mounted within the gearbox assembly. This unit interprets the driver's braking demand and, referencing the pressure in the rear brake line, it calculates the regenerative braking effort being applied by the ERS (communicated via a signal from the ECU). It then subtracts the ERS braking from the driver's demand and, through an electronically actuated master cylinder, applies only the necessary hydraulic pressure to the rear brakes to compensate for the ERS effect, thereby providing the driver with a balanced braking experience. This is a simplified explanation; the software responsible for delivering consistent braking feel to the driver is exceptionally complex. Furthermore, drivers experience a different pedal feel, as the mechanical link from the rear master cylinder is effectively capped. To replicate a conventional pedal feel, compliance is introduced into the system through valves and accumulators.

As a critical safety system, the BBW unit incorporates a failsafe mechanism. Should the sensors or the active master cylinder fail, the brakes revert to being operated solely by the hydraulic pressure from the rear brake line. To prevent any form of pseudo anti-lock braking software from being implemented, wheel speed data cannot be a factor in the BBW system's operation.

With the advent of electronic brake bias control, drivers can now adjust the brake bias and its dynamic migration through controls on the steering wheel, eliminating the need to remove a hand from the wheel to make these critical adjustments. This allows for on-the-fly optimisation of the braking system to suit changing track conditions and tyre wear.

So, the next time you witness an F1 driver braking from 200mph down to a near standstill, take a moment to appreciate the extraordinary complexity and engineering prowess that goes into every application of the brake pedal.
