EZGO Cart Drum Brakes: Your Maintenance Guide

Ensuring the brakes on your EZGO golf cart are in top working order is paramount for both your safety and the longevity of the vehicle. Just like any other crucial component, the braking system requires regular inspection and timely maintenance to guarantee reliable stopping power. Your EZGO cart is equipped with a specific type of braking system designed for its operational needs, and understanding its intricacies is the first step towards effective care. This comprehensive guide will walk you through everything you need to know about your EZGO's mechanically initiated rear drum brake system, from routine inspections to detailed repair procedures, empowering you to maintain your cart with confidence.

Understanding Your EZGO Cart's Brake System

Your EZGO golf cart is fitted with a robust mechanically initiated rear drum brake system. This setup is designed for dependable stopping and includes several interconnected components working in harmony. At its core, the system comprises a service brake and a dedicated park brake pedal, along with a release linkage for the park brake. A crucial compensator system ensures even braking force, while an equalizer link, braking cables, and self-adjusting wheel brake systems complete the assembly. Unlike disc brakes, which use calipers and pads clamping onto a rotor, drum brakes rely on shoes expanding outwards against the inside of a drum to create friction and slow the vehicle. This design is highly effective and widely used in golf carts due to its reliability and simplicity of operation.

Comprehensive Brake System Inspection

A thorough inspection of your EZGO's brake system should be a regular part of your maintenance routine. This proactive approach can identify potential issues before they escalate, ensuring your cart remains safe and responsive. Here’s a detailed breakdown of what to check:

Brake Pedal and Linkage

• Brake Pedal Return Bumper: First, verify that the brake pedal makes full contact with the pedal return bumper when it is fully disengaged. There should be a precise space of 1/4 to 3/8 inches (6 – 9.5 mm) between the setscrew heads of the kick-off cam and the brake pedal arm. If this gap is incorrect or the bumper is damaged, the entire brake pedal system may need replacement to restore proper operation.
• Brake Pedal Return: Engage and then release the brake pedal. Observe closely to ensure the pedal arm returns promptly and fully contacts the pedal bumper. The torsion spring, which assists this return, should be correctly wrapped around the pedal and frame. A slow return or incomplete return indicates worn bushings or a faulty pivot bolt, necessitating their replacement. In such cases, it's often best to replace the entire assembly: pedal, spring, bushings, and the hold-down bolt.
• Brake Pedal Free Travel: Check the amount of free travel in the brake pedal before the brake shoes begin to engage the brake drum. Excessive free travel is a clear indicator of a problem, often pointing to issues with the wheel brakes not self-adjusting correctly or significant wear in the cables and linkages. Appropriate free travel is critical for effective braking.

Brake Cables

• Inspect the brake cables meticulously for any signs of damage, such as fraying of the inner cable, or any restriction in fluid motion when the pedal is engaged or disengaged. Also, confirm that the cables are securely and correctly positioned within their supports. Any damage or lack of smooth movement warrants immediate replacement of both the cables and their equalizers to maintain balanced braking.

Clevis Pins and Linkages

• Clevis Pins: Examine the clevis pins that connect to the brake lever. When the brake is disengaged, these pins should be loose and exhibit some slack. If they feel tight, and all other brake system components appear to be functioning correctly, the issue likely lies within the wheel brake assembly itself, indicating a problem with the shoe adjustment or internal components.
• Brake Cable Equalizer Linkage: Perform a thorough inspection of the equalizer linkage. Look for any signs of corrosion, damage, excessive wear, or severe misalignment. This component is vital for distributing braking force evenly to both wheels. Replace it as necessary to ensure balanced braking.

Compensator and Parking Brake Mechanisms

• Compensator Assembly: Inspect the compensator assembly for wear, corrosion, or damage. This component helps maintain consistent brake feel. With the park brake disengaged, measure the compensator spring; it should be approximately 3 15/16 inches (10 cm) long. Adjust its length by manipulating the nuts at the front of the cart if needed.
• Parking Brake Pedal Hinge: Examine the parking brake pedal hinge. Check for damaged or corroded springs and ensure the hinge pin retracts smoothly and appropriately. Engage the park brake pedal to confirm its smooth operation and engagement.
• Parking Brake Condition and Operation: The park brake should automatically disengage as soon as the accelerator pedal is pressed or 'energized'. Test this function to ensure it operates correctly, preventing unintended braking while driving.
• Catch Bracket and Latch Arm: Inspect the catch bracket and latch arm for any signs of wear, damage, or corrosion. These components are crucial for securing the parking brake. Replace them promptly if any issues are found.
• Parking Brake Kick-Off Cam: Conduct an inspection of the parking brake kick-off cam for wear, damage, or corrosion. Ensure it has optimum adjustment. When the park brake is engaged, there should be no gap between the top of the cam and the latch arm. Adjust the kick-off cam if necessary to ensure proper engagement and release.
• Kick-Off Cam Linkage and Bushings: Inspect these components for wear, corrosion, and damage. The pivot cam and its bushings should rotate freely without any signs of rust or binding. Confirm that the kick-off cam rotates as expected when the accelerator pedal is pushed.

In-Depth Wheel Brake Inspection

The wheel brake assemblies are where the magic happens, converting pedal pressure into stopping power. A detailed inspection here is vital for overall brake system performance.

Brake Drum Examination

• Brake Drum Cleaning: Begin by carefully removing any accumulated debris, dust, or dirt from the brake drum using a brush. Be careful not to disturb the self-adjusting mechanisms during this process. A clean drum allows for better inspection.
• Brake Drum Inspection: Look for signs of overheating, which often appear as bluish tinges or blistered paint on the drum surface. Inspect for scoring, which indicates severe wear and leaves deep marks. Also, check the splines for galling, a form of wear caused by adhesion between sliding surfaces. In any of these cases—overheating, scoring, or galling—the brake drum should be replaced to ensure safe and effective braking.

Axle and Adjuster Mechanism Checks

• Axle Seal and Thrust Washer: Inspect these components for any signs of oil seepage. Oil leaks can contaminate the brake shoes, severely reducing braking efficiency.
• Adjuster Mechanism and Brake Lever: Assess the condition and operation of the adjuster mechanism. Inspect the brake lever for damage and wear. To test the adjuster, engage the front brake shoe towards the rear of the cart and hold it in place. Then, engage the brake lever. The adjuster arm should engage the star wheel and begin to rotate it. If the adjuster arm successfully engages and rotates the star wheel, the system is functioning correctly. If the arm fails to engage the star wheel, it indicates damage or improper operation, and both wheel brake assemblies should be replaced. If the adjuster arm engages the star wheel but fails to rotate it, then only the adjuster assemblies themselves require replacement.

Brake Shoe and Backing Plate Assessment

• Moving Anchor Assembly: Engage the brake lever and check for fluid, unobstructed motions of the moving anchor assembly. If this assembly binds or is damaged, it can severely impair braking. In such cases, both wheel brake assemblies should be replaced.
• Backing Plate Inspection: Inspect the backing plate for gouges, galling, or any other damage, paying particular attention to the contact points with the brake shoes. Any damage here can affect shoe movement and braking effectiveness, necessitating replacement.
• Brake Shoe Thickness: Measure the thickness of the brake shoe exhibiting the most wear. The minimum allowable thickness is 0.06 inches (1.5 mm). If any shoe is thinner than this, all brake shoes on that axle should be replaced as a set.
• Brake Shoe Springs: Carefully check all brake shoe springs for breakage or damage and ensure they are fitted correctly. The hooked end of one spring typically fits into the front shoe, with the other end attaching to the adjuster. Ensure the light spring is near the adjuster mechanism, with its hook fitted down inside the rear brake shoe and up inside the front brake shoe. The heavier top spring should have all its hooks fitted down inside the brake shoes.
• Other Wheel Brake: Repeat this entire procedure for the brake assembly on the other wheel to ensure consistency and thoroughness.

Essential Maintenance and Repair Procedures

Beyond inspection, knowing how to perform adjustments and replacements is key to maintaining your EZGO's braking reliability.

Adjusting Brake Pedal Fluid Travel

Brake pedal fluid travel refers to the distance the pedal moves from its resting position until the brake cables just begin to activate the brake levers. Correct adjustment of this travel is absolutely essential for proper brake function. Too much free travel will result in limited braking capacity, requiring excessive pedal effort to stop. Conversely, too little free travel can prevent the brakes from fully releasing, leading to premature wear and potential drag. To adjust, loosen the nut and rotate the spherical nut. The optimal brake fluid travel setting should be between 7/8 and 1 1/8 inches (2.2 – 2.9 cm). Torque the nut to 10-11 ft. lbs. (14-15 Nm). After initial adjustment, depress the brake pedal quickly and firmly 4-6 times to settle the self-adjusters and find the actual fluid travel. Conduct a dynamic test by driving the cart slowly and applying the brakes quickly and hard. Allow the brakes to adjust freely and repeat this test 10 times. After this, re-check and adjust the fluid travel with the spherical nut if necessary. Drive the cart again, braking quickly and hard another 10 times. Crucially, check that the fluid free travel does not change during braking. If it does, continue adjusting the spherical nut and repeating the test. Finally, inspect the clevis pins at the end of the brake cables and brake levers to ensure they remain slack after adjustment.

Brake Drum Removal and Installation

Removal:

1. Carefully remove the dust cap covering the hub nut.
2. Locate and remove the castellated nut and its cotter pin.
3. Remove the washer and gently slide the brake drum off the axle shaft.
4. If the drum resists removal, the brake shoes need to be slackened. Rotate the hub so that the drum hole is positioned at 6 o’clock, directly above the brake mechanism.
5. Using a screwdriver, carefully lever the adjuster arm above the star wheel.
6. Slacken the star wheel by rotating it, which will pull back the brake shoes and allow the brake drum to come off freely.

Installation:

1. Thoroughly clean the axle shaft and its splines, removing all dirt, grease, and debris.
2. Apply a rust preventative like WD-40 or an equivalent product to the axle spline to prevent future seizing.
3. Fit the inner brake drum washer, then carefully slide the brake drum into place on the axle.
4. Ensure that the nose of the brake drum extends past the end of the axle splines. If it does not, use an additional washer to correctly space out the drum.
5. Install the castellated nut and cotter pin.
6. Torque the nut to 80-90 ft. lbs. (108-122 Nm), but do not exceed 140 ft. lbs. (190 Nm) to avoid damage.

Wheel Brake Service Overview

Servicing the wheel brake involves disassembling, inspecting, lubricating, and reassembling the entire wheel brake assembly. Any components that are found to be damaged, excessively worn, or corroded must be replaced.

1. Remove the brake drum following the steps outlined in the "Brake Drum Removal and Installation" section.
2. Thoroughly clean off any accumulated brake dust from the assembly.
3. Carefully pull off the brake shoes.
4. Clean the backing plate and ensure it is completely dry.
5. Apply appropriate lubricant to the areas where the backing plate contacts the brake shoes.
6. Refit the actuator assemblies, adjuster assemblies, and the brake shoes.
7. Reinstall all brake springs correctly.
8. Refit the brake drum.
9. Finally, adjust the brake fluid travel as described earlier to ensure proper brake function.

Component-Specific Replacements

Backing Plate and Entire Wheel Brake Assembly

To remove the backing plate and the entire wheel brake assembly:

1. Remove the four bolts and locking nuts that secure the wheel brake backing plate to the axle tube flange.
2. Disconnect the clevis pin that connects the brake cable to the brake lever.

For reinstatement, follow these steps in reverse. The locknut torque should be 23-28 ft. lbs. (31-38 Nm).

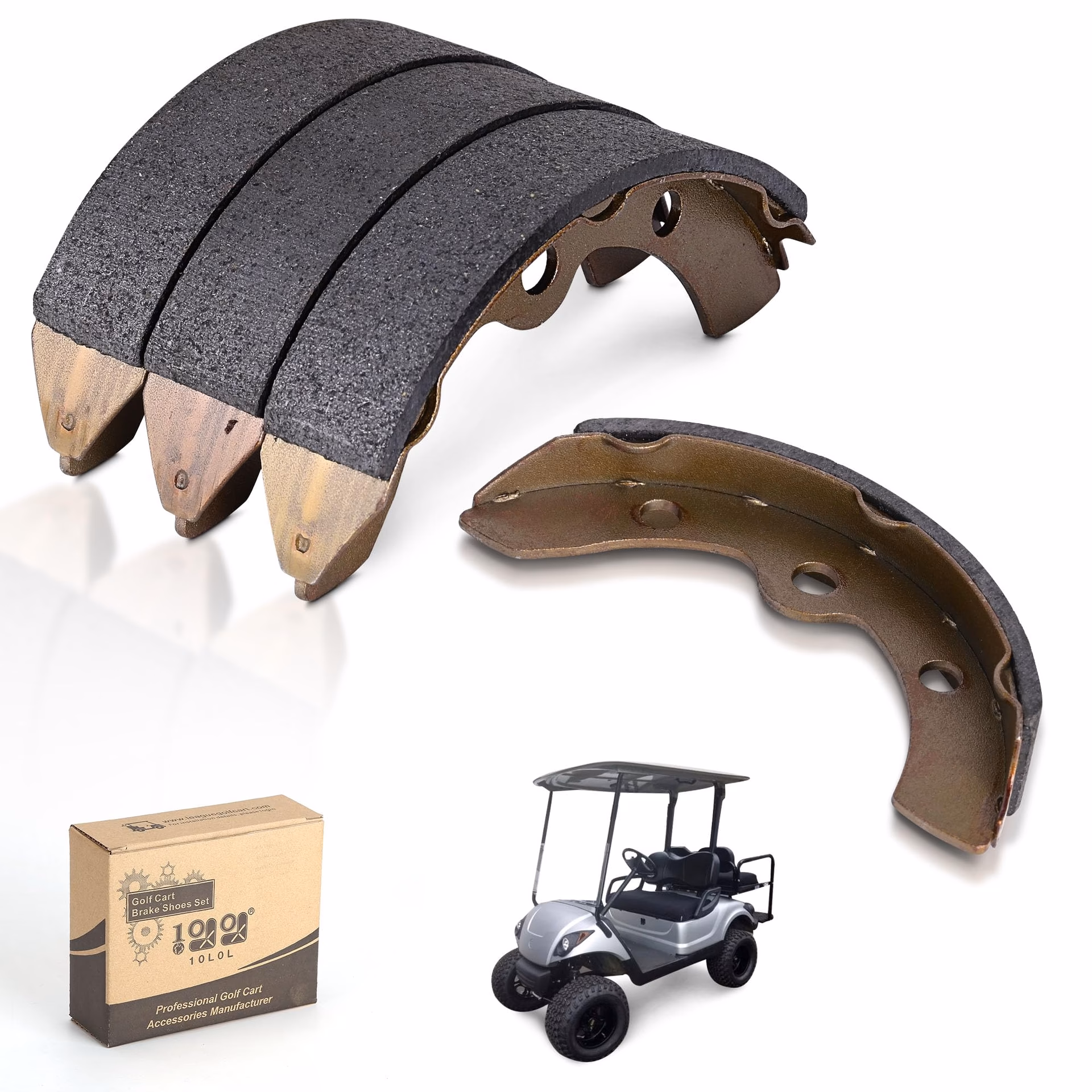

Brake Shoe and Adjuster Replacement

1. Remove and discard the three brake shoe springs.
2. While holding the shoe clamp pin in place, compress and rotate the shoe clamp 90 degrees to detach it from the pin.
3. Remove the old brake shoes, adjusters, and any remaining components.
4. Clean the backing plate thoroughly and dry it.
5. Lubricate the areas where the backing plate makes contact with the brake shoes.
6. Refit the adjuster mechanism.
7. Install the adjusting screw into the star wheel nut, exposing only two threads.
8. Always replace both brake shoe assemblies on a common axle as a complete set. Fit the shoe clamp into the shoe clamp pin, turning it 90 degrees to lock it securely.
9. Refit new brake shoe and adjuster springs. The hooked end of the spring should be fitted into the front shoe, with the other end connected to the adjuster.
10. Adjust the brake fluid travel after completion.

Compensator Assembly, Removal and Installation

1. Remove the compensator assembly from the brake pedal by disconnecting the cotter pin and clevis pin.
2. Loosen the nut and spherical nut that connect the compensator rod to the equalizer link.
3. Carefully remove the compensator assembly.

Installation is the reverse of these steps. Remember to adjust the brake pedal fluid travel upon reassembly.

Brake Pedal Removal and Installation

1. Begin by removing the compensator assembly from the brake pedal by disconnecting the cotter pin and clevis pin.
2. If applicable, disconnect any wiring harness connected to the pedal.
3. Carefully lever off the torsion spring using a small screwdriver, prying between the hook and the bracket.
4. Remove the lock nut and shoulder bolt to disconnect the brake pedal.
5. Inspect the shoulder bolt for any signs of corrosion and replace it if necessary.

Installation is the reverse of the removal steps. Torque the lock nut to 25-29 ft. lbs. (34-39 Nm).

Parking Brake Catch Bracket Removal and Installation

1. To gain unobstructed access to the brake pedal release mechanism, remove the driver’s side front wheel.
2. Remove the two bolts and nuts that secure the catch bracket.
3. Replace the catch bracket with a new one.
4. Refit the nuts and bolts, torquing them to 85-95 in. lbs. (10-11 Nm).

Parking Brake Pedal, Removal and Installation

1. Remove the push nut and pin to disconnect the parking brake pedal.

To reinstall, fit the parking brake pedal and torque the push nut and pin securely.

Pedal Bumper Adjustment

Loosen the bumper lock nut and manipulate the bumper by turning it. The brake pedal should make contact with the pedal bumper when the pedal is disengaged. Ensure the distance from the pedal arm to the setscrew heads in the kick-off cam is precisely 1/4 to 3/8 inches (6-9 mm). Once adjusted, torque the lock nut to 12-14 ft. lbs. (16-19 Nm).

Parking Brake Release Linkage Removal and Replacement

1. Disconnect the cotter pin, washers, and bushings from the linkage rod.
2. Remove the linkage rod itself.
3. Inspect the bushings for wear or damage and replace them as necessary.

Installation is the reverse of these steps.

Parking Brake Kick-Off Cam Removal, Replacement and Installation

The process for removing, replacing, and installing the parking brake kick-off cam is critical for ensuring the parking brake disengages correctly when the accelerator is pressed. While the detailed steps for replacement and installation are similar to other linkage components, involving the disconnection and re-connection of pins and ensuring proper alignment, the most important aspect is the final adjustment. Ensure that once reinstalled, there is no gap between the cam top and the latch arm when the park brake is engaged, and that the cam rotates freely and fully when the accelerator pedal is pushed. Inspect for wear, corrosion, and damage on the cam itself and its pivot points, replacing it if any degradation is found.

Key Torque Specifications

Adhering to correct torque specifications is crucial for the safety and proper function of your EZGO's brake system. Over-tightening can strip threads or damage components, while under-tightening can lead to loose parts and system failure. Here's a summary of the torque values mentioned:

Frequently Asked Questions (FAQs)

What are the signs that my EZGO cart's brakes need attention?

Common signs include a spongy or hard brake pedal, squealing or grinding noises when braking, the cart pulling to one side, excessive pedal travel, or the parking brake not holding securely. Any of these indicates a need for immediate inspection.

How often should I inspect my EZGO cart's brake system?

It's recommended to perform a visual inspection of the brake system at least every six months or every 100 hours of operation, whichever comes first. A more thorough inspection, as detailed in this guide, should be done annually or if any issues arise.

Can I replace individual brake components, or do I need to replace the whole assembly?

Many components, such as springs, adjusters, and shoes, can be replaced individually. However, for critical parts like wheel brake assemblies or severely damaged drums, replacing the entire assembly is often recommended to ensure optimal performance and safety. Always replace brake shoes on both sides of an axle as a set.

Why is brake pedal free travel so important?

Correct brake pedal free travel ensures that the brakes fully release when you take your foot off the pedal, preventing drag and premature wear. It also ensures that the brakes engage promptly and effectively when you press the pedal, providing reliable stopping power. Incorrect free travel is a common cause of poor braking performance.

What should I do if my EZGO cart's parking brake doesn't hold?

First, check the park brake pedal hinge, catch bracket, latch arm, and kick-off cam for wear or damage. Ensure the park brake release linkage is functioning correctly. Often, an adjustment of the kick-off cam or replacement of worn components in the linkage system will resolve the issue. If the problem persists, inspect the main brake cables and wheel brake adjusters.
