Motorcycle Exhaust Repacking & Resleeving

Revitalise Your Ride: The Art of Motorcycle Exhaust Repacking and Resleeving

The distinctive roar of a motorcycle is often as much a part of its appeal as its visual prowess. Central to achieving that signature sound and ensuring optimal performance is the exhaust system, particularly the silencer. Over time, the packing material within a motorcycle silencer, often referred to as wadding, degrades. This can lead to a change in sound, often becoming louder and less refined, and can even impact engine performance. Fortunately, this doesn't always mean a costly replacement. Repacking and, in some cases, resleeving your motorcycle exhaust can breathe new life into your bike, restoring its acoustic character and potentially improving its efficiency. This guide will delve into the process, explaining how to identify the need for repacking, the steps involved, and the benefits of this essential maintenance task.

When Does Your Motorcycle Exhaust Need Attention?

Several signs can indicate that your motorcycle's silencer requires repacking. The most obvious is a change in the exhaust note. If your bike has become noticeably louder, or if the sound has lost its depth and richness, the packing material is likely to blame. Reduced performance, such as a loss of power or a less responsive throttle, can also be a symptom. This is because the degraded packing can affect the backpressure within the exhaust system, which is crucial for efficient combustion. Visually, you might notice discoloration or even slight damage to the silencer's exterior, although this is less common than acoustic or performance changes.

A good way to check is to tap the silencer when it's cool. If you hear a rattling sound, it's a strong indication that the internal packing has come loose or disintegrated. For aftermarket exhausts, specifically, it's worth noting that the design and construction can influence how easily they can be repacked. Many aftermarket silencers are designed with repacking in mind, featuring removable end caps secured by rivets or bolts.

The Repacking Process: A Step-by-Step Breakdown

Repacking a motorcycle exhaust is a task that can be undertaken by the diligent home mechanic, though it requires precision and the right materials. The process generally involves dismantling the silencer, removing the old packing, installing new packing, and reassembling the unit. Let's break down the typical steps:

1. Disassembly: Accessing the Silencer's Core

The first step is to gain access to the internal packing. For many aftermarket silencers, this involves locating and removing the rivets on the inlet end cap. These are usually small metal pins that hold the end cap in place. Carefully drilling out these rivets will allow you to remove the inlet end cap. Once the inlet end is free, you can often slide off the outlet end cap as well, or it may be secured by a separate band or rivets. It's important to note the orientation of these components so you can reassemble them correctly.

2. Removing the Old Packing

With the end caps removed, you'll be able to see the old, spent exhaust packing. This material, often a fibreglass or ceramic wool, will likely be compacted, discoloured, and possibly burnt through in places. Carefully remove all of this old material. You might need to use pliers or a similar tool to pull it out, especially if it's brittle. It’s crucial to remove all traces of the old packing to ensure the new material can perform effectively.

3. Preparing the Silencer Body and Components

While the silencer is apart, this is an excellent opportunity to clean and refurbish other components. The end caps and the perforated core tube (if present) can often benefit from a clean. Media blasting, using materials like glass beads or fine grit, can effectively remove surface grime, old paint, and carbon deposits, giving these parts a fresh appearance. This step is particularly useful if you plan to re-coat the end caps.

4. The Choice of Coatings: Powder vs. Ceramic

When refurbishing the end caps or other external metal parts, you'll often encounter two primary coating options: powder coating and ceramic coating. Powder coating is a durable, cost-effective finish that offers a wide range of colours and textures. It's applied as a dry powder and then cured under heat, forming a hard, protective layer. Ceramic coating, on the other hand, is known for its exceptional heat resistance and is often favoured for exhaust components. It can help dissipate heat more effectively and provides a very robust, corrosion-resistant finish. The choice between them often depends on the specific application and desired aesthetic.

5. Installing New Packing Material

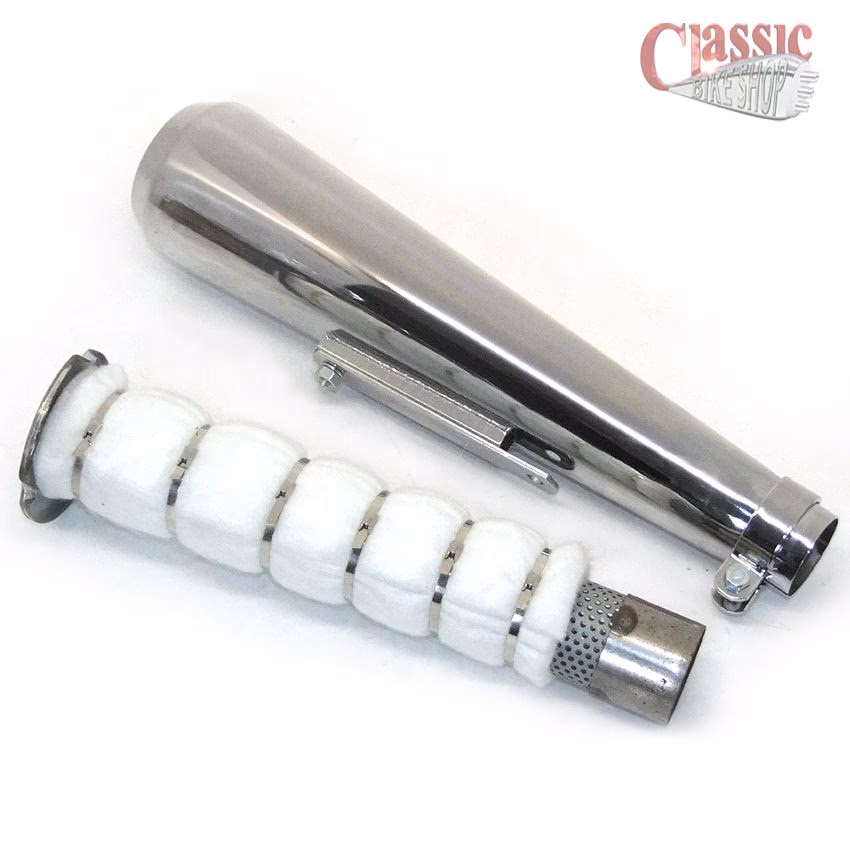

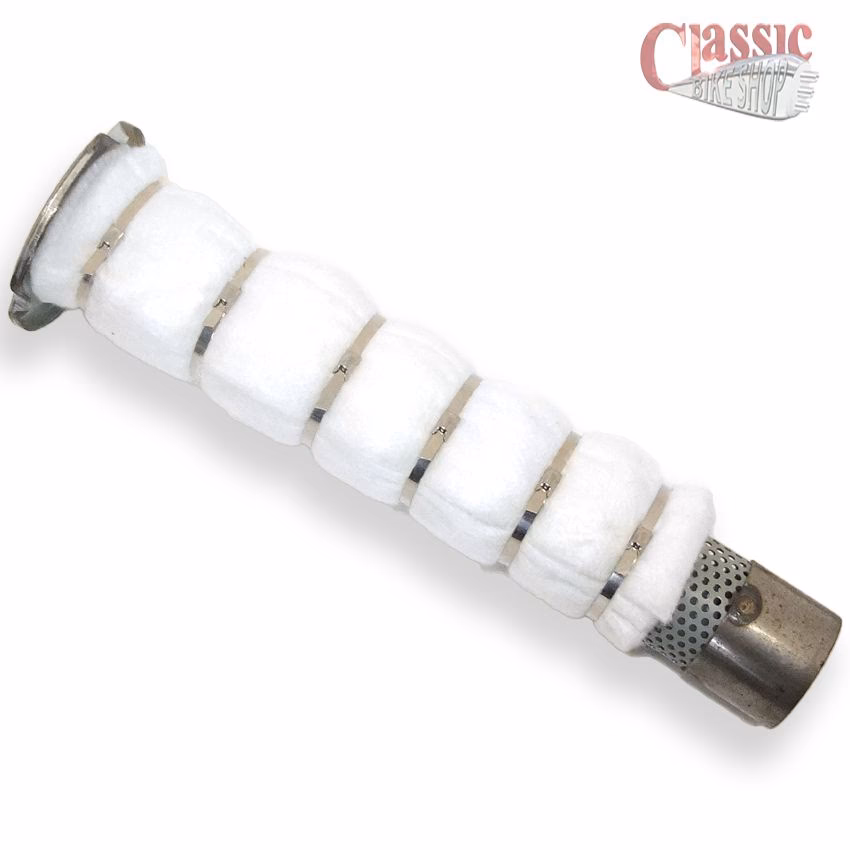

This is where the magic happens. New exhaust packing material, often a high-temperature resistant fibreglass or ceramic wool, is essential. Some kits also include a perforated core tube, which helps distribute the gases evenly and holds the packing material in place. It's often recommended to use a combination of materials. For instance, a layer of stainless steel wire wool can be used in conjunction with the packing material. The wire wool can help to compact the packing, prevent it from blowing out, and add a degree of acoustic dampening. Some mechanics also recommend adding a silicone-based sealant to the inside of the inlet end of the exhaust tube or sleeve before fitting the internal end cap. This can help create a better seal and prevent gases from escaping prematurely.

Carefully line up the internal end cap and the perforated tube section within the silencer sleeve. Then, meticulously pack the new wadding and wire wool into the sleeve. Ensure the material is evenly distributed and packed firmly, but not so tightly that it restricts gas flow. The goal is to fill the volume of the silencer without creating blockages. Some find it helpful to use a long rod or dowel to help push and distribute the packing material evenly.

6. Reassembly: Putting It All Back Together

Once the silencer is packed, it's time to reassemble. Refit the outlet end cap, ensuring it aligns correctly with the body of the silencer. Then, refit the inlet end cap. If you drilled out rivets, you'll need to drill new holes through the end cap and the silencer body to accommodate new rivets. It's crucial to drill the holes accurately to ensure a secure fit. Once drilled, insert and rivet the end cap in place. It's often best to start with the first hole, then drill and rivet the remaining holes, ensuring the end cap is perfectly aligned throughout the process. After riveting, you may need to tap down the edges of the rivet bands to ensure a neat finish. Finally, apply any heat-resistant labels or badges that came with your kit.

A final clean of the entire exhaust system will leave it looking and sounding refreshed.

Benefits of Repacking and Resleeving

The advantages of repacking and resleeving your motorcycle exhaust are manifold:

• Restored Sound: Achieve the intended, refined sound of your exhaust system.
• Improved Performance: Ensure optimal backpressure for better engine efficiency and power delivery.
• Cost Savings: Avoid the significant expense of purchasing a completely new silencer.
• Extended Lifespan: Give your existing exhaust system a new lease of life.
• Environmental Consideration: Reducing waste by refurbishing rather than replacing.

When is Resleeving Necessary?

While repacking addresses the internal packing, resleeving is a more involved process that becomes necessary when the outer sleeve or the internal structure of the silencer is damaged or corroded beyond repair. This might involve significant dents, cracks, or severe corrosion that compromises the integrity of the unit. Resleeving typically involves cutting away the old outer sleeve and replacing it with a new one, often requiring welding and fabrication skills. It's a more complex procedure than simple repacking and may be undertaken by specialist workshops.

Frequently Asked Questions

Q1: How often should I repack my motorcycle exhaust?
This depends heavily on the type of exhaust, the materials used, and how the motorcycle is ridden. For many aftermarket exhausts, checking every 10,000-20,000 miles is a good starting point. However, listening for changes in sound is a more reliable indicator.

Q2: Can I use any fibreglass insulation for repacking?
No, it is crucial to use packing material specifically designed for high-temperature exhaust applications. Standard fibreglass insulation is not suitable and can be dangerous.

Q3: Do I need special tools to repack an exhaust?
Basic tools such as a drill, rivet gun, screwdrivers, pliers, and potentially a socket set are usually sufficient. Specific tools might be needed depending on the exhaust design.

Q4: Will repacking affect my bike's warranty?
If you are working on an aftermarket exhaust, repacking it yourself generally won't affect your bike's overall warranty. However, it's always wise to check the terms of your specific exhaust manufacturer's warranty.

Q5: Can I repack a standard (OEM) exhaust?
Many original equipment manufacturer (OEM) exhausts are not designed to be easily disassembled for repacking. They are often welded shut. While it's sometimes possible with cutting and welding, it's generally not a straightforward DIY task for OEM units.

Conclusion

Maintaining your motorcycle's exhaust system is a vital aspect of ownership. Repacking and resleeving are effective methods to restore performance, sound, and aesthetics, offering a cost-effective alternative to replacement. By understanding the signs that indicate a need for attention and following the correct procedures, you can ensure your motorcycle continues to perform and sound its best for years to come. Whether you tackle it yourself or seek professional help, keeping your silencer in good condition is a rewarding endeavour for any rider.
