Mastering Exhaust Flanges: A UK Guide

The exhaust system is a critical component of any vehicle, responsible for channelling harmful gases away from the engine and ensuring your car runs efficiently and quietly. At the heart of a well-functioning exhaust are its various joints, and among the most common and robust are exhaust flanges. These vital connectors allow different sections of the exhaust to be securely joined, facilitating both straightforward assembly and necessary repairs. Understanding exhaust flanges, particularly the popular 3-bolt kits, is essential for any car enthusiast or DIY mechanic looking to maintain their vehicle's performance and compliance.

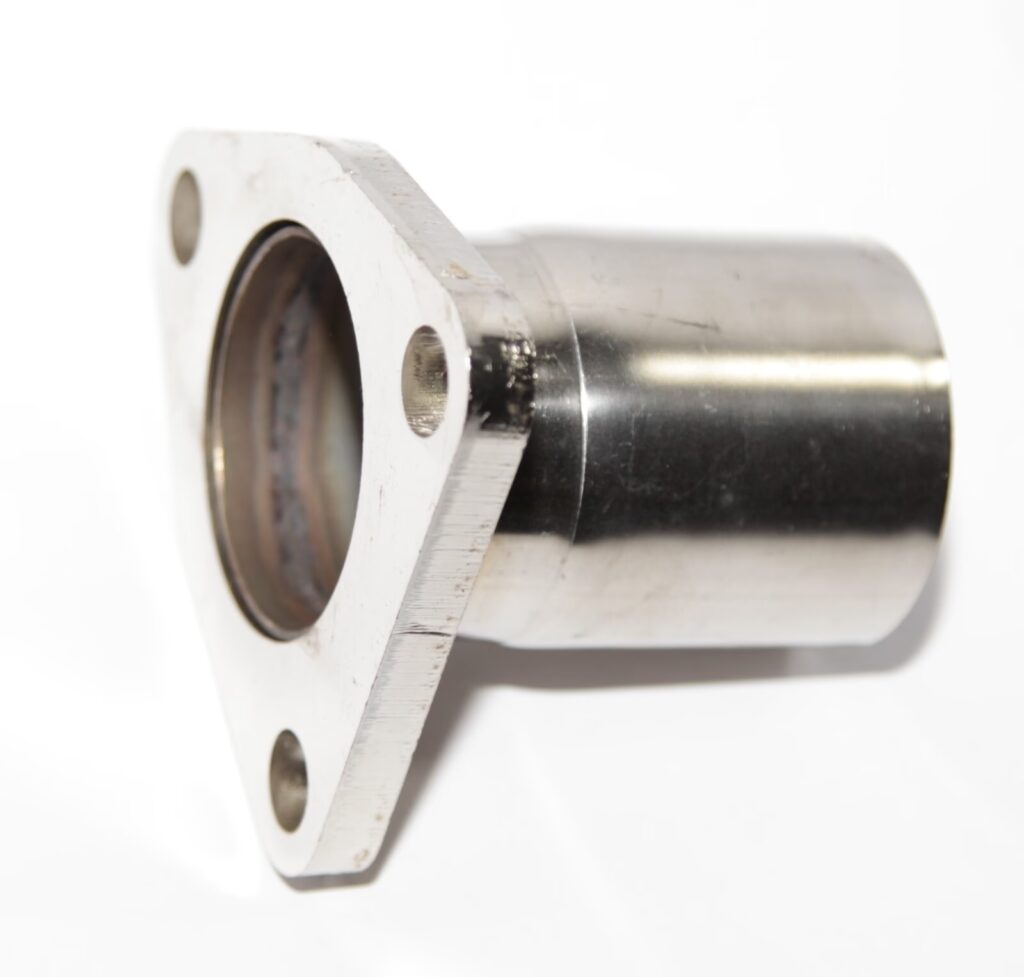

Understanding the 3-Bolt Exhaust Flange Kit

A 3-bolt exhaust flange kit is a comprehensive solution designed for creating secure, leak-free connections within your vehicle's exhaust system. Unlike single flanges sold individually, these kits are thoughtfully assembled to provide everything you need for a new joint or a replacement. Typically, a 3-bolt exhaust flange kit includes not just the flange itself, but also a matching gasket and the necessary bolts. This all-inclusive approach makes them incredibly convenient for custom exhaust fabrications, where new sections need to be integrated, or for general repairs on existing exhausts that require a fresh, reliable connection.

The '3-bolt' designation refers to the three bolt holes drilled into the flange, which allow for a strong, evenly distributed clamping force when tightened. This design offers a superior seal compared to some other types, making it a favoured choice for sections of the exhaust that experience significant vibration or pressure. Whether you're mending a cracked pipe or assembling a bespoke performance exhaust, a 3-bolt kit provides the foundational components for a durable and effective joint.

Why Exhaust Flanges Are Crucial for Your Vehicle

Exhaust flanges serve as indispensable connectors, playing a pivotal role in the structural integrity and functional efficiency of your vehicle's exhaust system. Their primary purpose is to securely join two pipes or sections together, ensuring a gas-tight seal that prevents harmful exhaust fumes from leaking into the vehicle's cabin or escaping prematurely. This secure connection is paramount for several reasons:

• Ease of Assembly/Disassembly: Flanges allow for modular construction of the exhaust system. This means that individual components, such as catalytic converters, silencers, or downpipes, can be easily removed or replaced without having to cut and weld the entire system. This saves significant time and effort during maintenance or upgrades.
• Strong, Reliable Connection: When properly installed, flanges provide a robust mechanical joint that can withstand the high temperatures, vibrations, and corrosive elements inherent in an exhaust environment. They ensure that exhaust components remain aligned and do not separate under operational stresses.
• Versatility in System Design: Flanges are utilised at various critical points throughout the exhaust system, from the engine manifold and turbo joints to the downpipes, front sections, exhaust flexi sections, middle exhaust silencers, and exhaust rear back boxes. Their versatility allows manufacturers to design complex exhaust paths with multiple components, optimising flow and noise reduction.
• Leak Prevention: A properly sealed flange, aided by a quality gasket, prevents exhaust gases from escaping prematurely. Leaks can lead to reduced engine performance, increased emissions, and potentially dangerous fumes entering the vehicle cabin.

Navigating the World of Exhaust Flange Types

When it comes to exhaust flanges, variety is key to suiting different applications and performance needs. While the 3-bolt flange is a popular choice, there are other configurations and materials that offer distinct advantages. Understanding these differences is crucial for selecting the appropriate component for your vehicle.

Common Flange Configurations:

• 2-Bolt Flanges: Often found in lighter-duty applications or where space is constrained, these flanges use two bolts to create a seal. While effective, they may offer slightly less clamping force distribution compared to their three-bolt counterparts.
• 3-Bolt Flanges: As discussed, these provide a very strong and evenly distributed clamping force, making them ideal for high-stress areas and custom fabrication where a robust connection is paramount.
• V-Band Kits / Turbo Kits: These kits offer a unique, clamp-based connection that doesn't rely on traditional bolts. A V-band clamp surrounds two mating flanges with a tapered interlocking design, creating an incredibly strong, leak-free, and easily detachable seal. They are particularly popular in turbocharged applications due to their ability to withstand high temperatures and pressures, and their ease of removal for turbo servicing.
• Flared and Ball Joints: These are less common as general-purpose flanges but are found in specific applications, often designed to allow for a degree of movement or flexibility in the exhaust system, accommodating engine movement or chassis flex without stressing rigid pipework.

Material Matters: Mild Steel vs. Stainless Steel

The material from which an exhaust flange is made significantly impacts its durability, corrosion resistance, and suitability for different environments. The two most common materials are mild steel and stainless steel.

For most general repairs and budget-conscious projects, mild steel flanges are adequate, though their lifespan may be limited by rust. For custom performance exhausts, long-term durability, or vehicles in harsh environments, stainless steel 304 flanges are the superior choice, offering unparalleled resistance to the elements.

Choosing the Right Exhaust Flange for Your Needs

Selecting the correct exhaust flange is paramount to ensuring a perfect fit, a secure seal, and the overall longevity of your exhaust system. It's not simply about picking the cheapest or most readily available option; careful consideration of several factors will save you time, money, and frustration in the long run.

Key Factors to Consider:

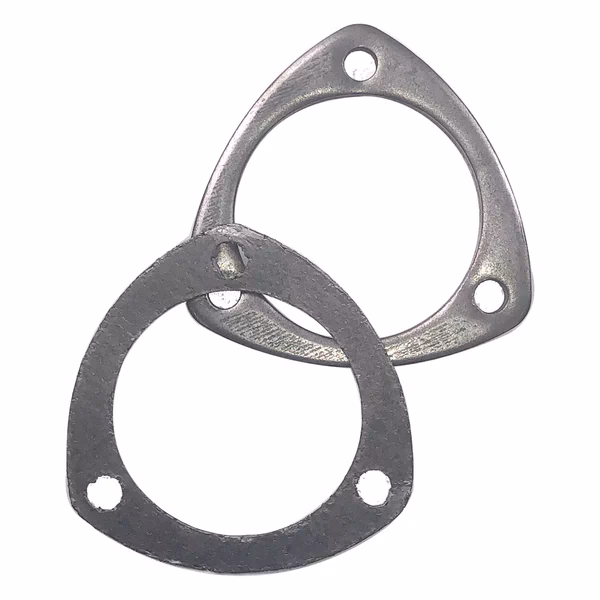

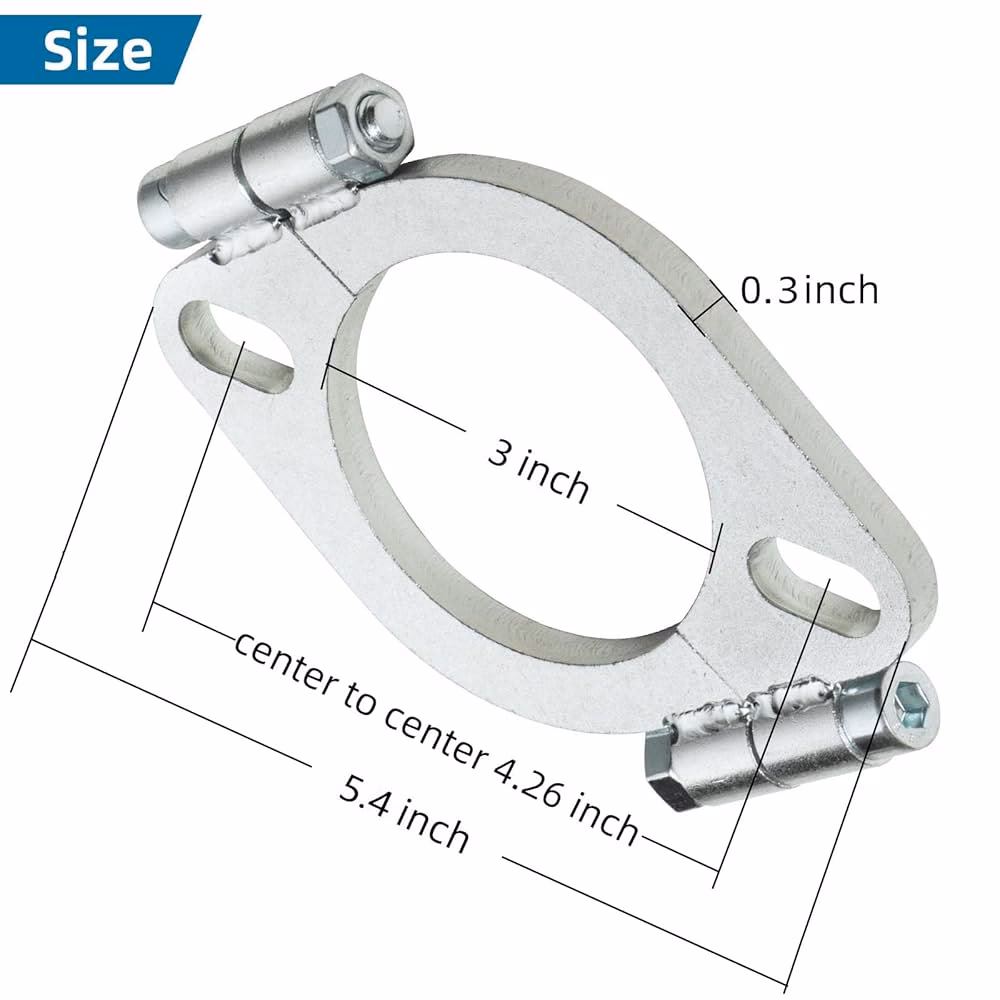

1. Flange Size (Diameter): This is arguably the most critical factor. The inner diameter of the flange must precisely match the outer diameter of the exhaust pipe it is intended to join. Measurements are typically given in inches or millimetres. An incorrect size will lead to a poor fit, an ineffective seal, and potential exhaust leaks. Always measure your existing pipework accurately before purchasing.
2. Material: As discussed previously, the choice between mild steel and stainless steel (e.g., 304 grade) is crucial. Consider the environmental conditions your vehicle operates in, your budget, and your desired lifespan for the repair or customisation. If you're matching existing stainless steel pipework, it's always best to use a stainless steel flange for compatibility and consistent corrosion resistance.
3. Bolt Pattern (2-bolt, 3-bolt, V-band): Ensure the new flange's bolt pattern matches the existing mating flange on your vehicle. If you're replacing a 3-bolt flange, you'll need a 3-bolt replacement. If you're building a new system, you have the flexibility to choose the most appropriate type for the connection, perhaps opting for a V-band for ease of future disassembly.
4. Application: Consider where the flange will be used within the exhaust system. Is it for a high-temperature area near the engine, a flexible joint, or a connection further down the system? The application might influence your material choice or even the type of joint (e.g., V-band for turbos).
5. Quality of Gasket and Bolts: If purchasing a kit, ensure the included gasket is of high quality and the bolts are of an appropriate grade. A cheap gasket can fail quickly, negating the benefits of a good flange.

By carefully assessing these factors, you can confidently select the right exhaust flange that will provide a durable, leak-free connection for your vehicle's exhaust system, contributing to its optimal performance and longevity.

The Art of Tightening Exhaust Flanges Correctly

Properly tightening exhaust flanges is just as important as selecting the right components. An incorrectly tightened flange can lead to exhaust leaks, premature gasket failure, and even damage to the flange itself. Precision and attention to detail are key to ensuring a secure and lasting connection.

Essential Considerations for Tightening:

1. Bolt Grade: Always use bolts with a recommended grade of at least 8.8 tensile. This grade indicates a high-strength bolt capable of withstanding significant tension without stretching or breaking under the forces and vibrations present in an exhaust system. Using lower-grade bolts can lead to stretching, loosening, or catastrophic failure, especially in high-temperature environments.
2. Preventing Vibrational Loosening: Exhaust systems are subject to constant vibrations, which can cause nuts to loosen over time. To combat this, consider employing one or a combination of the following methods:
   • Locking Nuts: These nuts have a nylon insert or a deformed thread that creates friction, preventing them from backing off.
   • Loctite (Threadlocker): A chemical adhesive applied to the bolt threads before tightening. Once cured, it prevents the nut from vibrating loose. Ensure you use a high-temperature resistant variant suitable for exhaust applications.
   • Spring Washers (Split Washers): These washers exert a spring force that maintains tension on the bolt, resisting loosening.
3. Even Tightening: When tightening a 2-bolt or 3-bolt flange, it's crucial to apply torque evenly. Do not fully tighten one bolt before moving to the next. Instead, tighten each bolt in stages, working in a criss-cross or star pattern (for 3-bolt) to gradually compress the gasket evenly. This ensures a uniform seal and prevents warping of the flange or premature failure of the gasket.
4. Torque Specifications: If available, always refer to your vehicle's service manual or the flange manufacturer's recommendations for specific torque settings. Using a torque wrench will ensure you apply the precise amount of force, preventing both under-tightening (leading to leaks) and over-tightening (which can damage bolts, flanges, or gaskets).
5. Gasket Placement: Ensure the gasket is correctly seated between the two mating flanges before tightening. A misaligned or damaged gasket will compromise the seal regardless of how well the bolts are tightened.

By adhering to these guidelines, you can achieve a robust, leak-free exhaust connection that will stand the test of time and the rigours of the road.

A Comprehensive Guide to Repairing a Broken Exhaust Flange

The exhaust flange, despite its robust design, is in a very vulnerable location on your vehicle, constantly exposed to road debris, moisture, extreme temperatures, and corrosive elements. Consequently, it can get damaged relatively easily, leading to cracks, breaks, or even complete detachment. If you don't address a broken flange promptly, you risk not only a noisy exhaust but also more significant problems, including limiting the flow dynamics of the exhaust gases, which can impact engine performance and fuel economy, and potentially even damaging the ground on which your car moves due to escaping hot gases. Rather than being stuck with a compromised exhaust, you should be prepared to mend it when you have a few spare hours. This job can often be completed in a day, and while it requires some specific tools and careful execution, it is manageable for anyone with a basic knowledge of car maintenance.

Step-by-Step Repair Process:

Step 1: Preparation and Thorough Cleaning of the Flange

Before any repair work can begin, the broken flange must be meticulously cleaned. This is a critical initial step to ensure a strong and lasting repair. You need to remove all traces of rust, burned-on exhaust products, carbon deposits, and any other contaminants that could be on the end of the flange. A wire brush, sandpaper, or a grinding tool can be effective for this. Ensure there is no fuel, oil, or grease on the part you will be fixing, as these can interfere with the brazing process and pose a fire hazard. Once clean, manipulate the broken part(s) to reassure yourself that they will fit back into place accurately. Then, securely hold the broken parts together using a vice, or two if needed, ensuring perfect alignment. If you are missing a significant part of the flange, or if the break is very large and complex, attempting a repair with brazing may not be feasible or safe. In such cases, you should seriously consider replacing the entire exhaust pipe section that includes the flange, as a patch repair might not hold up. However, a small break or a minor crack can often be fixed successfully using the existing broken parts.

Step 2: Heating and Brazing the Parts

With the broken parts securely held together by the vice(s) and perfectly aligned, you will now apply heat. It is imperative that you use an acetylene torch for this step. Do not attempt to heat the parts with any other type of flame, as the controlled, intense heat of an acetylene torch is necessary for proper brazing. Remember that the exhaust system handles a lot of toxic fumes and residues, so ensure you are working in a well-ventilated area and wearing appropriate personal protective equipment, including safety glasses and welding gloves. Carefully heat the metal of the broken flange until the parts turn a dull red. Once this temperature is reached, take your brazing rod (ensure it's suitable for the metal type, typically a bronze or brass alloy) and begin to deposit the brazing metal around the surface of the break. Start by heating the base metal slightly ahead of the rod, then touch the rod to the joint, allowing the molten brazing material to flow into the crack. Work slowly and methodically, ensuring good penetration and coverage. Take your rod from one piece to the other, making a continuous bead of brazing material. Once you have brazed one side of the flange, carefully reposition the setup if necessary, move around to the other side of the car or flange, and repeat the brazing process to reinforce the repair from all accessible angles.

Step 3: Controlled Cooling and Finishing

Once you have successfully melted the broken pieces back into one strong unit through brazing, it's crucial to allow the flange to cool down slowly and in a controlled manner. Rapid cooling can cause the metal to become brittle or create new stress cracks, compromising the repair. You will need to adjust the cooling process by gradually moving the acetylene torch away from the metal in increasing circles, or by intermittently applying and removing the heat, allowing the temperature to dissipate slowly. Eventually, the torch should be taken away from the pipe completely, and the flange should be left to air cool naturally. Do not quench it with water. Once the metal has completely cooled to ambient temperature, carefully inspect the brazed area. If there are any protruding lumps, sharp edges, or excess brazing material, use a steel file to smooth them down. This ensures a clean finish and allows for proper seating against the mating flange. After filing, carefully remove the vice(s). The exhaust flange should now be completely fixed and ready for reinstallation with a new gasket.

Safety Note: Working with torches and hot metal carries inherent risks. Always wear appropriate personal protective equipment, ensure good ventilation, and have a fire extinguisher nearby. If you are uncomfortable with brazing or welding, it is always best to consult a professional mechanic.

Frequently Asked Questions (FAQs) About Exhaust Flanges

Q: Can I drive with a broken exhaust flange?

A: It is strongly advised not to drive with a broken exhaust flange. A broken flange will cause an exhaust leak, leading to several problems. Firstly, the increased noise can be irritating and may even be illegal in some areas. More critically, exhaust gases, which contain harmful carbon monoxide, can leak into the vehicle's cabin, posing a serious health risk to occupants. Additionally, a leak can reduce engine performance, decrease fuel efficiency, and potentially damage other components due to increased heat or unmetered air entering the system (if it's before the oxygen sensor). Get it repaired or replaced as soon as possible.

Q: How often should I check my exhaust flanges?

A: It's good practice to inspect your exhaust flanges, along with the rest of your exhaust system, during routine vehicle maintenance, such as oil changes or tyre rotations. Look for signs of rust, cracks, loose bolts, or black soot marks around the joints, which indicate a leak. A thorough inspection at least once a year is recommended, especially if you live in an area with harsh winters or salted roads.

Q: What are the signs of a failing exhaust flange?

A: The most common signs of a failing or broken exhaust flange include:

• Loud Noises: An increased exhaust noise, especially a hissing, tapping, or rumbling sound that gets louder under acceleration.
• Exhaust Leaks: Visible black soot or carbon deposits around the flange joint. You might also feel exhaust gases escaping if you carefully check (when the engine is cool).
• Reduced Performance: A noticeable drop in engine power or fuel economy, particularly if the leak is before the catalytic converter or oxygen sensor.
• Smell of Exhaust Fumes: A strong smell of exhaust gases inside the vehicle cabin.

Q: Is it difficult to replace an exhaust flange myself?

A: Replacing an exhaust flange can range from moderately difficult to challenging, depending on its location and how rusted the existing bolts are. Access can be an issue, often requiring the vehicle to be raised safely on jack stands or a lift. Removing old, rusted bolts can be particularly stubborn and may require penetrating oil, heat, or even grinding tools. However, with the right tools, patience, and a basic understanding of vehicle mechanics, it is a manageable DIY job for many individuals. If you're unsure, it's always best to consult a professional mechanic.

Maintaining the integrity of your vehicle's exhaust system is crucial for performance, safety, and environmental compliance. Exhaust flanges, especially the versatile 3-bolt kits, play a fundamental role in achieving this. By understanding their function, knowing how to choose the right type and material, mastering the art of proper tightening, and being prepared to undertake repairs, you can ensure your vehicle's exhaust remains in top condition, providing a quiet, efficient, and safe driving experience for years to come.
