Exhaust Flange Fixes: Sealing & Maintenance

The exhaust system of your vehicle is far more than just a means to expel waste gases; it's a finely tuned component crucial for engine performance, fuel efficiency, and environmental compliance. Often overlooked, the integrity of exhaust flanges plays a pivotal role in this system's health. While a flange doesn't typically 'clog' in the conventional sense like a pipe might, a compromised or failing flange connection can severely impede exhaust flow, leading to symptoms that mimic a blockage and significantly degrade vehicle performance. This comprehensive guide will demystify exhaust flanges, explain how their failure can cause widespread issues, and provide essential maintenance and repair tips to ensure your system runs smoothly, quietly, and efficiently.

Understanding Exhaust Flanges: The Critical Connectors

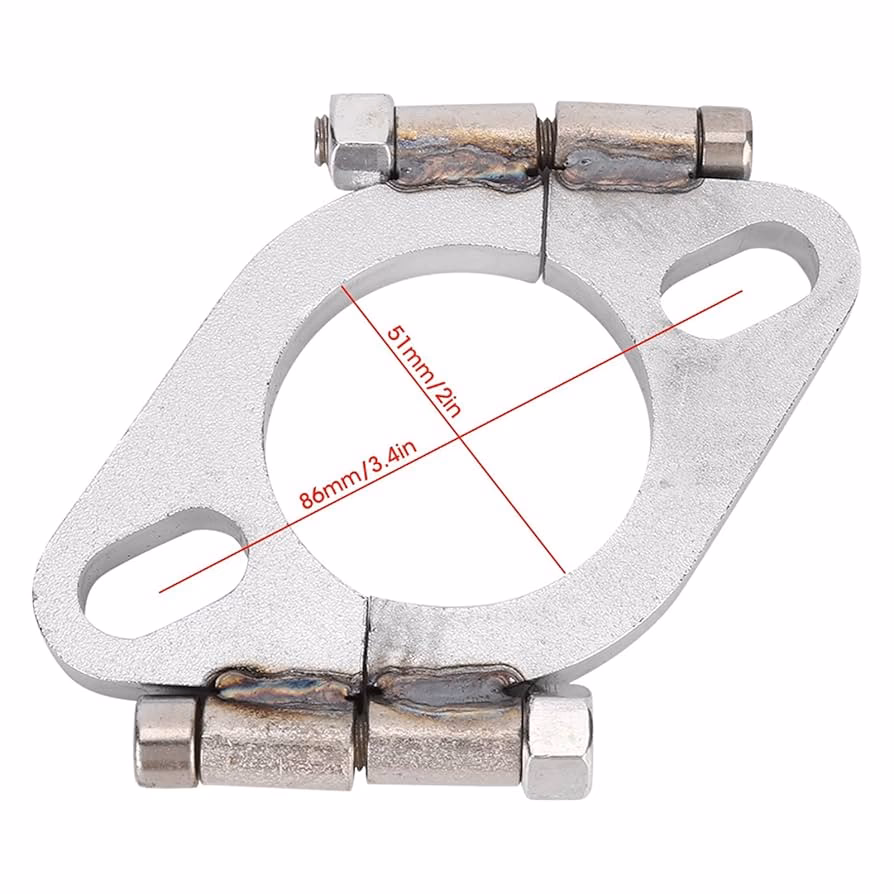

Exhaust flanges are the vital connection points that join various components of your exhaust system, such as the manifold to the downpipe, or sections of the exhaust pipe to the catalytic converter and muffler. Typically, they consist of flat, circular or oval metal plates with bolt holes, designed to be clamped together with a gasket in between to create a gas-tight seal. This seal is paramount. Any breach, no matter how small, can lead to exhaust leaks, which are detrimental to both your vehicle's operation and the environment.

These connections are under constant assault from extreme temperatures, corrosive exhaust gases, road salt, and vibrations. Over time, these factors can lead to rust, degradation of the gasket, or even warping of the flange itself, compromising the seal. When this happens, exhaust gases can escape, or, less commonly, external debris can enter, creating a restricted flow pathway often misinterpreted as a 'clogged' flange.

Symptoms of a Compromised Exhaust Flange Connection

A failing exhaust flange, whether due to a deteriorated gasket, loosened bolts, or corrosion, can manifest in several noticeable ways. Recognising these signs early can save you from more extensive and costly repairs down the line:

• Increased Exhaust Noise: This is often the most obvious sign. A louder-than-usual exhaust note, especially a hissing or tapping sound, indicates a leak where gases are escaping the system.
• Reduced Engine Performance: An exhaust leak, particularly one close to the engine, can affect exhaust gas recirculation (EGR) and oxygen sensor readings. This can confuse the engine's computer, leading to incorrect fuel-air mixture, reduced power, and poor acceleration.
• Decreased Fuel Efficiency: When the engine management system receives inaccurate data due to exhaust leaks, it may overcompensate by using more fuel than necessary, leading to a noticeable dip in your miles per gallon.
• Unusual Odours: Exhaust fumes contain harmful gases like carbon monoxide. If a leak occurs, you might smell exhaust fumes inside the cabin, which is not only unpleasant but also dangerous. A rotten egg smell could indicate a catalytic converter issue, often exacerbated by improper exhaust backpressure from leaks.
• Visible Damage or Soot: A visual inspection might reveal rust around the flange, a visibly loose connection, or black soot marks on the exhaust pipe or surrounding components, indicating where gases have been escaping.
• Check Engine Light: In more severe cases, an exhaust leak can trigger the 'Check Engine' light on your dashboard, often accompanied by specific diagnostic trouble codes (DTCs) related to oxygen sensor performance or exhaust system efficiency.

What Causes Flange Issues (Beyond a 'Clog')?

While an exhaust flange itself doesn't internally 'clog' with carbon like a catalytic converter might, its failure can create flow restrictions or issues that mimic a clog. The primary culprits behind flange problems include:

• Corrosion: Constant exposure to moisture, road salt, and corrosive exhaust gases makes metal flanges susceptible to rust, leading to pitting, weakening, and eventual failure of the seal.
• Heat Cycles: The extreme temperature fluctuations (from ambient to hundreds of degrees Celsius) cause the metal to expand and contract, putting immense stress on the flanges, bolts, and gaskets.
• Vibration: Engine and road vibrations are continuously transmitted through the exhaust system, which can loosen bolts over time or cause metal fatigue in the flanges themselves.
• Worn Gaskets: Exhaust gaskets are designed to seal the connection. Made from materials like graphite or metal mesh, they degrade over time due to heat and pressure, leading to leaks.
• Improper Installation: Incorrect tightening of bolts, misalignment of components, or failure to neutralise system tension during installation can lead to premature flange failure.

Preventing Issues: The Importance of Proper Installation & Maintenance

Ensuring the longevity and proper function of your exhaust system, particularly its flange connections, hinges on correct installation techniques and proactive maintenance. The following practices are crucial:

Relieving Exhaust System Stress

When installing new exhaust components, it's easy to create unnecessary tension within the system. This stress can lead to premature failure of components, including flanges, and cause excessive noise and vibration within the vehicle. To alleviate this, follow these steps:

1. Loosen All Connections: Once new components are provisionally fitted, and with the system at operating temperature (or at least warm), loosen all exhaust clamps and flange joints. This allows the entire system to 'settle' into its natural position.
2. Neutralise Components: Reposition any affected components until the exhaust hangers and isolators hang freely, without any visible strain or pulling. This ensures the weight of the system is evenly distributed and not putting undue stress on any single point.
3. Tighten Progressively: Once everything is aligned and free of tension, begin tightening all connections. Always start from the front of the vehicle (closest to the engine) and work your way backwards. This sequence helps maintain proper alignment as you secure each section.

Precision Torquing of Flanges

Correctly torquing flange bolts is critical for preventing exhaust system leaks, gasket and bolt failure, and premature system fatigue. Under-tightening can lead to leaks, while over-tightening can strip threads, warp flanges, or crush gaskets. Always use a torque wrench and follow these progressive tightening guidelines:

• Initial Tightening: Begin by tightening all nuts to approximately one-third of the final specified torque. For example, if the nuts require 60 ft-lb (81 Nm) of torque, start by torquing all nuts to 20 ft-lb (27 Nm).
• Intermediate Tightening: Next, tighten all nuts to approximately two-thirds of the final torque (e.g., 40 ft-lb or 54 Nm).
• Final Tightening: Complete the process by torquing all nuts to the final specified torque (e.g., 60 ft-lb or 81 Nm). This progressive method ensures even pressure distribution and a secure seal.
• Specific Patterns:
  • For Y-Pipes: When securing Y-pipes, tighten both sides simultaneously in a rotating or criss-cross sequence to ensure even pressure across both connections.
  • For Collector Converters: Start the tightening sequence from the middle bolts and work outwards uniformly on both sides. This helps prevent warping of the collector flange.

Choosing the Right Clamp

While often bought separately, selecting the correct style of exhaust clamp is fundamental for achieving desired levels of sealability, durability, and serviceability. High-quality clamps, like those from Walker (often made from high-grade steel), are available in multiple varieties, including saddle clamps and wire ring clamps. Each style has specific advantages and is suited for different applications:

Tools and Materials You'll Need for Flange Repair

Before tackling a flange repair, gather the necessary tools and materials:

• Safety glasses and gloves
• Vehicle jack and jack stands (for safely raising the vehicle)
• Socket wrench set and open-end wrenches
• Torque wrench (essential for proper bolt tightening)
• Wire brush or abrasive pad (for cleaning surfaces)
• Penetrating oil (e.g., WD-40, PlusGas)
• New exhaust gaskets (always replace old ones)
• New bolts, nuts, and washers (often rusted and need replacing)
• Exhaust paste or sealant (optional, but can aid sealing)
• Pry bar or rubber mallet (for separating stubborn components)

Step-by-Step Guide to Flange Repair/Replacement

Addressing a compromised exhaust flange involves careful work. Follow these steps for a successful repair:

1. Safety First: Ensure the vehicle is cool. Lift it safely using a jack and secure it on sturdy jack stands. Never work under a vehicle supported only by a jack. Wear appropriate personal protective equipment.
2. Inspection and Diagnostics: Locate the problematic flange. Look for visible signs of leaks (soot marks), rust, or loose bolts. Gently shake the exhaust system to identify any play or excessive movement at the joints.
3. Preparation: Apply penetrating oil liberally to all bolts and nuts on the affected flange. Allow it to soak for at least 15-30 minutes to help loosen rust and corrosion.
4. Disassembly: Carefully attempt to loosen and remove the bolts and nuts. If they are severely rusted, you might need a breaker bar or, in extreme cases, a cutting tool (like an angle grinder with a cut-off wheel) to remove them. Be extremely cautious if cutting.
5. Component Removal: Gently separate the exhaust components at the flange. This might require some wiggling, twisting, or light tapping with a rubber mallet. Remove the old gasket, which might be stuck to one or both flange faces.
6. Cleaning Flange Surfaces: This is a crucial step for a good seal. Use a wire brush, sandpaper, or an abrasive pad to thoroughly clean both mating surfaces of the flanges. Remove all rust, old gasket material, carbon build-up, and any other debris. The surfaces must be smooth and clean for the new gasket to seal effectively.
7. Installing New Gaskets and Hardware: Place the new gasket squarely between the two clean flange faces. Insert new bolts through the holes. Hand-tighten the new nuts onto the bolts.
8. Reassembly with Proper Torque: Following the progressive tightening method described above, use your torque wrench to tighten the bolts to the manufacturer's specified torque settings. Remember the Y-pipe or collector converter specific patterns if applicable.
9. Neutralising System Tension: Before final tightening, slightly loosen any other clamps or flange connections in the immediate vicinity (as per the 'Relieving Exhaust System Stress' section) to allow the entire section to settle naturally. Then, starting from the front, tighten all connections progressively.
10. Final Check for Leaks: Start the engine and listen carefully for any hissing sounds indicating a leak. You can also use a spray bottle with soapy water; bubbles will form at any leak points. If a leak is detected, re-tighten the bolts (ensuring not to over-torque) or re-evaluate the gasket and flange surfaces.

Frequently Asked Questions (FAQs)

Here are some common questions related to exhaust flanges and system health:

Q: Can I drive with a leaking exhaust flange?
A: While technically possible, it's not advisable. Driving with a leaking exhaust flange can lead to reduced engine performance, decreased fuel efficiency, and allow dangerous exhaust fumes (like carbon monoxide) into the vehicle cabin. It can also damage other components like oxygen sensors or catalytic converters due to improper backpressure or unmetered air.

Q: How often should I check my exhaust system?
A: It's a good practice to visually inspect your exhaust system, including flanges, pipes, and hangers, at least once a year, or during routine oil changes. Listen for any unusual noises that could indicate a leak or developing problem.

Q: What's the difference between an exhaust leak and a clog?
A: An exhaust leak is when exhaust gases escape the system through an opening, such as a faulty flange seal or a hole in the pipe. A clog, conversely, is an internal blockage within the exhaust system (e.g., a failed catalytic converter, a collapsed muffler baffle, or significant carbon build-up) that restricts the flow of gases out of the engine. While a severe leak can sometimes mimic symptoms of a clog due to altered backpressure, they are distinct issues.

Q: Do I need special tools for exhaust work?
A: While basic wrenches and sockets are a start, a torque wrench is highly recommended for proper flange tightening. Penetrating oil is essential for rusted bolts. For heavily corroded systems, cutting tools might be necessary, but this requires skill and caution.

Q: Why do exhaust gaskets fail?
A: Exhaust gaskets fail primarily due to constant exposure to extreme heat and corrosive exhaust gases, which degrade their material over time. Vibrations and improper installation (e.g., uneven tightening, re-using old gaskets) also contribute significantly to their premature failure.

Conclusion

A well-maintained exhaust system is fundamental to your vehicle's performance, safety, and environmental impact. While the concept of a 'clogged exhaust flange' might be a misnomer, understanding that a compromised flange connection can lead to severe issues mimicking a clog is crucial. By diligently following proper installation techniques, ensuring precise torque application, and selecting the right components, you can prevent many common exhaust system woes. Regular inspection and prompt attention to any signs of trouble will ensure your vehicle runs efficiently, quietly, and safely for years to come. Don't underestimate the power of a perfectly sealed connection – it's the unsung hero keeping your engine breathing freely.
