Custom Tractor Exhaust Bending

Tired of that soot staining your pride and joy, or having exhaust fumes blow back into your face whilst you're enjoying your tractor? It's a common predicament for many tractor owners, but thankfully, a solution is often closer than you think. As one satisfied owner discovered, a custom-bent exhaust can be a game-changer, not only for comfort but also for the overall appeal of your beloved machinery. This article delves into the process of having an exhaust custom-bent by a professional shop, the benefits of using high-quality components like 304 stainless steel mandrel bends, and what you can expect from such an upgrade.

The Appeal of a Custom Exhaust

Our example highlights a straightforward yet effective modification. After purchasing a tractor, the owner found the original exhaust positioning undesirable. The solution? A visit to a skilled mechanic friend with a penchant for custom exhausts. In a remarkably short time, the tractor sported a new exhaust system that directed spent gases forward and downwards, neatly tucked in front of the axles and crucially, clear of the wheels. This not only resolved the aesthetic issue of soot marks on the paintwork but also improved the operating experience by eliminating fume blowback. The final touches included a standard 1 1/2" muffler clamp and a coat of high-temperature paint, ensuring both durability and a clean finish. The sentiment that "it pays to know good people with the right equipment" couldn't be more apt. This illustrates that with the right expertise and tools, significant improvements can be made with relative ease and minimal cost, especially when friendship is involved!

Why Choose a Custom Bend?

While many vehicles can make do with standard, pre-formed exhaust components, certain applications benefit immensely from custom bending. For tractors, where operational comfort and aesthetics are often as important as raw performance, a custom bend allows for precise routing. This precision can:

• Prevent Fume Blowback: Directing exhaust away from the operator's cabin or seating area significantly enhances comfort, especially during extended use.
• Improve Aesthetics: A well-routed exhaust can complement the tractor's design, avoiding unsightly soot streaks on bodywork.
• Increase Ground Clearance: Strategic bending can lift the exhaust system higher, reducing the risk of damage on uneven terrain.
• Optimise Component Placement: Ensuring clearance from moving parts like wheels and suspension is vital for safety and longevity.

The Science Behind Exhaust Bends: Crush vs. Mandrel

When discussing exhaust systems, the type of bend used is paramount to performance. The way spent gases exit your engine directly impacts your vehicle's efficiency and smooth running. While crush bends are common and adequate for many standard road vehicles, they have a significant drawback: they restrict the flow of exhaust gases. As the pipe is bent, the inner radius is compressed or 'crushed', creating a narrower passage. This restriction can lead to:

• Reduced horsepower
• Increased backpressure
• Suboptimal fuel efficiency

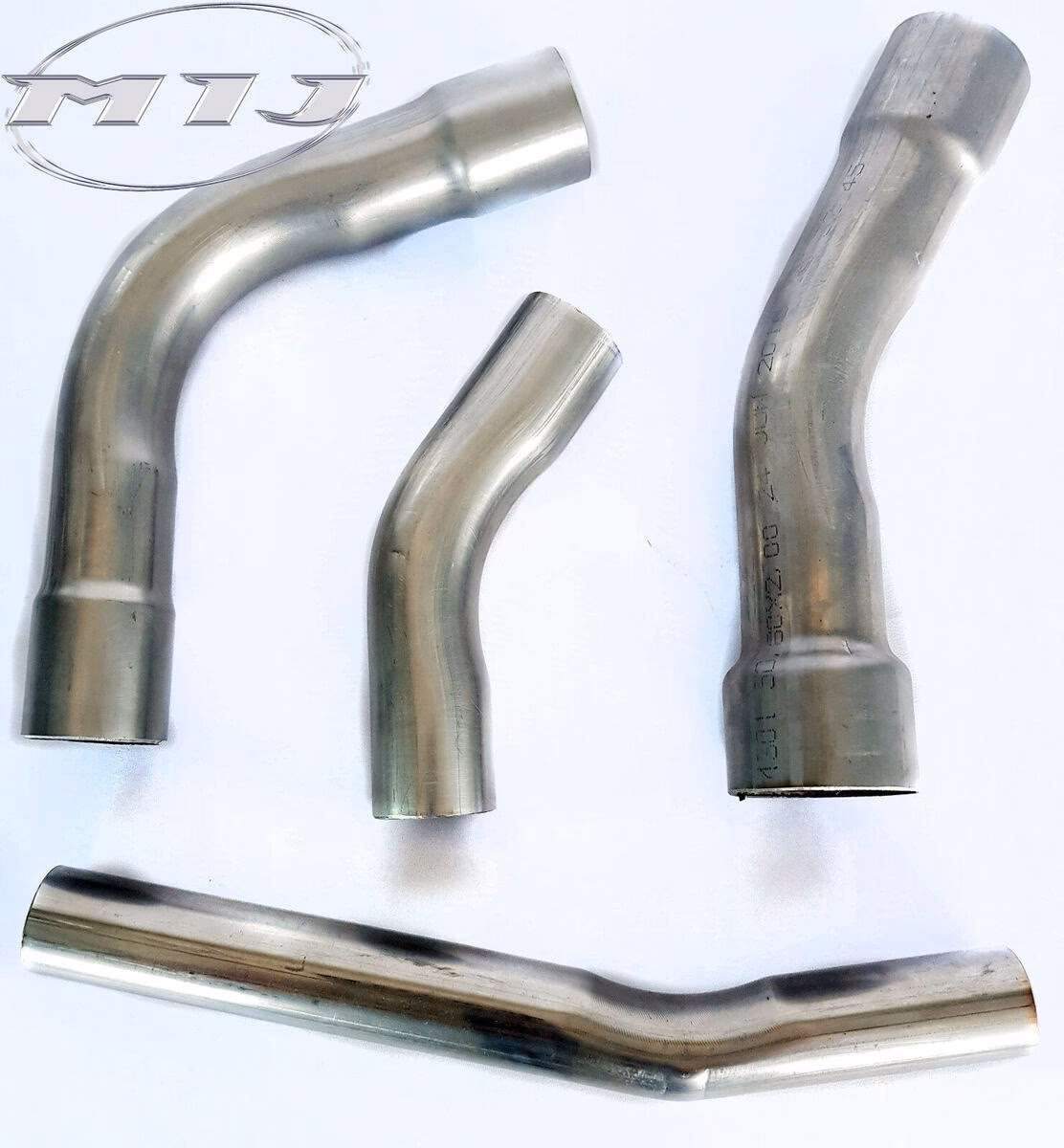

In contrast, mandrel bends offer a superior solution, particularly for those seeking to maximise power output. These bends are created using a flexible internal support, or 'mandrel', inserted into the pipe during the bending process. This mandrel maintains the pipe's internal diameter and shape, preventing any collapse or restriction. The result is a smooth, uninterrupted flow path for exhaust gases. Profusion, for example, manufactures their mandrel exhaust bends from high-quality 304-grade stainless steel, a material renowned for its excellent corrosion resistance and durability.

What is 304 Stainless Steel?

304 stainless steel is an austenitic chromium-nickel stainless steel that is widely recognised for its excellent corrosion resistance, formability, and weldability. Its composition typically includes a minimum of 18% chromium and 8% nickel, which provides its characteristic shine and resistance to rust and oxidation. For exhaust systems, this means:

• Longevity: Resists corrosion from exhaust gases and environmental factors, leading to a longer lifespan.
• Heat Resistance: Handles the high temperatures generated by engine exhaust effectively.
• Aesthetic Appeal: Maintains its polished or brushed finish over time.

Using 304 stainless steel for mandrel bends ensures that the benefits of smooth flow are combined with the durability and resistance to the harsh environment of an exhaust system.

The Custom Bending Process Explained

A professional exhaust shop possesses the specialised equipment and expertise to perform custom bending. The process typically involves:

1. Consultation: Discussing your requirements, desired routing, and any specific clearance issues with the mechanic.
2. Measurement and Design: Taking precise measurements of your tractor and marking the required bend points and angles.
3. Pipe Preparation: Selecting the appropriate diameter and material for the exhaust pipe, often stainless steel for durability.
4. Mandrel Bending: Using a CNC (Computer Numerical Control) mandrel bender, the pipe is heated and carefully bent around a die, with the mandrel inside to maintain the internal diameter. This ensures a perfect, smooth bend without any kinking or flattening.
5. Cutting and Fitting: Once the bends are made, the pipe is cut to the correct lengths and fitted to the existing exhaust system or new components. This might involve welding or using clamps.
6. Finishing: Adding any necessary hangers, muffler connections, and finishing touches like high-temperature paint for protection and aesthetics.

Table: Crush Bend vs. Mandrel Bend

To better illustrate the differences, here's a comparison:

Frequently Asked Questions (FAQs)

Can any exhaust shop custom bend pipes?

While many general mechanics can perform basic exhaust work, not all shops have the specialised equipment, like a mandrel bender, required for high-quality custom bends. It's best to seek out a specialist exhaust shop or a custom fabrication shop.

Is 304 stainless steel necessary for a tractor exhaust?

While not strictly necessary for basic function, 304 stainless steel offers superior longevity and corrosion resistance, making it an excellent choice for a custom modification you want to last. For cost-effectiveness, some might opt for aluminised steel, but stainless steel provides the best long-term value.

How much does custom exhaust bending cost?

The cost can vary widely depending on the complexity of the bends, the material used, and the shop's labour rates. However, as the initial example shows, the cost can be as simple as a good lunch if you have a skilled friend!

Will a custom exhaust improve my tractor's power?

A properly designed and executed custom exhaust, especially one using mandrel bends, can improve exhaust flow, potentially leading to modest gains in horsepower and torque, as well as better throttle response. However, the most noticeable benefits are often in comfort and aesthetics.

What size pipe is typically used for tractor exhausts?

The ideal pipe size depends on the tractor's engine displacement and design. A 1 1/2" diameter, as mentioned in the example, is common for smaller to medium tractors, but larger machines may require larger diameters. Consulting with the custom exhaust specialist is crucial.

Conclusion

Modifying your tractor's exhaust system with custom bending can be a highly rewarding project. It addresses common issues like fume blowback and soot staining while offering the potential for improved performance and a cleaner aesthetic. By understanding the benefits of quality materials like 304 stainless steel and the advantages of mandrel bends over crush bends, you can make an informed decision. Whether you're relying on a skilled friend or a professional fabrication shop, a well-executed custom exhaust is a testament to thoughtful modification and can significantly enhance your enjoyment of your tractor.
