Classic Cylinder Head Exhaust Port Repair

Encountering stripped threads in a classic cylinder head's exhaust port can be a disheartening discovery for any enthusiast, particularly when dealing with a revered machine like a 1956 Norton 19S. This particular issue, as highlighted by Ian McD, often arises due to the age of the components, the stresses of operation, and perhaps a previous over-enthusiastic tightening of the exhaust rose nut. Fortunately, for those who cherish these vintage steeds, there are established methods to rectify such problems, ensuring the longevity and performance of the engine. This article delves into the intricacies of repairing stripped exhaust ports, focusing on the common and effective solution of inserting a threaded sleeve, and exploring the crucial material considerations for both the sleeve and the securing nut.

Understanding the Problem: Stripped Threads

The exhaust port is where the hot gases expelled from the combustion chamber exit the cylinder head. This area is subjected to significant thermal expansion and contraction, as well as the mechanical forces exerted by the exhaust pipe and its securing nut, often referred to as a 'rose nut' in the context of older British motorcycles. Over time, repeated heating and cooling cycles, coupled with the corrosive nature of exhaust gases and potentially aggressive maintenance practices, can lead to the deterioration of the threads within the aluminium alloy head. When these threads strip, the exhaust system can no longer be securely fastened, leading to leaks, poor performance, and an annoying noise.

The Sleeve Repair: A Proven Solution

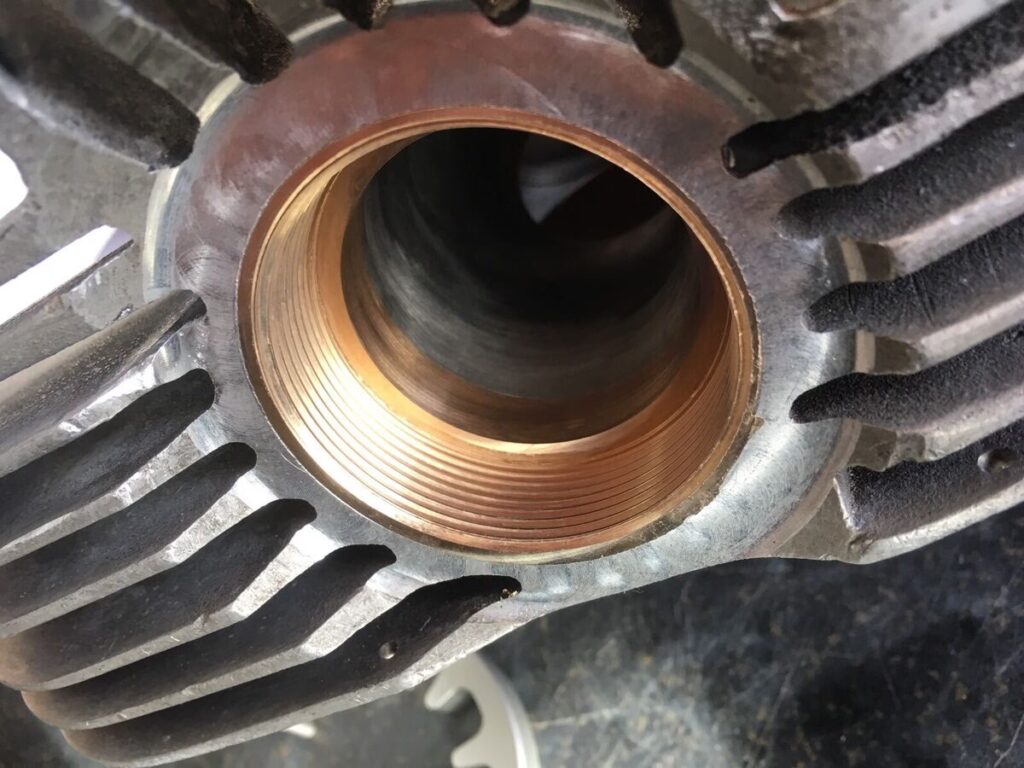

The most common and often the most effective method for repairing stripped threads in aluminium cylinder heads is the insertion of a threaded sleeve, also known as a thread insert or Helicoil (though Helicoil is a brand name, the concept is similar). This process involves carefully drilling out the damaged port to a precise diameter, tapping new, larger threads, and then screwing in a specially machined sleeve. This sleeve is typically made of a harder, more durable material, or at least a material with superior thread-forming capabilities compared to the original aluminium. The new threads within the sleeve are then sized to accept the original exhaust rose nut.

The Process in Detail:

• Assessment: The first step is a thorough inspection of the damaged port to determine the extent of the thread damage and the condition of the surrounding aluminium.
• Drilling: The damaged threads are carefully drilled out. This is a critical step, requiring precision to ensure the hole is perfectly concentric with the original port. The drill size will be dictated by the dimensions of the chosen sleeve.
• Tapping: New threads are then cut into the drilled hole using a tap specifically designed for the sleeve's outer diameter and thread pitch.
• Sleeve Preparation: The sleeve itself must be manufactured with external threads to match the tapped hole in the head, and internal threads to accept the exhaust rose nut.
• Installation: The sleeve is typically screwed into the prepared hole. Depending on the design and the materials, a suitable adhesive or sealant might be used to ensure a secure and leak-proof fit. Some sleeves are designed to be a tight interference fit, while others rely on the threads alone.
• Finishing: Once the sleeve is installed, the internal threads are chased or re-tapped to ensure they are clean and ready to accept the rose nut.

Material Considerations: The Heart of the Repair

The choice of materials for both the sleeve and the rose nut is paramount to the success and longevity of this repair. As Ian correctly surmises, the differing coefficients of thermal expansion between aluminium and steel can cause issues.

Aluminium Alloys for the Sleeve:

When inserting a sleeve into an aluminium head, using an aluminium alloy for the sleeve itself can offer advantages due to similar thermal expansion properties. However, the aluminium alloy chosen needs to be significantly harder and more wear-resistant than the original casting. Common choices for such applications include:

• High-Strength Aluminium Alloys: Alloys such as those in the 6000 or 7000 series (e.g., 6061-T6, 7075-T6) offer good strength and hardness. However, their thermal expansion coefficients are still higher than steel.
• Bronze Alloys: Phosphor bronze or aluminium bronze are excellent candidates. These materials are significantly harder and more wear-resistant than typical cast aluminium. They also possess good thermal conductivity, which can help dissipate heat. Their thermal expansion is generally closer to that of steel than aluminium, but still different.
• Brass Alloys: Certain brass alloys can also be used, offering good machinability and reasonable wear resistance.

The key is to select an alloy that can be machined with fine, durable threads and can withstand the repeated tightening and loosening of the rose nut, as well as the thermal cycling. For a classic head like the Norton 19S, a specialist might recommend a specific alloy based on experience with similar engines.

The Rose Nut: Steel vs. Other Materials

This is where the coefficient of thermal expansion becomes a critical factor. Aluminium expands more than steel when heated. If a steel sleeve is used with a steel rose nut in an aluminium head, the differential expansion can put immense stress on the threads, potentially leading to the sleeve pulling out or the threads stripping again, especially during rapid heating or cooling.

• Steel Rose Nut: Using the original steel rose nut is often desirable for authenticity. However, as noted, the thermal expansion mismatch with an aluminium sleeve (or even the original head material) is a concern. If a steel sleeve is used, then a steel rose nut is the natural pairing, but the entire assembly is within an aluminium head, leading to the same problem.
• Aluminium or Bronze Rose Nut: To mitigate the thermal expansion issue, a rose nut made from a material with a coefficient of thermal expansion closer to that of the cylinder head material would be ideal. This could be a high-strength aluminium alloy or a suitable bronze. Such a nut would expand and contract more in sync with the head, reducing stress on the sleeve's threads. The trade-off is that aluminium or bronze are softer than steel and may wear more quickly if not properly maintained or if excessive force is applied during tightening.
• Bimetallic Design: In some high-performance or critical applications, bimetallic components are used, but this is unlikely to be a practical or cost-effective solution for a classic motorcycle exhaust port.

Ian's instinct to consider a material with a similar coefficient of expansion for the rose nut is excellent. A well-machined bronze or high-strength aluminium alloy rose nut, fitted into a compatible sleeve (perhaps also bronze or a suitable aluminium alloy), offers the best chance of a durable and reliable repair that respects the thermal dynamics of the engine.

Finding a Specialist

For a repair of this nature on a classic motorcycle, it is highly recommended to seek out a specialist engineering firm or a reputable motorcycle restorer with experience in vintage engines. They will have the correct tooling, knowledge of suitable materials, and the precision required to carry out the repair effectively. Asking for examples of similar work they have undertaken and testimonials from previous clients is a wise approach. Ian's question about who to use is a valid one, and word-of-mouth recommendations within classic motorcycle communities are often the best source.

Comparative Table: Sleeve and Nut Material Options

Here's a simplified comparison of potential material pairings:

Frequently Asked Questions

Q1: Is a sleeve repair the only option for stripped exhaust port threads?

While other methods like thread chasers or high-strength thread repair compounds exist, they are generally less robust and suitable for minor damage. For stripped threads on a high-stress, high-temperature component like an exhaust port, a mechanical repair such as a sleeve is usually the most reliable and durable solution.

Q2: Can I do this repair myself?

This repair requires precision drilling, tapping, and often custom machining of the sleeve. Unless you have significant experience, the correct tooling (including high-quality taps and a precision drill press), and a good understanding of metal properties and thermal expansion, it is strongly recommended to entrust this job to a professional engineering workshop or a specialist in classic motorcycle restoration.

Q3: What is the 'rose nut' and why is it called that?

The term 'rose nut' typically refers to a decorative, often fluted or knurled nut used on older British motorcycles to secure the exhaust pipe or silencer to the cylinder head. Its name likely comes from its ornamental appearance, perhaps resembling a rose or having petal-like decorative elements.

Q4: How long will a sleeve repair typically last?

With the correct materials, precise machining, and proper installation, a sleeve repair can last for the lifetime of the engine. Regular maintenance, correct tightening torque, and avoiding aggressive cleaning methods will help preserve the repair.

Conclusion

Repairing stripped threads in a classic cylinder head's exhaust port is a common challenge, but one that can be overcome with a well-executed sleeve repair. The key lies in careful execution and, crucially, the judicious selection of materials. By considering the thermal expansion properties of the chosen sleeve and rose nut in relation to the aluminium cylinder head, you can ensure a repair that is not only functional but also robust and enduring. For a machine as iconic as the 1956 Norton 19S, investing in a high-quality repair by experienced professionals is undoubtedly the best way to preserve its heritage and enjoy its performance for years to come.
