Exhaust Manifold Gasket Leaks: Symptoms & Fixes

Understanding the Exhaust Manifold Gasket

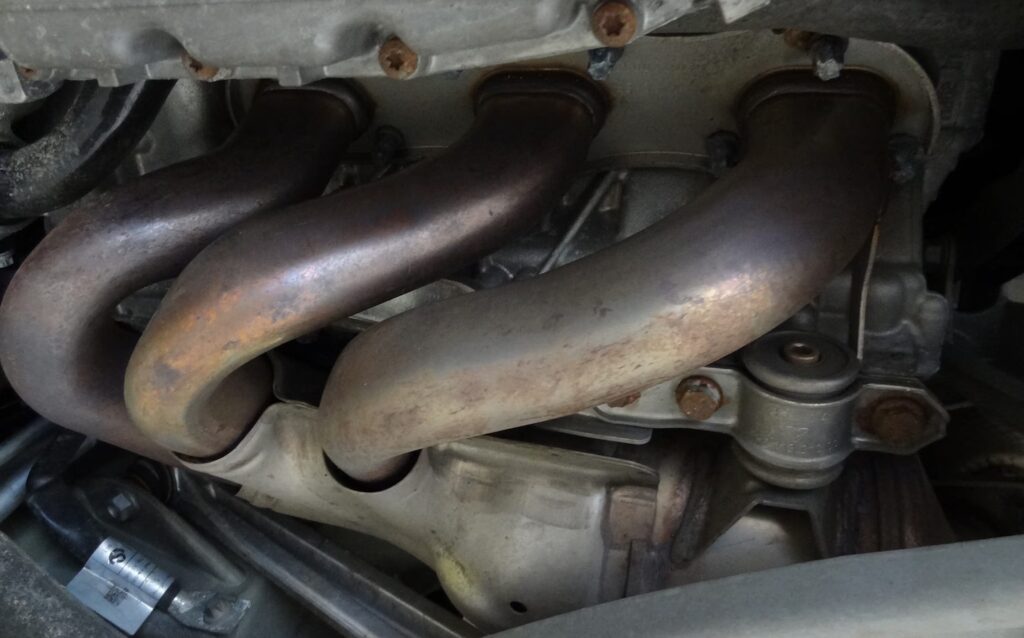

The engine of your vehicle is a marvel of engineering, a complex symphony of moving parts working in unison. While it might seem daunting to the uninitiated, understanding the fundamental components of your engine is crucial for any car owner. One such vital, yet often overlooked, component is the exhaust manifold gasket. Its primary role is to create a seal between the exhaust manifold and the engine's cylinder head. The exhaust manifold itself is responsible for collecting the hot exhaust gases produced during combustion from each cylinder and directing them towards the exhaust system, where they are ultimately expelled from the vehicle via the tailpipe. The gasket, therefore, is the unsung hero that ensures these harmful gases are contained within the intended pathway until they leave the vehicle. A compromised or leaking exhaust manifold gasket can lead to a cascade of problems, potentially affecting the engine's performance and even its longevity.

Symptoms of a Faulty Exhaust Manifold Gasket

Recognising the signs of a failing exhaust manifold gasket is the first step towards preventing more serious issues. Several indicators can alert you to a problem:

• Unusual Noises: One of the most common symptoms is an audible change in your vehicle's sound. When an exhaust manifold gasket leaks, you might hear a distinct ticking or hissing sound, particularly noticeable when you first start the engine or during acceleration. This noise is caused by the escaping exhaust gases finding their way out before reaching the main exhaust system.
• Reduced Engine Power: A leak in the gasket can disrupt the carefully controlled flow of exhaust gases. This disruption can lead to a noticeable decrease in your vehicle's power and acceleration. The engine might feel sluggish, and you may find it struggles to perform as it once did.
• Difficulty Starting: In some cases, a significant exhaust leak can affect the engine's ability to build proper compression, making it harder to start. If you're experiencing more crank time than usual before the engine fires up, it could be a sign of a gasket issue.
• Bad Smells: Exhaust gases are not only noisy when they escape but can also be pungent. A leak can allow these gases to seep into the engine bay and, subsequently, into the vehicle's cabin. This often manifests as a noticeable exhaust or burning smell, especially when the engine is hot.
• Check Engine Light: Modern vehicles are equipped with oxygen sensors that monitor the exhaust gas composition. A leak before or near these sensors can alter the readings, potentially triggering the 'Check Engine' light on your dashboard. The diagnostic trouble codes (DTCs) associated with these leaks often relate to air-fuel mixture imbalances or oxygen sensor performance.

The Importance of Timely Repair

Ignoring a leaking exhaust manifold gasket can have detrimental consequences. The escaping hot gases can not only cause unpleasant smells and noise but can also damage nearby engine components. They can overheat and degrade rubber hoses, plastic parts, and even wiring harnesses. Furthermore, the loss of exhaust pressure can lead to inefficient fuel combustion, potentially impacting your fuel economy. In severe cases, prolonged exposure to escaping exhaust gases can even lead to premature wear on engine parts.

Tools and Materials You'll Need

Before embarking on this repair, ensure you have the necessary tools and materials to hand. This will make the process smoother and safer:

Step-by-Step Guide to Repairing a Leaky Exhaust Manifold Gasket

While this repair is considered relatively straightforward for those with some mechanical inclination, it requires patience and precision. Always refer to your vehicle's specific repair manual for detailed instructions and torque specifications.

Step 1: Safety First!

Before you begin any work, ensure the vehicle is parked on a level surface. Allow the engine to cool down completely to avoid burns. Disconnect the negative battery terminal to prevent any accidental electrical shorts. Don your safety glasses and work gloves.

Step 2: Accessing the Exhaust Manifold

Open the bonnet (hood) and locate the exhaust manifold. It's typically bolted to the side of the engine, near the front or rear, and connects to the exhaust pipe. Depending on your vehicle's design, you may need to remove heat shields or other components that obstruct access to the manifold and its bolts.

Step 3: Removing Obstructions

Carefully identify and remove any components that hinder your access to the exhaust manifold. This could include air intake systems, engine covers, air injection pipes, or even oxygen sensors that are in the way. Keep track of where each part and its fasteners came from – a good practice is to bag and label them.

Step 4: Applying Penetrating Oil

This is a critical step, especially on older vehicles where bolts can become seized due to rust and heat cycles. Generously spray penetrating oil onto all the bolts and nuts that secure the exhaust manifold to the cylinder head and to the exhaust pipe flange. Allow the oil to soak in for at least an hour, or even overnight if possible, to maximise its effectiveness.

Step 5: Removing the Exhaust Pipe Flange Nuts

The exhaust manifold connects to the rest of the exhaust system via a flange at its rear. There are typically nuts and studs holding this connection together. Ensure these are well-soaked with penetrating oil. You might need a breaker bar for extra leverage to loosen these nuts. Once removed, you'll have better access to the manifold itself.

Step 6: Unbolting the Manifold

Using your socket and ratchet (and possibly an extension), begin to carefully unbolt the exhaust manifold from the cylinder head. It's often recommended to loosen the bolts in a specific pattern, sometimes starting from the outer bolts and working inwards, or in a crisscross pattern, to ensure even pressure release. Be prepared for the possibility of a broken bolt; this is a common occurrence, and you'll need to address it before reassembly.

Step 7: Detaching the Exhaust Manifold

Once all bolts are removed, gently try to detach the exhaust manifold from the engine. It might be stuck due to the old gasket or corrosion. Be cautious as you manoeuvre it, and be aware that the old gasket might cling to either the manifold or the cylinder head. If it's stubborn, a few gentle taps with a rubber mallet might help.

Step 8: Cleaning and Inspection

This is a crucial phase. Thoroughly clean the mating surface on the cylinder head where the manifold was attached. Remove all traces of the old gasket material, carbon deposits, and rust using a gasket scraper or a wire brush. Ensure the surface is perfectly clean and smooth for the new gasket to seal effectively. Inspect the exhaust manifold itself for any signs of damage, such as cracks. Exhaust manifolds are prone to cracking due to extreme temperature fluctuations, and if a crack is found, the manifold will need to be replaced. Clean the manifold's mating surface as well.

Step 9: Preparing for Reassembly

Take your new exhaust manifold gasket and ensure it perfectly matches the shape and port layout of the manifold and cylinder head. Some gaskets may require a thin layer of high-temperature gasket sealant, while others are designed to be installed dry. Always follow the gasket manufacturer's recommendations.

Step 10: Reinstalling the Exhaust Manifold

Carefully place the new gasket onto the cleaned cylinder head surface, ensuring it's correctly aligned. Then, position the exhaust manifold over the gasket. Begin threading the bolts back into their respective holes by hand. Once all bolts are started, tighten them gently in a crisscross pattern, starting from the centre, to ensure the manifold seats evenly.

Step 11: Torque Specifications

This is where the torque wrench comes into play. Tighten the manifold bolts gradually and evenly, following a specific tightening sequence (usually a crisscross pattern) as outlined in your vehicle's repair manual. Overtightening can strip threads or crack the manifold, while undertightening will lead to leaks. Typical torque figures can range from 15-30 ft-lbs (20-40 Nm), but always verify the exact specifications for your car.

Step 12: Reassembling Remaining Components

Reattach any heat shields, air injection pipes, oxygen sensors, or other components you removed earlier. Ensure all connections are secure and properly fastened.

Step 13: Final Checks and Testing

Reconnect the negative battery terminal. Start the engine and listen carefully for any unusual noises, particularly the ticking or hissing sounds you might have heard before. Check for any visible exhaust leaks around the manifold. It's also a good practice to re-check the manifold bolts after a short driving period (e.g., 50-100 miles) as they can sometimes settle, and a quick retightening can help ensure the new gasket maintains a perfect seal.

Common Exhaust Manifold Issues and Solutions

While gasket leaks are common, exhaust manifolds themselves can develop issues:

Frequently Asked Questions

Q: How long does an exhaust manifold gasket typically last?
An exhaust manifold gasket is designed to withstand high temperatures and pressures. However, factors like engine stress, frequent temperature changes, and vibrations can lead to premature failure. Generally, they can last for many years and tens of thousands of miles, but there's no fixed lifespan.

Q: Can I drive my car with a leaking exhaust manifold gasket?
While your car might still be driveable, it's not recommended. The noise, potential loss of power, and the risk of exhaust gases damaging other engine components mean it's best to address the issue as soon as possible.

Q: Is it necessary to replace the exhaust manifold when replacing the gasket?
Not always. You only need to replace the manifold if it is cracked, severely warped, or its mating surface is damaged beyond repair. Always inspect the manifold thoroughly after removal.

Q: What is the difference between an exhaust manifold gasket and an exhaust flange gasket?
An exhaust manifold gasket seals the manifold to the cylinder head. An exhaust flange gasket seals the connection between the manifold and the downpipe or catalytic converter. Both play a role in containing exhaust gases.

Conclusion

A leaking exhaust manifold gasket is a common automotive issue that, while requiring some mechanical effort, is well within the capabilities of a home mechanic. By understanding the symptoms, gathering the right tools, and following a methodical approach, you can successfully diagnose and repair this problem. This not only restores your vehicle's performance and quiet operation but also protects other vital engine components from the damaging effects of escaping exhaust gases. Remember, when in doubt, always consult a professional mechanic to ensure the job is done correctly and safely.
