The exhaust system of your vehicle plays a crucial role in managing emissions, reducing noise, and ensuring engine efficiency. Often overlooked, but undeniably critical, are the exhaust flanges. These seemingly simple components are the unsung heroes that connect various sections of your exhaust, from the manifold down to the tailpipe. They are essential for creating a sealed, durable connection, allowing for the flexibility of component replacement while maintaining system integrity. Whether you're dealing with a corroded flange or simply looking to connect new exhaust sections, understanding these vital parts is key to a healthy and quiet vehicle.
What Exactly Are Exhaust Flanges?
Exhaust flanges are flat, typically circular or oval-shaped metal rings designed to provide a secure and leak-proof connection between different parts of your vehicle's exhaust system. Think of them as the joints that hold the entire exhaust assembly together. They are commonly found at various points, such as where the downpipe meets the catalytic converter, or where a muffler connects to the rest of the piping. Their primary function is to allow for the modular construction of the exhaust system, meaning individual components can be replaced or upgraded without needing to replace the entire system. This design also facilitates easier maintenance and repairs.
Each flange typically has pre-drilled bolt holes that align with corresponding holes on another flange or an exhaust component. A gasket, usually made from a heat-resistant material, is placed between the two mating surfaces to ensure a gas-tight seal, preventing exhaust gases from escaping into the atmosphere or, worse, into the vehicle cabin. The integrity of these connections is paramount, as even a small leak can lead to reduced engine performance, increased emissions, and an annoying exhaust drone.
The Materials Behind the Seal: What Are Exhaust Flanges Made Of?
The choice of material for an exhaust flange significantly impacts its durability, corrosion resistance, and overall lifespan. The most common materials used are mild steel and Stainless Steel T304, each with its own set of characteristics, advantages, and disadvantages.
Mild Steel Flanges
Mild steel flanges are a common and cost-effective option. They are relatively easy to manufacture and weld, making them a popular choice for many original equipment (OE) exhaust systems and aftermarket replacements where budget is a primary concern. However, mild steel is highly susceptible to corrosion, particularly when exposed to the elements, road salt, and the corrosive by-products of combustion. Over time, rust can significantly weaken these flanges, leading to leaks, cracks, and eventual failure. While they might be cheaper upfront, their shorter lifespan often means more frequent replacements, especially in regions with harsh winters or high humidity.
Stainless Steel T304 Flanges
For those seeking superior longevity and performance, Stainless Steel T304 flanges are the preferred choice. T304 is an austenitic stainless steel, known for its excellent corrosion resistance due to its chromium and nickel content. It can withstand high temperatures and resist the corrosive effects of exhaust gases and environmental factors much better than mild steel. This makes T304 stainless steel flanges ideal for performance exhaust systems or for drivers who want a more durable and long-lasting solution. While they come at a higher cost, their extended lifespan and resistance to rust often justify the investment, reducing the need for future repairs or replacements.
Exhaust flanges are also available in various thicknesses and bore sizes to match different exhaust pipe diameters and system requirements. Thicker flanges generally offer greater rigidity and strength, which can be beneficial in high-vibration applications.
Material Comparison Table
| Feature | Mild Steel Flanges | Stainless Steel T304 Flanges |
|---|---|---|
| Corrosion Resistance | Low (Prone to rust) | High (Excellent rust resistance) |
| Durability | Moderate | High (Long-lasting) |
| Cost | Lower | Higher |
| Ease of Welding | Good | Good (Requires specific techniques) |
| Typical Lifespan | Shorter (Especially in harsh climates) | Longer |
| Appearance | Dulls and rusts quickly | Maintains shine, resists discolouration |
Why Do Exhaust Flanges Need Attention? Common Issues.
Despite their robust appearance, exhaust flanges are subjected to extreme conditions: constant heat cycles, vibrations, road debris, and corrosive elements. This harsh environment makes them prone to several issues:
- Corrosion: As mentioned, mild steel flanges are highly susceptible to rust, which can lead to material degradation, weakening of the bolt holes, and ultimately, a compromised seal.
- Gasket Failure: The gasket between two flanges can degrade over time due due to heat and pressure, leading to exhaust leaks. Improper installation or insufficient torque can also cause premature gasket failure.
- Cracking/Fatigue: Continuous vibrations and thermal expansion/contraction can cause stress cracks in the flange material itself, especially if the exhaust system is not properly supported or if the flanges are poorly manufactured.
- Loose Connections: Bolts can loosen over time due to vibrations, leading to leaks and excessive noise. This also increases stress on other components of the exhaust system.
- Exhaust Leaks: The most common symptom of a failing flange is an exhaust leak, characterised by a loud, hissing, or rumbling noise from under the vehicle, a noticeable drop in engine performance, or even exhaust fumes entering the cabin.
Mastering Exhaust Flange Installation and Maintenance
Proper installation and maintenance are crucial for the longevity and performance of your exhaust system. While the provided text mentions "fixing a clogged exhaust flange," the content actually details crucial installation and maintenance practices that prevent issues rather than fixing a "clogged" one, which is rarely a flange issue itself. Let's reframe this as ensuring proper system integrity.
The Importance of Stress Relief in Exhaust Systems
Installing new exhaust components without neutralising the entire system can create unnecessary stress on exhaust hangers and isolators. This stress can lead to premature component failure, excessive noise, and vibrations within the vehicle. To alleviate this tension:
- Begin by bringing the exhaust system to operating temperature. This allows the metal to expand to its normal operating size.
- Loosen all exhaust clamps and flange joints. This includes any connections further along the system from the part you are working on.
- Reposition any affected components until the rubber isolators and hangers hang freely, without tension or pulling.
- Once all components are aligned and free of tension, begin tightening all connections. It is crucial to start tightening from the front of the vehicle (closest to the engine) and work your way towards the back. This ensures that the system settles into its natural, stress-free position.
Precision Torqueing: Ensuring a Leak-Free Connection
One of the most critical steps in exhaust flange installation is proper torqueing. Progressively tightening the bolts on flanges is essential to prevent exhaust system leaks, gasket and bolt failure, and premature system fatigue. This method ensures even pressure distribution across the flange and gasket.
- Progressive Torqueing: If your nuts require 60 ft-lbs of torque, begin by torquing all nuts to 20 ft-lbs. Then, increase to 40 ft-lbs, and finally, tighten to the full 60 ft-lbs. This phased approach allows the gasket to compress evenly and prevents warping of the flange.
- For Y-Pipes: When dealing with Y-pipes, it is vital to tighten both sides simultaneously. Use a rotating sequence between both tubes to ensure even pressure and prevent one side from being overtightened before the other has begun to seat.
- For Manifold Converters: For manifold converters (or any multi-bolt flange), start the tightening sequence in the middle and work your way outwards uniformly on both sides. This technique helps to prevent distortion and ensures a perfect seal.
Always refer to your vehicle's service manual or the component manufacturer's specifications for exact torque values.
Choosing the Right Clamp: A Crucial Decision
While flanges provide the primary connection points, clamps are often used to secure pipes within a system or to certain flange connections. Selecting the correct style and quality of clamp is fundamental to achieving the desired levels of sealability, durability, and serviceability. Clamps are manufactured from high-quality steel, often stainless steel, to withstand the harsh exhaust environment.
There are multiple varieties, including saddle clamps, U-bolt clamps, and more sophisticated band clamps (like the specific "seat and wire ring" types mentioned, though these are often part of a specific manufacturer's design). Each offers different sealing characteristics and ease of installation/removal.
When choosing a clamp, consider:
- Material: Stainless steel clamps offer superior corrosion resistance and longevity.
- Design: Ensure the clamp design is appropriate for the type of joint (e.g., slip-joint, butt joint) and the level of seal required. Band clamps, for instance, often provide a better, more uniform seal than U-bolt clamps.
- Size: The clamp must perfectly match the diameter of the exhaust pipe or component it is securing.
It's important to note that clamps may require a separate purchase from the flanges or exhaust pipes themselves.
When to Replace Your Exhaust Flanges?
Knowing when to replace an exhaust flange can save you from more extensive and costly repairs down the line. Look out for these signs:
- Audible Leaks: A noticeable increase in exhaust noise, particularly a hissing or ticking sound that changes with engine RPM.
- Exhaust Fumes in Cabin: A dangerous sign indicating a serious leak that needs immediate attention.
- Visible Rust or Damage: Inspect under your vehicle, especially in areas where flanges are located. Significant rust, cracks, or missing bolts are clear indicators.
- Failed Emissions Test or MOT: An exhaust leak will almost certainly cause your vehicle to fail.
- Vibrations: Excessive vibration or rattling from the exhaust system can indicate a loose or failing flange.
Frequently Asked Questions (FAQs)

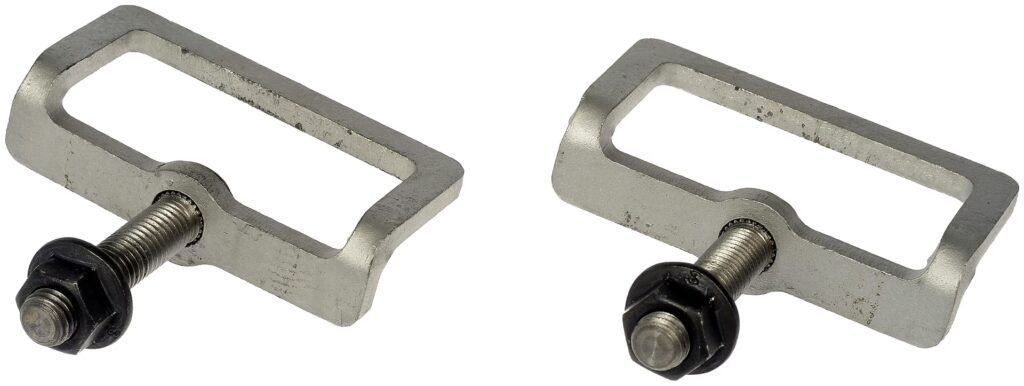

Q: Can I replace just a flange, or do I need a whole new section?
A: Often, you can replace just the corroded or damaged flange itself, especially if it's a bolt-on type. Many aftermarket flanges are designed for this purpose. However, if the adjacent pipe section is also heavily corroded or damaged, it might be more practical and cost-effective to replace that entire section.
Q: What torque wrench setting should I use for exhaust flanges?
A: Torque specifications vary significantly depending on the vehicle manufacturer, the specific component, and the bolt size. Always consult your vehicle's service manual or the new component's installation instructions for the precise torque values. Using a torque wrench is crucial for preventing over-tightening (which can strip threads or warp flanges) or under-tightening (which leads to leaks).
Q: How often should I check my exhaust flanges?
A: It's a good practice to visually inspect your exhaust system, including flanges, during routine maintenance checks, such as oil changes. Listen for unusual noises and look for visible signs of rust or damage, especially if you live in an area where road salt is used.
Q: What are exhaust gaskets, and do I need them with new flanges?
A: Exhaust gaskets are crucial sealing components placed between two mating exhaust flanges to create a gas-tight seal. Yes, you absolutely need a new gasket every time you disconnect and reconnect exhaust flanges. Reusing old gaskets almost guarantees a leak.
Q: Can I weld a new flange onto my exhaust pipe?
A: Yes, it is common practice to cut off a corroded flange and weld a new one onto the existing exhaust pipe. This requires proper welding equipment and skills to ensure a strong, leak-free connection. If you're not experienced in welding, it's best to have this done by a professional.
Understanding the materials and proper installation techniques for exhaust flanges is vital for maintaining a healthy and efficient exhaust system. By paying attention to these small but mighty components, you can prevent costly repairs, reduce noise, and ensure your vehicle runs smoothly for years to come.
