Cracked Exhaust Manifold: Weld or Replace?

A cracked exhaust manifold can be a real headache for any vehicle owner. It's a common issue, often stemming from the relentless stress of continuous and extreme temperature fluctuations within your engine bay. The constant heating and cooling cycles can eventually cause the metal to fatigue and crack. While replacing a cracked exhaust manifold is undoubtedly an effective solution, it often comes with a hefty price tag, leading many car owners to ponder a more budget-friendly alternative: welding. But can a cracked exhaust manifold truly be welded effectively? If so, what does the process entail? Let's delve into the possibilities and provide you with a practical guide to tackling this common automotive problem.

Can a Cracked Exhaust Manifold Be Welded?

Yes, absolutely, a cracked exhaust manifold can indeed be welded. However, it's important to understand that while it's a feasible repair, it's typically a slower and more meticulous process than some might anticipate. The good news is that you can use virtually any welder that is suitable for steel, as exhaust manifolds are commonly made from various forms of steel or cast iron. The critical factor for a successful and lasting repair isn't just the welder itself, but the thorough and precise preparation of the manifold before you even strike an arc. Proper preparation is the key to achieving a smooth, strong, and durable weld.

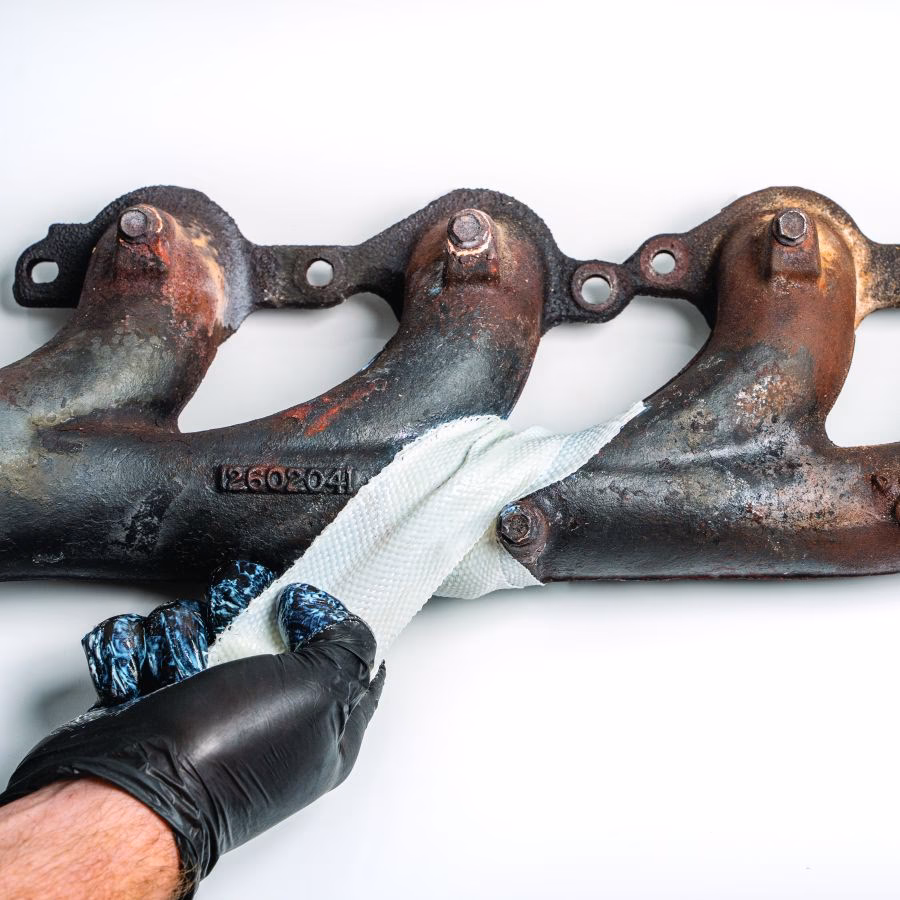

It's worth noting that some vehicle owners might consider using products like JB Weld ExtremeHeat as a quick fix for their cracked exhaust manifolds. While such products offer a seemingly quicker solution, it's crucial to understand their limitations. These high-temperature epoxies are generally rated for temperatures far below what an exhaust manifold experiences during operation. An exhaust manifold can easily reach temperatures exceeding 600 degrees Celsius (1100 Fahrenheit), which is often well beyond the maximum working temperature of most epoxy-based repair compounds. Consequently, a repair made with such products is unlikely to last for long, if at all, as the material will simply 'pop right off' under the intense heat. Given that it is entirely possible to weld a cracked exhaust manifold for a permanent fix, taking risks with temporary, ineffective solutions would not be wise.

How to Weld a Cracked Exhaust Manifold: A Step-by-Step Guide

Successfully welding a cracked exhaust manifold requires careful attention to detail and adherence to proper procedures. Here's a breakdown of the steps involved:

1. Remove the Cracked Exhaust Manifold from the Vehicle

The very first and arguably most crucial step is to completely remove the cracked exhaust manifold from your vehicle. Attempting to weld the manifold while it's still attached to the engine is extremely dangerous and strongly discouraged. The primary reason for this is the potential presence of flammable chemicals, such as fuel residues, oil, or even cleaning agents, within or around the engine bay. Introducing welding sparks and high heat near these substances poses a significant fire hazard.

The removal process itself can vary considerably in duration, typically ranging from as little as 10 minutes to an hour or even more. This timeframe largely depends on the specific year, model, and make of your car. Factors such as the accessibility of the manifold bolts, the amount of space you have to work in, and whether bolts are rusted or seized will significantly affect the time required. Always ensure the engine is cool before beginning this process to prevent burns and to make handling easier. You might need various wrenches, sockets, and potentially penetrating oil to loosen stubborn bolts.

2. Clean the Manifold Thoroughly

Once the cracked exhaust manifold is off the vehicle, the next vital step is to clean it meticulously. This is not just about making it look nice; it's about preparing a pristine surface for welding. Use a suitable cleaner such as a lime, calcium, or rust remover. The goal is to scour the manifold thoroughly, ensuring there are absolutely no flammable chemicals, grease, oil, rust, or carbon deposits remaining on the surface. These contaminants can cause porosity in the weld, leading to a weak and brittle repair that will quickly fail.

For any tough, stubborn deposits or heavy rust, a wire wheel attached to a grinder or a robust wire brush can be incredibly effective. Pay particular attention to the area immediately surrounding the crack, as this is where the weld will be applied. After cleaning, it is absolutely essential to dry the manifold properly. Any moisture can also lead to weld defects and should be completely eliminated before proceeding.

3. Grind the Cracked Area for Optimal Weld Penetration

With the manifold clean, you'll now focus on preparing the specific area where the weld will be applied. Use a grinder to remove any residual rust, scale, or debris from the cracked area. The aim here is to create a clean, bright metal surface that will allow for a strong, consistent arc and proper weld penetration. You might need to chamfer or 'V-out' the crack slightly, especially if it's deep, to ensure the weld material can fully penetrate the crack rather than just sit on the surface.

However, it's crucial not to grind away excessive material. Your objective is simply to clean and prepare the manifold's cracked area for welding, not to thin the metal excessively. If there are any spots that are difficult to reach with the grinder, a wire brush can be used to remove as much of the contaminants as possible. Additionally, you should also grind a clean spot on the manifold where you will attach your ground clamp. This practice ensures a solid electrical connection, which is vital for delivering full power to your welding arc and achieving a quality weld.

4. Weld the Cracked Area with Precision

Exhaust manifolds are typically made from very thick metal, often cast iron, which can be challenging to weld. Therefore, you may need to apply the full power of your welding machine, particularly if you are using a 110-volt house current unit. The primary goal here is to achieve deep penetration, properly repairing the cracked area from within, rather than merely patching up the surface. A superficial weld will quickly fail under the extreme stresses and temperatures of the exhaust system.

When you begin welding, start with a slower speed. This allows you to create a large, molten puddle of weld material, ensuring good fusion with the base metal. If you are using a stick welder (SMAW), you'll find it offers excellent accessibility, allowing you to reach almost all areas of the manifold, including tighter spots. Conversely, wire-feed machines (MIG/FCAW) can sometimes struggle to reach into very tight or awkward spaces. If you are using a flux-core wire unit, you can often remove the nozzle to create a smaller gun, which can help in accessing tiny or confined areas.

For cracks, especially those in cast iron, a key technique is to weld an inch or less at a time, then allow the weld to cool for a minute or so before continuing. This 'stitch welding' method helps to minimise heat input and reduce the risk of further cracking due to thermal stress. Welding both ends of the crack first, and then filling the middle, can also help prevent the crack from travelling further during the welding process. Always ensure you are laying down consistent, strong beads that fully integrate with the manifold material.

5. Reinstall the Manifold Carefully

Once you have completed the welding process, allow the manifold to cool down completely before attempting to handle or reinstall it. Rushing this step can lead to warpage or even new cracks. When reinstalling the manifold onto the engine, it is crucial to follow the suggested torque specifications provided by the vehicle manufacturer. Over-tightening or under-tightening the bolts can lead to leaks or even damage the manifold or cylinder head.

Before reinstallation, carefully inspect the exhaust gasket. Even if it looks fine, it's often wise to replace the gasket with a new one, as old gaskets can become brittle and may not provide a proper seal after removal and reinstallation. A damaged or old gasket will lead to exhaust leaks, negating your welding efforts. After bolting the manifold back onto the engine and connecting it to the rest of the exhaust system, double-check all connections. Once everything is secure, you are ready to start the car and check for any exhaust leaks, which can often be heard as a ticking or hissing sound, especially when the engine is cold.

Comparative Considerations: Welding vs. Replacement

While welding offers a cost-effective alternative to full replacement, it's essential to consider the pros and cons:

Frequently Asked Questions (FAQs)

Can I MIG Weld an Exhaust Manifold?

While professional mechanics often have their preferred welding methods, MIG welding (Metal Inert Gas) can certainly be used to weld an exhaust manifold, especially if it is made of cast iron. However, it requires a specific approach. For cast iron, it's generally recommended to use a nickel-based filler wire or a specific cast iron wire. The key with cast iron is to manage the heat input carefully: weld in short, one-inch bursts, and allow the weld to cool slightly between passes. This prevents excessive heat build-up and reduces the risk of further cracking due to thermal shock. While some professionals might suggest other methods like stick welding for its penetration and ability to handle dirtier surfaces, a skilled MIG welder can achieve excellent results on a properly prepared exhaust manifold.

How Much Will It Charge To Fix An Exhaust Manifold?

When considering the cost, it's usually the replacement of an exhaust manifold that incurs significant charges. On average, replacing an exhaust manifold in the UK can cost between £996 and £1,099. This total cost is typically broken down into two main components: labour and parts. Labour costs generally range from £248 to £314, depending on the mechanic's hourly rate and the complexity of the job, which can be substantial given the often tight access. The price of the parts themselves, the new exhaust manifold, usually falls between £748 and £785. It's important to remember that these figures are averages and do not include any additional fees or taxes that might apply. Welding, conversely, primarily involves the cost of your time, welding consumables, and potentially rental of equipment if you don't own one.

Can You Weld A Cast Iron Exhaust Manifold?

Yes, it is entirely possible to weld a cast iron exhaust manifold, but it's a process that demands patience and a specific technique. You cannot complete the project in a single continuous weld. For a cast iron exhaust manifold, the crucial method is to weld an inch or less at a time, and then immediately wait a minute or so to allow that section to cool down. This slow, intermittent process is vital because cast iron is very prone to cracking when subjected to rapid heating and cooling cycles. The goal is to minimise thermal stress. Using a low welding speed and maintaining a slower, controlled process are the fundamental keys to successfully welding cast iron metal without causing further damage.

Final Words

Welding a cracked exhaust manifold is a perfectly viable and often much more economical solution compared to purchasing a costly replacement. You can achieve a durable repair using a typical welder suitable for steel, provided you follow the correct preparation and welding techniques. However, it's important to be honest about your own capabilities. If you are nervous about the intricate process of removing and re-installing the cracked exhaust manifold, or if you lack confidence in operating a welder, it is always the wisest decision to take your vehicle to a professional auto shop. A skilled mechanic or welder can perform this repair safely and effectively, ensuring your vehicle's exhaust system is sealed and functioning correctly for many miles to come.
