Fix Exhaust Leaks Without Welding

How to Fix an Exhaust Pipe Without Welding – A Complete Guide

An exhaust leak can significantly interfere with the smooth running of your engine, often leading to a noticeable drop in fuel economy. These leaks are typically characterised by a sudden increase in noise, often described as a loud sputtering or roaring sound. However, the consequences can be more serious, potentially triggering your engine warning light or, more alarmingly, releasing toxic fumes into the vehicle's cabin. While extensive corrosion might necessitate a full replacement of the exhaust pipe, minor leaks can often be addressed without the need for expensive professional welding. With readily available materials and a bit of know-how, you can effectively seal most common exhaust pipe issues yourself.

Essential Materials for a Weld-Free Repair

The good news is that fixing an exhaust leak without welding doesn't require a trip to a specialist or the purchase of costly equipment. Most of the necessary materials can be found at your local auto parts store or even a general hardware shop, making it an economical DIY solution. Here’s a list of what you'll likely need:

• Hand Gloves: Essential for protecting your hands from dirt, grease, and potential irritants.
• Sandpaper: Used to clean and prepare the damaged surface, ensuring good adhesion for repair materials. Both coarse and medium grit will be useful.
• Metal Wire Brush: Ideal for removing stubborn rust, dirt, and loose debris from the exhaust pipe.
• Soapy Water: A crucial component for identifying the exact location of small leaks.
• Exhaust Putty or Sealant: A high-temperature resistant compound designed specifically for sealing exhaust leaks.
• Muffler Bandage or Exhaust Repair Tape: A strong, heat-resistant tape that wraps around the damaged area to provide a durable seal.
• Exhaust Band Clamp: A metal clamp that fits around the pipe, often used in conjunction with other sealing methods for added security.
• Aluminum Foil or Patch: Heavy-duty aluminum foil can be used as a base for epoxy or putty on larger holes.
• Isopropyl Alcohol: For final cleaning of the prepared surface.
• Wooden Dowel or Spreader: To help apply and smooth out putty or epoxy.

Locating the Exhaust Leak: The Crucial First Step

Before you can effectively fix an exhaust leak, you must accurately pinpoint its location. This can sometimes be the trickiest part of the process. Here are a couple of reliable methods:

Visual Inspection

Begin by safely jacking up your vehicle and securing it with sturdy axle stands. With the engine off and cool, conduct a thorough visual inspection of the entire exhaust system, from the manifold down to the tailpipe. Look for obvious signs of damage such as holes, cracks, deep scrapes, or significant areas of rust. Remember that road debris, speed bumps, and potholes can all cause impact damage to the underside of your vehicle, including the exhaust system.

The Soapy Water Method (Engine Running)

If visual inspection doesn't reveal the culprit, you can use the engine's exhaust pressure. With the engine idling and the vehicle safely supported, carefully spray soapy water along the suspected areas of the exhaust pipe. Any leaks will cause the soapy water to bubble, clearly indicating the source of the problem. Crucially, never place your hands or any body parts on the exhaust pipe while the engine is running, as it will be extremely hot and can cause severe burns. Always ensure the parking brake is firmly engaged before sliding underneath the vehicle.

The Tailpipe Plug Method (Engine Running)

Another effective way to force the issue is to temporarily block the exhaust tailpipe. Wearing gloves, firmly plug the end of the tailpipe. With the parking brake engaged, start the engine and gently press the accelerator. This will build up pressure within the exhaust system. As the pressure increases, any leaks will be forced to expel air, making them easier to locate, especially when combined with the soapy water spray.

The Air Pressure Method (Engine Off)

If you prefer not to run the engine for an extended period, you can introduce air pressure into the system. Ensure the engine is cold to prevent thermal shock. Seal the tailpipe firmly. Then, using a leaf blower, air compressor, or shop vacuum set to blow, introduce air into the exhaust system. You may need to seal one tailpipe if your vehicle has a dual exhaust system. Listen carefully for escaping air or use the soapy water method to pinpoint leaks. Be cautious not to over-pressurise the system, as this could potentially damage other components.

Preparing the Damaged Area: The Key to a Lasting Repair

Once you've identified and located the leak, proper preparation of the damaged area is paramount for a successful and long-lasting repair. This step ensures that any sealant or repair material can bond effectively to the metal.

1. Clean Thoroughly: Using your wire brush and sandpaper, vigorously clean the area around the leak. Remove all traces of rust, dirt, grease, and any loose material. The goal is to expose clean, bare metal.
2. Degrease: After brushing and sanding, wipe down the cleaned area with a cloth dampened with isopropyl alcohol. This removes any remaining residue and ensures a clean surface for the repair materials. Allow the alcohol to evaporate completely.

Methods for Sealing Exhaust Leaks Without Welding

With the area prepared, you can now choose the most suitable method for sealing the leak based on its size and location. Here are four common and effective DIY approaches:

1. Epoxy Sealant Application

For small holes or minor cracks, a high-temperature exhaust repair epoxy is an excellent solution. After preparing the surface, thoroughly mix the two parts of the epoxy according to the manufacturer's instructions. Apply the mixed epoxy generously over and around the leak, ensuring it fills the hole completely. Use a wooden dowel or a suitable spreader to smooth the epoxy and create a clean finish. Different epoxy products have varying curing times, so it's essential to consult the product packaging for recommended drying times before starting the engine. Patience here is key for a strong bond.

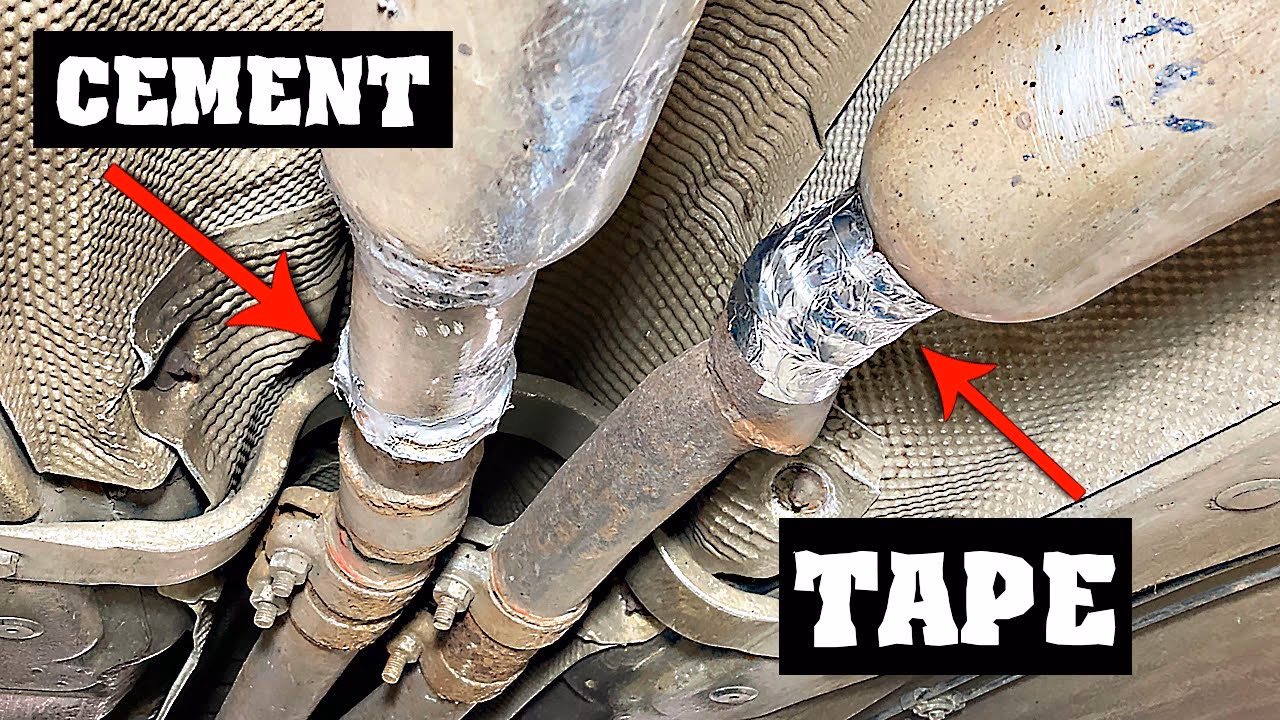

2. Exhaust Repair Tape Wrap

If the damage is more significant, involving a larger hole or a crack extending over a larger area, exhaust repair tape is a highly effective option. This specialised tape is designed to withstand the high temperatures and vibrations of an exhaust system. Wrap the tape tightly around the damaged section of the pipe, ensuring it extends at least a few inches beyond the leak on either side. Apply at least two to three layers of tape for optimal sealing and durability. Always follow the specific application instructions provided with the tape, as some may require pre-heating the exhaust, while others need to be applied wet.

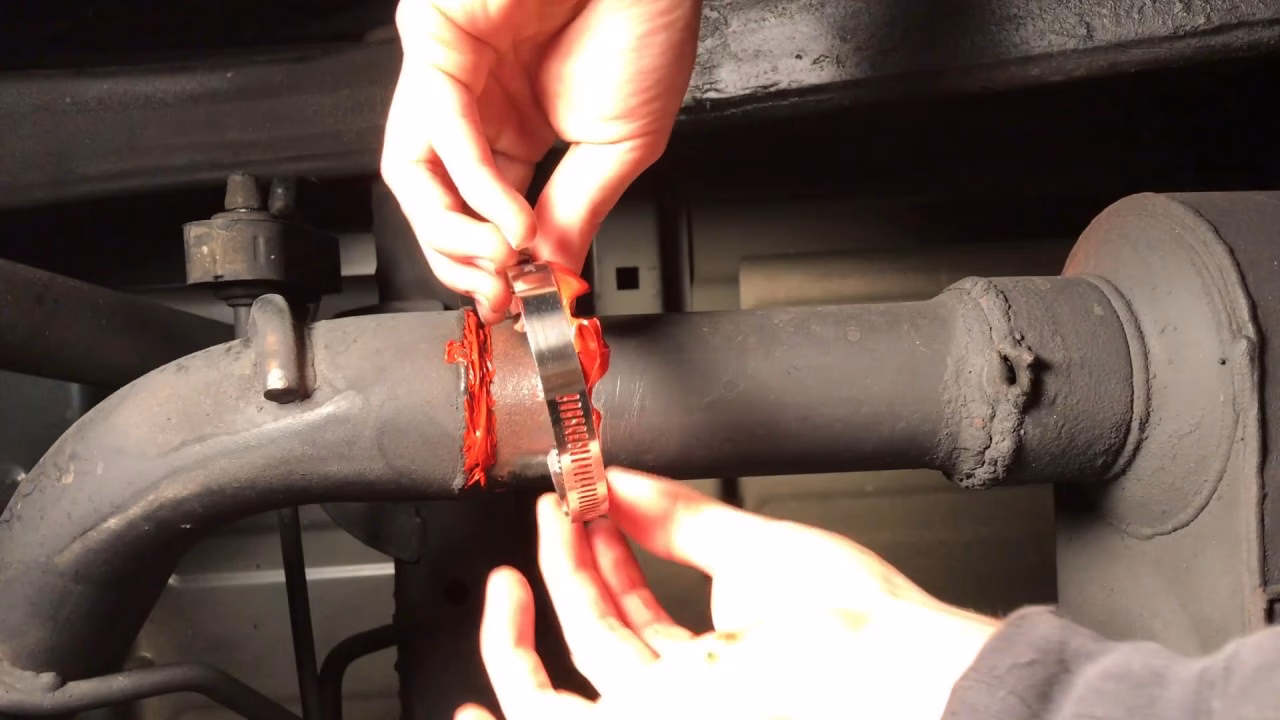

3. Exhaust Band Clamp Installation

For straightforward damage, such as a small hole or a split in a straight section of pipe, an exhaust band clamp offers a simple yet effective solution. These clamps are typically made from durable stainless steel. Position the clamp around the damaged area, ensuring it covers the leak completely. Tighten the bolts securely to compress the clamp and create a seal. In some cases, you might use exhaust putty or sealant underneath the clamp for an even more robust repair. The clamp itself is designed to be long-lasting and can often outlive the original exhaust pipe.

4. Aluminium Patch with Epoxy/Putty

This method is versatile and can be used for holes of various sizes. For larger holes or areas where the pipe has started to thin, you can create a patch from heavy-duty aluminium foil or a specialised exhaust repair patch. Cut a piece of aluminium that is slightly larger than the damaged area. Apply a generous layer of high-temperature exhaust putty or epoxy around the leak. Position the aluminium patch over the putty, ensuring it covers the hole entirely. If the patch is large, you might wrap it around the pipe. Apply more putty or epoxy over the patch and around its edges, smoothing it with a dowel. For a secure fit, especially if the patch is wrapped around the pipe, use hose clamps on either end of the patch to hold it firmly in place while the sealant cures. Allow the epoxy or putty to cure completely according to the manufacturer's instructions.

Important Considerations and Tips

• Safety First: Always prioritise safety. Ensure the vehicle is securely supported on axle stands before working underneath it. Wear appropriate safety gear, including gloves and eye protection.
• Cool Engine: Work on a cold exhaust system to avoid burns and prevent thermal shock, which could damage the exhaust components.
• Proper Curing: Allow ample time for any epoxy, putty, or sealant to cure fully before running the engine. Check the product instructions for specific curing times.
• Temporary vs. Permanent: While these DIY methods are effective for temporary fixes or small leaks, significant damage or extensive rust may eventually require professional welding or replacement of the exhaust section.

Frequently Asked Questions (FAQs)

Q1: How long will a DIY exhaust repair last?
The lifespan of a DIY repair can vary greatly depending on the severity of the leak, the quality of materials used, and the driving conditions. Minor leaks sealed with epoxy or tape on a straight section of pipe can last for several months to over a year. Clamp repairs are generally quite durable.

Q2: Can I use regular duct tape?
No, regular duct tape is not designed to withstand the high temperatures of an exhaust system and will fail very quickly. You must use specialised exhaust repair tape or high-temperature resistant sealants.

Q3: What are the risks of an exhaust leak?
Exhaust leaks can lead to reduced engine performance, poor fuel efficiency, increased noise, and the dangerous release of carbon monoxide and other toxic fumes into the vehicle cabin, which can cause drowsiness or even be fatal.

Q4: Is it safe to drive with an exhaust leak?
While you can drive with a minor leak, it's not advisable for extended periods due to the risks mentioned above. It's best to address the issue as soon as possible.

Conclusion

A leak in your exhaust pipe is more than just an annoying noise; it can pose significant risks to your health and the efficient operation of your vehicle. By understanding how to locate and repair these leaks using common materials and techniques, you can avoid unnecessary expenses and keep your car running smoothly and safely. The methods described – using epoxy, specialised tape, clamps, or patches – are all DIY-friendly and cost-effective. So, the next time you hear that tell-tale sputtering sound, remember that a trip to the welder might not be necessary. With a little effort and the right materials, you can often fix the problem yourself.

It's worth noting that exhaust leaks can also occur in other parts of the system, such as the exhaust manifolds and headers. These areas can present unique challenges, but similar principles of cleaning and sealing often apply.
