Exhaust Leaks & Lambda Readings

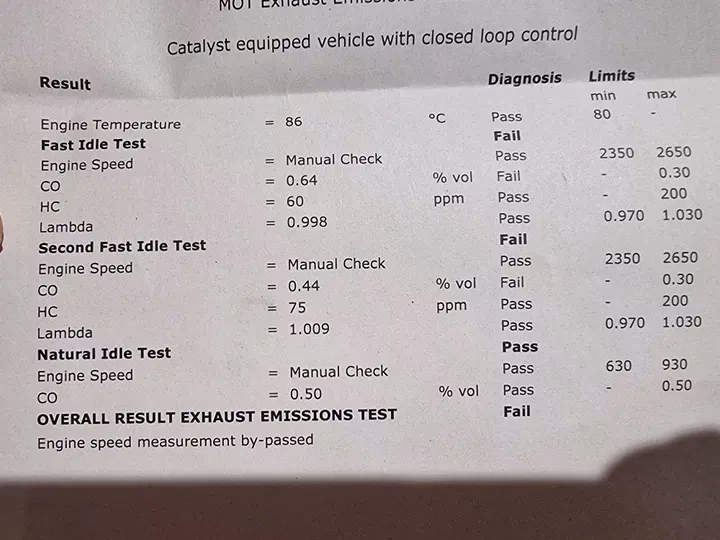

It's a common predicament for many vehicle owners: a failed MOT test, particularly concerning emissions, often leaves drivers bewildered and faced with potentially costly repair bills. You've described a scenario where your 2014 Peugeot 308, with its 1.6 THP petrol engine and 110,000 miles, has failed its MOT due to an "Exhaust Lambda reading after 2nd fast idle outside specified limits". Compounding this, an advisory note highlights a "minor leak of exhaust gases" at the rear of the exhaust system. The garage's diagnosis of a saturated catalytic converter and the need for a new engine due to oil consumption is a serious one. However, before embarking on such extensive repairs, it's wise to understand the interplay between exhaust leaks, oil consumption, and those crucial Lambda readings. This article aims to shed light on these issues, providing you with the knowledge to potentially address the immediate emissions problem and understand the underlying causes.

Understanding Lambda Readings and Emissions Testing

The Lambda sensor, often referred to as the oxygen sensor, is a vital component of your car's engine management system. Its primary function is to measure the amount of unburnt oxygen in the exhaust gases. This information is fed back to the Engine Control Unit (ECU), which then adjusts the air-fuel mixture accordingly. The ideal air-fuel ratio for efficient combustion and minimal emissions is known as the stoichiometric ratio, which for petrol engines is approximately 14.7 parts of air to 1 part of fuel. This is represented by a Lambda value of 1.0.

During an MOT emissions test, your vehicle undergoes several stages, including a fast idle test. The Lambda reading is scrutinised to ensure the engine is running within the manufacturer's specified parameters. A reading outside these limits indicates that the air-fuel mixture is either too rich (too much fuel, not enough air) or too lean (too much air, not enough fuel). Both scenarios can lead to increased emissions of pollutants like carbon monoxide (CO), hydrocarbons (HC), and oxides of nitrogen (NOx).

How Exhaust Leaks Impact Lambda Readings

This is where the advisory about the "minor leak of exhaust gases" becomes particularly relevant. An exhaust leak, especially one occurring before the Lambda sensor(s), can significantly distort the readings the sensor receives. Here's how:

• Introduction of Ambient Air: If there's a leak in the exhaust system upstream of the Lambda sensor, unburnt air from the atmosphere can be drawn into the exhaust stream. This extra oxygen will be detected by the Lambda sensor, making it believe that the engine is running lean, even if the actual air-fuel mixture inside the combustion chamber is correct or even rich.
• False Lean Signal: In response to this perceived lean condition, the ECU will attempt to compensate by injecting more fuel into the cylinders to richen the mixture. This can lead to an overall richer running condition than intended, potentially causing the Lambda reading to drift outside the acceptable range during the MOT test.
• Effect on Post-Catalytic Converter Sensor: Modern vehicles often have two Lambda sensors: one before the catalytic converter (pre-cat) and one after (post-cat). The pre-cat sensor primarily controls the air-fuel mixture for optimal combustion, while the post-cat sensor monitors the efficiency of the catalytic converter. If the leak is before the post-cat sensor, it can also affect its readings, leading to a false indication of the catalytic converter's performance or the overall exhaust gas composition.

It's crucial to understand that the Lambda sensor relies on a sealed exhaust system to provide accurate measurements. Any breach in this seal can lead to erroneous data being sent to the ECU.

Addressing the Oil Consumption Issue

Your situation also involves significant oil consumption (a litre per month). This is a substantial amount and is often indicative of internal engine wear or issues. The garage's assessment of a "saturated catalytic converter with oil" is a plausible consequence of excessive oil burning. When oil enters the combustion chamber and is burnt, it leaves behind deposits that can coat and clog the catalytic converter, reducing its ability to perform its function of converting harmful emissions into less harmful substances. This can also contribute to poor emissions readings.

Common causes of excessive oil consumption include:

While the oil consumption is a separate, significant mechanical issue, it can indirectly contribute to the emissions failure by damaging the catalytic converter. However, the immediate MOT failure is directly linked to the Lambda readings, which, as discussed, can be influenced by the exhaust leak.

Can the Car Pass the Lambda Test with the Leak?

The short answer is, it's highly unlikely without addressing the leak. The Lambda reading is a direct measurement of the exhaust gas composition. If the exhaust system is compromised, the readings will be inaccurate, and the car will likely fail the emissions test. Even if the engine itself is running relatively well, the leak can introduce enough unmeasured air to skew the Lambda value beyond acceptable limits.

Your aim to get the car through the MOT for a few more months to save for a new vehicle or more substantial repairs is understandable. The most direct way to potentially achieve this, with regards to the emissions test, is to address the exhaust leak.

Potential Repair Strategies

Given your situation, here are some steps you might consider, focusing on the immediate MOT failure:

1. Repair the Exhaust Leak: This is the most critical step for passing the emissions test. Depending on the location and severity of the leak, it might be a relatively minor repair. Common fixes include:
   • Exhaust Clamps: For small holes or cracks, a high-temperature exhaust clamp can provide a temporary or even permanent seal.
   • Exhaust Repair Putty/Paste: These are malleable compounds that can be applied to seal small leaks and then harden.
   • Welding: For more significant damage or rusted sections, welding by a professional exhaust specialist might be necessary.
   • Exhaust Section Replacement: If the leak is due to a rusted or damaged pipe section, replacing that section might be the most effective solution.

   A reputable exhaust specialist or even a general mechanic should be able to diagnose and repair the leak cost-effectively. It's worth getting a quote for just this repair before accepting the "new engine" diagnosis for the emissions issue.

2. Consider a Cat Cleaner: While the garage mentioned a saturated catalytic converter, there are commercially available fuel additives designed to clean and revitalise catalytic converters. These may offer a slight improvement in emissions, especially if the saturation is not too severe. However, they are unlikely to overcome a significant leak affecting Lambda readings.
3. Address Spark Plugs: You mentioned replacing spark plugs resolved a previous issue of jerking and loss of power. This is good maintenance. Ensure they are the correct type and are in good condition.

What About the "Saturated Cat" and Oil Consumption?

The garage's assessment of a saturated catalytic converter due to oil burning is a serious concern for the long-term health and emissions performance of your vehicle. Even if you fix the exhaust leak and pass the MOT, the underlying oil consumption issue will eventually cause further problems, including:

• Reduced Engine Performance: A clogged catalytic converter restricts exhaust flow, leading to a loss of power and reduced fuel efficiency.
• Further Emissions Failures: As the catalytic converter becomes more clogged, it will struggle to process pollutants, leading to future MOT failures.
• Engine Damage: Persistent oil burning can lead to carbon build-up on pistons, valves, and spark plugs, potentially causing pre-ignition, misfires, and even catastrophic engine failure.

Therefore, while addressing the exhaust leak might provide a short-term solution for the MOT, the oil consumption issue needs to be investigated and rectified if you intend to keep the car running reliably.

Troubleshooting and Next Steps

Here's a logical approach:

1. Get a Second Opinion on the Exhaust Leak: Take the car to a reputable exhaust specialist or a different garage and specifically ask them to diagnose and quote for the repair of the "minor leak of exhaust gases". Explain your goal is to pass the MOT emissions test.
2. Post-Repair Emissions Test: Once the leak is repaired, have the vehicle re-tested for emissions. If the leak was the primary cause of the skewed Lambda readings, you should see an improvement.
3. Evaluate Oil Consumption: If the car passes the emissions test but continues to consume oil at the same rate, you'll need to decide whether to address the oil consumption itself. This could involve more in-depth diagnostics and potentially significant engine work, which may not be economically viable for a 10-year-old vehicle.

Frequently Asked Questions (FAQs)

Q1: Can a small exhaust leak cause a fail on Lambda readings?

A1: Yes, absolutely. Even a small leak before the Lambda sensor can introduce enough unmeasured air to skew the sensor's readings, leading the ECU to adjust the air-fuel mixture incorrectly and potentially causing a fail on the emissions test.

Q2: If I fix the exhaust leak, will my car definitely pass the emissions test?

A2: It's highly probable, provided the leak was the main cause of the Lambda reading issue. However, other factors can also affect emissions, such as faulty Lambda sensors themselves, issues with the catalytic converter (even without oil saturation), or problems with the fuel injection system.

Q3: Is it worth repairing an exhaust leak on a car that consumes oil?

A3: This depends on your priorities. If your immediate goal is to pass the MOT and use the car for a few more months, repairing the leak is a cost-effective step. However, the underlying oil consumption is a more serious mechanical problem that will eventually need addressing or will necessitate replacing the vehicle.

Q4: Could the garage be wrong about needing a new engine?

A4: It's possible. While oil consumption indicates internal engine wear, a new engine is a very drastic solution. The "saturated cat" diagnosis is a consequence, not necessarily the root cause of the emissions failure. Focus on the immediate cause of the Lambda reading failure – the exhaust leak.

In conclusion, the "minor leak of exhaust gases" is a very strong candidate for the cause of your MOT emissions failure. Prioritising the repair of this leak is your best immediate course of action to get the car through its MOT. While the oil consumption and potential catalytic converter saturation are serious issues, they can be addressed once the immediate emissions hurdle is cleared, or they may factor into your decision about the car's future.
