X8R Exhaust Heat Shield Repair Kit Installation

Few things are quite as irritating as a persistent rattle emanating from your vehicle, especially when it seems to follow you everywhere. For many motorists, this common and frustrating noise often points to a loose or corroded exhaust heat shield. These vital components are designed to protect sensitive underbody parts from the extreme temperatures generated by your exhaust system. When they come loose, they vibrate against the exhaust pipes or chassis, creating an unwelcome symphony of buzzes and rattles. Fortunately, the X8R exhaust heat shield repair kit offers a highly effective and relatively straightforward DIY solution, allowing you to restore peace and quiet to your drive without needing an expensive trip to the garage.

Understanding Your Exhaust Heat Shield

Before diving into the repair, it's crucial to understand why heat shields are there in the first place. Your vehicle's exhaust system reaches incredibly high temperatures, easily hot enough to damage surrounding components like fuel lines, brake lines, electrical wiring, and even the cabin floor. Heat shields act as a thermal barrier, deflecting this intense heat and ensuring the longevity and safety of these critical parts. They are typically made from thin, lightweight metal, often aluminium or stainless steel, and are designed to dissipate heat efficiently. Over time, exposure to road salt, moisture, impacts from road debris, and constant vibration can lead to corrosion and fatigue, causing the original mounting points to fail and the shield to become loose.

Identifying a Loose Heat Shield

The most common symptom of a failing heat shield is a metallic rattling or buzzing noise, particularly noticeable at certain engine RPMs or when going over bumps. It can often sound like something is loose underneath the car. Sometimes, the noise might only occur when the engine is cold or hot, as metal expands and contracts. While a rattling heat shield might seem like a minor annoyance, ignoring it can lead to more significant issues. Prolonged vibration can cause the shield to break apart, fall off entirely, or even damage the exhaust pipe itself. More importantly, without the shield, vital components could be exposed to excessive heat, potentially leading to costly failures or even fire risks.

Introducing the X8R Exhaust Heat Shield Repair Kit

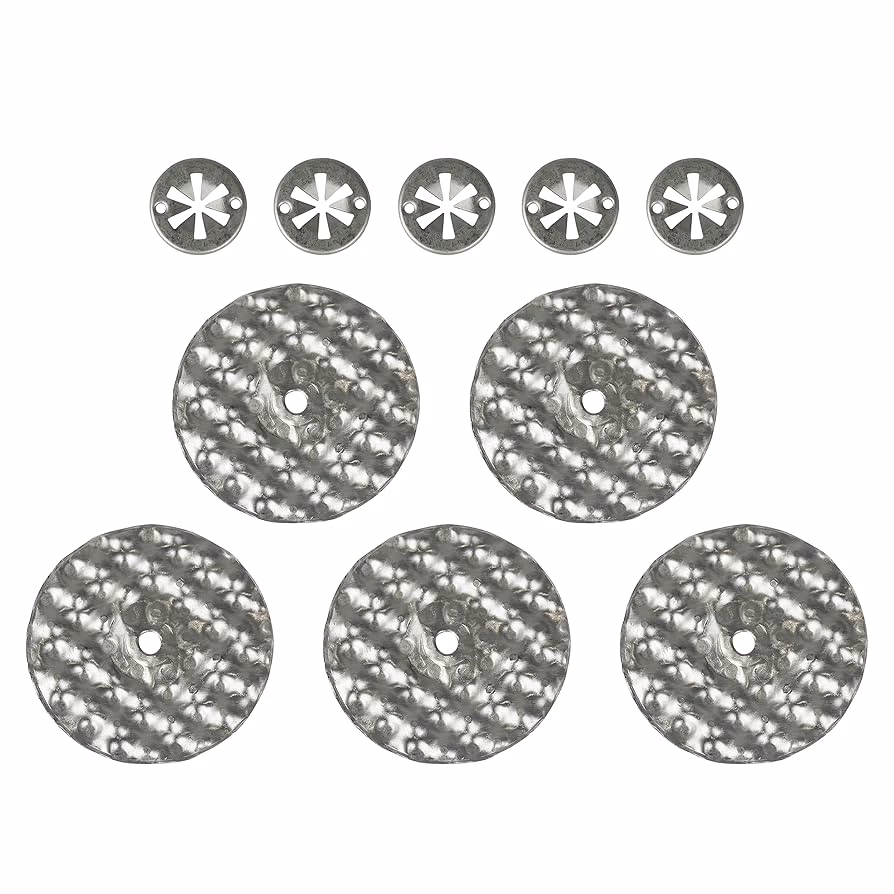

The X8R repair kit is specifically designed to address the common failure of exhaust heat shield mounting points. Instead of attempting to weld or re-fabricate the original, often corroded, mounts, the kit provides a robust clamping solution. Typically, the kit includes high-quality, corrosion-resistant stainless steel clamps and sometimes additional fixings or washers. These components are engineered to securely re-attach the loose heat shield to the exhaust pipe or an adjacent structural component, providing a long-lasting and reliable fix. The beauty of the X8R kit lies in its simplicity and the fact that it bypasses the need for complex tools or welding equipment, making it ideal for the average DIY enthusiast.

Safety First: Essential Precautions

Working underneath any vehicle carries inherent risks. Prioritising safety is paramount. Before you even think about grabbing a spanner, ensure you follow these crucial safety steps:

• Allow the vehicle to cool: The exhaust system becomes extremely hot during operation. Allow at least an hour for the exhaust to cool down completely before you begin working. Burns are a serious risk.
• Secure the vehicle: Never work under a vehicle supported only by a jack. Always use sturdy axle stands on a flat, level, and solid surface. Chock the wheels that remain on the ground.
• Personal Protective Equipment (PPE): Wear appropriate PPE, including safety glasses to protect your eyes from debris, sturdy work gloves to protect your hands, and long sleeves/trousers.
• Ventilation: If working in an enclosed space like a garage, ensure adequate ventilation.
• Lighting: Use a bright, portable work light to clearly illuminate your workspace.

Tools You'll Need

Gathering all necessary tools before you start will save you time and frustration. For installing the X8R exhaust heat shield repair kit, you will typically need:

• Vehicle jack and sturdy axle stands
• Wheel chocks
• Socket set (ratchet, various sockets appropriate for your vehicle's underbody bolts/nuts)
• Combination spanners (wrenches)
• Wire brush (for cleaning rusty areas)
• Penetrating oil (e.g., WD-40 or similar, for freeing stubborn bolts)
• Torque wrench (optional, but recommended for re-tightening suspension/chassis bolts if removed)
• Clean rags or shop towels
• Gloves and safety glasses
• Work light

Step-by-Step Installation Guide

The exact steps may vary slightly depending on your vehicle's make and model, and the specific location of the heat shield. However, the general procedure outlined below applies to most installations.

Step 1: Prepare the Vehicle

Park your vehicle on a flat, level, and solid surface. Engage the parking brake and place wheel chocks behind the wheels that will remain on the ground. Using your jack, carefully lift the front or rear of the vehicle (depending on where the affected heat shield is located) and place it securely on axle stands. Ensure the vehicle is stable before proceeding. Never rely solely on the jack.

Step 2: Locate and Assess the Problematic Heat Shield

Once safely under the vehicle, identify the specific heat shield that is loose or rattling. Gently push and pull on various sections of the exhaust system and surrounding heat shields until you pinpoint the source of the noise. Often, you'll see visible signs of corrosion around the original mounting points, or the shield might be hanging precariously.

Step 3: Clean the Area

Before installing the new fixings, it's beneficial to clean the area. Use a wire brush to remove any loose rust, dirt, or debris from the exhaust pipe, the heat shield itself, and any adjacent chassis points where the clamps will attach. A clean surface ensures a better grip for the clamps and helps prevent future corrosion.

Step 4: Position the X8R Clamps

The X8R kit typically provides stainless steel clamps. These are designed to wrap around the exhaust pipe and secure the heat shield against it. If your heat shield has a hole where it originally mounted, you might pass one end of the clamp through this hole before wrapping it around the pipe. The goal is to sandwich the heat shield firmly between the clamp and the exhaust pipe or chassis. Experiment with the best position for the clamps to achieve maximum stability. You may need to use multiple clamps depending on the size and shape of the heat shield and the extent of the damage.

Step 5: Secure the Heat Shield

Once the clamps are correctly positioned, begin to tighten them. Most X8R clamps use a bolt and nut mechanism. Use your socket and spanner to gradually tighten the bolts. Do not overtighten initially; aim for a snug fit. As you tighten, ensure the heat shield is pulled firmly against the exhaust pipe or mounting point. Wiggle the heat shield to confirm it no longer rattles. Once satisfied, fully tighten the clamps. Ensure they are secure but avoid excessive force that could damage the exhaust pipe or the clamp itself.

Step 6: Double-Check and Test

With the clamps tightened, give the heat shield a good shake to ensure it's completely secure and no longer rattles. Check all other heat shields in the vicinity for any signs of looseness, as preventative action can save future headaches. Once you are confident the repair is solid, carefully lower the vehicle from the axle stands. Start the engine and listen for any remaining rattles. Take the vehicle for a short test drive, paying attention to any noises, particularly over bumps or during acceleration/deceleration. If the noise persists, re-evaluate the heat shield's position and clamp tightness.

Common Pitfalls and Troubleshooting

• Stubborn Rust: If original bolts or parts are heavily rusted, apply penetrating oil liberally and let it soak. A wire brush and patience are your best friends.
• Tight Spaces: Access can be challenging. Ratcheting spanners or universal joints for your socket set can be invaluable.
• Identifying the Source: Sometimes the rattle isn't the heat shield. Check exhaust hangers, loose exhaust pipes, or even suspension components. A second pair of hands can help by wiggling parts while you listen.
• Heat Shield Damage: If the heat shield itself is severely corroded or has large holes, the X8R kit might still work if there's enough material for the clamps to grip. However, in extreme cases, a full replacement of the heat shield might be necessary.

X8R Kit vs. Other Solutions

When faced with a rattling heat shield, you have several options. The X8R kit stands out as a practical and effective DIY solution. Here's a brief comparison:

Frequently Asked Questions (FAQs)

Q1: How long does it typically take to install the X8R repair kit?

A: For someone with basic mechanical aptitude and the right tools, the installation can often be completed within 30 minutes to an hour. The most time-consuming parts are usually safely raising the vehicle and dealing with any severely corroded original components.

Q2: Do I need any special tools for this repair?

A: No highly specialised tools are required. A standard socket and spanner set, along with a jack and axle stands, are usually sufficient. Penetrating oil and a wire brush are highly recommended for older vehicles with rust.

Q3: Is it safe to drive with a rattling exhaust heat shield?

A: While a rattling heat shield is primarily an annoyance, it can pose risks. The main concern is that without the shield, sensitive components like fuel lines, brake lines, and electrical wiring could be exposed to excessive heat, potentially leading to failure or fire. Additionally, a loose shield could break off completely and become a road hazard, or damage other parts of your exhaust system. It's best to address the issue promptly.

Q4: Will the X8R kit work for all types of heat shield issues?

A: The X8R kit is designed to fix loose or rattling heat shields where the original mounting points have failed due to corrosion or vibration. If the heat shield itself is severely corroded, cracked, or has large sections missing, the clamps may not have enough material to grip onto, and a full heat shield replacement might be necessary. It's ideal for situations where the shield is largely intact but simply no longer securely attached.

Q5: How long will the X8R repair last?

A: The X8R kits are typically made from high-quality stainless steel, which is highly resistant to corrosion and heat. When installed correctly, the repair should be very durable and provide a longevity comparable to, or even exceeding, the original mounting points, often lasting for many years.

Conclusion

A rattling exhaust heat shield is a common automotive nuisance, but it doesn't have to be an expensive one to fix. The X8R exhaust heat shield repair kit provides a robust, cost-effective, and surprisingly straightforward solution that most DIY enthusiasts can tackle with confidence. By following the steps outlined in this guide and prioritising safety, you can eliminate that annoying rattle, protect your vehicle's underbody components, and enjoy the satisfaction of a successful home repair. Restore the quiet comfort of your drive and give your vehicle the care it deserves.
