Fixing an Exhaust Manifold Leak: Your UK Guide

Is your car’s engine making a persistent ticking or 'pfft-pfft-pfft' noise, especially when you first start it up from cold? This distinctive sound often points towards a common automotive ailment: an exhaust manifold leak. While it might sound alarming, this article cuts through the noise (pun intended!) to explain exactly what an exhaust manifold leak is, why it happens, and crucially, how you can diagnose and fix it, ensuring your vehicle runs smoothly and quietly once more.

What is an Exhaust Manifold?

Your car, much like you, needs to breathe. It inhales fresh air to fuel the internal combustion process – those controlled mini-explosions within your engine’s cylinders that generate power and make your car go. After these explosions occur, the resulting combustion gases, commonly known as exhaust, need to be efficiently expelled. This is where the exhaust manifold comes into play. Bolted directly to the side of your engine block, the exhaust manifold acts as a crucial collector. It gathers the hot, spent exhaust gases from each individual cylinder's exhaust port and funnels them into a single, larger pipe. This channel then connects to the rest of your exhaust system – a series of pipes leading out to the rear of your vehicle, culminating in your tailpipe. Essentially, it’s the first vital component in your car’s exhaust ‘exhalation’ system, designed to handle extreme temperatures and channel noxious gases away safely.

Spotting the Leak: Symptoms to Watch For

The most tell-tale sign of an exhaust manifold leak is a distinct ticking or a rapid 'pfft-pfft-pfft' sound emanating from the engine bay. This noise is typically most noticeable on a cold start and will often increase in rapidity as you accelerate. The reason for this behaviour lies in the fundamental properties of metal. As your engine warms up, the metal components, including the exhaust manifold itself, expand due to the heat. This expansion can temporarily force the small gap or crack causing the leak to seal itself shut, or at least significantly reduce its size, causing the ticking sound to diminish or even disappear entirely once the engine reaches operating temperature. However, don’t be fooled into thinking your car has magically self-healed! The underlying leak is still present and, left unaddressed, will inevitably grow larger over time. Eventually, the gap will become too significant for the metal's expansion to seal, and the noise will become a constant, unwelcome companion to your driving.

Why Do Exhaust Manifold Leaks Happen?

In the vast majority of cases, an exhaust manifold leak develops simply because your car is getting on a bit. Like any mechanical component subjected to extreme conditions, exhaust manifolds are incredibly durable, built to withstand immense heat cycles and constant vibrations. However, wear and tear are inevitable over time. The constant heating and cooling, coupled with the corrosive nature of exhaust gases, can eventually lead to cracks in the manifold itself, or degradation of the gaskets that seal it to the engine block or other exhaust components. If you own a brand-new vehicle and encounter an exhaust manifold leak, it’s highly unusual and should prompt an immediate trip to the dealership for a warranty claim. For the rest of us, it’s a natural consequence of an ageing vehicle. While less common, extreme carbon buildup within the engine's exhaust ports can also contribute to hot spots, potentially accelerating the degradation of the gasket or even the manifold material itself.

Is It Urgent? Understanding the Impact of a Leak

It's a common concern: 'How big of a deal is an exhaust manifold leak, and how urgent is the repair?' The good news is that an exhaust manifold leak is generally not a critical safety issue that demands you pull over immediately. It's essentially a small hole in your vehicle's exhaust system, meaning it doesn't directly impede your car's ability to start, drive, or perform its primary functions. Your car will typically continue to run just fine. For many drivers, the most significant downside is the annoying noise – that persistent ticking that can grow louder and more embarrassing the longer it's ignored, potentially earning you some disapproving glances from your neighbours!

While some might beat the 'drums of fear' about dire consequences, the actual impact on things like fuel economy, pollution, or your health is often negligible. Yes, a tiny amount of exhaust gas might escape before passing through the catalytic converter, leading to a fractional increase in emissions. And theoretically, a disrupted exhaust flow could slightly affect engine power or fuel efficiency, but these effects are usually so minimal they're imperceptible to the average driver. The chance of inhaling significant amounts of exhaust fumes into the cabin is also extremely low, assuming your vehicle's cabin ventilation system is functioning correctly.

However, 'negligible' doesn't mean 'ignorable'. While it's not an emergency, ignoring an exhaust manifold leak will lead to it getting progressively worse. The leak will expand, the noise will intensify, and the eventual repair could become more complex and costly. For example, exhaust gases escaping at high temperatures can cause damage to surrounding components over time, or the bolts securing the manifold might seize or break due to rust and heat, complicating removal.

Diagnosing the Leak: Where's the Problem?

Before you can fix an exhaust manifold leak, you first need to pinpoint its exact location. The 'ticking' sound is a symptom, but the root cause can vary. There are typically a few common areas where a leak might originate:

• The Exhaust Manifold Itself: Over years of intense heat cycles, the cast iron or stainless steel of the manifold can develop cracks. If the leak is directly from a crack in the manifold body, the only effective long-term solution is to replace the entire exhaust manifold.
• The Exhaust Manifold Gasket: This is one of the most frequent culprits. A gasket is a sealing surface sandwiched between the engine block and the exhaust manifold. It’s designed to create a tight seal, but over time, the extreme heat, pressure, and vibrations can cause the gasket material to degrade, crack, or even blow out. If the leak is coming from this interface, then replacing the exhaust manifold gasket is the required repair.
• Downpipe Connection: The exhaust manifold connects to the rest of the exhaust system via a component often called the downpipe. This connection is secured by bolts. Sometimes, these bolts can become loose due to vibrations or corrode and rust away due to exposure to road salt and moisture. A loose or missing bolt here can create a significant leak. In this scenario, simply tightening the bolts or replacing any rusted-out ones might be all that's needed – a relatively simple fix!
• Donut Gasket: At the junction where the exhaust manifold meets the downpipe, there's often a circular or 'donut' shaped gasket. This gasket provides a flexible, heat-resistant seal for this crucial connection. Like the manifold gasket, these donut gaskets can wear out over time, leading to leaks. If this is the source, replacing the donut gasket is a straightforward solution.

Fixing the Leak: Your Repair Options

Once you've identified the source of your exhaust manifold leak, you can proceed with the appropriate repair. The approach will depend entirely on where the leak is located:

• Replacing the Exhaust Manifold: If inspection reveals a crack or significant damage to the manifold itself, a full replacement is the most robust solution. This involves removing the old manifold and installing a new one, along with a fresh gasket. This can be a more involved job, potentially requiring the removal of other components to gain access.
• Replacing the Exhaust Manifold Gasket: This is a very common repair. If the gasket between the manifold and the engine block is compromised, replacing it will seal the leak. This typically involves unbolting the manifold from the engine, carefully scraping off the old gasket material, cleaning the mating surfaces thoroughly, and then installing a new gasket before reattaching the manifold. We'll delve into this process in more detail shortly.
• Tightening/Replacing Downpipe Bolts: For leaks at the downpipe connection, check the bolts that secure it to the manifold. If they are loose, simply tightening them to the correct torque specification might resolve the issue. If they are rusted or broken, they will need to be replaced. This is often the easiest and cheapest fix if it's the culprit.
• Replacing the Donut Gasket: If the donut gasket at the manifold-to-downpipe connection is the source, replacing it is usually straightforward. You'll unbolt the connection, remove the old donut gasket, clean the surfaces, install the new donut gasket, and re-bolt the components.

Temporary 'Band-Aid' Fixes

If a full, permanent repair isn't immediately feasible, perhaps due to budget constraints or the age of the vehicle, there are temporary 'band-aid' solutions available. Products from companies like JB Weld and Devcon, or specific exhaust repair pastes and bandages, can be used to patch small cracks or holes in the manifold or exhaust piping. While these can be surprisingly effective for a time, it's crucial to remember they are temporary repairs. They won't last forever and are not a substitute for a proper, lasting fix. However, if your car is nearing the end of its life, or you just need to buy some time until you can afford a full repair, these solutions can certainly help quieten things down and keep you on the road.

A Deeper Dive: Replacing the Exhaust Manifold Gasket

Given that a faulty exhaust manifold gasket is a very common cause of leaks, understanding its replacement process is highly valuable. This section will guide you through the intricacies of this essential component and its replacement.

Understanding Exhaust Manifold Gaskets

The exhaust manifold gasket serves a critically important role: it creates a robust, airtight seal between the engine block's exhaust ports and the exhaust manifold itself. This seal is absolutely essential for several reasons. Firstly, it ensures that all combustion gases are directed into the exhaust system, preventing them from escaping into the engine bay or, worse, into the passenger cabin. Secondly, a proper seal maintains optimal exhaust gas flow, which is crucial for engine performance and efficiency. Any compromise to this seal can lead to a decrease in engine power, increased emissions (as un-catalysed gases escape), and potentially even damage to other components due to excessive heat or improper back pressure.

Common Signs of Gasket Failure

Identifying the early indicators of a failing exhaust manifold gasket can save you from further complications and more costly repairs down the line. Beyond the ticking noise, keep an eye out for these symptoms:

Tools Required for Replacement

Undertaking an exhaust manifold gasket replacement requires a specific set of tools to ensure the job is done correctly and safely. Before you begin, gather the following:

• Socket Set and Ratchets: Essential for loosening and tightening various fasteners. You'll likely need a range of sizes.
• Wrenches: Open-ended and possibly a combination wrench set for bolts in tight spots.
• Torque Wrench: Crucial for tightening bolts to the manufacturer's specified torque settings, preventing overtightening (which can damage components) or undertightening (which can lead to leaks).
• Scraper/Gasket Scraper: For thoroughly removing old gasket material and carbon deposits from mating surfaces.
• Wire Brush/Cleaning Solution: To ensure the surfaces are perfectly clean before installing the new gasket.
• Gloves and Safety Glasses: Always prioritise personal protection when working on your vehicle.
• Penetrating Oil: Such as WD-40, to help loosen stubborn or rusted bolts.
• New Exhaust Manifold Gasket(s): Ensure you have the correct part for your specific vehicle make and model.
• Anti-Seize Compound: Highly recommended for exhaust bolts and studs to prevent future corrosion and make removal easier next time.
• Service Manual/Repair Guide: Specific to your vehicle, this will provide torque specifications and detailed diagrams.
• Jack Stands and Jack: If you need to raise the vehicle for access (ensure it's safely supported).

Step-by-Step Replacement Process

This general guide outlines the procedure for replacing the exhaust manifold gasket. Always consult your vehicle's specific service manual for exact steps and torque specifications.

Preparation and Safety Measures

Begin by ensuring your vehicle is parked on a flat, stable surface. Allow the engine to cool completely – attempting this job on a hot engine is extremely dangerous due to the high temperatures involved. Disconnect the negative terminal of your car battery to prevent any accidental electrical shorts. Gather all your tools and the new gasket. Don your safety glasses and gloves.

Removal of Old Components

1. Gain Access: Identify the exhaust manifold. You may need to remove various components that obstruct access, such as heat shields (often held on by small bolts), air intake pipes, or even some accessory components, depending on your vehicle's layout. Take photos as you go to aid reassembly.
2. Disconnect Exhaust Piping: Loosen and remove the bolts connecting the exhaust manifold to the downpipe (the rest of the exhaust system). You might need to support the exhaust system slightly to prevent strain on other connections. Be prepared for stubborn, rusted bolts; penetrating oil applied beforehand can help.
3. Remove Manifold Bolts: Carefully unbolt the exhaust manifold from the engine block. These bolts can also be heavily rusted or seized. Apply penetrating oil and allow it to soak. Use the correct size socket and apply steady, even pressure to avoid stripping the bolt heads. If a bolt breaks, it will significantly complicate the repair.
4. Remove Manifold: Once all bolts are removed and the downpipe is disconnected, carefully pull the exhaust manifold away from the engine block. It might be heavy, so be ready to support its weight.
5. Clean Mating Surfaces: This is a critical step. With the manifold removed, you will see the old gasket material stuck to both the engine block's exhaust ports and the manifold's mating surface. Use your gasket scraper and a wire brush to meticulously remove every trace of old gasket material and carbon buildup. The surfaces must be absolutely clean, smooth, and free of debris to ensure a perfect seal with the new gasket. Any remaining residue can cause the new gasket to leak immediately.

Installation of New Components

1. Position New Gasket: Carefully place the new exhaust manifold gasket onto the engine block studs (if present) or align it with the bolt holes. Ensure it is correctly oriented – some gaskets are specific to one direction.
2. Reinstall Manifold: Carefully lift the exhaust manifold and align it with the studs/bolt holes on the engine block, guiding it onto the new gasket.
3. Install Bolts: Hand-thread all the exhaust manifold bolts back into their respective holes. Do not tighten them fully yet.
4. Torque Bolts: This is another critical step. Using your torque wrench, tighten the exhaust manifold bolts in the sequence specified in your vehicle's service manual (this is often a spiral pattern, working from the centre outwards, or a specific numbered sequence). Tighten them in several stages, gradually increasing the torque until you reach the final specified setting. This ensures even pressure distribution and prevents warping of the manifold.
5. Reconnect Downpipe: Reconnect the exhaust downpipe to the manifold, installing any new donut gaskets or bolts as needed. Tighten these connections to spec.
6. Reinstall Obstructions: Reattach any components (heat shields, air intake, accessories) you removed to gain access.
7. Reconnect Battery: Reconnect the negative terminal of your car battery.

Choosing the Right Replacement Gasket

Selecting the correct exhaust manifold gasket is vital for a lasting repair. Don't just pick the cheapest option; quality matters significantly here.

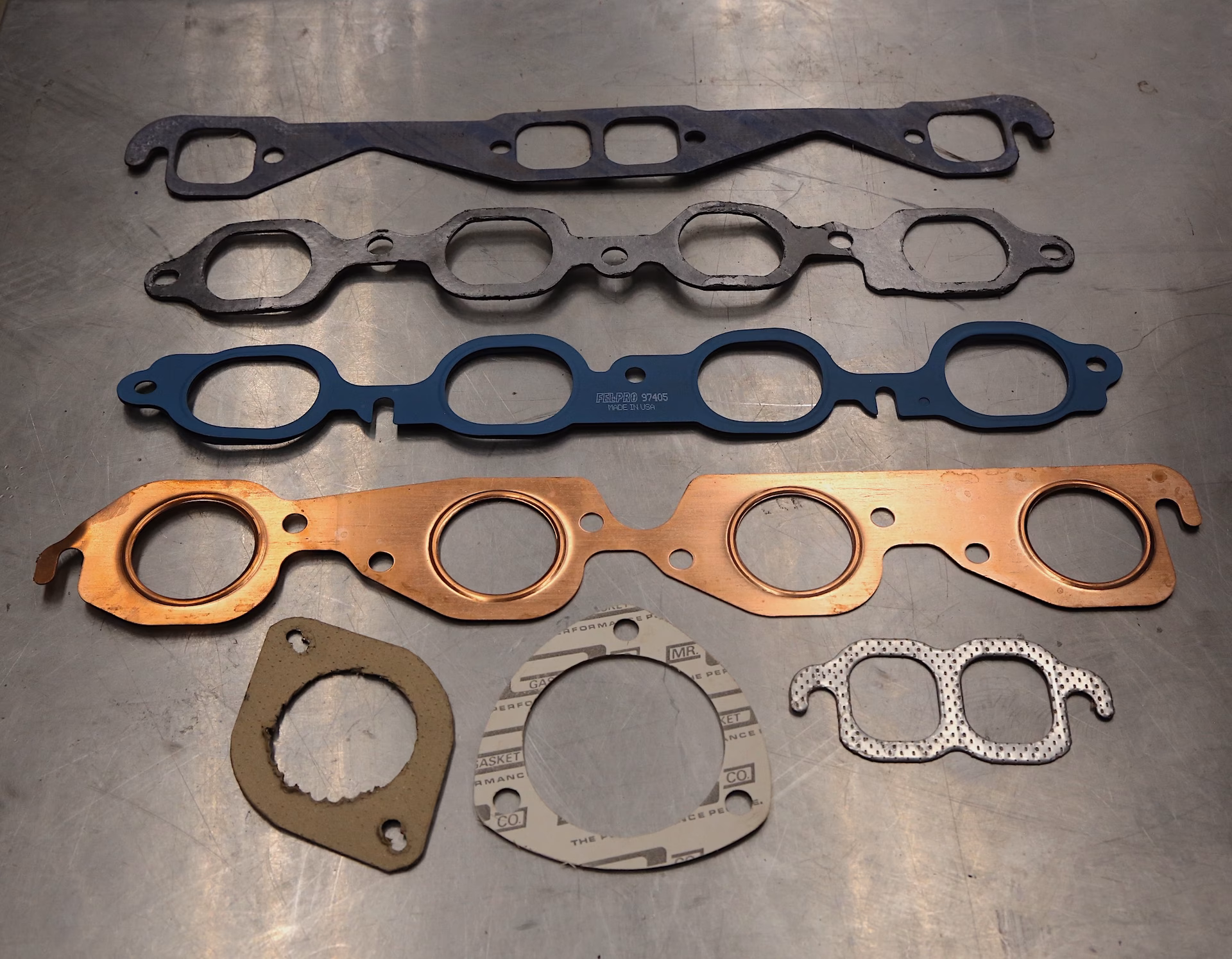

• Consider Material Compatibility: Exhaust manifold gaskets are exposed to extreme temperatures and pressures. They are typically made from materials like high-temperature fibre composites, embossed multi-layer steel (MLS), or ceramic composites. Multi-layer steel gaskets are often considered superior for their durability and ability to withstand repeated heat cycles. Ensure the material is appropriate for your engine's operating conditions.
• Assessing Manufacturer Quality: Always opt for gaskets from reputable brands or original equipment (OE) manufacturers. Cheap, low-quality gaskets might not provide a proper seal, or they could degrade quickly, leading to a repeat of the problem much sooner than expected. Read reviews and seek recommendations if unsure. Investing a little more in a quality gasket now can save you significant time and money in the long run.

Maintenance Tips for Longevity

While exhaust manifold gaskets are designed for durability, a few general maintenance practices can contribute to the overall health of your exhaust system and engine, potentially extending the life of these components:

• Routine Inspections: Periodically check your exhaust system for signs of leaks, rust, or damage. Listen for unusual noises.
• Address Engine Issues Promptly: Any engine problems that lead to excessive heat, misfires, or rich fuel mixtures can put extra strain on exhaust components. Address these underlying issues promptly.
• Use Quality Fuel and Maintain Fuel System: Good quality fuel and regular fuel system cleaner use can help minimise carbon buildup, which can contribute to hot spots and gasket degradation.
• Avoid Excessive Short Journeys: Frequent short trips where the engine doesn't fully warm up can lead to increased condensation in the exhaust, promoting rust. While unavoidable for many, being aware of this helps.

By following these guidelines, you can not only resolve an existing exhaust manifold leak but also contribute to the long-term reliability and performance of your vehicle.

Frequently Asked Questions About Exhaust Manifold Leaks

What are the common symptoms of a faulty exhaust manifold gasket?

Common symptoms include a loud ticking or hissing noise from the engine, especially on cold starts that may quiet down as the engine warms up. You might also notice a burning smell, reduced engine performance, decreased fuel efficiency, or even the 'Check Engine' light illuminating on your dashboard. Soot marks around the manifold connection are also a visual indicator.

How can you diagnose an exhaust manifold gasket leak?

A professional technician will typically perform a visual inspection of the manifold and gasket area for soot marks or cracks. They will also listen for the characteristic ticking or hissing sound, particularly when the engine is cold. Sometimes, a smoke test or using a stethescope can help pinpoint the exact location of a small leak.

What happens if you ignore an exhaust manifold leak or a cracked manifold?

Ignoring an exhaust manifold leak will almost certainly lead to it getting worse, becoming louder, and potentially more expensive to fix. While not immediately dangerous, long-term neglect can lead to issues such as damage to surrounding engine bay components due to escaping hot gases, or even affect oxygen sensor readings, which can indirectly impact fuel economy and emissions over time. A severely cracked manifold could also eventually lead to exhaust gases entering the cabin.

What is the average cost to replace an exhaust manifold gasket in the UK?

The cost to replace an exhaust manifold gasket in the UK can vary significantly depending on your vehicle's make, model, and the complexity of the job (e.g., rusted or broken bolts). Generally, you might expect to pay anywhere from £200 to £600 or more, including parts and labour. This cost can increase if the manifold itself is cracked and needs replacement, or if seized bolts require extra time and tools.

What materials are used in manufacturing replacement exhaust manifold gaskets?

Replacement exhaust manifold gaskets are typically made from materials designed to withstand extreme heat and pressure. Common materials include high-temperature fibre composites, multi-layer steel (MLS), or ceramic composites. MLS gaskets are often preferred for their durability and excellent sealing properties.

What is the best approach for sealing a new exhaust manifold gasket during installation?

The best approach for sealing a new exhaust manifold gasket is to ensure both mating surfaces (engine block and manifold) are meticulously clean and free of any old gasket material or carbon buildup. When installing, use a high-quality replacement gasket and apply anti-seize compound to the manifold studs or bolts. Crucially, tighten the bolts to the manufacturer's specified torque settings, following the correct tightening sequence, using a torque wrench.

Can you use exhaust paste or other sealants as a permanent fix for an exhaust manifold leak?

Exhaust paste, sealants like JB Weld, or repair bandages are considered 'band-aid' or temporary fixes for exhaust manifold leaks. While they can quieten the noise and provide a short-term solution, they are not designed to be permanent repairs, especially for significant cracks or blown gaskets. They will eventually fail under the extreme heat and vibration of the exhaust system. A proper, lasting repair involves replacing the faulty component (gasket or manifold).

Conclusion

In conclusion, while an exhaust manifold leak can be an annoying and persistent issue, it's generally not a catastrophic problem that demands immediate roadside attention. It's more of an irritant than a safety hazard. However, understanding the source of the leak – whether it's a worn gasket, a loose bolt, or a cracked manifold – is the first step towards resolving it. While temporary fixes can offer a reprieve, a proper, lasting repair, especially a gasket replacement, will restore your vehicle's quiet operation and ensure the continued efficiency of its exhaust system. Addressing the issue sooner rather than later will prevent it from escalating, potentially saving you from more complex and expensive repairs in the future. So, if you hear that tell-tale ticking, don't ignore it – diagnose it, and get it sorted for a smoother, quieter ride.
