Flange Leak Repair Clamps: An Essential Guide

In the intricate world of automotive and industrial piping systems, flanges serve as vital connectors, linking pipes, valves, and other critical equipment. They are engineered for strength and durability, forming the backbone of fluid and gas transport. However, even the most robust components can succumb to the relentless forces of wear, corrosion, and pressure fluctuations, leading to dreaded leaks. A leaking flange can be more than just an inconvenience; it can lead to significant operational disruptions, environmental hazards, and substantial financial losses. This is where the ingenious solution of flange leak repair clamps comes into play, offering a rapid, efficient, and often permanent remedy to these challenging issues.

These specialised clamps are designed to provide an immediate and secure seal over leaking flange connections, eliminating the need for costly and time-consuming system shutdowns. They act as a strong reinforcement, encapsulating the compromised area and preventing any further escape of media. Whether dealing with a minor seep in a water pipeline or a critical leak in an exhaust system, understanding the capabilities and applications of these versatile clamps is paramount for effective maintenance and ensuring operational integrity.

What Exactly is a Flange Leak Repair Clamp?

A flange leak repair clamp is a mechanical device specifically engineered to seal leaks occurring at flange joints within a piping or exhaust system. Flange joints, while inherently strong, are susceptible to leaks due to various factors such as gasket deterioration, improper bolt torque, corrosion, or physical damage. When a leak occurs, these clamps provide an efficient and immediate solution by creating a tight seal around the compromised area.

The fundamental principle behind a flange leak repair clamp is its ability to encapsulate the leaking flange connection. Typically, these clamps consist of a robust body, often made from durable materials like ductile iron, cast iron, or stainless steel, which encloses the flange. Internally, they feature a high-integrity gasket, commonly made from materials like EPDM, NBR, or Silicone, which compresses against the flange faces and the pipe to form a leak-proof barrier. This compression is achieved by tightening bolts on the clamp, drawing its halves together to create immense pressure around the leak point.

These clamps are incredibly versatile, capable of sealing components made from different material types. They can be either temporary or permanent solutions, depending on the severity and nature of the damage. For instance, in an emergency, a clamp might provide a quick seal to prevent further spillage, allowing for a planned, more extensive repair later. However, many modern flange repair clamps are designed for permanent repair, offering a long-term solution that can last as long as the original plumbing parts attached to the system.

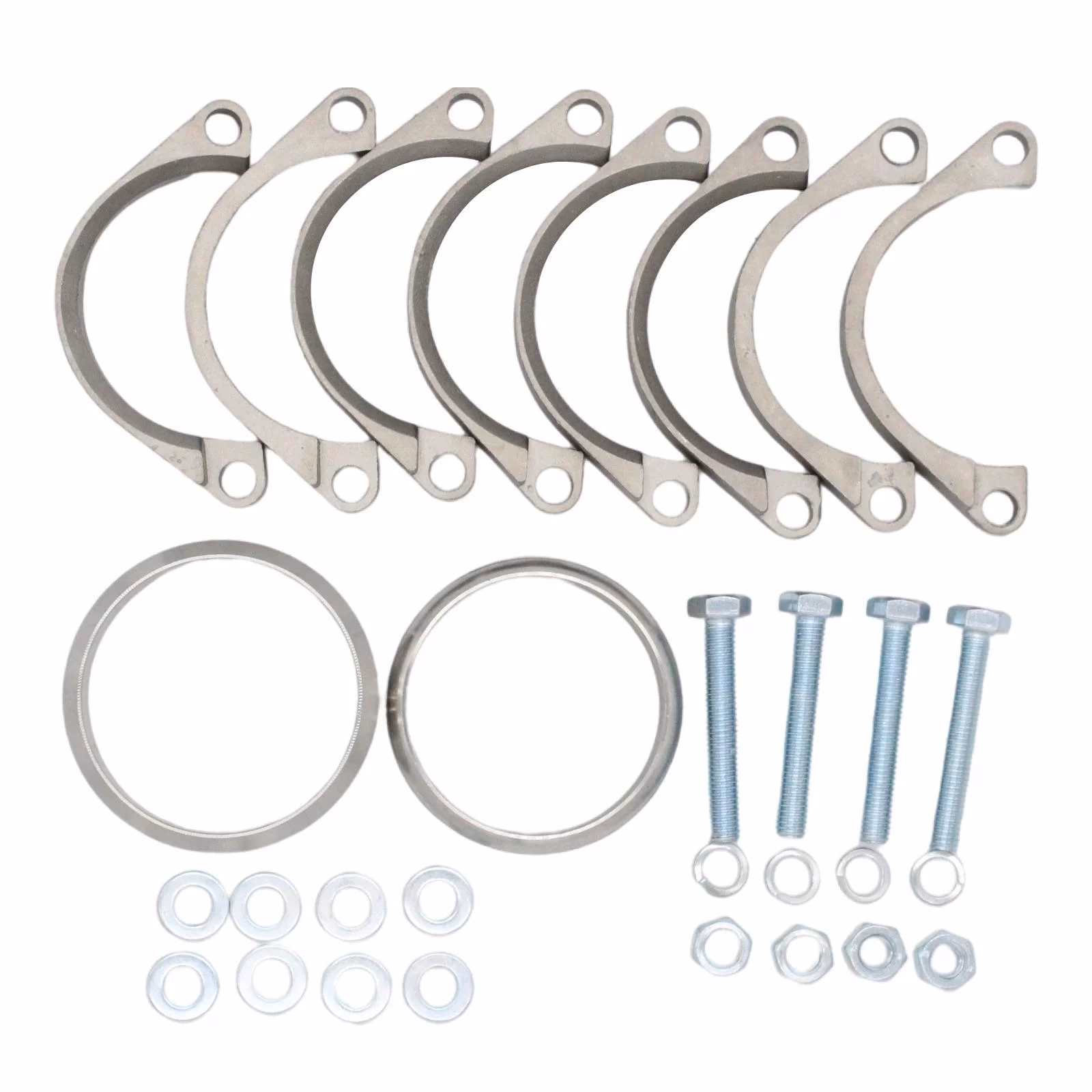

A notable variant is the Exhaust Flange Repair Clamp. Exhaust systems, particularly in vehicles, operate under extreme temperatures and pressures, and are responsible for safely channelling harmful gases away from the vehicle's occupants and the environment. A leak in an exhaust flange can release toxic fumes, impacting air quality and posing health risks. Exhaust flange repair clamps are specifically engineered to withstand these harsh conditions, providing a complete and tight sealant that prevents the release of harmful gases. They are also particularly useful where welding the exhaust system in place might be difficult or impractical, offering a simple and cost-effective solution that can be installed without disassembling the exhaust system, often while the exhaust is still active.

Key Advantages and Benefits

Flange leak repair clamps offer a multitude of advantages that make them an indispensable tool in maintenance and repair programmes across various industries:

• Rapid Response and On-Line Installation: One of the most significant benefits is the ability to install these clamps without taking the line out of service. This means minimal downtime, reduced operational losses, and the capability for immediate repair in emergency situations. There is no need to change existing flanges, beyond a simple cleaning of the flange surface.
• Cost-Effective Solution: Compared to replacing entire sections of piping or performing complex welding operations, using a repair clamp is a far more economical approach. It saves on labour, materials, and the costs associated with production halts.
• Versatility: These clamps are available in a wide range of shapes, sizes, and configurations, making them suitable for virtually all flange sizes and pressure ratings, from small domestic pipes to large industrial pipelines. They can accommodate different pipe materials and designs.
• Durability and Longevity: Manufactured from robust materials like ductile iron, cast iron, and stainless steel, and featuring high-quality gaskets, these clamps are built to last. When properly fitted, they can withstand significant pressure and temperature fluctuations, offering a long service life comparable to the original pipework.
• Safety Enhancement: By quickly sealing leaks, especially in systems transporting hazardous or toxic substances (like exhaust gases or chemicals), these clamps significantly enhance workplace and environmental safety.
• Structural Reinforcement: Beyond just sealing, the clamp reinforces the damaged part of the pipeline, adding structural integrity to the compromised area.
• Proven Track Record: Many manufacturers boast over 25 years of proven performance in the field, attesting to the reliability and effectiveness of these solutions.
• Specialised Features: Some clamps come with advanced features such as a 'Twin Seal' configuration for enhanced sealing capability or NACE compliance for sour service applications, making them suitable for highly corrosive environments.
• Diver-Friendly Installation: For underwater applications, certain designs allow for easier installation by divers, further extending their utility.

Types of Flange Leak Repair Clamps

While the core function remains consistent, flange leak repair clamps come in various types, often named to reflect their specific application or design:

• Exhaust Flange Repair Clamps: Specifically designed for the high-temperature and corrosive environment of vehicle exhaust systems, ensuring no harmful gas escapes.
• Pipe Flange Repair Clamps: A general term for clamps used to seal leaks on standard pipe flanges in various industrial and domestic applications.
• Flange Leak Sealing Clamps: Emphasises their primary function of creating a tight seal to prevent leaks.
• Stainless Steel Flange Repair Clamp: Denotes clamps made from stainless steel, ideal for corrosive environments or applications requiring high hygiene standards.
• Flange Repair Clamps: A broad category encompassing all types designed for flange leak repair.
• Flange Repair Leaking Clamps: Another descriptive term highlighting their purpose.
• Pipe Flange Clamp: General term for a clamp used on a pipe flange.
• Exhaust Manifold Flange Repair Clamp: A more specific type of exhaust clamp, focusing on the connection point at the exhaust manifold.

Technical Specifications and Design Standards

Understanding the technical specifications of flange leak repair clamps is crucial for selecting the correct clamp for a particular application. These specifications dictate the clamp's suitability for different pipe sizes, pressures, temperatures, and media.

General Specifications

Design Standards and Materials

The reliability and safety of flange leak repair clamps are underpinned by adherence to rigorous design standards and the use of high-quality materials. These standards ensure that the clamps can perform under specified conditions without failure.

Design Standards:

• API SPEC 6H: Specification on Connectors, End Closures and Swivels. This ensures the clamp's design is compatible with standard pipeline connectors.
• ASME Pressure Vessel Code, Section VIII: Governs the design, fabrication, inspection, and testing of pressure vessels, ensuring the clamp can withstand internal pressures safely.
• API SPEC 5L: Specification for Line Pipe. Ensures compatibility with standard line pipe dimensions and materials.
• ASME/ANSI B18.2.1: Hex Bolts and Square and Screw Inch Series. Dictates the specifications for the fasteners used, ensuring strength and proper fit.

Pressure and Temperature Ratings

The operational limits of these clamps are defined by their pressure and temperature ratings, which are critical for safe application.

• Pressure Rating: Clamps are available for operation line pressures up to 2500 psi, demonstrating their capability for high-pressure applications.
• Temperature Range (Exhaust Pipe Flange Repair Clamps): Specifically designed for extreme conditions, these clamps can operate from -196ºC to +1000ºC (320ºF to +1830ºF), showcasing their resilience in highly variable thermal environments.

Dimensions of Flange Leak Repair Clamps

Dimensions are crucial for proper fit and sealing. The following table provides typical dimensions for various nominal diameters (DN) and their corresponding pipe outer diameter (OD) ranges, along with height, width, and weight.

Size Range and Technical Parameters for Stainless Steel Clamps

Beyond standard dimensions, clamps are specified by nominal diameter (DN), pressure nominal (PN), and clamp length. Stainless steel clamps also have specific technical parameters related to pipe range, width, bolt configuration, and working pressure.

It's important to note that the diameter of cast iron flange repair clamps can range from 80 mm to 1000 mm, indicating their broad applicability.

Applications of Flange Leak Repair Clamps

The versatility and effectiveness of flange leak repair clamps make them suitable for a wide array of applications across numerous industries where fluid or gas transport is critical. Their ability to provide a quick, reliable seal makes them invaluable for maintaining operational continuity and safety.

• Water Supply Projects: Essential for repairing leaks in municipal and industrial water pipelines, preventing water loss and ensuring continuous supply.
• Drainage and Sewerage Systems: Used to seal leaks in wastewater networks, preventing environmental contamination and maintaining public health.
• Irrigation Systems: Crucial for agricultural applications to repair leaks in irrigation pipes, ensuring efficient water delivery to crops.
• Chemical Equipment: In chemical plants, where corrosive or hazardous substances are transported, these clamps provide a critical sealing solution, enhancing safety and preventing spills.
• Sea Water Equipment: Ideal for marine environments, where pipelines are exposed to highly corrosive saltwater, requiring robust and durable repair solutions.
• Petrochemicals and Gas Processing: In oil and gas industries, leaks can be extremely dangerous and costly. Flange repair clamps offer a safe and efficient method for repairing leaks in critical pipelines carrying hydrocarbons and other gases.
• Specialty Chemicals and Pharmaceutical Equipment: Where purity and containment are paramount, these clamps provide a reliable, non-intrusive repair method for sensitive systems.

Quality Assurance: Testing and Surface Finishes

To ensure their performance and longevity, flange leak sealing clamps undergo rigorous testing and are often finished with protective coatings. These processes are vital for guaranteeing that the clamps meet international and national standards and can withstand the demanding conditions of their intended applications.

Available Testing of Flange Leak Sealing Clamps

• Micro and Macro Test: Examination of the material's microstructure and larger structural features to ensure quality and detect any internal flaws.
• Hardness Test: Measures the material's resistance to permanent deformation, indicating its durability and wear resistance.
• Flattening Test: Assesses the ductility of the material, ensuring it can withstand deformation without cracking.
• Chemical Analysis – Spectro Analysis: Determines the exact chemical composition of the materials, verifying that they meet specified standards.
• Flaring Test: Evaluates the material's ability to be expanded without cracking, important for pipe compatibility.
• Pitting Resistance Test: Specifically for stainless steel, this test assesses its resistance to localised corrosion, crucial in aggressive environments.
• Positive Material Identification (PMI) Testing: A non-destructive method to verify the alloy composition of materials, preventing material mix-ups and ensuring correct material grades are used.

Surface Finish of SS Pipe Flange Repair Clamp

Various surface finishes are applied to enhance the durability, corrosion resistance, and overall performance of the clamps.

• 3LPE (3-Layer Polyethylene): Provides excellent corrosion protection and mechanical resistance.
• Fusion Bond Epoxy (FBE): A tough, heat-cured coating offering superior corrosion resistance.
• Bending: Refers to the manufacturing process that shapes the clamp components.
• Annealed: A heat treatment process that alters the microstructure of a material, increasing its ductility and reducing hardness.
• Galvanizing: A zinc coating applied to steel or iron to prevent rusting.
• ARO (Abrasion Resistant Overcoat): An additional layer designed to protect against abrasion and mechanical damage.
• Heat Treatment: General term for processes that modify the physical and sometimes chemical properties of a material through heating or cooling.

Frequently Asked Questions (FAQs)

What is a flange leak sealing clamp?

A flange leak sealing clamp is a device designed to permanently repair leaks at flange gasket joints without requiring the pipeline to be taken out of service. It works by encapsulating the leaking joint and applying pressure via a gasket to create a tight seal, often after a simple cleaning of the existing flange.

Can these clamps be used for permanent repairs?

Yes, many modern flange leak repair clamps are engineered for permanent repairs. When properly installed and selected according to the application's specifications, they can offer a long-term solution that matches the service life of the existing piping system.

Do I need to shut down the system for installation?

No, one of the primary advantages of flange leak repair clamps is their capability for on-line installation. This means the system does not need to be taken out of service, significantly reducing downtime and operational disruption.

What materials are flange leak repair clamps typically made from?

The body of these clamps is commonly made from robust materials such as ductile iron, cast iron, or stainless steel (e.g., AISI 304). The gaskets, which provide the seal, are typically made from resilient rubbers like EPDM, NBR, or Silicone, chosen based on the fluid being transported and temperature requirements.

What are the main applications for these clamps?

Flange leak repair clamps are widely used in various industries including water supply and drainage, sewerage, irrigation, chemical processing, petrochemicals, gas processing, and pharmaceutical manufacturing. They are vital for any system where fluid or gas is transported via flanged connections.

How do exhaust flange repair clamps differ from standard pipe flange clamps?

Exhaust flange repair clamps are specifically designed to withstand the extreme temperatures (up to 1000ºC) and corrosive gases found in exhaust systems. They provide a complete seal to prevent the release of harmful fumes and are often used as a simpler alternative to welding in challenging exhaust pipe locations.

Conclusion

Flange leak repair clamps represent a crucial innovation in maintenance and repair, offering a reliable and efficient solution to a common industrial problem. Their ability to provide immediate, often permanent, seals without the need for system shutdowns makes them an invaluable asset for industries reliant on continuous operations. From preventing water loss in municipal pipes to containing hazardous chemicals in industrial plants and ensuring safe exhaust gas management in vehicles, these clamps underscore the importance of proactive and intelligent maintenance strategies. Investing in high-quality flange leak repair clamps not only resolves existing issues but also contributes significantly to the overall safety, efficiency, and longevity of piping and exhaust infrastructure.
