Fixing Your Exhaust Back Box

The exhaust system of your vehicle is a complex network of pipes and components designed to channel harmful gases away from the engine and out into the atmosphere. At the heart of this system, often found towards the rear of your car, lies the exhaust back box, also known as the silencer. This vital component plays a crucial role in ensuring a smooth, quiet, and efficient driving experience. However, like any part of a car, it can wear out or suffer damage, leading to a range of undesirable symptoms.

What Does the Exhaust Back Box Do?

The primary function of the exhaust back box is to reduce the noise produced by the combustion process within your engine. When fuel burns, it creates hot, high-pressure gases that travel at high speeds. Without the back box, these gases would exit the vehicle in a raw and extremely loud manner. The back box contains a series of baffles and chambers that help to slow down these gases, absorb sound waves, and ultimately produce a much quieter exhaust note. It's essential for a comfortable and socially acceptable driving experience.

Signs of a Faulty Exhaust Back Box

Recognising the early signs of a problem with your exhaust back box can save you from more significant issues down the line. The most common indicator is a noticeable increase in the volume of your exhaust. If your car suddenly sounds much louder than usual, particularly when accelerating, the back box is a prime suspect. You might also experience different vibrations than you normally would, especially when operating the car's clutch. Furthermore, a damaged or leaking back box can impact your vehicle's fuel efficiency, leading to more frequent trips to the petrol station.

Other potential symptoms include:

• A duller, more 'thrumming' sound from the exhaust.
• A rattling noise, especially when the engine is cold.
• Visible rust or holes in the back box itself.
• A smell of exhaust fumes inside the car.

Can You Fix an Exhaust Back Box?

The term 'fix' can be interpreted in a couple of ways when it comes to exhaust back boxes. Minor issues, such as a loose clamp or a small hole that can be temporarily sealed with exhaust repair paste, might be fixable without a full replacement. However, for more significant damage, such as rust-through, corroded internal baffles, or a completely detached silencer, replacement is almost always the most effective and long-lasting solution. Attempting to repair severely damaged sections can be a temporary measure at best and may not address the underlying problem.

Tools and Materials You'll Need for Replacement

Replacing an exhaust back box is a moderately difficult process and is best undertaken by individuals with some prior experience in car maintenance. If you're not confident, it's always wise to consult a professional mechanic. However, if you're ready to tackle the job yourself, here's what you'll likely need:

Step-by-Step Guide to Replacing Your Exhaust Back Box

Follow these steps carefully to replace your exhaust back box:

1. Prepare Your Vehicle

Safety is paramount when working on your car. Before you begin, ensure your vehicle is parked on a hard, dry, and level surface. Engage the handbrake and place chocks behind the wheels for added security. Use your car jack to lift the rear of the vehicle to a comfortable working height. Crucially, place a jack stand securely under a strong point on the chassis on each side of the car. Once the jack stands are in place, slowly lower the vehicle onto them. Give the car a gentle push to ensure it's stable. You now have safe access to the underside of your car.

2. Locate the Exhaust Back Box

With the car safely supported, slide underneath using a creeper or a backboard. Trace the exhaust system from the front of the vehicle. The catalytic converter is usually located after the engine, followed by the exhaust pipes, and then the back box, typically found between the catalytic converter and the rear axle. Once you've located the back box (silencer), identify the bolts and clamps that secure it to the rest of the exhaust system. Spray a generous amount of penetrating lubricant onto these fixing nuts and bolts. Allow the lubricant to soak in for at least 15-20 minutes, as these parts are often subject to rust and dirt, making them difficult to loosen.

3. Remove the Old Exhaust Back Box

Using the appropriate spanner or deep socket, begin to work on the fixing bolts. You may need to apply significant force. If the bolts are still stubborn, reapply lubricant and give them more time to penetrate. If the bolts are completely seized, you might need to use a wire brush to clean the threads or, as a last resort, carefully cut the bolts or the exhaust pipe itself. Once the bolts holding the back box to the mounting bracket are removed, you'll need to address the pipe connections. If the pipes are corroded or the clamps are rusted solid, you may need to use your saw to cut the exhaust pipes immediately in front of and behind the silencer. Finally, locate and remove any rubber hangers that support the back box, allowing it to be detached from the vehicle.

4. Prepare and Attach the New Exhaust Back Box

Before fitting the new back box, it's a good idea to clean the ends of the existing exhaust pipes using a wire brush. This will remove any rust or debris and ensure a better fit and seal. Carefully smooth the cut ends of the exhaust pipes if you had to cut them. Some new back boxes have slightly flared or split ends to facilitate easier fitting. Slide new exhaust clamps onto the ends of the pipes that will connect to the new back box. Apply a generous amount of exhaust sealant or paste to the ends of the pipes and the connecting points on the new back box. This sealant helps to create a gas-tight seal and prevent leaks.

Now, carefully slide the new back box onto the prepared ends of the exhaust pipes. Ensure it's positioned correctly. Move the clamps into place over the joints and tighten them securely using your spanner or socket set. Ensure the clamps are fully tightened around both the inlet and outlet vents of the silencer, creating a firm connection.

5. Bolt the New Back Box to the Car

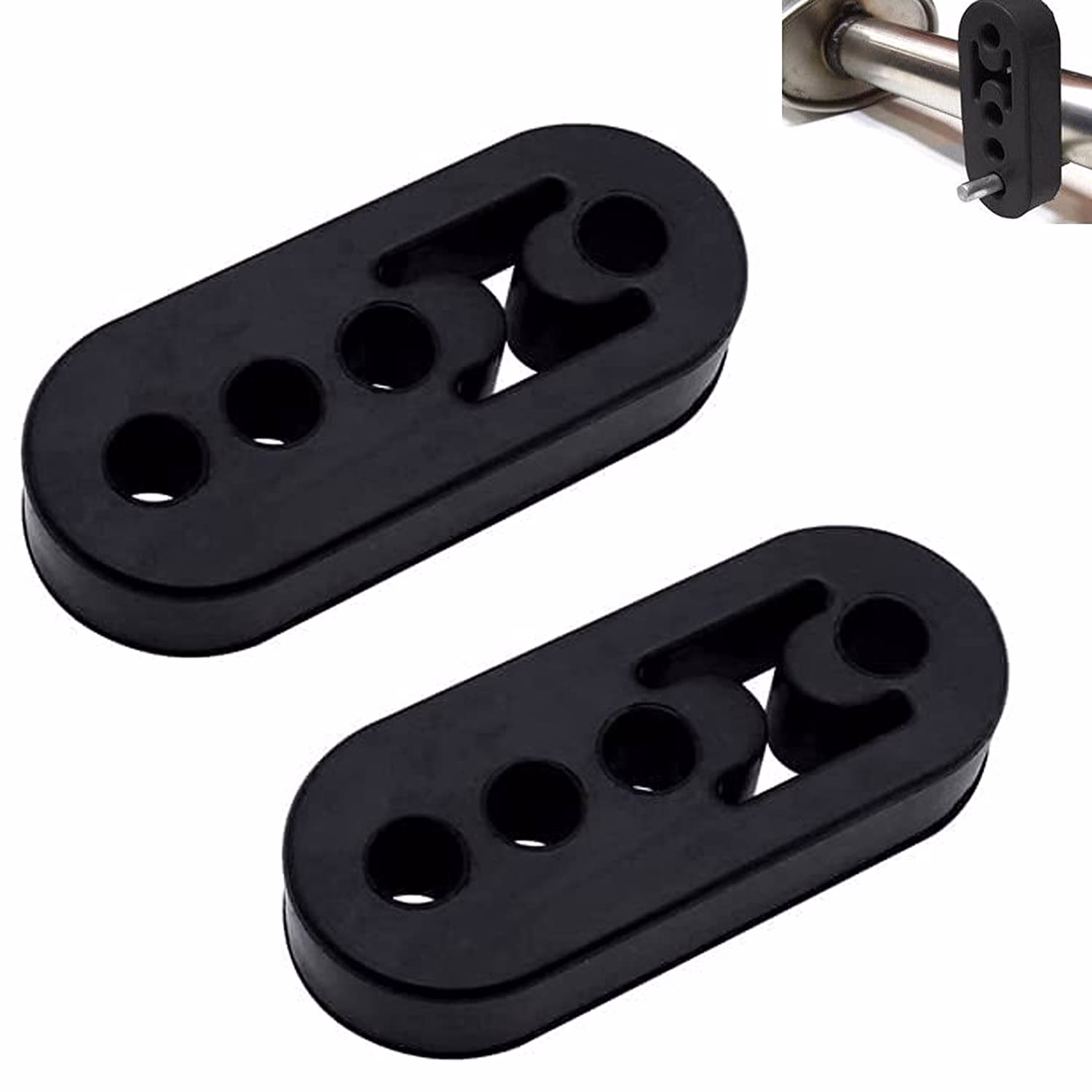

With the new back box connected to the exhaust pipes, you can now reattach it to the vehicle's chassis using the rubber hangers. If the original hangers are damaged or perished, it's advisable to replace them. Use the original bolts (or new ones if the old ones are too corroded) to secure the hangers to the car's bodywork. Tighten these bolts firmly. Double-check that all clamps are securely tightened and that the back box is properly supported.

6. Lower the Vehicle and Test

Once you are satisfied that all connections are secure and the back box is correctly fitted, carefully jack the car up slightly to remove the jack stands. Slowly lower the vehicle back to the ground. Now comes the moment of truth. Start the engine and listen carefully. The loud noise should be gone, replaced by a much quieter exhaust note. Take the car for a short test drive, paying attention to any unusual noises or vibrations. If the exhaust is still making an undue amount of noise, or if you detect any leaks, immediately pull over safely and re-check all the seals and fixings on the back box. It's possible a clamp hasn't been tightened enough or the sealant hasn't cured properly.

Common Exhaust System Components

While focusing on the back box, it's helpful to understand its place within the broader exhaust system:

• Exhaust Manifold: Collects exhaust gases from the engine cylinders.
• Catalytic Converter: Reduces harmful emissions by converting pollutants into less harmful substances.
• Exhaust Pipes: Connect the various components of the system.
• Resonator: Some vehicles have a resonator before the back box to further reduce specific sound frequencies.
• Exhaust Back Box (Silencer): As discussed, this is the primary noise-reducing component.
• Tailpipe: The final exit point for the exhaust gases.

Frequently Asked Questions

Q: How long does an exhaust back box typically last?
A: The lifespan of an exhaust back box can vary significantly depending on driving conditions, climate, and the quality of the part. Generally, they can last anywhere from 3 to 10 years, or 50,000 to 100,000 miles. Cars driven in areas with a lot of road salt are more prone to premature corrosion.

Q: Can I just weld a hole in my exhaust back box?
A: While a small hole might be temporarily patched with a special exhaust repair putty or wrap, welding can be a more permanent fix for minor damage. However, if the back box is significantly corroded internally or has large holes, welding is unlikely to be a cost-effective or reliable solution, and replacement is recommended.

Q: What happens if I don't fix a noisy exhaust back box?
A: A noisy exhaust back box can lead to reduced fuel efficiency, potential MOT (Ministry of Transport) test failure due to excessive noise or emissions, and may indicate further underlying exhaust system damage. It can also be an annoyance to yourself and others.

Q: Is it illegal to drive with a faulty exhaust back box?
A: Yes, driving with an exhaust system that is significantly louder than it should be, or that is leaking exhaust fumes, can lead to failure of your MOT test and may result in a penalty from the authorities. The exhaust system must be in good condition and not excessively noisy.

Replacing your exhaust back box is a manageable task for the home mechanic with the right tools and a careful approach. By understanding the signs of a problem and following these steps, you can restore your vehicle's quiet operation and ensure its exhaust system is functioning correctly.
