Shimano Exage Brake Systems Explored

When discussing bicycle components, Shimano's reputation for quality and innovation is well-earned. The Exage line, while perhaps not as widely recognised today as some of Shimano's more contemporary groupsets, represented a significant step forward in performance and reliability for many cyclists. A key aspect of any bicycle's performance and, crucially, its safety, is the braking system. Understanding the type of brakes used with Shimano Exage components is vital for maintenance, upgrades, and overall rider confidence. This article delves into the braking solutions that were typically paired with Shimano Exage groupsets, offering insights into their mechanics, advantages, and common applications.

The Evolution of Braking with Exage

Shimano's Exage series spanned a period where bicycle braking technology was undergoing a substantial transformation. Initially, and for a significant portion of its lifespan, the dominant braking system on road and hybrid bicycles was the caliper brake. Exage components were frequently found on mid-range road bikes, touring bikes, and even some early mountain bikes, all of which heavily relied on these established designs.

Rim Brakes: The Classic Choice

The most common type of brakes associated with Shimano Exage groupsets are rim brakes. These systems operate by pressing brake pads against the rim of the wheel. The friction generated between the pads and the rim slows the wheel's rotation, and consequently, the bicycle. There are several sub-types of rim brakes, and Exage was compatible with the most prevalent ones of its era:

1. Side-Pull Caliper Brakes

These are the archetypal road bike brakes. They feature a dual-pivot design where two arms pivot from a central bolt. When the brake lever is pulled, the arms pivot inwards, forcing the brake pads against the wheel rim. Side-pull calipers offer a good balance of stopping power and modulation, making them a popular choice for performance-oriented road cycling. Shimano Exage groupsets, particularly those aimed at road racing and sportives, were commonly equipped with or designed to work seamlessly with side-pull caliper brakes.

Key Features of Side-Pull Calipers:

• Lightweight: Generally lighter than other brake types.
• Aerodynamic: Their relatively slim profile can contribute to better aerodynamics.
• Simple Design: Relatively straightforward to maintain and adjust.
• Effective in Dry Conditions: Perform well when the rim surface is clean and dry.

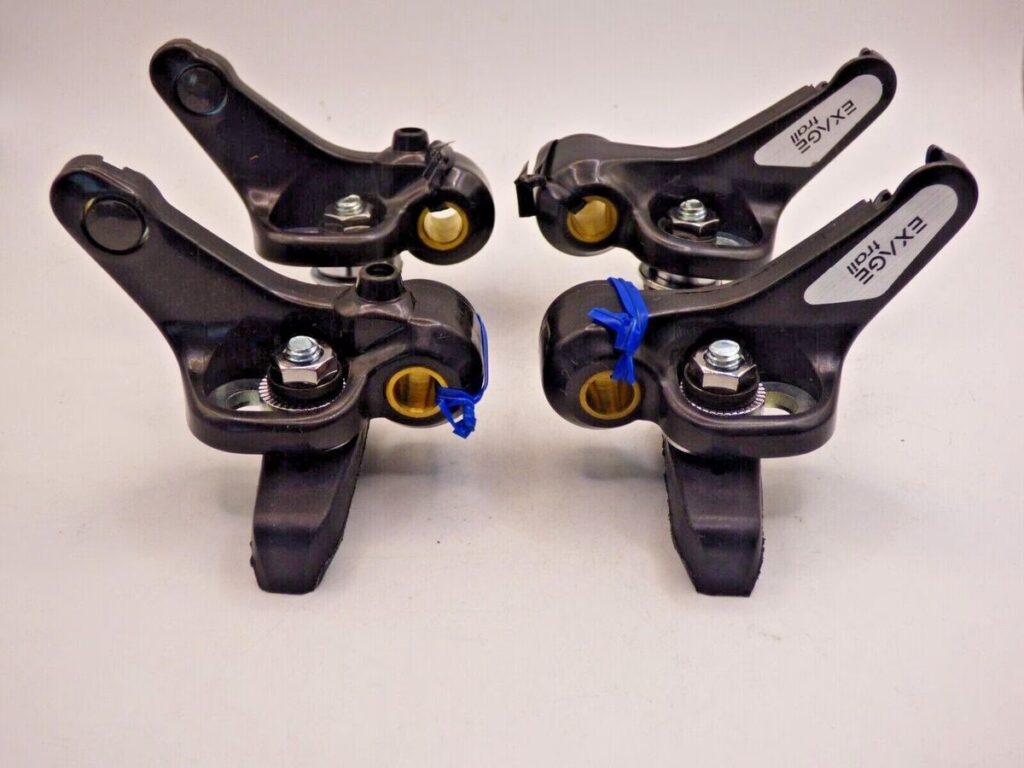

2. Cantilever Brakes

While less common on pure road bikes, cantilever brakes were a staple on touring bikes, cyclocross bikes, and some early mountain bikes. These brakes have two independently mounted arms that pivot on posts attached to the frame and fork. A straddle cable connects the two arms and is pulled by the brake cable. Cantilever brakes offer excellent clearance for wider tyres and mudguards, making them ideal for off-road or all-weather riding. Exage groupsets intended for touring or cyclocross would often be paired with cantilever brake systems.

Advantages of Cantilever Brakes:

• Tyre Clearance: Excellent clearance for wider tyres, mud, and debris.
• Adjustability: Can be tuned for different cable pull ratios and pad positions.
• Good Stopping Power: Offer robust stopping power, especially when properly set up.

3. V-Brakes (Linear-Pull Brakes)

As the Exage line progressed, V-brakes began to gain popularity, particularly on hybrid and mountain bikes. V-brakes are a type of cantilever brake but operate with a direct cable pull, offering significantly more leverage and thus greater stopping power than traditional cantilevers. They require specific brake levers that are designed for their longer cable pull. While some later Exage components might have been designed with V-brakes in mind, it's more common to see them paired with other Shimano groupsets that were contemporary to their rise, like Deore or LX. However, if an Exage-equipped bike was later upgraded, V-brakes would have been a logical choice.

Benefits of V-Brakes:

• High Stopping Power: Significantly more powerful than caliper or traditional cantilever brakes.
• Simplicity: Fewer moving parts compared to some other systems.
• Good Modulation: Allow for fine control over braking force.

The Rise of Disc Brakes and Exage

It's important to note that the Shimano Exage era largely predates the widespread adoption of disc brakes on most bicycles. While disc brakes were available in some niche applications and early forms, they were not a standard feature on the types of bikes typically equipped with Exage components. Therefore, you are highly unlikely to find a factory-fitted Shimano Exage system that includes disc brakes. If a bike originally equipped with Exage now has disc brakes, it would almost certainly be a later modification or upgrade.

Maintenance and Considerations

Regardless of the specific type of rim brake used with your Shimano Exage setup, regular maintenance is key to optimal performance and safety. This includes:

• Brake Pad Wear: Regularly inspect brake pads for wear. Worn pads lose their effectiveness and can damage the wheel rim. Replace them when the wear indicator line is reached or the pad material is significantly diminished.
• Cable Tension: Ensure brake cables are properly tensioned. The brake lever should have a comfortable amount of travel before engaging the brakes.
• Pad Alignment: Brake pads should be aligned to strike the rim squarely and not interfere with the tyre or spokes.
• Rim Condition: The wheel rim itself is a critical part of the braking system. Ensure it is clean, free from damage (like dents or cracks), and has a relatively smooth braking surface.
• Brake Lever Adjustment: Most brake levers have an adjustment barrel to fine-tune cable tension on the fly.

Table: Comparing Rim Brake Types Commonly Associated with Exage

Frequently Asked Questions

Q1: Can I fit disc brakes to a bike that originally had Shimano Exage rim brakes?

A1: Generally, no, unless the frame and fork have specific mounting points for disc brake calipers and are designed to handle the forces involved. Most frames designed for rim brakes do not have these mounts. It would typically require a frame and fork designed for disc brakes from the outset.

Q2: What is the best type of brake for a touring bike with Shimano Exage?

A2: For touring, cantilever brakes are often preferred due to their excellent tyre clearance, allowing for wider tyres and mudguards, and their robust performance in varied conditions.

Q3: How do I know if my brake pads need replacing?

A3: Most brake pads have a wear indicator line. If this line is no longer visible, or if the pad material is very thin (less than 2-3mm), they should be replaced. You should also check for any embedded debris.

Q4: Are Shimano Exage brakes powerful enough for modern cycling?

A4: For their intended era and typical use, Exage brakes (especially when properly maintained) were adequate. However, compared to modern high-performance rim brakes or disc brakes, their stopping power and feel might be considered less refined. For demanding descents or wet conditions, modern braking systems offer superior performance.

In conclusion, Shimano Exage components were primarily associated with reliable rim braking systems, most commonly side-pull caliper brakes for road applications and cantilever brakes for touring and cyclocross. While V-brakes became popular later, they are less directly tied to the original Exage specification. Understanding these brake types and their maintenance ensures that your Exage-equipped bicycle, whether original or as a classic build, remains a safe and enjoyable ride.
