DIY Gearbox Oil Change: Aisin 6-Speed System

Maintaining your vehicle’s gearbox is paramount for its longevity and ensuring a smooth, responsive driving experience. While some manufacturers claim 'sealed for life' transmissions, the reality is that gearbox oil, much like engine oil, degrades over time and with use. For your Aisin 6-speed system, a proactive approach to oil changes, such as every 20,000 km, can significantly extend its lifespan and maintain optimal performance. This guide will walk you through the straightforward process of changing your gearbox oil, focusing on the specifics for your Aisin 6-speed system and using Rheinland JAKO oil, ensuring you're well-equipped to tackle this essential maintenance task yourself.

Changing your gearbox oil is not just about replacing old fluid; it's about preserving the intricate components within your transmission. The oil lubricates gears, dissipates heat, and helps maintain hydraulic pressure for smooth shifts. Over time, it can become contaminated with metallic particles from wear and tear, or simply break down due to extreme temperatures and stress, losing its lubricating properties. Regular replacement ensures these critical functions are maintained, preventing premature wear and costly repairs down the line.

Why Regular Gearbox Oil Changes Matter

Your gearbox is a complex piece of engineering, constantly working to transfer power from the engine to the wheels. This involves numerous moving parts, all requiring precise lubrication. Here’s why consistent oil changes are non-negotiable:

• Lubrication: The primary role of gearbox oil is to lubricate the gears, bearings, and other moving components, reducing friction and wear. Without proper lubrication, metal-on-metal contact can occur, leading to significant damage.
• Heat Dissipation: Friction generates heat. Gearbox oil absorbs and dissipates this heat, preventing overheating which can degrade seals and components.
• Cleaning: The oil helps to suspend and carry away contaminants and metal particles generated during normal operation, preventing them from causing abrasive wear.
• Corrosion Protection: Additives in the oil protect internal components from rust and corrosion, especially important in varying environmental conditions.
• Smooth Shifting: For automatic and some manual gearboxes, the oil (or fluid) is crucial for the hydraulic operation of clutches and torque converters, ensuring seamless gear changes. Degraded oil can lead to harsh shifts, slipping, or delayed engagement.

Adhering to a 20,000 km interval for your Rheinland JAKO oil change is an excellent preventative measure that ensures your Aisin 6-speed gearbox remains in peak condition.

Understanding Your Aisin 6-Speed System

Aisin is a renowned manufacturer of automotive components, and their 6-speed automatic transmissions are widely used across various vehicle brands due to their reliability, efficiency, and compact design. These gearboxes are known for their smooth shifts and durability, but like any mechanical system, they require proper maintenance. The specific design of the Aisin 6-speed system means that the oil change process, while straightforward, requires attention to detail, particularly regarding fluid levels and the post-service reset of the gearbox settings.

Tools and Materials Required

Before you begin, gather all the necessary tools and materials. Having everything ready will make the process smoother and safer.

• New Gearbox Oil: Ensure you have enough Rheinland JAKO oil. Check your vehicle's manual or a reputable online resource for the exact capacity, but having a little extra is always wise.
• Drain Pan: A large capacity drain pan to collect the old gearbox oil.
• Measuring Cup: Essential for accurately calculating the amount of old oil drained. This is crucial for refilling the correct volume of new oil.
• Socket Wrench Set: For removing and tightening the drain and fill plugs. Ensure you have the correct size for your specific plugs.
• Funnel with a Long Flexible Spout: To pour the new oil into the fill hole, which can often be in an awkward position.
• Jack and Jack Stands: Absolutely vital for safely lifting and supporting your vehicle. Never work under a vehicle supported only by a jack.
• Wheel Chocks: To prevent the vehicle from rolling.
• Gloves: To protect your hands from hot oil and chemicals.
• Safety Glasses: To protect your eyes from splashes.
• Rags or Shop Towels: For cleaning up spills.
• Torque Wrench: To tighten drain and fill plugs to the manufacturer's specified torque, preventing over-tightening or leaks.
• Diagnostic Tool (OBD-II Scanner with Transmission Functions): Potentially required for resetting gearbox settings, especially on more modern Aisin units.

Safety First: Crucial Precautions

Working under a vehicle always carries risks. Prioritise safety above all else.

• Vehicle Cooling: This is a critical step specified in your information. Ensure the gearbox has had ample time to cool down completely before you begin. Hot oil can cause severe burns, and working on a hot transmission can be uncomfortable and dangerous. Allow several hours, or even overnight, after the last drive.
• Level Surface: Park your vehicle on a flat, level surface. This is essential for accurate fluid level measurement.
• Secure Support: Use a high-quality jack and always support the vehicle on sturdy jack stands once lifted. Give the vehicle a gentle shake to ensure it's stable before getting underneath.
• Parking Brake & Chocks: Engage the parking brake and use wheel chocks on the wheels that remain on the ground.
• Personal Protective Equipment (PPE): Always wear safety glasses to protect your eyes from splashing oil and gloves to protect your hands.
• Ventilation: Ensure you are working in a well-ventilated area, especially if you are using any cleaning solvents.

The Step-by-Step Gearbox Oil Change Process

1. Preparation and Lifting the Vehicle

Ensure your vehicle is on a flat, level surface. Engage the parking brake and chock the wheels. Using your jack, carefully lift the front of the vehicle (or all four wheels if preferred and safe to do so) to a height that allows comfortable access to the gearbox. Once lifted, immediately place jack stands securely under the vehicle's designated jacking points. Lower the jack until the vehicle rests entirely on the stands. Give the vehicle a gentle push to confirm its stability.

2. Locating Drain and Fill Plugs

Get under the vehicle and locate the gearbox. On most Aisin 6-speed units, you'll find two plugs: a drain plug at the bottom of the gearbox casing and a fill plug (or inspection plug) usually on the side or top. The drain plug is typically lower and larger, while the fill plug might be smaller and higher up. Sometimes, the fill plug can be difficult to access and may require specific tools or extensions. It's always a good idea to loosen the fill plug first, just in case you can't get it open after draining the old oil. You don't want to be left with an empty gearbox you can't refill!

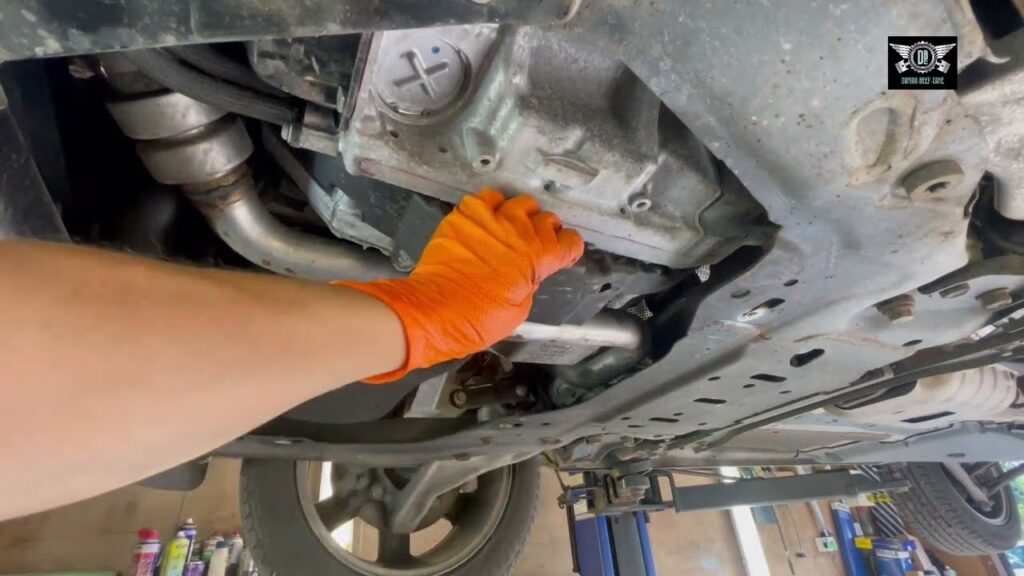

3. Draining the Old Oil

Position your large drain pan directly underneath the drain plug. Using the appropriate socket wrench, carefully loosen and remove the drain plug. Be prepared for the oil to come out quickly, especially if the gearbox is still slightly warm (though ideally, it should be cool). The oil may be dark and thick, possibly with some metallic sheen – this is normal wear. Allow the oil to drain completely. This can take some time, so be patient. Once the flow slows to a drip, replace the drain plug, but do not tighten it fully yet.

Now, here's the crucial part: immediately transfer the drained oil from your drain pan into your measuring cup. Note down the exact amount of oil that drained out. This measurement is vital because you will add precisely this amount of new oil back into the gearbox. This method ensures you don't overfill or underfill, which can both cause significant issues for your Aisin 6-speed system.

4. Adding New Oil

With the drain plug lightly re-inserted, locate the fill plug (which you hopefully loosened earlier). Remove the fill plug. Insert the flexible spout of your funnel into the fill hole. Slowly begin pouring the new Rheinland JAKO gearbox oil into the funnel. Pour the exact amount you measured from the old oil. Go slowly to avoid airlocks and spillage. It may take some time for the oil to trickle down into the gearbox.

Once the correct amount of new oil has been added, remove the funnel and re-install the fill plug. Now, tighten both the drain and fill plugs to the manufacturer's specified torque settings using your torque wrench. Over-tightening can strip threads, while under-tightening can lead to leaks. Clean up any spilled oil around the plugs and on the gearbox casing.

5. Lowering the Vehicle and Final Checks

Carefully raise the vehicle with the jack, remove the jack stands, and then slowly lower the vehicle back onto the ground. Remove the wheel chocks. Give the vehicle a final visual inspection for any leaks around the drain and fill plugs.

The Crucial Step: Resetting Gearbox Settings

This is a vital step, especially for modern Aisin 6-speed automatic transmissions. Simply changing the oil isn't always enough. The gearbox's internal computer (Transmission Control Unit or TCU) learns and adapts to the old, degraded fluid's characteristics over time. When new, fresh oil is introduced, the TCU might still be operating based on the old fluid's parameters, leading to rough shifts, hesitation, or sub-optimal performance.

Resetting the gearbox settings (sometimes referred to as 'adaptations' or 'learning values') clears these learned parameters, allowing the TCU to 're-learn' the new fluid's characteristics. This process helps the gearbox adapt to the fresh Rheinland JAKO oil, ensuring smooth, precise shifts and optimal operation.

The method for resetting varies by vehicle manufacturer and specific Aisin gearbox model. Common methods include:

• Using a Diagnostic Tool: The most reliable method is to use an OBD-II scanner with advanced transmission functions. Many aftermarket scanners can perform this reset, or you may need a professional-grade tool. Connect the scanner to your vehicle's OBD-II port and follow the on-screen prompts to reset the transmission adaptations.
• Manufacturer-Specific Procedure: Some vehicles have a specific sequence of ignition turns, pedal presses, or fuse removals that can initiate a reset. Consult your vehicle's owner's manual or a specific service manual for your make and model.
• Driving Cycle Re-learning: In some cases, simply driving the vehicle through a specific 're-learning' cycle (often involving various speeds, accelerations, and decelerations) will allow the TCU to re-adapt. However, this is less precise than a dedicated reset via a diagnostic tool.

It is highly recommended to perform a proper reset after changing your Aisin 6-speed gearbox oil to ensure the best possible performance and longevity.

Transmission Fluid Types: A Quick Comparison

While we specifically used Rheinland JAKO, it's worth understanding that not all gearbox oils are created equal. Using the wrong type can cause serious damage.

Always refer to your vehicle's owner's manual or the gearbox manufacturer's specifications to ensure you are using the correct fluid, like the Rheinland JAKO you specified. Generic fluids, even if labelled for automatic transmissions, may not meet the specific requirements of your Aisin 6-speed system.

Common Mistakes to Avoid

• Not Cooling Down the Gearbox: As emphasised, hot oil is dangerous and can lead to inaccurate level readings. Always wait for the gearbox to be cool.
• Not Measuring Drained Oil: Guessing the fill amount is a recipe for disaster. Always use a measuring cup to determine the exact volume to refill.
• Using the Wrong Oil: This is a critical error. The wrong viscosity or additive package can quickly damage your Aisin gearbox. Stick to the specified Rheinland JAKO or an exact OEM equivalent.
• Overfilling or Underfilling: Both scenarios are detrimental. Overfilling can cause foaming, overheating, and seal damage. Underfilling leads to insufficient lubrication and premature wear.
• Not Resetting Gearbox Settings: Ignoring this step can lead to poor shift quality and prevent the gearbox from operating optimally with the new fluid.
• Not Using Jack Stands: Never work under a vehicle supported only by a jack. Safety is paramount.
• Stripping Drain/Fill Plugs: Always use the correct size socket and a torque wrench to tighten plugs to specification.

Frequently Asked Questions (FAQs)

How often should I change my Aisin 6-speed gearbox oil?

Based on your practice, changing the gearbox oil every 20,000 km is an excellent interval for proactive maintenance of your Aisin 6-speed system. While some manufacturers suggest longer intervals or 'sealed for life', regular changes with Rheinland JAKO oil will significantly prolong your gearbox's life and maintain performance.

Can I use any gearbox oil for my Aisin 6-speed system?

Absolutely not. You must use oil that meets the specific requirements of your Aisin 6-speed gearbox, such as Rheinland JAKO. Using an incorrect fluid can lead to serious internal damage, affecting shift quality and ultimately leading to transmission failure. Always consult your vehicle's manual for the precise fluid specification.

What happens if I don't reset the gearbox settings after changing the oil?

If you don't reset the gearbox settings (adaptations), the Transmission Control Unit (TCU) may continue to operate based on the learned parameters from the old, degraded fluid. This can result in rough or delayed shifts, hesitation, and overall sub-optimal performance, as the gearbox struggles to adapt to the new Rheinland JAKO oil. A proper reset allows the TCU to 're-learn' and adapt to the fresh fluid, ensuring smooth and efficient operation.

Is it really easy to change the gearbox oil myself?

Yes, for many vehicles, including those with an Aisin 6-speed system, changing the gearbox oil is considered a straightforward DIY task, especially if you have the right tools and follow safety precautions. The key is to wait for the gearbox to cool down, accurately measure the drained oil with a measuring cup, and remember to reset the gearbox settings afterwards. If you're comfortable working under your car, it's definitely achievable.

How do I know if my gearbox oil needs changing?

Beyond mileage intervals, signs your gearbox oil needs changing include rough or delayed shifts, a burning smell (indicating overheating or severely degraded fluid), grinding noises, or a noticeable drop in performance. However, proactive maintenance at intervals like 20,000 km prevents these issues from arising.

Conclusion

Changing your Aisin 6-speed gearbox oil at the recommended 20,000 km interval with Rheinland JAKO oil is a highly effective way to ensure the longevity and smooth operation of your vehicle's transmission. While it's a relatively easy task, remember the critical steps: allowing the gearbox to cool down, accurately measuring the drained oil using a measuring cup, and most importantly, performing the necessary reset of the gearbox settings. By following this comprehensive guide and prioritising safety, you'll not only save on garage costs but also gain a deeper understanding of your vehicle, ensuring many more miles of smooth, reliable driving.
