Mitsubishi Evo X 295 Custom Remap Explained

The Pursuit of Power: Understanding the Mitsubishi Evo X 295 Custom Remap

The Mitsubishi Lancer Evolution, affectionately known as the Evo, is a legendary nameplate in the automotive world, particularly for its rallying heritage and exhilarating performance. The tenth generation, the Evo X, continued this legacy with its advanced all-wheel-drive system, sophisticated chassis, and a potent turbocharged engine. While the stock Evo X is a formidable machine, many enthusiasts seek to extract even more performance. This is where the concept of a custom remap, often referred to by specific output figures like '295', comes into play. But what exactly is a Mitsubishi Evo X 295 custom remap, and what does it entail?

At its core, a custom remap, or ECU remapping, is the process of reprogramming the Engine Control Unit (ECU) of your vehicle. The ECU is essentially the brain of your car, managing everything from fuel injection and ignition timing to turbocharger boost pressure and throttle response. By altering the software within the ECU, tuners can optimise these parameters to achieve specific performance goals. A '295' figure, in this context, typically refers to an intended horsepower output, suggesting a significant increase over the factory figures, which for a standard Evo X GSR, hovered around the 300-310 bhp mark, depending on market and specific model year.

The Science Behind the Boost: How Remapping Works

The Mitsubishi Evo X, particularly models equipped with the 4B11T engine, is a highly tunable platform. The factory ECU is programmed with a set of parameters designed to balance performance, fuel efficiency, emissions, and reliability across a wide range of driving conditions and fuel qualities. While this provides a robust and dependable package, it leaves room for improvement when specific performance targets are set.

A custom remap involves modifying these factory parameters. Key areas that are adjusted include:

• Fueling: The amount of fuel injected into the cylinders is crucial for optimal combustion. A remap can adjust the fuel maps to provide more fuel under load, allowing for higher boost pressures and increased power. This is often done in conjunction with upgraded fuel injectors if the stock ones become a limiting factor.
• Ignition Timing: The timing of the spark plug firing relative to the piston's position significantly impacts power and efficiency. Advancing ignition timing can generate more power, but it must be carefully managed to avoid engine knock (detonation), which can cause severe damage. A remap will recalibrate ignition timing based on the new fuel and boost levels.
• Boost Pressure: The turbocharger's boost pressure is a primary driver of power in turbocharged engines. A remap can increase the maximum boost pressure the turbocharger produces, forcing more air into the engine. This is usually controlled by adjusting the wastegate duty cycle.
• Throttle Response: The ECU controls how the engine responds to inputs from the throttle pedal. A remap can sharpen the throttle response, making the car feel more immediate and engaging to drive.
• Rev Limiter: In some cases, the rev limiter may be adjusted slightly to allow the engine to reach higher RPMs, though this is often done with caution to maintain engine longevity.

The '295' Target: What to Expect

Achieving a '295' bhp output from an Evo X typically signifies a Stage 1 or Stage 2 tune, depending on the specific modifications carried out. A Stage 1 remap is generally the most straightforward, involving only software adjustments without significant hardware changes. It aims to optimise the existing hardware for more power.

A Stage 2 tune often incorporates minor hardware upgrades to support the increased power. These might include:

• Performance Exhaust System: A less restrictive exhaust, such as a cat-back system or a high-flow catalytic converter, can improve exhaust gas flow, allowing the turbo to spool more efficiently and reducing backpressure.
• Upgraded Intake System: While the Evo X has a decent stock intake, some tuners opt for a cold air intake or a high-flow panel filter to improve airflow to the turbocharger.
• Upgraded Intercooler: A larger, more efficient intercooler helps to cool the compressed intake air more effectively. Denser, cooler air allows for more power and reduces the risk of detonation.

The '295' figure is a tangible goal that represents a noticeable improvement in acceleration and overall performance. It transforms the Evo X into an even more potent machine, capable of quicker sprints and a more exhilarating driving experience. It's important to note that achieving precisely 295 bhp can depend on many factors, including the specific car's condition, the quality of the tune, ambient conditions, and the fuel used.

The Importance of a Custom Tune

The term 'custom' in 'custom remap' is paramount. Off-the-shelf maps, often sold as generic performance tunes, may not be tailored to your specific vehicle. Factors such as the exact model year, any existing modifications, the type of fuel you typically use, and even the climate you drive in can all influence the optimal tuning parameters.

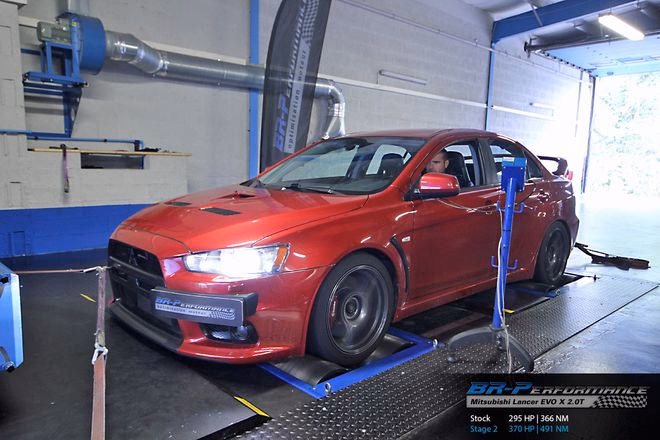

A custom remap involves a skilled tuner using a dynamometer (dyno) to measure your car's output and then fine-tuning the ECU software in real-time. This process ensures that the tune is:

• Safe: The tuner will ensure that engine temperatures, boost pressures, and air-fuel ratios remain within safe operating limits to prevent damage.
• Optimised: The tune will be precisely calibrated for your specific vehicle and its modifications, maximising performance without compromising reliability.
• Driveable: The tuner will ensure that the power delivery is smooth and predictable, making the car enjoyable to drive in everyday conditions, not just on the track.

Potential Benefits of a Mitsubishi Evo X 295 Remap

The advantages of a well-executed custom remap are numerous:

• Increased Horsepower and Torque: This is the most obvious benefit, leading to sharper acceleration and a more potent engine feel.
• Improved Throttle Response: The car will feel more eager and responsive to your inputs.
• Enhanced Driving Experience: The overall character of the car is elevated, making it more engaging and exciting to drive.
• Potential for Improved Fuel Efficiency (in certain conditions): While not the primary goal, a more efficient engine mapping can sometimes lead to better fuel economy during gentle driving. However, aggressive driving to utilise the increased power will naturally consume more fuel.

Considerations and Potential Drawbacks

While the benefits are significant, it's crucial to be aware of the potential considerations:

• Engine Longevity: Pushing an engine beyond its factory specifications, even with a remap, can potentially reduce its long-term lifespan if not done correctly or if the engine is consistently driven hard.
• Warranty: Most manufacturers will void the powertrain warranty if they detect that the ECU has been tampered with or modified.
• Emissions: Depending on the extent of the remap and any accompanying hardware changes (like catalyst removal, which is highly discouraged and often illegal), emissions output could be affected.
• Reliability: A poorly executed remap can lead to engine damage, drivability issues, or a reduction in overall reliability. Choosing a reputable tuner is absolutely critical.
• Insurance: You are legally obligated to inform your insurance provider about any modifications made to your vehicle. Failure to do so could invalidate your insurance.

Choosing the Right Tuner

The success and safety of your Evo X's remap hinge on the expertise of the tuner. Look for tuners with:

• Proven Track Record: Research their reputation within the Evo community.
• Dynamometer Facilities: A reputable tuner will use a dyno for accurate calibration.
• Knowledge of the 4B11T Engine: They should have a deep understanding of the specific engine in your Evo X.
• Transparency: They should be able to explain the process and the expected outcomes clearly.

Technical Storage and Anonymous Statistics

Regarding the technical storage or access used exclusively for statistical purposes, it's important to understand that this typically refers to data collected for website analytics or performance monitoring of the tuning software itself. Such data is usually anonymised and aggregated, meaning it cannot be used to identify individual users or their specific vehicles. For example, a tuner might track how many times a particular tuning file is downloaded or how often a certain parameter is adjusted across many vehicles. This information is valuable for improving the tuning process and understanding trends but does not compromise the privacy of the vehicle owner or the specific details of their car's tune.

Frequently Asked Questions (FAQs)

Q1: Will a remap void my Mitsubishi warranty?

A1: Yes, in most cases, modifying the ECU will void your manufacturer's powertrain warranty. It is always advisable to check your specific warranty terms.

Q2: How much power can I expect from a '295' remap?

A2: The '295' typically refers to horsepower. The exact gains will vary based on the specific car, the tuner, and any supporting modifications, but it represents a significant increase over stock.

Q3: Is a remap safe for my Evo X?

A3: A remap performed by a reputable and experienced tuner using a dynamometer is generally considered safe for the engine, provided it's within reasonable performance envelopes. However, pushing for extreme power figures can compromise long-term reliability.

Q4: What modifications are usually needed for a 295 bhp tune?

A4: For a Stage 1 tune aiming for around 295 bhp, often no hardware modifications are strictly necessary, relying solely on software optimisation. For a Stage 2 tune supporting this power level, minor upgrades like a less restrictive exhaust or an upgraded intercooler might be beneficial.

Q5: Do I need to tell my insurance company about a remap?

A5: Absolutely. It is a legal requirement to declare all modifications to your insurance provider. Failure to do so can lead to your insurance being invalidated.

Conclusion

A Mitsubishi Evo X 295 custom remap is a popular and effective way to unlock more of the 4B11T engine's potential. By carefully recalibrating the ECU, tuners can significantly enhance performance, delivering a more exhilarating driving experience. However, the key to success lies in choosing a skilled and reputable tuner who understands the intricacies of the Evo X and prioritises both performance and engine safety. With the right approach, a custom remap can transform your Evo X into an even more formidable machine, ready to take on any road.
