Evo Brake Caliper Upgrade: A Comprehensive Guide

Upgrading your vehicle's braking system is one of the most impactful modifications you can undertake, significantly enhancing both performance and safety. The Evo brake calipers, renowned for their robust design and exceptional stopping power, represent a formidable upgrade for many enthusiasts. These updated brake systems offer superior power, greater consistency, and a more responsive lever feel compared to many standard setups, making them versatile for various driving conditions and adaptable with a range of rotor sizes. This comprehensive guide will walk you through the meticulous process of installing Evo front and rear brake calipers, ensuring you have all the necessary information to complete this significant upgrade successfully and safely.

Preparation: Safety First and Foremost

Before any work begins, safety must be your absolute priority. Working under a vehicle carries inherent risks, and proper precautions are non-negotiable. Ensure you are working on a level, stable surface. The first step involves preparing your vehicle for the upgrade.

Tools & Parts Required

Having the correct tools and parts readily available will streamline the installation process and prevent unnecessary delays. Here’s what you'll need:

Essential Tools:

Necessary Parts:

Using genuine Evo components, or high-quality aftermarket equivalents, is vital for optimal performance and compatibility.

Vehicle Preparation Steps

Begin by loosening all lug nuts on all four wheels while the car is still on the ground. This prevents the wheels from turning when you try to loosen the nuts later. Once loosened, safely jack the car up and place it securely on jack stands. Ensure the vehicle is stable and will not move or shift while you are working. Remove each wheel and place them aside, out of your working area.

Front Caliper Installation

The front brakes are crucial for stopping power. Take your time with this section to ensure everything is installed correctly and safely.

1. Remove the Stock Front Caliper: The stock front caliper bracket is typically held to the knuckle by two 17mm bolts. Locate and remove these bolts. Once the bolts are out, carefully reposition the caliper out of the way without straining the brake line.
2. Remove the Stock Rotor: With the caliper moved, the old rotor should now be easily removable. It might be held by a small retaining screw or simply be snug on the hub.
3. Install the Evo Rotor: Place the new Evo rotor onto the hub. Ensure it sits flush against the hub face.

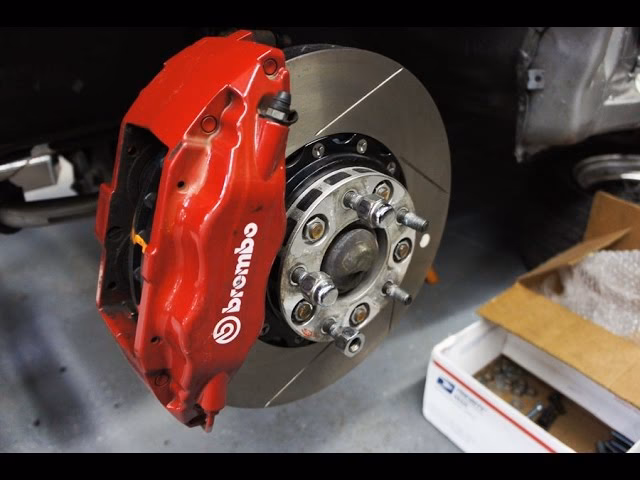

4. Install the Evo Caliper: Position the Evo caliper over the new rotor. Using the specific Evo caliper bolts (M12, 1.75 thread pitch X 35mm Long) and their corresponding washers, install the Evo caliper to the knuckle. These bolts are critical for safety.
5. Torque the Front Caliper Bolts: This is a vital step. Using a torque wrench, tighten these bolts to 108 +/- 10 N.m or 79 +/- 7 ft.lbs. Proper torque is paramount to prevent bolts from loosening or damaging the mounting points.
6. Connect the Brake Line: Carefully disconnect the brake line from the stock caliper. When reconnecting it to the new Brembo caliper, you absolutely must use new crush washers. These washers deform to create a perfect seal and are single-use. The correct order for installation is: Bolt / Washer / Brake Line / Washer / Caliper.
7. Repeat these steps for the other front wheel.

Rear Caliper Installation

The rear brakes contribute significantly to vehicle stability during braking. The process is similar to the front but with a few nuances.

1. Remove the Stock Rear Caliper: The rear caliper bracket is typically held by two 14mm bolts. Remove these bolts and reposition the caliper.
2. Remove the Stock Rotor: Remove the old rear rotor.
3. Address the Rear Dust Shield: The rear dust shield often interferes with the larger Evo rotors. Many choose to remove the shield entirely, while others modify it to allow free rotation of the rotor. For this guide, we will proceed with removal. A common method is to pry the shield off by inserting a screwdriver between the shield and the plate, as it's typically spot-welded every 2-3 inches. After removal, you can use an angle grinder to level off the spot welds and paint the plate with anti-rust black spray paint for protection.
4. Install the Evo Rotor: Mount the new Evo rotor onto the rear hub.
5. Connect the Brake Line: Disconnect the brake line from the stock rear caliper. Rear lines can be particularly tight; a 13mm crescent wrench is often recommended to avoid rounding off the fittings. Install the brake line onto the new Evo caliper, again using new crush washers in the correct order (Bolt / Washer / Brake Line / Washer / Caliper).
6. Install the Evo Caliper: Using the specific Evo rear caliper bolts (M10, 1.50 thread pitch X 20mm Long), along with their washers and fender washers, install the Evo caliper to the knuckle.
7. Torque the Rear Caliper Bolts: While specific torque values for the rear were not provided in the source, it is crucial to consult your vehicle's service manual or a reliable source for the correct torque specifications for rear caliper bolts. Incorrect torque can lead to dangerous brake performance.
8. Repeat these steps for the other rear wheel.

Brake Bleeding: Ensuring System Integrity

Once all calipers and rotors are installed, the most critical step for ensuring safe and effective braking is bleeding the brake system. This process removes any air that has entered the lines, as air is compressible and will lead to a spongy brake pedal and reduced stopping power. If you are unsure about this step, it is highly recommended to seek assistance from an experienced individual.

The Two-Man Method

The two-man method is a common and effective way to bleed brakes. You will need an assistant for this process.

Preparation for Bleeding:

• Prepare a container for old brake fluid. A 1-litre bottle with a hole drilled in the cap, snug enough to hold a 2-3 ft clear 3/16” ID tube, works well. Drill a smaller vent hole in the cap.
• Fill the bottle with about an inch of fresh brake fluid, ensuring the tube reaches the bottom and is fully immersed. This prevents air from being sucked back into the system.
• Ensure the brake fluid reservoir under the bonnet is topped up to the 'MAX' line with new DOT 3 or DOT 4 brake fluid.

Bleed Order for Evo Calipers:

The correct bleed order is essential to effectively purge air from the system. For Evo calipers, follow the service manual's recommended sequence, which typically starts at the corner furthest from the master cylinder and works its way closer. This order ensures air is pushed out efficiently.

Bleeding Steps (Per Nipple):

1. Locate the bleeder screw at the rear of the caliper body. Remove its rubber cap (Evo calipers often have self-contained bleeders).
2. Place the 11mm crescent wrench over the bleeder screw.
3. Place the open end of the clear plastic hose over the bleeder screw nipple, ensuring a snug fit.
4. Instruct your assistant to "apply" the brake pedal. The assistant should pump the brake pedal three times, then hold it down firmly and confirm by saying "applied." Instruct them not to release the pedal until told.
5. Briefly loosen the bleeder screw with a quick ¼ turn to release fluid into the waste line. The screw only needs to be open for about one second or less. The brake pedal will 'fall' to the floor as fluid is released. Remind your assistant not to release the pedal during this time.
6. Close the bleeder screw by tightening it gently. A quick tug is usually sufficient; do not overtighten.
7. Instruct your assistant to "release" the brakes. It is crucial that the brake pedal is NOT released while the bleeder screw is open, as this will draw air back into the system.
8. The assistant should respond with "released."
9. Inspect the fluid in the waste line for air bubbles.
10. Continue this process (steps 5 through 10) until no more air bubbles are visible in the fluid exiting the bleeder.
11. Crucially, regularly check the brake fluid level in the reservoir after bleeding each wheel. Add fresh DOT 3 or DOT 4 fluid as necessary to keep the level at the 'MAX' marking. Allowing the reservoir to run dry will introduce more air into the system, requiring you to start over.

Post-Installation and Road Test

Once all four corners have been bled and you are confident there's no air in the system, it's time for the final checks.

• Clean Up: Spray any areas moistened with spilled brake fluid with brake cleaner and wipe dry with a clean rag. This helps identify any future leaks. Try to avoid direct spraying on rubber or plastic components, as repeated exposure can make them brittle.
• Brake Pedal Feel: Test the brake pedal for a firm, consistent feel. It should not feel spongy or sink slowly to the floor.
• Leak Inspection: Thoroughly inspect all bleeder screws and brake line fittings for any signs of leakage. Even a small drip can indicate a serious problem.
• Wheel Reinstallation: Once satisfied with the installation and leak-free operation, reinstall all wheels.
• Lowering the Vehicle: Jack the car up slightly to remove the jack stands, then carefully lower the car to the ground.
• Lug Nut Torque: Torque the lug nuts to 72 ft/lb. This ensures the wheels are securely fastened without overtightening.

Road Test with Caution

The initial road test is critical. Drive cautiously in a safe, open area, away from heavy traffic. Apply the brakes gently at first, gradually increasing pressure to ensure proper function. New brake pads and rotors require a 'bedding-in' period, where the pad material transfers evenly to the rotor surface. Follow the brake pad manufacturer's recommendations for this process. Pay close attention to any unusual noises, vibrations, or changes in pedal feel. If anything feels off, stop immediately and re-inspect your work. ALWAYS EXERCISE EXTREME CAUTION THE FIRST TIME YOU DRIVE YOUR CAR AFTER ANY BRAKE SYSTEM MODIFICATION TO ENSURE THE PROPER FUNCTION OF ALL VEHICLE SYSTEMS!

Frequently Asked Questions (FAQs)

Here are some common questions regarding brake upgrades and maintenance:

Q1: Why should I upgrade to Evo brakes?

Evo brakes are a significant performance upgrade, offering enhanced stopping power, better heat dissipation, and improved pedal feel. They are particularly beneficial for spirited driving, track use, or for vehicles that have undergone power upgrades, where the stock braking system may become inadequate. The larger calipers and rotors provide more consistent and reliable braking under demanding conditions, boosting overall performance and safety.

Q2: What is DOT 3 or DOT 4 brake fluid, and why is it important?

Brake fluid is a hydraulic fluid that transfers force from your brake pedal to the calipers, causing the pads to clamp the rotors. DOT 3 and DOT 4 are common types, differing primarily in their boiling points. DOT 4 has a higher dry and wet boiling point, making it more suitable for high-performance applications where brakes generate more heat. Brake fluid is hygroscopic, meaning it absorbs moisture over time, which lowers its boiling point and can lead to a 'spongy' pedal. Using fresh, correct-specification fluid is vital for brake system integrity.

Q3: Can I bleed the brakes by myself?

While a 'one-man' brake bleeder kit exists, the 'two-man' method described is generally more effective at ensuring all air is purged. If you are alone, a pressure bleeder or vacuum bleeder can be used, but these require specific equipment. For a first-timer, having an assistant for the two-man method is highly recommended for safety and effectiveness.

Q4: Why are new crush washers essential when reconnecting brake lines?

Crush washers are soft metal rings (often copper or aluminium) that deform when compressed by the banjo bolt, creating a perfect, leak-proof seal between the brake line and the caliper. They are designed for single-use because once crushed, they lose their ability to form an effective seal if reused. Reusing old crush washers significantly increases the risk of a dangerous brake fluid leak, which can lead to complete brake failure.

Q5: How often should I change or bleed my brake fluid?

Most manufacturers recommend changing brake fluid every two to three years, regardless of mileage. This is because brake fluid absorbs moisture over time, which degrades its performance and can lead to internal corrosion of brake components. Bleeding is performed whenever air enters the system (e.g., after caliper replacement) or as part of a fluid change to ensure no air bubbles remain.

Q6: What if my brake pedal feels spongy after bleeding?

A spongy brake pedal after bleeding almost always indicates that there is still air trapped in the brake lines. Re-bleed the system, paying close attention to the sequence and ensuring the reservoir doesn't run dry. Sometimes, persistent air bubbles can be stubborn and require several bleeding attempts. If the issue persists, inspect all connections for leaks or consider professional assistance.

By following this detailed guide, you can confidently undertake the Evo brake caliper upgrade, enjoying enhanced stopping power and a safer driving experience. Remember, attention to detail, adherence to torque specifications, and thorough bleeding are the keys to a successful installation.
