The ability of your car to stop safely and reliably is fundamentally down to the intricate workings of its braking system. At the heart of this system, and arguably the most critical wear item, are the brake pads. These seemingly simple components are responsible for converting the kinetic energy of your moving vehicle into heat through friction, ultimately bringing your car to a halt. Understanding how they function, why they are so important, and what dictates their maintenance is key to ensuring your vehicle's safety on the road.
The Disc Brake System: A Coordinated Effort
Brake pads are an integral part of the more widely known disc brake system, a design that has become ubiquitous in modern vehicles due to its superior stopping power and heat dissipation compared to older drum brake systems. The disc brake system comprises several key components working in unison:
- Brake Disc (Rotor): A metal disc, typically made of cast iron or steel, that rotates with the wheel.
- Brake Caliper: A clamp-like housing that straddles the brake disc. It contains one or more pistons.
- Brake Pads: The friction material housed within the caliper, designed to press against the brake disc.
- Brake Fluid: A hydraulic fluid that transmits the force from the brake pedal to the caliper pistons.
- Brake Lines: Hoses and pipes that carry the brake fluid throughout the system.
When you press the brake pedal, hydraulic pressure is generated within the brake lines. This pressure forces the caliper pistons outwards. These pistons, in turn, push the brake pads firmly against the rotating brake disc. The resulting friction between the pad material and the disc surface is what slows and eventually stops the wheel's rotation.
How Brake Pads Generate Friction

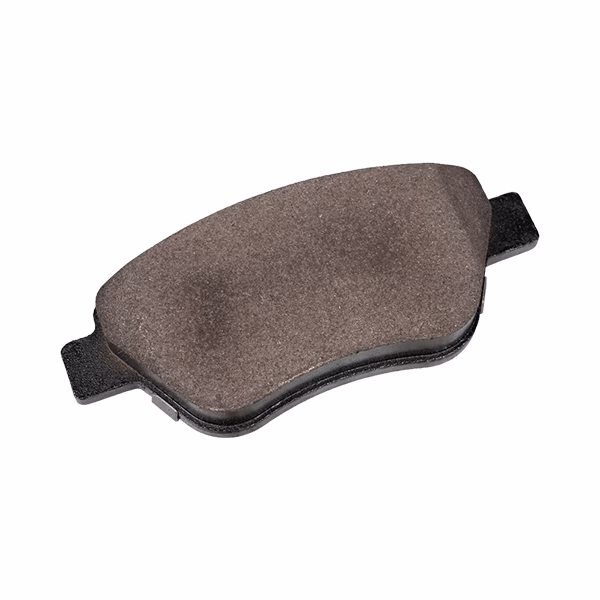

The magic of stopping lies in the friction material bonded to the metal backing plate of the brake pad. This material is specifically engineered to provide a high coefficient of friction, meaning it effectively resists sliding against the brake disc. When the caliper pistons apply pressure, the pad material is compressed against the disc, creating the resistance that slows the vehicle.
The process can be visualised as follows:
- Pedal Application: Driver presses the brake pedal.
- Hydraulic Pressure: Master cylinder generates hydraulic pressure in the brake fluid.
- Piston Actuation: Pressure forces caliper pistons outwards.
- Pad Engagement: Pistons push brake pads against the brake disc.
- Friction Generation: Friction material on pads abrades against the spinning disc.
- Kinetic Energy Conversion: Kinetic energy is converted into heat energy.
- Deceleration: The wheels, and thus the vehicle, slow down.
The effectiveness of this friction is influenced by several factors, including the composition of the pad material, the condition of the brake disc, and the amount of pressure applied.
Brake Pad Materials: A Balancing Act
The material composition of brake pads is crucial and dictates their performance characteristics, such as stopping power, noise levels, heat resistance, and longevity. Different types of materials are used, each with its pros and cons:
| Material Type | Pros | Cons | Typical Use |
|---|---|---|---|
| Organic (Non-Asbestos Organic - NAO) | Quiet operation, good initial bite, relatively inexpensive. | Shorter lifespan, can produce more dust, lower heat tolerance. | Everyday passenger cars, light-duty vehicles. |
| Semi-Metallic | Good heat dissipation, durable, strong stopping power, good for varied conditions. | Can be noisier, produce more dust, may wear discs faster. | Performance cars, SUVs, trucks, general use. |
| Ceramic | Very quiet, low dust, excellent heat dissipation, long lifespan, gentle on discs. | Can be more expensive, may have a slightly less aggressive initial bite in very cold conditions. | Luxury vehicles, performance cars, drivers prioritising quietness and cleanliness. |
| Low-Metallic NAO | A hybrid offering improved performance over pure organic pads, better heat handling. | Can be noisier than pure organic, dust levels vary. | Some passenger cars, particularly those requiring slightly better performance than basic organic pads. |
The choice of brake pad material is often a compromise between cost, performance, and driving conditions. For most standard vehicles, organic or semi-metallic pads offer a good balance.
Regulation 90: Ensuring Safety Standards
In the United Kingdom, and indeed across much of Europe, the performance and safety of replacement brake pads are governed by legislation. The most significant of these is “REGULATION 90”, officially known as ECE R90. This regulation mandates that replacement brake pads must meet or exceed the performance standards of the original equipment (OE) pads they are designed to replace.
Key aspects of ECE R90 include:
- Performance Equivalence: Replacement pads must have similar braking performance to the OE pads, including cold stopping performance, high-speed performance, and fade resistance.
- Material Certification: The friction materials used must be certified to meet specific standards.
- Marking: Approved brake pads must carry an “E” mark followed by a number indicating the country of approval, and a type approval number.
- Testing: Manufacturers must conduct rigorous testing to prove compliance.
This regulation is vital because it ensures that using aftermarket brake pads does not compromise your vehicle's braking ability, a critical safety feature. Always look for the ECE R90 mark on replacement brake pads.
When Should Brake Pads Be Replaced?
Brake pads are a consumable item and will wear down over time. Regular checks are essential. The most common indicators that your brake pads need replacing include:
- Audible Warning: Many brake pads have a small metal tab called a wear indicator. When the pad material wears down to a certain point, this tab contacts the brake disc, producing a high-pitched squealing or grinding noise, especially when the brakes are applied.
- Visual Inspection: If you can see the brake pads through the wheel spokes, check the thickness of the friction material. If it appears to be less than 3mm (approximately 1/8th of an inch), they should be replaced.
- Reduced Braking Performance: A spongy or soft brake pedal, or a longer stopping distance, can indicate worn pads or other issues within the braking system.
- Vibration or Pulsation: While often associated with warped brake discs, severe pad wear can sometimes contribute to these symptoms.
- Warning Lights: Some modern vehicles have electronic wear sensors that will illuminate a dashboard warning light when the pads are critically low.
It is also standard practice and highly recommended to replace brake pads when replacing brake discs. This is because both components wear together, and fitting new discs with old pads can lead to premature wear of the new discs or uneven braking. Furthermore, brake pads should always be replaced in axle sets. This means if you replace the front left brake pad, you must also replace the front right brake pad to ensure balanced braking. The same applies to the rear axle.
Other Components to Consider During Replacement
When undertaking a brake pad replacement, it's prudent to inspect and potentially replace other associated components to ensure the entire braking system is in optimal condition:
- Brake Discs: As mentioned, check for wear, scoring, or warping. If the discs are below minimum thickness or significantly damaged, they should be replaced along with the pads.
- Wear Sensor Leads: If your vehicle is equipped with electronic wear sensors, these leads can become brittle or damaged. They are often designed to be replaced with the pads.
- Pad Fitting Pins/Clips: These small metal components secure the pads within the caliper. They can corrode or become fatigued and should be replaced with new ones if they show signs of wear or damage.
- Brake Fluid: While not directly part of the pad replacement, it's a good time to check the brake fluid level and condition. Brake fluid absorbs moisture over time, reducing its effectiveness and potentially causing corrosion. A full brake fluid flush and replacement are typically recommended every two years.
- Caliper Service: Inspect the caliper for any leaks, seized pistons, or damaged dust seals. Sometimes, a minor service to the caliper, such as cleaning and lubricating the guide pins, is beneficial.
Frequently Asked Questions (FAQs)
Q1: How often should I replace my brake pads?
A1: The lifespan of brake pads varies significantly depending on driving style, vehicle type, and the type of pads used. A typical set might last anywhere from 20,000 to 70,000 miles. Regular visual or audible checks are the best way to determine when replacement is needed.
Q2: Can I replace just one brake pad?
A2: No, you must always replace brake pads in axle sets (both sides of the front or both sides of the rear) to ensure even braking performance and prevent the car from pulling to one side.
Q3: What does the squealing noise mean?
A3: A high-pitched squeal when braking usually indicates that the wear indicators have made contact with the disc, signalling that the pads are worn and need replacement soon.
Q4: Are ECE R90 approved pads really necessary?
A4: Yes, ECE R90 approval ensures that the replacement pads meet equivalent safety and performance standards to the original parts, which is crucial for your vehicle's braking capability.
Q5: What happens if I don't replace my worn brake pads?
A5: Neglecting worn brake pads can lead to significantly reduced braking performance, potentially causing longer stopping distances and increasing the risk of an accident. It can also lead to damage to the brake discs, resulting in more expensive repairs.
In conclusion, brake pads are a fundamental safety component of your vehicle. Understanding their role, the materials they are made from, the regulations governing their replacement, and the signs that indicate they need attention will empower you to maintain your car's braking system effectively, ensuring your safety and the safety of others on the road.
