Engine Temp Gauge: High But Not Overheating?

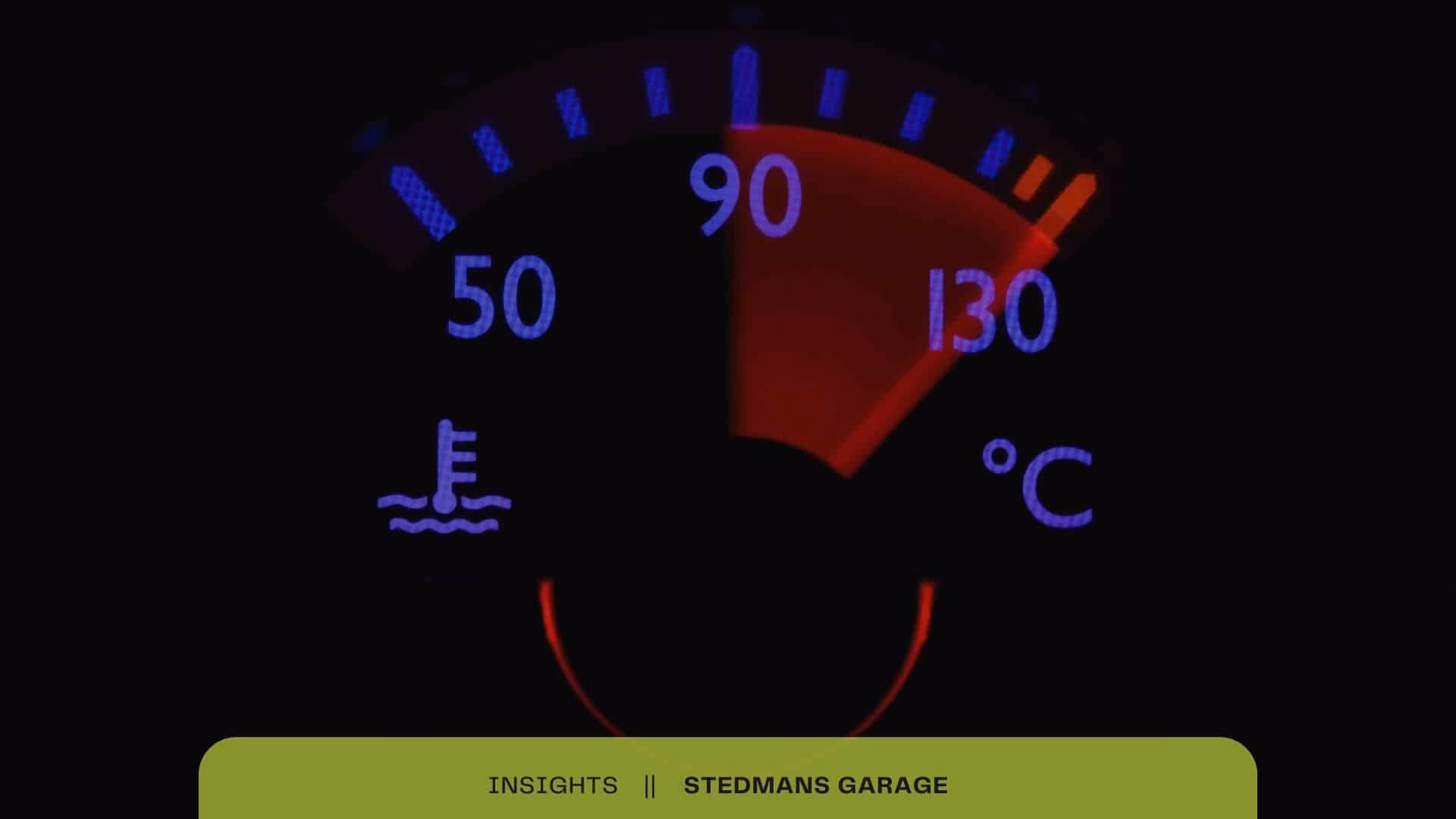

Understanding Your Engine's Temperature Gauge

It can be a concerning sight when your car’s temperature gauge starts to climb. A hot engine, if left unchecked, can lead to a cascade of problems, from a noticeable loss of performance to the dreaded scenario of being stranded roadside with smoke billowing from under the bonnet. While a rising temperature gauge is often a direct indicator of an engine that’s running too hot, what happens when the gauge indicates a problem, but your car doesn’t *feel* like it’s overheating? This is a common quandary for many drivers and can be attributed to a variety of issues within your vehicle’s cooling system or its associated sensors and gauges.

Your engine’s coolant system is a vital component, and the temperature gauge is its primary messenger to you, the driver. It provides a rapid warning if something is amiss. Ideally, your engine should operate within a specific temperature range, typically between 90 to 105 degrees Celsius (195-220 degrees Fahrenheit). However, most temperature gauges are not precise enough to display these exact figures. Instead, they offer a general indication. When your engine is functioning correctly, the needle on the temperature gauge should rest comfortably around the middle of the dial, not venturing into the red zone.

If you start your car and notice the temperature gauge is higher than you’d expect, it’s often advisable to give the engine a few minutes to warm up properly before making a definitive judgment. The ‘normal’ position for your gauge is where it settles after the engine has reached its optimal operating temperature. However, it’s crucial to remember that this reading might not always be perfectly accurate.

The way temperature gauges are wired can differ significantly between vehicles. Many modern cars utilise an Engine Control Unit (ECU). This sophisticated piece of technology uses the coolant temperature data to fine-tune crucial functions like the air-fuel mixture at various operating temperatures. In these systems, the coolant temperature sensor’s wires first connect to the ECU, which then relays the processed information to the instrument cluster. In contrast, some older vehicles have the coolant temperature sensor’s wires routed directly to the cluster, often omitting the ECU’s involvement in this specific data stream.

Why Is Your Temperature Gauge High But The Car Isn't Actually Overheating?

This is the million-dollar question for many drivers experiencing this peculiar symptom. If your temperature gauge is reading high, but you can’t feel any excessive heat or see any other signs of actual overheating, several potential culprits could be at play:

1. Temperature Sensor Failure

The primary role of the temperature sensor (often referred to as the coolant temperature sensor) is to accurately measure the engine’s coolant temperature. If this sensor is failing or has malfunctioned, it can send inaccurate readings to your car’s computer or directly to the gauge. This can result in a misleadingly high reading on your temperature gauge, even if the coolant is at a perfectly normal temperature. Sensors can become impaired by debris, dirt, or corrosion over time. If the electrical connections to the sensor become damaged, this will also prevent it from sending accurate information.

Symptoms of a Failing Temperature Sensor:

• Inaccurate temperature gauge readings (high or low).
• Poor fuel economy.
• Check engine light illuminated.
• Rough idling or stalling.
• Difficulty starting the engine.

If you suspect a faulty temperature sensor, cleaning its connections and inspecting it for damage is a good first step. However, replacement is often necessary.

2. Broken Temperature Gauge

Just like any mechanical or electrical component, the temperature gauge itself can fail. If the gauge is broken, it won't be able to provide an accurate reading of the engine's temperature. The needle might become physically stuck in a certain position, perhaps in the ‘hot’ zone, due to damage or even a build-up of grease. In some cases, the needle might shatter. If the gauge is stuck or giving consistently false high readings when other indicators suggest the engine is fine, the gauge itself might be the issue.

Signs of a Broken Temperature Gauge:

• The needle remains fixed in one position for an extended period.
• The needle doesn’t move at all, or moves erratically.
• The gauge consistently reads high or low, regardless of actual engine temperature.
• The gauge suddenly jumps to ‘hot’ or ‘cold’ without a corresponding change in engine behaviour.

A broken gauge will likely require professional attention for repair or replacement.

3. Engine Control Unit (ECU) Failure

While less common, a failure within the Engine Control Unit (ECU) can also lead to incorrect temperature readings. The ECU processes data from various sensors, including the coolant temperature sensor, and sends information to the instrument cluster. If the ECU malfunctions, it might misinterpret sensor data or send incorrect signals to the gauge, resulting in a false high-temperature reading.

Troubleshooting ECU Issues:

Diagnosing an ECU fault typically requires specialised diagnostic equipment. If you suspect an ECU issue, it’s best to consult a professional mechanic. They can use an OBD2 scanner to check for fault codes related to temperature readings and compare data from different sensors to pinpoint the problem.

4. Connector Corrosion

Corrosion is a common enemy of electrical connections. If corrosion builds up on the connectors for the temperature sensor, the gauge, or even the ECU, it can impede the flow of electrical signals, leading to inaccurate readings. This can manifest as a temperature gauge reading high when the engine is actually cool.

Addressing Connector Corrosion:

Cleaning the connectors with a suitable electrical contact cleaner or even brake fluid (used carefully and sparingly) can often resolve issues caused by corrosion. If corrosion is found on any component, it may indicate that the component itself is worn and might need replacement.

5. Damaged Sensor or Gauge Wires

The wiring that connects the temperature sensor to the ECU and then to the gauge, or directly to the gauge, can become damaged. This damage could be due to wear and tear, rubbing against other components, or rodent damage. Short circuits or breaks in these wires can lead to erratic or false readings on the temperature gauge.

Inspection Tips:

Carefully inspect the wiring harnesses connected to the temperature sensor and the back of the instrument cluster for any signs of damage, chafing, or loose connections.

6. Insufficient Coolant or Air in the System

While this usually causes actual overheating, a significant airlock in the cooling system or a very low coolant level can sometimes lead to the sensor not being properly immersed in coolant. This can result in the sensor providing inaccurate (often high) readings, even if the engine isn't critically hot. It’s crucial to ensure your coolant level is correct and that the system is properly bled of any air.

Checking Coolant Levels:

Always check your coolant level when the engine is cold. The reservoir should be filled to the ‘MAX’ or ‘FULL’ mark. If the level is low, top it up with the correct type of coolant mixture. Bleeding the system of air is also a vital step after topping up or replacing coolant.

7. Head Gasket Failure

A failing head gasket can cause combustion gases to leak into the coolant passages, or coolant to leak into the combustion chamber. This can lead to a build-up of pressure in the cooling system and introduce air pockets, both of which can affect the coolant temperature sensor's readings and potentially cause the gauge to read high. You might also notice other symptoms like white smoke from the exhaust or coolant in the oil.

8. Faulty Water Pump

The water pump is responsible for circulating coolant throughout the engine. If the water pump is failing, the coolant flow can be reduced, leading to the engine running hotter than normal. While this is a form of actual overheating, the symptoms might initially be subtle, and the gauge could be the first indicator. A failing water pump can be caused by a worn impeller, a leaking seal, or a broken shaft.

9. Overused or Overworked Engine

In some instances, particularly after prolonged periods of hard driving, such as towing heavy loads, driving up steep inclines, or sustained high-speed driving, the engine can become overworked. This can cause it to generate more heat than the cooling system can efficiently dissipate, leading to higher-than-normal operating temperatures. In such cases, the gauge reading high is often accurate, and the best course of action is to pull over and allow the engine to cool down.

When Do You Need to Fix Your Temperature Gauge?

If your temperature gauge is consistently giving you readings that don’t align with the car’s actual performance or other indicators, it’s time to investigate. Here are some additional signs that might point towards a faulty gauge:

• The temperature needle remains stuck in the red zone for an extended period, even after the engine has cooled.
• The gauge reads between 25-35 degrees Celsius after driving for a while, indicating it’s not reaching operating temperature.
• The car's fuel efficiency has suddenly dropped significantly.
• The temperature gauge fluctuates wildly or doesn't move at all.
• When driving slowly or idling, the gauge drops from normal to cold.

A quick check of the radiator cap is also worthwhile. If it’s not properly sealed, it can lead to pressure loss in the cooling system, potentially affecting gauge accuracy.

Fixing Temperature Gauge Rising But Car Not Overheating

If you’ve identified that the issue isn't actual overheating but rather a faulty reading, the repair approach will depend on the cause. If the problem lies with the temperature sensor or gauge, these components will likely need to be replaced. If it’s a wiring issue, repairing or replacing the damaged wires will be necessary. Corrosion issues can often be resolved by cleaning the relevant electrical connectors.

A stuck thermostat or a cooling fan that isn’t operating correctly can also cause the gauge to read high. A thermostat that’s stuck closed will prevent coolant from circulating, leading to overheating, while one stuck open might prevent the engine from reaching its optimal operating temperature. Faulty relays or resistors can also cause cooling fans to malfunction. Using a professional OBD2 scanner is highly recommended for diagnosing these types of issues, as it can retrieve error codes stored in the vehicle’s computer that point directly to the problem.

What Should You Do If Your Car Is Actually Running Hot?

If your temperature gauge is indeed indicating that your engine is overheating, or if you notice other signs like steam from the engine bay, reduced power, or a hot smell, immediate action is crucial. Pull over to a safe location as soon as possible. Turn off the air conditioning and turn on the heater to full blast – this helps to draw some heat away from the engine. Once stopped, turn off the engine and allow it to cool down completely. Never attempt to open the radiator cap when the engine is hot, as the pressurised steam and coolant can cause severe burns. Once cooled, check the coolant level. If it’s low, and you have coolant or water available, you can add some. However, if the engine has seriously overheated, it’s best to arrange for the vehicle to be towed to a reputable mechanic for diagnosis and repair.

How to Prevent Your Car From Running Hot

Prevention is always better than cure. Regular maintenance and a few proactive steps can significantly reduce the risk of your engine overheating:

• Monitor Temperature Gauge: Make it a habit to glance at your temperature gauge regularly during your drives.
• Maintain Coolant Levels: Ensure the coolant reservoir is always filled to the correct level. Check it when the engine is cold. Use the correct 50/50 mixture of coolant and distilled water, or a pre-mixed solution. Never add coolant to a hot engine.
• Flush the Radiator: Periodically flushing the cooling system (following your manufacturer’s recommendations, typically around every 40,000 miles) removes old, degraded coolant and any accumulated sediment.
• Check Belts and Hoses: Inspect cooling system hoses for cracks, leaks, or swelling, and check the condition of drive belts.
• Radiator Maintenance: Keep the front of the radiator clean and free from debris like leaves and insects, which can obstruct airflow.
• Parking Wisely: Whenever possible, park in the shade, especially during hot weather. Using a sunshade for the windscreen can also help keep the cabin cooler.

FAQs

Is a high temperature gauge a sign of engine overheating?

Generally, yes. A high reading on the temperature gauge is a strong indicator that your engine is running hotter than normal. However, as discussed, there are instances where the gauge itself or its associated sensors might be faulty, giving a false high reading.

What should the normal engine temperature be?

The typical operating temperature for most engines is between 90-105 degrees Celsius (195-220 degrees Fahrenheit). The temperature gauge on your dashboard should generally sit in the middle of its range when the engine is at normal operating temperature.

What do I do if my temperature gauge is high but the engine feels normal?

If your temperature gauge reads high but you don’t experience any other symptoms of overheating, the issue could be a faulty temperature sensor, a problem with the gauge itself, corrosion in the wiring, or an airlock in the cooling system. It’s advisable to have a mechanic diagnose the cause.

Can low coolant cause a false high reading on the temperature gauge?

Yes, if the coolant level is very low, the temperature sensor may not be fully submerged in coolant, leading to inaccurate readings. This is one of the reasons it’s essential to maintain the correct coolant level.

How often should I check my coolant?

It’s a good practice to check your coolant level regularly, at least once a month, and always before a long journey. You should always check it when the engine is cold.

Is it safe to drive with the temperature gauge reading high?

It is not recommended to drive with the temperature gauge reading high, especially if the engine is genuinely overheating. Doing so can cause significant and expensive damage to the engine. If the reading is high but you suspect it’s a false reading, proceed with caution and have it checked as soon as possible.
