Understanding Your Car's Cylinder Head Gasket

The cylinder head gasket is a silent, yet absolutely vital, component within your vehicle's internal combustion engine. Often overlooked until a problem arises, this seemingly simple seal plays a critical role in maintaining the integrity and efficiency of your engine. Think of it as the unsung hero that keeps everything running smoothly, separating the combustion chambers from the oil and coolant passages. Without a properly functioning cylinder head gasket, your engine would quickly succumb to internal leaks, overheating, and catastrophic failure. This article will delve into the intricacies of this essential part, exploring its function, common failure points, and the importance of its maintenance.

What Exactly is a Cylinder Head Gasket?

At its core, a cylinder head gasket is a precisely engineered sealing component that sits between the engine block and the cylinder head. Its primary purpose is to create a tight seal that prevents the high-pressure gases generated during combustion from escaping the cylinder. Simultaneously, it must prevent the engine's vital fluids – namely oil and coolant – from mixing with each other or leaking out of the engine. This multi-faceted sealing task is achieved through a combination of robust materials and intricate design. Modern cylinder head gaskets are typically constructed from multiple layers of steel (MLS gaskets), often with rubber or silicone coatings to enhance their sealing capabilities at specific points. Older vehicles might have used composite materials or even copper, but the MLS design has become the industry standard due to its superior durability and performance under extreme conditions.

The Critical Functions of a Cylinder Head Gasket

The cylinder head gasket performs several crucial functions, all of which are essential for the proper operation of your engine:

• Sealing Combustion Gases: During the combustion cycle, the mixture of fuel and air ignites, creating immense pressure within the cylinder. The gasket ensures that this pressure remains contained, forcing the piston downwards and generating power. A compromised gasket can lead to a loss of compression, resulting in reduced engine power and efficiency.
• Preventing Coolant and Oil Mixing: The engine block and cylinder head have separate passages for coolant (to regulate temperature) and oil (for lubrication). The gasket meticulously seals these passages, preventing any intermingling. If coolant enters the oil, it can form a milky sludge that severely damages engine components. If oil enters the coolant, it can reduce the coolant's effectiveness and lead to overheating.
• Maintaining External Seals: In addition to internal seals, the gasket also prevents oil and coolant from leaking externally from the engine. External leaks can be messy, potentially hazardous, and a clear indicator of a gasket failure.

Common Causes of Cylinder Head Gasket Failure

Despite their robust construction, cylinder head gaskets are not indestructible. Several factors can contribute to their premature failure:

1. Overheating

One of the most common culprits behind a blown head gasket is engine overheating. When an engine runs too hot, the materials of the gasket can degrade, warp, or even melt. This can be caused by a variety of issues, including a faulty thermostat, a malfunctioning water pump, a clogged radiator, or low coolant levels. The extreme temperatures cause the gasket to lose its sealing integrity.

2. Excessive Pressure

While designed to withstand high pressures, continuous exposure to abnormally high combustion pressures can eventually stress the gasket beyond its limits. This can occur due to factors like detonation (engine knocking), improper ignition timing, or modifications that significantly increase the engine's power output without upgrading other components.

3. Age and Wear

Like any component in your vehicle, the cylinder head gasket is subject to the effects of time and continuous use. Over many years and countless combustion cycles, the materials can become brittle, lose their elasticity, or develop microscopic cracks. This natural wear and tear can eventually lead to a failure.

4. Improper Installation

A cylinder head gasket is a critical seal, and its installation requires precision. If the cylinder head bolts are not torqued to the manufacturer's specifications, or if the surfaces of the engine block and cylinder head are not perfectly clean and flat, the gasket may not seal correctly from the outset, leading to early failure.

5. Manufacturing Defects

Although rare, manufacturing defects can occur. A faulty gasket from the factory, with imperfections in its material or construction, can fail prematurely, even under normal operating conditions.

Symptoms of a Blown Cylinder Head Gasket

Recognising the signs of a failing cylinder head gasket is crucial for preventing further damage to your engine. Some common symptoms include:

• White Smoke from the Exhaust: This is often the most noticeable symptom, indicating that coolant is leaking into the combustion chamber and being burned along with the fuel. The smoke is typically thick and sweet-smelling.
• Milky or Foamy Oil: If oil and coolant mix, the oil can take on a milky, frothy appearance. You might observe this on the dipstick or under the oil filler cap.
• Loss of Engine Power: A loss of compression due to a faulty gasket will directly impact the engine's ability to generate power, leading to sluggish acceleration and reduced overall performance.
• Overheating: As mentioned earlier, a blown head gasket can lead to coolant loss or the presence of exhaust gases in the cooling system, both of which can cause the engine to overheat.
• Bubbles in the Coolant Reservoir: If exhaust gases are leaking into the cooling system, you may see bubbles forming in the coolant reservoir when the engine is running.
• External Leaks: You might notice oil or coolant seeping from the area between the engine block and the cylinder head.

Diagnosing a Cylinder Head Gasket Issue

Diagnosing a blown head gasket typically involves a combination of visual inspection and specific tests performed by a qualified mechanic:

Replacing a Cylinder Head Gasket: A Complex Task

Replacing a cylinder head gasket is a significant repair that requires a high level of mechanical skill and specialised tools. It's not a DIY job for the faint of heart. The process involves:

1. Disassembling a considerable portion of the engine, including removing the intake and exhaust manifolds, timing belt or chain, and the cylinder head itself.
2. Thoroughly cleaning the mating surfaces of both the engine block and the cylinder head to ensure they are perfectly flat and free of any debris. Warped surfaces may need to be machined (resurfaced) by a specialist.
3. Installing the new cylinder head gasket correctly, ensuring it is oriented properly.
4. Reassembling the engine, meticulously torquing the cylinder head bolts in the correct sequence and to the specified torque values. This is critical for achieving a proper seal.
5. Refilling and bleeding the cooling system and topping up engine oil.

Given the complexity and the potential for further damage if done incorrectly, it is highly recommended to entrust this job to a qualified mechanic. They will have the necessary expertise, tools, and diagnostic equipment to ensure the repair is carried out correctly.

Where Can You Purchase a Replacement Cylinder Head Gasket?

When it comes time to replace your cylinder head gasket, sourcing a quality part is paramount. You can typically purchase replacement engine gaskets, including cylinder head gaskets, from:

• Main Dealerships: While often the most expensive option, dealerships offer genuine manufacturer parts that are guaranteed to fit and perform as intended.
• Independent Motor Factors/Auto Parts Stores: Reputable auto parts stores carry a wide range of aftermarket gaskets from various brands. Brands like ITM Engine® are well-regarded for their quality. It's advisable to research brands and choose one known for reliability.
• Online Retailers: Many online platforms offer automotive parts, providing convenience and often competitive pricing. Ensure you are buying from a reputable seller and that the part is compatible with your specific vehicle make, model, and year. Many sites allow you to input your vehicle details to filter results.

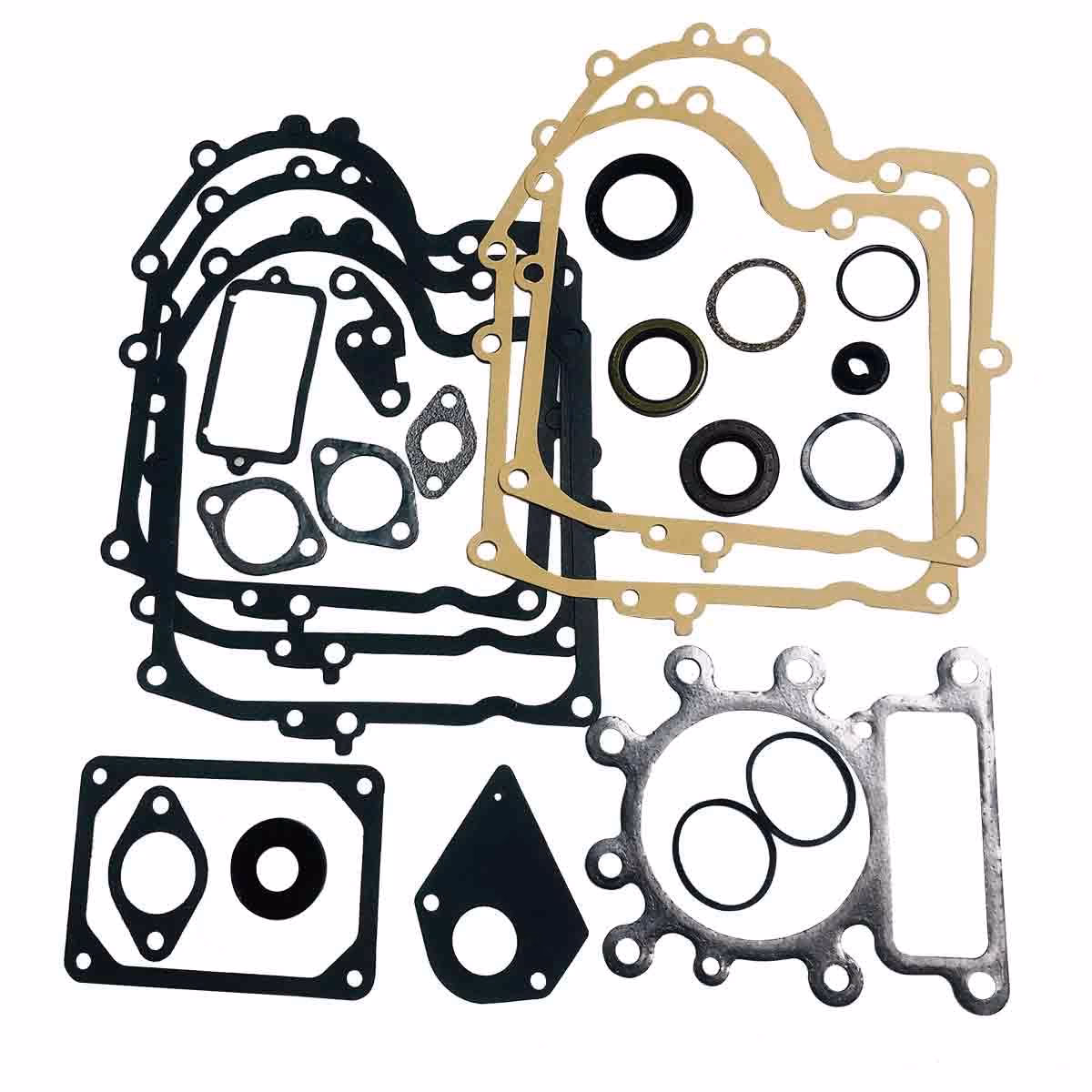

When purchasing, ensure you obtain a full gasket set if required, as other seals and components may need replacing simultaneously during a cylinder head gasket repair.

Preventative Maintenance and Longevity

While cylinder head gaskets are designed to last the lifetime of the engine, proper maintenance can help prevent premature failure:

• Regularly Check Coolant Levels: Ensure your coolant is always at the correct level. Low coolant is a leading cause of overheating.
• Maintain Your Cooling System: Have your cooling system inspected periodically. This includes checking the radiator, hoses, water pump, and thermostat. Flush and replace coolant according to your vehicle manufacturer's recommendations.
• Address Overheating Promptly: If your engine temperature gauge starts to rise, pull over safely and investigate the cause. Do not continue driving an overheating vehicle, as this is a sure way to damage the head gasket.
• Avoid Engine Modifications Without Proper Upgrades: If you plan to increase your engine's power, ensure that supporting components, including the cooling system and potentially the head gasket itself, are upgraded accordingly.

Frequently Asked Questions (FAQs)

Q1: How long does a cylinder head gasket typically last?

A1: A properly functioning cylinder head gasket can last for the lifetime of the engine, often exceeding 150,000 miles. However, factors like overheating, poor maintenance, and driving habits can significantly shorten its lifespan.

Q2: Can I drive my car with a blown head gasket?

A2: It is strongly advised not to drive your car with a blown head gasket. Continued operation can lead to severe and irreversible damage to other engine components, such as the cylinder head, engine block, and pistons, turning a potentially repairable problem into a complete engine replacement.

Q3: Is it possible to repair a head gasket without replacing it?

A3: For minor leaks, some temporary stop-leak additives exist, but these are generally not a reliable long-term solution and can sometimes cause further issues within the cooling system. For a blown or significantly leaking head gasket, replacement is the only effective and lasting repair.

Q4: What's the difference between a head gasket and a valve cover gasket?

A4: The cylinder head gasket seals the combustion chamber, oil, and coolant passages between the engine block and cylinder head. A valve cover gasket, on the other hand, seals the valve cover to the cylinder head, preventing oil from leaking out of the top of the engine.

Conclusion

The cylinder head gasket is an indispensable component that ensures the efficient and safe operation of your engine. Understanding its function, recognising the symptoms of failure, and adhering to a routine maintenance schedule are key to protecting this vital seal. While a blown head gasket is a serious issue, prompt diagnosis and professional repair can save your engine from further catastrophic damage. Regular checks of your coolant and addressing any signs of overheating immediately are the best preventative measures you can take.
