The Art of Ignition Timing: Getting Your Classic Engine Purring
Ignition timing is a critical, yet often misunderstood, aspect of internal combustion engine operation. It dictates precisely when the spark plug ignites the air-fuel mixture in the cylinder. Setting this correctly is paramount for optimal performance, fuel efficiency, and engine longevity. Get it wrong, and you could be facing anything from a rough idle to severe engine damage. This article delves into the nuances of ignition timing, drawing on real-world scenarios and expert advice to help you understand and correctly set the timing for your vehicle.
What Exactly IS Initial Timing?
Initial timing, often referred to as static timing, is the position of the crankshaft relative to the piston at the moment the spark plug fires when the engine is at idle speed (or, in some cases, when the engine is not running at all). This is typically measured in degrees Before Top Dead Centre (BTDC). The 'initial' setting is the baseline from which the engine's computer or mechanical distributor advance mechanisms will further adjust the timing as engine speed and load change.
The Case of the Stalling Lincoln Town Car
Don Graves writes about a peculiar issue with his 1995 Lincoln Town Car featuring a 4.6-litre V8. The engine stalls a couple of times each morning during the warm-up phase, but once running, it performs admirably. This symptom, manifesting specifically during the transition from cold to operating temperature, strongly suggests a problem with the Idle Air Control (IAC) valve. The IAC valve is responsible for regulating the amount of air bypassing the throttle plate, thereby controlling idle speed, especially when the engine is cold and requires a higher idle to prevent stalling. A common failure mode is the valve sticking, either due to carbon buildup or internal wear. Don's advice to tap the IAC valve with a screwdriver to see if it unsticks, or to remove and gently shake it to check for free movement, is a practical first step. If it doesn't rattle, it's likely seized and may benefit from cleaning with carburetor cleaner or, more reliably, replacement. This is often a relatively inexpensive part and a straightforward fix.
Timing the Beast: The DeTomaso Pantera's 351 Cleveland
Gil Mares presents a more complex timing challenge with his DeTomaso Pantera equipped with a 351 Cleveland engine. The initial timing specification for this powerplant can vary significantly, ranging from 6 to 16 degrees BTDC, depending on factors like compression ratio and cylinder head configuration. Gil's predicament highlights a common issue with vintage performance vehicles: modifications and the passage of time mean original specifications might not be directly applicable or even known. The key principle for setting timing, as Gil wisely points out, is to avoid engine knocking or 'pinging'.
Manifold vs. Ported Vacuum Advance
The variation in timing specs is often linked to the distributor's vacuum advance system. Historically, vacuum advance was connected to manifold vacuum (at the base of the carburettor), providing additional ignition advance during idle and light load conditions. This helped improve fuel economy and reduce emissions. However, with the advent of stricter emissions regulations, many manufacturers switched to 'ported vacuum', which draws vacuum from a port above the throttle plate. This system effectively disables vacuum advance at idle, as vacuum only increases with throttle opening. Gil hypothesises that the dual timing specs for his Pantera are related to these two vacuum configurations – the lower spec for manifold vacuum and the higher for ported vacuum. Many enthusiasts of older vehicles opt to revert to manifold vacuum configurations for better drivability.
A Practical Approach to Vintage Timing
For vintage cars with mechanical advance distributors, a systematic approach is recommended:
- Start with Factory Settings: If known, use the original specifications as a starting point.
- Use an Advance Timing Light: This essential tool allows you to read timing marks accurately at higher RPMs.
- Verify Distributor Advance: With the timing light connected, observe if the distributor's mechanical advance is functioning as engine RPM increases. Sticky pivot points can prevent advance.
- Disconnect Vacuum Advance: Crucially, disconnect and plug the vacuum line to the distributor. This allows you to set the base timing and the mechanical (centrifugal) advance without the vacuum signal influencing it.
- Set Total Advance: Aim for a total advance (mechanical + initial, with vacuum disconnected) of around 32-36 degrees. This is a general guideline; the optimal figure can vary.
- Reconnect Vacuum Advance: Once the mechanical advance is set, reconnect the vacuum advance hose.
- Road Test and Adjust: Drive the car under various load conditions. Listen for knocking. If knocking occurs, you may need to slightly retard (reduce) the initial timing. If the engine runs smoothly and pulls well, you can cautiously try advancing it slightly.
- Re-check with Timing Light: After making adjustments, re-check the total advance at higher RPMs to confirm your settings and establish a reference point.
The absence of lead in modern fuel, which acted as an anti-knock agent, means that older engines may be more susceptible to detonation with timing set too aggressively. Therefore, a cautious approach is advised.
The First Fire-Up: Timing a Rebuilt Engine

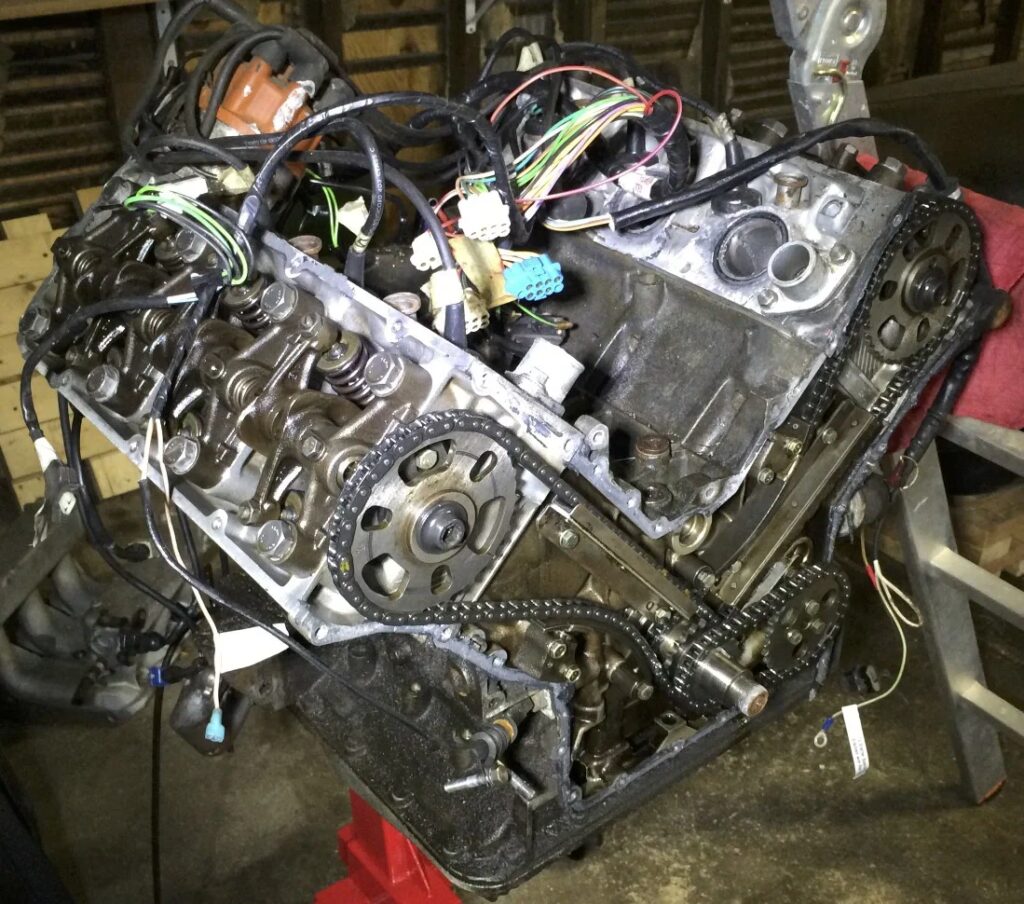

Brian faces a classic dilemma when firing up a freshly rebuilt 1974 F-engine. With the crankshaft set to 7 degrees BTDC and the point gap correctly set at 0.019 inches, the primary concern is ensuring the distributor rotor and cap are aligned correctly to provide a spark at the right time for the engine to fire up, all while adhering to crucial break-in procedures. The warning against idling the engine for extended periods during the initial break-in (to prevent camshaft and lifter scoring due to insufficient oiling) is absolutely valid.
The challenge is to get the engine to fire and run at a low enough RPM to avoid excessive idling, but without resorting to prolonged cranking which can also be detrimental. Here's how Brian can approach this:
The 'Close Enough' Method:
- Initial Distributor Placement: With the engine at the specified 7 degrees BTDC (marked on the crankshaft pulley), the distributor housing needs to be rotated so that the rotor is pointing towards the #1 spark plug wire terminal on the distributor cap.
- Fine-Tuning for Firing: Before final tightening of the distributor clamp, the distributor can be rotated slightly back and forth. Even a few degrees of rotation can make the difference between the engine firing and just cranking. The goal is to get the spark to occur *just* as the piston reaches 7 degrees BTDC.
- The Moment of Truth: It's often a matter of trial and error. Rotate the distributor slightly, then have someone crank the engine. If it doesn't fire, try rotating it a tiny bit more. You're looking for a window of maybe 30-45 seconds of cranking. If the engine fires, immediately try to keep it running at the lowest possible RPM without stalling.
- Post-Fire-Up Adjustment: Once the engine is running, even if roughly, you can then use a timing light. With the vacuum advance disconnected and plugged, rotate the distributor to achieve the specified initial timing (7 degrees BTDC in this case). The engine should be running at a low, stable RPM for this initial setting.
The key is to achieve a spark that's 'close enough' to initiate combustion. The precise setting can then be refined with a timing light once the engine is running. Given the rebuild, it's advisable to follow the camshaft manufacturer's specific break-in procedure, which may involve varying RPMs within a safe range, rather than a constant low idle.
| Symptom | Possible Cause | Troubleshooting Steps |
|---|---|---|
| Engine knocking or pinging | Timing too advanced, low octane fuel, carbon buildup, overheating | Check timing with a timing light, try higher octane fuel, decarbonize engine, check cooling system. |
| Poor acceleration / lack of power | Timing too retarded, faulty vacuum advance, worn distributor components | Verify timing, check vacuum lines and diaphragm, inspect distributor for wear. |
| Rough idle | Timing incorrect, faulty IAC valve, vacuum leaks, worn spark plugs/wires | Set initial timing, check/clean/replace IAC, inspect for vacuum leaks, replace ignition components. |
| Engine overheating | Timing too advanced, lean fuel mixture | Retard timing slightly, check fuel system for proper mixture, verify cooling system operation. |
| Hard starting | Timing significantly off, faulty ignition components | Ensure initial timing is correctly set, check distributor cap, rotor, points (if applicable), coil, and ignition module. |
Frequently Asked Questions
Q1: How do I know if my engine has manifold or ported vacuum advance?
A1: Check where the vacuum line from the distributor connects. If it connects to the intake manifold or the base of the carburettor, it's manifold vacuum. If it connects to a small port on the side of the carburettor above the throttle plate, it's ported vacuum.
Q2: Can I set the timing without a timing light?
A2: For a rough initial setting on older engines, you can rotate the distributor until the engine runs as smoothly as possible at idle. However, for precise and optimal performance, a timing light is essential, especially for verifying advance curves.
Q3: What happens if the timing is too advanced?
A3: If the timing is too advanced, the air-fuel mixture ignites too early, leading to excessive cylinder pressure build-up before the piston reaches Top Dead Centre. This can cause engine knocking (detonation), overheating, and potential engine damage.
Q4: What happens if the timing is too retarded?
A4: If the timing is too retarded, the mixture ignites too late, after the piston has already started its downward travel. This results in inefficient combustion, leading to poor acceleration, reduced power, increased fuel consumption, and higher exhaust gas temperatures.
Ignition timing is a delicate balance, but understanding the principles and employing the right techniques will ensure your classic engine performs at its best. Always consult your vehicle's specific service manual for precise specifications.
