Hydraulic Hoist Not Working? Common Faults

It can be incredibly frustrating when your hydraulic hoist decides to pack in, especially when you rely on it for essential lifting tasks. Whether you're a seasoned mechanic or a DIY enthusiast, understanding why your hydraulic hoist might not be working is the first step to getting it operational again. Hydraulic systems, while powerful, can be susceptible to a range of issues, from simple fluid problems to more complex component failures. This guide will delve into the most prevalent reasons for a hydraulic hoist's malfunction, offering practical insights and potential solutions to get you back to lifting safely and efficiently.

Understanding the Basics of Hydraulic Hoists

Before we dive into the troubleshooting, it's helpful to have a basic understanding of how a hydraulic hoist operates. At its core, a hydraulic hoist uses a fluid, typically hydraulic oil, to transmit force. A pump, driven by an electric motor or a manual lever, pressurises this fluid. This pressurised fluid then flows into a cylinder, where it acts upon a piston. The movement of the piston is what ultimately generates the lifting force. Key components include the reservoir (for the hydraulic fluid), the pump, the control valve (to direct fluid flow), the cylinder, and the piston. Any issue with these components, or the fluid itself, can lead to a non-functioning hoist.

Common Causes for a Non-Working Hydraulic Hoist

1. Low Hydraulic Fluid Level

This is by far the most common reason for a hydraulic hoist failing to operate. Hydraulic systems require a sufficient amount of fluid to function correctly. If the fluid level is too low, the pump may not be able to draw enough fluid to create the necessary pressure. This can lead to a lack of lifting power or the hoist not lifting at all.

Why it happens:

• Leaks: The most frequent culprit for low fluid is a leak somewhere in the system. This could be from a worn seal, a damaged hose, or a loose connection.
• Evaporation/Normal Consumption: While less common in closed systems, some minor fluid loss can occur over time, especially with older units.
• Improper Filling: The hoist might not have been filled to the correct level during its last service.

What to do: Check the fluid level in the reservoir. Most hoists have a sight glass or a dipstick for this purpose. If the level is low, top it up with the correct type of hydraulic fluid specified by the manufacturer. Be sure to check for and address any leaks before refilling.

2. Contaminated Hydraulic Fluid

Contamination is another significant enemy of hydraulic systems. Dirt, debris, water, or even the wrong type of fluid can all cause problems. Contaminants can clog filters, damage seals, wear down internal pump components, and impede the smooth operation of valves. This can result in sluggish performance, erratic operation, or a complete failure to lift.

Why it happens:

• Poor Storage: Leaving the reservoir cap off or using dirty containers to add fluid.
• Internal Wear: Metal particles from worn components can circulate within the system.
• Environmental Factors: Exposure to dust and moisture.

What to do: If you suspect contamination, the hydraulic fluid should be completely drained and replaced. It's also advisable to clean the reservoir and inspect/replace the hydraulic filter. Using a high-quality hydraulic fluid of the correct viscosity and type is crucial.

3. Air in the Hydraulic System (Cavitation)

Air can enter the hydraulic system, often through leaks in the suction line or if the fluid level is too low. When air gets into the system, it can compress, unlike hydraulic fluid, leading to spongy operation, loss of power, and a chattering or knocking sound. This phenomenon is known as cavitation.

Why it happens:

• Loose Fittings on the Suction Side: Allowing air to be drawn in.
• Low Fluid Level: The pump can suck air if the fluid level is insufficient.
• Improper Bleeding: If the system hasn't been properly bled after maintenance.

What to do: You'll need to 'bleed' the system to remove the air. This typically involves operating the hoist through its full range of motion several times with a light load, or following the manufacturer's specific bleeding procedure. Ensure all connections are tight, especially on the suction side.

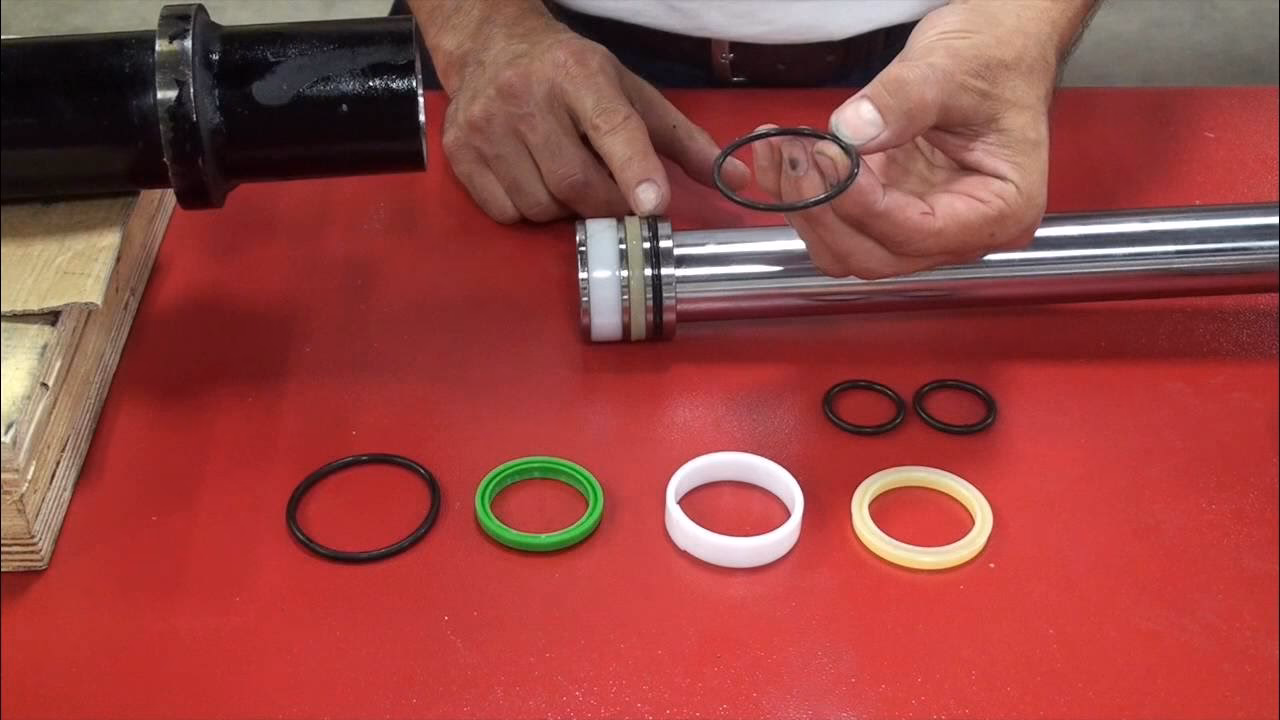

4. Worn or Damaged Seals

Hydraulic cylinders rely on seals to prevent fluid from leaking past the piston and out of the system. Over time, these seals can wear out, crack, or become damaged. When seals fail, fluid can bypass the piston, significantly reducing the hoist's lifting capacity or causing it to sink slowly under load.

Why it happens:

• Age and Wear: Seals are consumables that degrade over time.
• Contamination: Abrasive particles in the fluid can damage seals.
• Overheating: Excessive heat can cause seals to harden and lose their elasticity.

What to do: Replacing worn seals usually involves disassembling the hydraulic cylinder. This is often a job best left to experienced mechanics, as incorrect reassembly can lead to further damage.

5. Faulty Pump

The hydraulic pump is the heart of the system. If the pump is worn, damaged, or has internal blockages, it won't be able to generate the required pressure. This can be due to wear and tear, contamination, or manufacturing defects.

Why it happens:

• Internal Wear: Years of operation can wear down the pump's gears or pistons.
• Cavitation Damage: Air bubbles in the fluid can erode pump components.
• Blockages: Debris can obstruct fluid flow within the pump.

What to do: Diagnosing a faulty pump can be complex. It might require testing the system's pressure output. If the pump is indeed faulty, it will need to be repaired or replaced.

6. Clogged or Faulty Valves

Control valves direct the flow of hydraulic fluid. If a valve is clogged with debris, stuck, or malfunctioning, it can prevent the fluid from reaching the cylinder or cause it to leak out prematurely. This can result in the hoist not lifting, lifting intermittently, or failing to hold a load.

Why it happens:

• Contamination: Small particles can lodge in valve spools.
• Mechanical Failure: Internal components of the valve can break or seize.
• Incorrect Adjustment: Relief valves set too low will limit system pressure.

What to do: Valves can sometimes be cleaned, but often require replacement if they are faulty. Understanding the specific valve functions (e.g., relief valve, directional control valve) is key to diagnosing issues.

7. Blocked or Damaged Hoses/Lines

The hoses and lines carry the hydraulic fluid throughout the system. If these are kinked, crushed, blocked internally, or have developed leaks, the fluid flow will be restricted or stopped altogether. A burst hose is a critical failure that will immediately stop operation and can be dangerous.

Why it happens:

• Physical Damage: Hoses can be caught on objects or run over.
• Age: Rubber hoses degrade over time and can delaminate internally.
• Improper Installation: Kinks can be introduced during installation.

What to do: Visually inspect all hoses and lines for damage, kinks, or leaks. Replace any damaged components immediately. Ensure new hoses are rated for the correct pressure and temperature.

8. Overload

Most hydraulic hoists have a maximum weight capacity. Attempting to lift a load that exceeds this limit can strain the system, potentially causing damage or triggering safety features that prevent operation. While not a failure of the hoist itself, it's a reason it might not be working as expected.

Why it happens:

• Miscalculation: Underestimating the weight of the load.
• Using the Wrong Hoist: Employing a hoist with a lower capacity than required.

What to do: Always adhere to the manufacturer's stated weight limits. If you need to lift heavier loads, you will require a hoist with a higher capacity.

Troubleshooting Table

Here's a quick reference table to help diagnose common issues:

Preventative Maintenance is Key

The best way to avoid a non-working hydraulic hoist is through regular preventative maintenance. This includes:

• Regularly checking the hydraulic fluid level and condition.
• Inspecting hoses and connections for leaks or damage.
• Changing the hydraulic fluid and filter at recommended intervals.
• Keeping the hoist clean and free from dirt and debris.
• Ensuring the system is properly bled of air.
• Operating the hoist within its specified load limits.

Frequently Asked Questions (FAQs)

Q1: What type of hydraulic fluid should I use?

A1: Always refer to your hoist's user manual for the specific type and viscosity of hydraulic fluid recommended by the manufacturer. Using the wrong fluid can cause significant damage.

Q2: How often should I change the hydraulic fluid?

A2: This depends on the usage and the operating environment, but a general guideline is to change it annually or every 1000 hours of operation, whichever comes first. Consult your manual for specific recommendations.

Q3: Can I fix a leaking hydraulic hose myself?

A3: While minor leaks at connections might be tightened, replacing a damaged hydraulic hose is a critical repair. It requires specific tools and knowledge to ensure the new hose is correctly fitted and rated for the pressure. If you are not experienced, it's best to have a professional do it.

Q4: My hoist works, but it's very slow. What could be the problem?

A4: Slowness can be caused by several factors: low fluid level, air in the system, contaminated fluid, a partially blocked line, or a worn pump. Start by checking the fluid and bleeding the system.

Q5: Is it safe to operate a hoist with a minor leak?

A5: No, it is not safe. Even minor leaks can lead to a gradual loss of fluid and pressure, potentially causing the hoist to fail unexpectedly. Leaks also indicate wear or damage that needs to be addressed.

Conclusion

A hydraulic hoist that isn't working can be a significant inconvenience, but most issues stem from common, identifiable problems. By systematically checking fluid levels, looking for contamination or air, and inspecting key components like seals, pumps, and valves, you can often pinpoint the cause of the malfunction. Remember that regular maintenance is your best defence against unexpected failures. If you're unsure about any aspect of the repair, or if the problem persists, don't hesitate to seek assistance from a qualified hydraulic technician. Getting your hoist back in working order ensures your safety and productivity.
