For those involved in the world of classic and performance vehicles, the term "engine dyno" might be a familiar one. However, for many, the exact function and significance of this sophisticated piece of equipment can remain somewhat of a mystery. At Mass Racing, a leading UK engine builder specialising in both classic and historic racing engines, we understand the crucial role an engine dynamometer plays in achieving optimal engine performance. Our own in-house engine dyno facility is a testament to our commitment to precision and excellence in every engine we build and tune.
What Exactly is an Engine Dyno?
An engine dynamometer, commonly referred to as a "dyno," is a highly advanced device designed to measure the output of an engine. More specifically, it quantifies the force, moment of force (torque), and consequently, the engine's power. This is achieved by simultaneously measuring the torque produced by the engine and its rotational speed, typically expressed in revolutions per minute (RPM).
Think of it as a highly controlled environment where an engine can be run through its paces, allowing technicians to gather precise data on its performance under various conditions. Unlike a chassis dynamometer, which measures the power delivered to the wheels, an engine dyno measures the raw output directly from the engine itself. This offers a more fundamental and accurate assessment of the engine's capabilities, free from the variables introduced by the drivetrain, such as the gearbox, differential, and tyres.
The Core Components of an Engine Dyno
While the specifics can vary between manufacturers and models, most engine dynos share a common set of core components:
- Absorption Unit (Brake): This is the heart of the dyno. It's a mechanism that applies a load to the engine's output shaft, allowing it to be held at specific RPMs or to simulate various driving conditions. Common types include water brakes, eddy current brakes, and AC/DC dynamometers. The absorption unit is crucial for measuring torque.
- Torque Sensor: Integrated with the absorption unit, this sensor accurately measures the rotational force (torque) generated by the engine.
- Speed Sensor (Tachometer): This device measures the engine's rotational speed (RPM). It's often coupled with the torque sensor for simultaneous data capture.
- Data Acquisition System: This is the "brain" of the operation. It collects, processes, and displays the data from the torque and speed sensors. Modern systems can also log other parameters such as air-fuel ratio, exhaust gas temperature, manifold pressure, and more, providing a comprehensive performance profile.
- Engine Mounting System: A robust frame or cradle designed to securely hold the engine while it's being tested. This system must be capable of withstanding the significant forces and vibrations generated during operation.
- Cooling System: Engines generate a substantial amount of heat, especially when run under load. The dyno facility typically includes a sophisticated cooling system to maintain optimal engine operating temperatures throughout the test. This might involve large radiators, fans, and coolant circulation systems.
- Exhaust Extraction: To ensure a safe and clean working environment, a system is in place to safely extract exhaust fumes from the testing area.
Why is an Engine Dyno So Important?
The utility of an engine dyno extends across several critical areas of automotive engineering and enthusiast pursuits:
1. Performance Measurement and Validation
This is perhaps the most direct application. After a rebuild or the implementation of upgrades, an engine dyno provides definitive proof of the changes made. It allows us to quantify exactly how much power and torque the engine is producing. This data is invaluable for:
- Verifying improvements: Did that new camshaft actually increase power? By how much? The dyno provides the answer.
- Troubleshooting: If an engine isn't performing as expected, the dyno can help pinpoint the issue by revealing power discrepancies or unexpected torque curves.
- Benchmarking: Establishing a baseline performance figure for an engine before any modifications are made, allowing for clear comparison of results.
2. Tuning and Optimisation
Modern engines, especially those with electronic fuel injection and engine management systems, require precise tuning to achieve their full potential. An engine dyno is an indispensable tool for:
- Fuel Mapping: Adjusting the fuel delivery at different RPMs and load conditions to achieve the optimal air-fuel ratio for power, efficiency, and engine longevity.
- Ignition Timing: Fine-tuning the spark timing to maximise combustion efficiency and power output.
- Variable Valve Timing (VVT) and Cam Phasing: Optimising the operation of these systems to suit different performance goals.
- ECU Calibration: Reprogramming the Engine Control Unit (ECU) based on dyno results to realise the full benefit of hardware modifications.
3. Engine Development and Research
For manufacturers and specialist engine builders like Mass Racing, the dyno is at the forefront of developing new engine designs, components, and technologies. It allows for rigorous testing and refinement in a controlled environment before components are fitted to vehicles.
4. Durability and Reliability Testing
While not its primary function for most users, an engine dyno can be used to subject an engine to prolonged periods of stress to assess its durability and identify potential weak points under simulated long-term use.

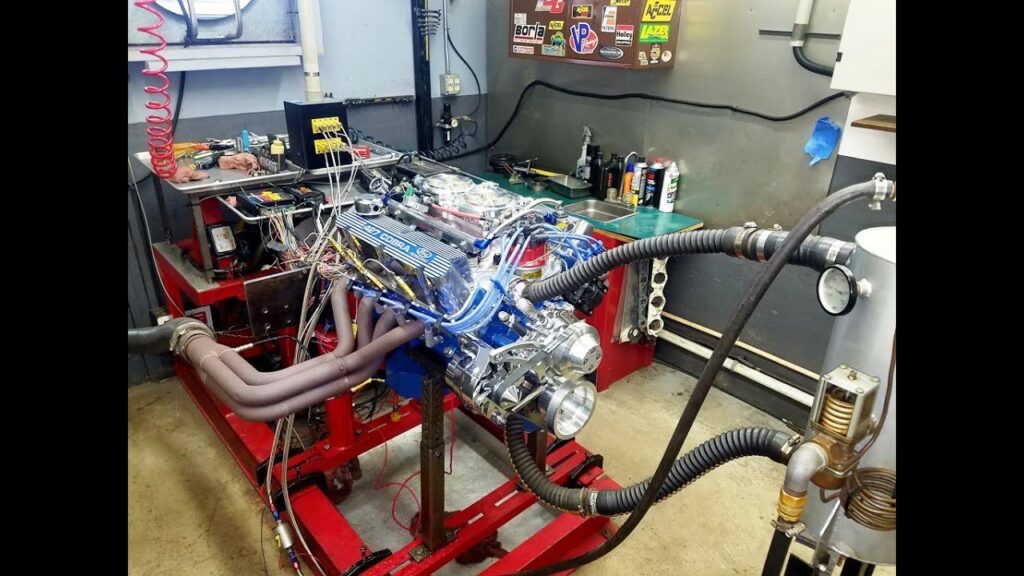

Mass Racing's Engine Dyno Facility
At Mass Racing, we pride ourselves on the meticulous care and expertise we apply to every classic and historic racing engine that passes through our workshop. Our investment in a state-of-the-art engine dyno facility is a cornerstone of this commitment. It allows us to:
- Accurately assess the power and torque output of an engine following a complete rebuild.
- Validate the effectiveness of any performance upgrades or modifications we undertake.
- Fine-tune engine management systems for optimal performance and reliability.
- Provide customers with tangible, data-driven evidence of the work performed on their cherished engines.
This capability is particularly crucial for classic and racing engines, where originality, specific performance characteristics, and reliability are paramount. Whether you're restoring a vintage icon or preparing a machine for competitive historic racing, understanding and optimising your engine's output on a dyno is an essential step.
A Customer's Perspective
The importance of a trusted workshop with the right equipment is highlighted by feedback from satisfied customers. Karl Lelliott, a long-time client of RGS Motorsport, shares his experience, endorsing their work and implicitly the benefits of their technical capabilities:
"I have been sending my cars to RGS Motorsport now for over 10 years. I can endorse their work whole heartedly for the following reasons: Nothing is too much trouble when booking in any (sized) job. Agree a date, specify if RGS is to supply the parts, sort a courtesy car out and that’s that. I know my car is in safe hands. I have never had an issue with the quality of work which has always been great. I know that any unspecified issues discovered whilst the boys are working on my car will be communicated to me with a proposed resolution, which will then be carried out once agreed upon with myself. The huge knowledgebase that supports my technical queries helps me to feel comfortable about the work that is about to be undertaken. They are very patient and have been hugely accommodating." - Karl Lelliott
While Karl doesn't explicitly mention dyno testing, his confidence in the workshop's technical knowledge and the quality of work directly relates to the precision and assurance that professional equipment like an engine dyno provides. It’s this level of transparency and guaranteed outcome that customers value.
Engine Dyno vs. Chassis Dyno: A Comparison
It's important to distinguish between an engine dyno and a chassis dyno, as they serve different purposes:
| Feature | Engine Dyno | Chassis Dyno |
|---|---|---|
| What is Measured | Raw engine output (crankshaft power and torque) | Power and torque delivered to the wheels |
| Testing Environment | Engine is removed from the vehicle and mounted on a test stand | Vehicle is driven onto rollers, with the engine running in the car |
| Accuracy for Engine Performance | Higher; measures direct engine output without drivetrain losses | Lower; includes drivetrain losses (gearbox, diff, driveshafts, etc.) which vary |
| Tuning Applications | Ideal for initial engine build verification, deep tuning, and calibration of standalone ECUs | Useful for fine-tuning engine management in the vehicle, especially for road-going cars; assessing drivability |
| Complexity and Cost | Generally more complex and expensive to install and operate | Simpler and often less expensive, more common in tuning shops |
| Typical Use Case | Engine reconditioning, racing engine preparation, component development | General performance tuning, pre-purchase inspections, diagnosing drivetrain issues |
Frequently Asked Questions about Engine Dynos
Q1: How long does an engine dyno test take?
A1: The duration can vary significantly depending on the purpose of the test. A simple power run might take only a few minutes, while a comprehensive tuning session involving multiple adjustments and tests could take several hours or even a full day.
Q2: Can an engine dyno damage my engine?
A2: When operated by experienced professionals using calibrated equipment, an engine dyno is a safe tool. The dyno's absorption unit allows for controlled loading, and cooling systems prevent overheating. However, improper use or testing of a fundamentally unsound engine could lead to damage.
Q3: What kind of data do I get from an engine dyno session?
A3: Typically, you will receive graphs showing power and torque curves against RPM. Depending on the setup, you might also get data on air-fuel ratio, exhaust gas temperature, boost pressure (if applicable), and other relevant engine parameters.
Q4: Is an engine dyno necessary for all classic car owners?
A4: While not strictly necessary for every classic car owner, it is highly recommended for those who have undergone significant engine work, such as a rebuild or major upgrades, or for those involved in historic motorsport. It provides peace of mind and quantifiable results.
Q5: How does an engine dyno help with tuning?
A5: The dyno allows tuners to precisely control engine speed and load, making iterative adjustments to fuel and ignition parameters. By observing the immediate impact of each change on power and torque output, they can efficiently dial in the optimal settings for maximum performance and reliability.
Conclusion
An engine dynamometer is far more than just a machine for measuring horsepower; it's a critical diagnostic and tuning tool that underpins the precision and performance of modern and classic engines alike. For specialists like Mass Racing, it’s an integral part of our commitment to delivering exceptional results for classic and historic racing engines. By understanding what an engine dyno does and why it's important, owners can better appreciate the depth of expertise and technology involved in ensuring their engines perform at their absolute best.
If you have a classic or historic racing engine project and want to ensure it benefits from the most accurate testing and tuning available, contact Mass Racing. Our expertise and in-house dyno facility are at your disposal to bring your engine project to life.
