Car Diagnostic Computers: Your Ultimate Guide

Understanding Car Diagnostic Computers: A Comprehensive Overview

In today's technologically advanced automotive landscape, modern vehicles are intricate marvels of engineering, governed by sophisticated onboard computers. When an issue arises, a car diagnostic computer, often referred to as an OBD-II scanner or code reader, emerges as an indispensable tool for pinpointing the exact problem. This comprehensive guide delves into the world of car diagnostic computers, exploring the fundamental OBD-II system, advanced diagnostic techniques, and vital training resources to empower both DIY enthusiasts and professional mechanics alike.

What Exactly is a Car Diagnostic Computer?

At its core, a car diagnostic computer is an electronic device designed to interface with a vehicle's On-Board Diagnostics (OBD-II) system. This system acts as a vigilant monitor, constantly surveying various vehicle components and reporting any detected malfunctions by generating Diagnostic Trouble Codes (DTCs). By retrieving this information, these tools offer invaluable insights into your car's inner workings, revolutionising vehicle maintenance and repair.

The OBD-II System: Your Vehicle's Health Monitor

The OBD-II system functions much like a sophisticated health check mechanism for your vehicle. It diligently monitors numerous parts and systems. Should it detect a potential issue, a warning light, commonly known as the “Check Engine” light, will illuminate on your dashboard. Mandated in the United States for all light-duty vehicles manufactured from 1996 onwards, the OBD-II system's primary objective is to monitor emissions and ensure compliance with environmental regulations. However, it plays an equally crucial role in overall vehicle diagnostics.

A Brief History of OBD Systems

The concept of onboard diagnostics traces its roots back to the 1960s, with pioneers like Volkswagen introducing early forms of computerised diagnostics. However, it wasn't until the late 1980s that the Society of Automotive Engineers (SAE) recommended a standardised approach. This pivotal recommendation led to the development of OBD-I, the first generation of onboard diagnostic systems. While OBD-I systems primarily focused on emissions control, they suffered from a distinct lack of standardisation across different vehicle manufacturers. This changed significantly in 1996 with the introduction of OBD-II. This standardised system, mandated in the US, provided a universal connector and a consistent set of DTCs, greatly simplifying the diagnostic and repair process for vehicles from various makes and models. This standardisation was instrumental in fostering the development of more advanced diagnostic tools and software.

Key Components of the OBD-II System

The OBD-II system comprises several critical components that work in harmony:

• Electronic Control Unit (ECU): Often referred to as the “brain” of the car, the ECU is responsible for monitoring and controlling a multitude of vehicle systems. It receives data from an array of sensors strategically placed throughout the vehicle, utilising this information to regulate engine performance, emissions, and other vital functions.
• Sensors: These are distributed across the vehicle, diligently monitoring various parameters such as engine temperature, oxygen levels, and vehicle speed. The data collected by these sensors is transmitted to the ECU for analysis.
• Diagnostic Trouble Codes (DTCs): When a sensor detects a problem, the ECU generates a DTC. Each code is a specific identifier for a particular issue, readable by an OBD-II scanner.
• OBD-II Port: This is a standardised 16-pin connector, typically situated beneath the dashboard on the driver's side. It serves as the gateway to the vehicle's diagnostic system.
• Malfunction Indicator Light (MIL): More commonly known as the “Check Engine” light, the MIL is a dashboard warning light that illuminates when the ECU detects a malfunction, acting as an early alert system for potential vehicle problems.

OBD-II and Emissions Testing: A Crucial Link

OBD-II systems are integral to emissions testing procedures. For instance, in California, technicians are required to perform an OBD-II check during Smog Check inspections. This involves a visual verification of the MIL's functionality, followed by the test equipment communicating with the vehicle's onboard computer to retrieve fault information. This process is vital for ensuring vehicles adhere to emissions standards and contribute to improved air quality.

Functions of a Car Diagnostic Computer: What Can It Do?

A car diagnostic computer offers a wealth of functions, providing invaluable data for both DIYers and professional mechanics:

• Reading and Clearing Codes: The primary function is to read and clear DTCs, enabling you to identify the root cause of the “Check Engine” light and other warning indicators.
• Monitoring Sensor Data: Many diagnostic computers can display real-time data from various sensors, such as engine RPM, vehicle speed, and coolant temperature. This is invaluable for diagnosing issues that may not always trigger a DTC, offering a window into the performance of different systems and aiding in the early detection of potential problems.
• Performing Active Tests: More advanced diagnostic computers are capable of performing active tests, also known as bidirectional controls. This allows users to send commands to specific vehicle systems and components to test their functionality directly, aiding in the precise location of faults.
• Retrieving Freeze Frame Data: Freeze frame data captures a snapshot of the vehicle's sensor readings at the precise moment a DTC was triggered. This information is particularly useful for diagnosing intermittent issues, providing context about the conditions that led to the fault.
• Viewing Live Data Streams: Certain diagnostic computers can display live data from multiple sensors simultaneously, allowing for an analysis of how different systems interact. This capability is especially beneficial when diagnosing complex issues involving multiple interconnected systems.
• Checking Emissions Readiness: Diagnostic computers can verify if a vehicle's emission control systems have completed their self-tests and are ready for an emissions inspection, helping to ensure compliance and avoid a failed test.

How to Effectively Use a Car Diagnostic Computer

While using a car diagnostic computer is generally straightforward, adhering to the correct procedure is crucial for obtaining accurate results:

1. Locate the OBD-II Port: Typically found under the dashboard on the driver's side, this port might be concealed behind a panel. Consult your vehicle's owner's manual if you encounter difficulties.
2. Connect the Scanner: Plug the diagnostic computer into the OBD-II port, ensuring a secure connection.
3. Turn on the Ignition: Position the ignition key to the 'on' state without starting the engine. This powers the vehicle's computer system, enabling communication with the scanner.
4. Follow Scanner Instructions: The scanner may request vehicle information (year, make, model) or prompt you to select specific functions. Adhere to the on-screen prompts for proper configuration.
5. Read the Codes: Retrieve the DTCs from the vehicle's computer. The scanner will display these codes, usually a combination of letters and numbers.
6. Interpret the Codes: Utilise the scanner's built-in library or an online database to understand the meaning of the codes. Some scanners offer brief descriptions, while others may require external lookup.
7. Clear the Codes (If Applicable): After rectifying the underlying problem, use the scanner to clear the codes. This action resets the check engine light and removes the codes from the vehicle's memory. Crucially, only clear codes after addressing the issue.

Types of Diagnostic Tools for Cars

A variety of diagnostic tools are available to assist in identifying and resolving vehicle problems:

1. OBD-II Scanners

These are the most prevalent diagnostic tools, ranging from basic code readers to sophisticated scan tools with extensive diagnostic capabilities.

• Code Readers: These are fundamental devices capable of reading and clearing codes from any OBD-II equipped vehicle. They are generally more affordable but offer limited functionality.
• Scan Tools: These advanced devices provide a broader spectrum of functions, including live data viewing, component testing, and access to manufacturer-specific codes. They are essential for professional mechanics and dedicated DIYers.

2. Other Diagnostic Tools

Beyond OBD-II scanners, several other tools are commonly employed in vehicle diagnostics:

• Multimeter: A versatile tool for measuring voltage, current, and resistance in electrical circuits, crucial for troubleshooting electrical issues.
• Compression Tester: This device measures the compression pressure within each engine cylinder, aiding in the diagnosis of engine-related problems like worn piston rings or leaking valves.
• Smoke Machine: Used to diagnose vacuum leaks within the intake or exhaust systems by introducing smoke to reveal leaks.

Types of Diagnostic Computers for Cars

Diagnostic computers for vehicles come in various forms, each offering distinct features and capabilities:

1. Handheld Scanners

These portable devices feature built-in displays and navigation buttons, making them popular among DIYers and mechanics for their user-friendliness and affordability. Examples include the Innova 6100P and the Ancel BD310.

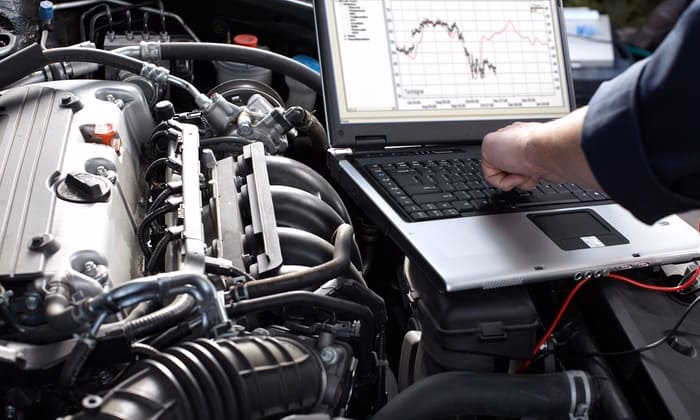

2. Laptop-Based Systems

These systems leverage a laptop or PC with specialised diagnostic software to access and analyse vehicle data. They offer more advanced capabilities such as data logging, graphing, and in-depth diagnostics. Popular options include OBDwiz and Torque Pro. Connection typically requires an OBD-II to USB cable or a Bluetooth adapter.

3. Mobile Device-Based Tools

Utilising smartphones or tablets with diagnostic software and Bluetooth adapters, these tools offer portability and convenience. OBD Fusion and Car Scanner ELM OBD2 are notable examples.

Types of Diagnostic Software for Cars

Diagnostic software is pivotal for accessing and interpreting data from a car's diagnostic computer. The two primary categories are:

1. Free Diagnostic Software

These offer basic functionalities like reading/clearing codes and viewing live data. Popular options include OBDwiz, Car Scanner ELM OBD2, and EasyObdII.

2. Paid Diagnostic Software

These provide advanced features such as manufacturer-specific diagnostics and bidirectional controls. Examples include TouchScan, OBD Auto Doctor, AutoEnginuity, and Snap-on software.

Types of Diagnostic Cables for Cars

Diagnostic cables are essential for connecting the diagnostic computer to the vehicle's OBD-II port. The main types are:

1. Generic Diagnostic Cables

Designed for broad compatibility, these typically feature a standard OBD-II connector on one end and a USB, Bluetooth, or Wi-Fi connector on the other. OBD-II extension cables and USB cables are common examples.

2. Manufacturer-Specific Diagnostic Cables

Tailored for specific car makes or models, these may have proprietary connectors for accessing advanced functions and data unique to a particular manufacturer.

Types of Diagnostic Connectors for Cars

While the OBD-II connector is ubiquitous in modern cars, older vehicles or specific makes may utilise different connectors:

1. OBD-II Connector

A standardised 16-pin connector found in most cars post-1996, offering a universal interface. Types A (cars, 12V) and B (medium/heavy vehicles, 24V) differ in baud rates.

2. Manufacturer-Specific Connectors

Some manufacturers employ proprietary connectors, which may have different pin configurations or shapes, for accessing manufacturer-specific data.

3. Pre-OBD-II Connectors

Vehicles manufactured before the widespread adoption of OBD-II may have varied diagnostic connectors requiring specialised adapters.

Types of Diagnostic Codes for Cars

Diagnostic Trouble Codes (DTCs) identify specific vehicle malfunctions. The primary types are:

1. Generic Diagnostic Codes

Standardised codes common to all OBD-II compliant vehicles, defined by the SAE, providing a universal diagnostic language.

2. Manufacturer-Specific Diagnostic Codes

Unique codes specific to a particular car make or model, offering more detailed information about proprietary issues.

Critical vs. Non-Critical DTCs

DTCs can be categorised as critical, indicating serious issues requiring immediate attention, or non-critical, relating to less urgent matters.

Understanding OBD-II Code Structure

OBD-II codes possess a structured format that provides valuable diagnostic information:

Understanding this structure facilitates quicker identification of the system and fault type.

Types of Diagnostic Data for Cars

Diagnostic data offers crucial insights into a vehicle's performance and health. Key types include:

• Sensor Data: Real-time readings from various sensors (engine speed, coolant temperature, oxygen levels) used for monitoring performance and diagnosing issues.
• Actuator Data: Information on actuator operation (throttle position, fuel injector pulse width) for diagnosing control system problems.
• Freeze Frame Data: A snapshot of sensor readings at the moment a DTC was triggered, vital for understanding the context of a fault.

Types of Diagnostic Reports for Cars

Diagnostic reports summarise findings. The main types are:

• Generic Diagnostic Reports: Provide a general overview of vehicle health and detected issues, often including DTCs and live sensor data.
• Manufacturer-Specific Diagnostic Reports: Offer detailed information, proprietary data, and manufacturer-specific repair guidance.

History of OBD Interfaces

The evolution of OBD interfaces has significantly impacted car diagnostic computers:

• ALDL: An early interface used by General Motors from 1981, a precursor to OBD-I.
• OBD-I: The first generation of onboard diagnostics, lacking standardisation across manufacturers.

What a Car Diagnostic Test Covers

A car diagnostic test provides a comprehensive assessment of your vehicle's health, covering:

• Engine and Transmission: Analysis of issues like misfires, fuel system problems, and transmission malfunctions, along with sensor data monitoring.
• Brakes and Exhaust System: Evaluation of brake responsiveness and exhaust system integrity, including sensor issues and leaks.
• Other Systems: Assessment of fuel injectors, ignition coils, throttle, various sensors, and the vehicle's onboard computer system.

Types of Diagnostic Training for Cars

Effective use of car diagnostic computers necessitates proper training. Options include:

• Online Courses: Offer flexible learning on OBD-II systems and diagnostic techniques, often with practical exercises.
• In-Person Classes: Provide hands-on training and direct instruction from experienced professionals, often utilising advanced equipment.
• Automotive Diagnostic Training: Specialised training providers offer in-depth courses for professional technicians.

Conclusion

Diagnostic computers are indispensable tools for modern vehicle maintenance. By understanding the various types of diagnostic computers, software, cables, connectors, codes, data, reports, tools, and training available, you can effectively diagnose and repair vehicles. Regular utilisation of a car diagnostic computer is key to ensuring your vehicle's optimal performance, safety, and longevity. As automotive technology continues its rapid advancement, staying abreast of the latest diagnostic techniques and tools is paramount for both DIY enthusiasts and professional mechanics.

Consider investing in a quality car diagnostic computer for accurate and efficient vehicle maintenance.
