Demystifying Your Car's Diagnostic Trouble Codes (DTCs)

Ever seen that ominous glow of the 'Check Engine' light on your dashboard and wondered what on earth it could mean? This seemingly simple indicator is your vehicle's way of telling you it has detected a problem, and the key to understanding that problem lies within Diagnostic Trouble Codes, or DTCs. These alphanumeric codes are generated by your car's On-Board Diagnostics (OBD-II) system and stored in the vehicle's computer. Think of them as a secret language spoken between your car and the mechanic, providing vital clues to diagnose faults. Understanding DTCs can empower you as a vehicle owner, allowing for a more informed conversation with your mechanic and potentially saving you time and money.

What Exactly Are Diagnostic Trouble Codes?

At their core, DTCs are specific codes that pinpoint a fault detected by your vehicle's internal computer systems. When a sensor registers a reading outside of its expected parameters, or when a component fails to communicate correctly, the OBD-II system flags it and assigns a corresponding DTC. These codes are then accessible via an OBD-II scanner, a device that plugs into a specific port usually located under the dashboard. The complexity and nature of these codes can vary significantly, from simple sensor malfunctions to intricate communication errors between different modules.

The Anatomy of an OBD-II Code

Most OBD-II DTCs are five characters long, consisting of a letter followed by four numbers. The structure of these codes is not random; each character provides specific information about the fault:

• The First Character (Letter): This letter indicates the primary system affected. The most common letters you'll encounter are:
  • P - Powertrain: This relates to the engine, transmission, and associated drivetrain components. These are often the most critical codes as they directly impact your car's ability to operate.
  • B - Body: These codes pertain to the vehicle's body systems, such as climate control (HVAC), power windows, airbags, and interior comfort features.
  • C - Chassis: These codes relate to the vehicle's chassis components, including steering, suspension, brakes, and anti-lock braking systems (ABS).
  • U - Network or System Communication: These codes indicate issues with the communication between different electronic control modules (ECMs) within the vehicle. This could be due to wiring problems, module failures, or software glitches.
• The Second Character (Number): This digit specifies the origin of the code.
  • 0 - SAE Generic: Indicates a fault recognised by the Society of Automotive Engineers (SAE) and applies to all OBD-II compliant vehicles.
  • 1 - Manufacturer Specific: Indicates a fault that is unique to a particular vehicle manufacturer. These codes might require a manufacturer-specific diagnostic tool or database for complete understanding.
  • 2 - Manufacturer Specific (often used for powertrain): Similar to '1' but sometimes specifically designated for powertrain issues.
  • 3 - SAE Specific (often used for ignition): Indicates SAE-specific codes, frequently related to ignition system issues.
• The Third Character (Number): This digit further narrows down the specific system or subsystem experiencing the fault. For example, within Powertrain (P) codes, the third digit might indicate fuel and air metering, ignition systems, auxiliary emission controls, or vehicle speed controls.
• The Fourth and Fifth Characters (Numbers): These last two digits provide the most granular detail, identifying the specific component or circuit within the subsystem that has failed or is malfunctioning. These are often referred to as the 'fault index' or 'specific fault index'.

A Deeper Dive into Common DTC Categories: P, B, C, and U Codes

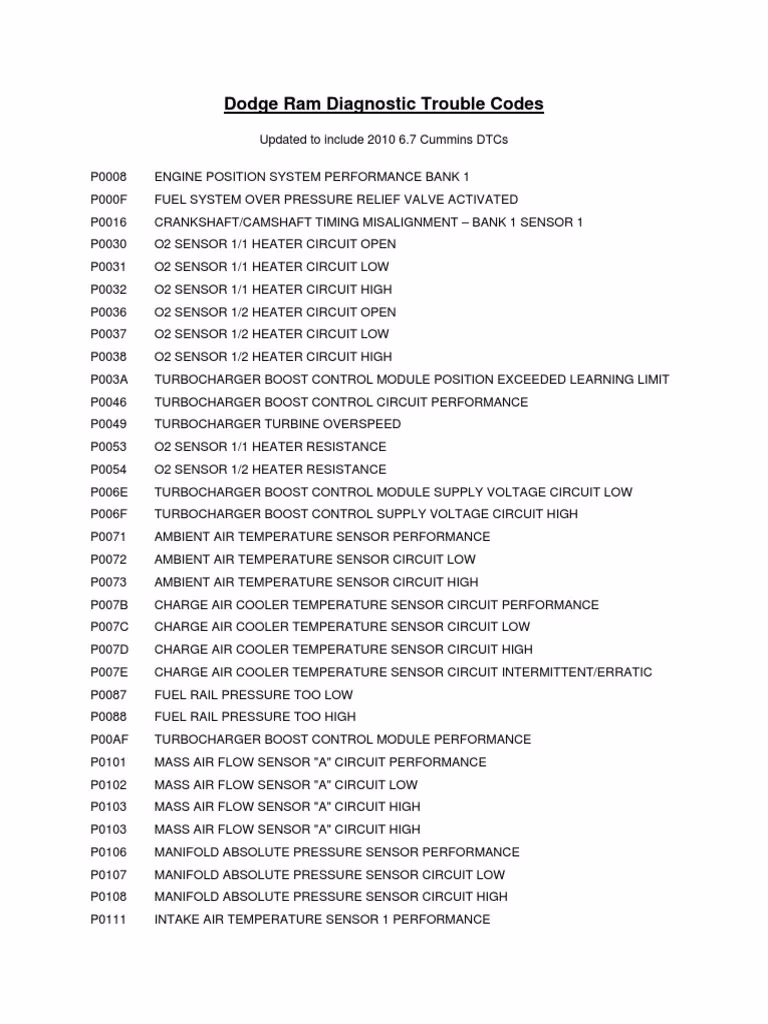

P Codes: The Heart of the Powertrain

As mentioned, 'P' codes are perhaps the most frequently encountered and often the most concerning. They cover a vast array of engine and transmission-related issues. For instance:

• P0171: This is a common code that signifies "System Too Lean (Bank 1)". It means the air-to-fuel ratio in the engine is too high, indicating too much air or too little fuel. Your car's computer might try to compensate by injecting more fuel, but if the underlying issue isn't addressed, it can lead to poor performance, increased fuel consumption, and potential engine damage. Causes can range from a vacuum leak to a faulty oxygen sensor or mass airflow sensor.
• P0300: "Random/Multiple Cylinder Misfire Detected." This code suggests that one or more cylinders are not firing correctly. This can be caused by faulty spark plugs, ignition coils, fuel injectors, or even internal engine problems. A misfire can lead to rough idling, reduced power, and increased emissions.
• P0420: "Catalyst System Efficiency Below Threshold (Bank 1)." This often points to a failing catalytic converter, which is responsible for reducing harmful exhaust emissions. It could also be an issue with the oxygen sensors that monitor the converter's performance.

When a P code appears, the powertrain control module (PCM) actively tries to manage the issue. However, persistent P codes, especially those related to fuel or air metering, can significantly impact your vehicle's drivability and efficiency.

B Codes: Comfort and Convenience Concerns

'B' codes deal with the systems that enhance your comfort and convenience. While generally less critical than powertrain issues, they can still be inconvenient. Examples include:

• Codes related to the airbag system (e.g., B0073 - Passenger Frontal Stage 2 Deployment Control).
• HVAC system malfunctions (e.g., B0441 - HVAC Blower Control Circuit Range/Performance).
• Power seat or window issues.

While a 'B' code might not stop you in your tracks, addressing it will restore the full functionality and comfort of your vehicle's interior features.

C Codes: Navigating the Chassis

'C' codes focus on the structural integrity and dynamic control of your vehicle. These are often linked to safety systems:

• Steering system problems (e.g., C1201 - Engine Control System Malfunction).
• Brake system issues, including ABS malfunctions (e.g., C0030 - Wheel Speed Sensor Circuit Malfunction).
• Suspension system faults.

Problems indicated by 'C' codes can have a direct impact on your vehicle's safety and handling, making them important to address promptly.

U Codes: The Network of Communication

'U' codes are a bit more abstract, dealing with the communication pathways between the various computer modules in your car. Modern vehicles are complex networks, and when communication breaks down, the OBD-II system flags it with a 'U' code:

• Examples include U0100 - Lost Communication With ECM/PCM, or U0155 - Lost Communication With Instrument Panel Cluster (IPC) Control Module.

These codes can be challenging to diagnose as they don't always point to a single faulty part but rather a breakdown in the communication fabric of the vehicle. They often require sophisticated diagnostic tools to trace the communication flow.

The Significance of the Second Digit: Generic vs. Manufacturer-Specific

Understanding whether a code is generic or manufacturer-specific is crucial. Generic codes (starting with '0' as the second digit) are standardized and should be interpretable by any OBD-II scanner. Manufacturer-specific codes (starting with '1', '2', or '3' as the second digit) might require a deeper dive into manufacturer-specific technical service bulletins (TSBs) or diagnostic databases. For example, a P0xxx code is a generic powertrain code, while a P1xxx code is manufacturer-specific.

V Codes: A Different Kind of Classification

It's worth noting that 'V' codes are mentioned in some contexts, but they are typically not part of the standard OBD-II diagnostic trouble code system for vehicle faults. Instead, 'V' codes are often associated with medical coding (ICD-9-CM) used to classify circumstances or factors that influence health status, rather than direct disease or injury. In the automotive world, you won't typically encounter 'V' codes for engine diagnostics.

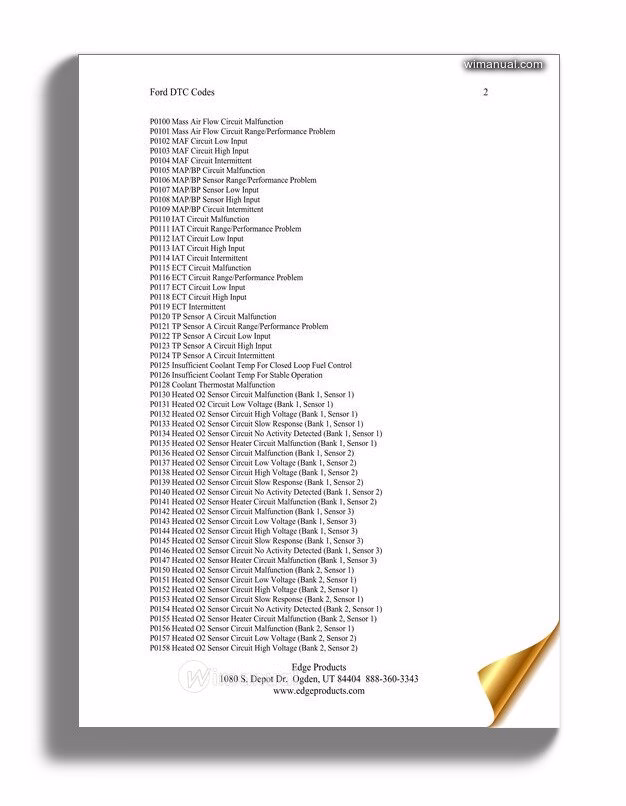

Decoding the Numbers: What Do They Really Mean?

Let's break down a hypothetical code to illustrate further. Consider P0128:
P - Powertrain
0 - SAE Generic
1 - Fuel and Air Metering and Auxiliary Emissions Controls (this digit specifies the system area)
28 - Specific fault index, indicating the Engine Coolant Temperature (ECT) Sensor Circuit.
So, P0128 points to an issue with the engine coolant temperature sensor circuit, likely indicating that the engine is not reaching its optimal operating temperature, possibly due to a faulty thermostat.

Common DTC Scenarios and Potential Causes

When Should You Worry About a DTC?

While not every DTC requires immediate roadside intervention, some are more critical than others. Codes that affect engine performance, emissions, braking, or steering should be addressed promptly. If the 'Check Engine' light is flashing, it usually indicates a severe misfire that could damage your catalytic converter, and you should reduce driving and seek immediate professional help. Even if the car seems to be running fine, ignoring a persistent DTC can lead to more significant and costly repairs down the line. Regular diagnostics can help catch potential problems early.

Frequently Asked Questions (FAQs)

• Can I read DTCs myself? Yes, with an OBD-II scanner, which are widely available for purchase.
• Does the 'Check Engine' light always mean a major problem? Not necessarily. It can range from a loose fuel cap to a serious engine issue. The DTC will provide more specific information.
• How long do I have to fix a DTC? There's no strict time limit, but it's best to address it as soon as possible to prevent further damage and maintain optimal performance and emissions.
• Can I clear a DTC without fixing the problem? Yes, you can clear codes with a scanner, but the underlying issue will likely cause the light to return. It's crucial to diagnose and repair the fault.
• Are all P0xxx codes the same for every car? While the general meaning of a P0xxx code is standardized, the specific component or circuit it refers to can sometimes have minor variations between manufacturers.

Understanding Diagnostic Trouble Codes is a fundamental step towards proactive vehicle maintenance. By familiarising yourself with the different types of codes and their meanings, you can better communicate with your mechanic and ensure your vehicle remains in optimal condition. Whether it's a simple fix like tightening a fuel cap or a more complex repair, knowledge is your best tool.
