P0343: Camshaft Sensor Faults Explained

Understanding the P0343 Diagnostic Trouble Code

The P0343 diagnostic trouble code (DTC) signifies a 'Camshaft Position Sensor ‘A’ Circuit High Input'. In simpler terms, your vehicle's Engine Control Module (ECM) or Powertrain Control Module (PCM) is detecting an electrical issue with the signal coming from the camshaft position sensor. This sensor is vital for your engine's operation, providing crucial information about the camshaft's position, which directly influences fuel injection timing and valve operation. When this signal is 'high', it suggests an overvoltage or a faulty signal being sent, potentially leading to a range of performance problems.

Symptoms of a P0343 Code

When your vehicle throws a P0343 code, you might notice several tell-tale signs. These can vary in severity, but common symptoms include:

• Check Engine Light: This is the most obvious indicator, signalling that the ECM has detected a fault.
• Extended Cranking Time: Your engine may take longer than usual to start, requiring more rotations of the starter.
• Rough Idling: The engine might run unevenly when at idle, possibly with noticeable vibrations.
• Engine Bucking or Surging: While driving, you might experience sudden hesitations or surges in power.
• Stalling: In more severe cases, the engine could stall unexpectedly, either while driving or at idle.
• No Start Condition: The most extreme symptom is the engine refusing to start altogether.

What Causes the P0343 Code?

Several factors can contribute to the P0343 code being triggered. Understanding these potential causes is the first step towards an effective diagnosis and repair:

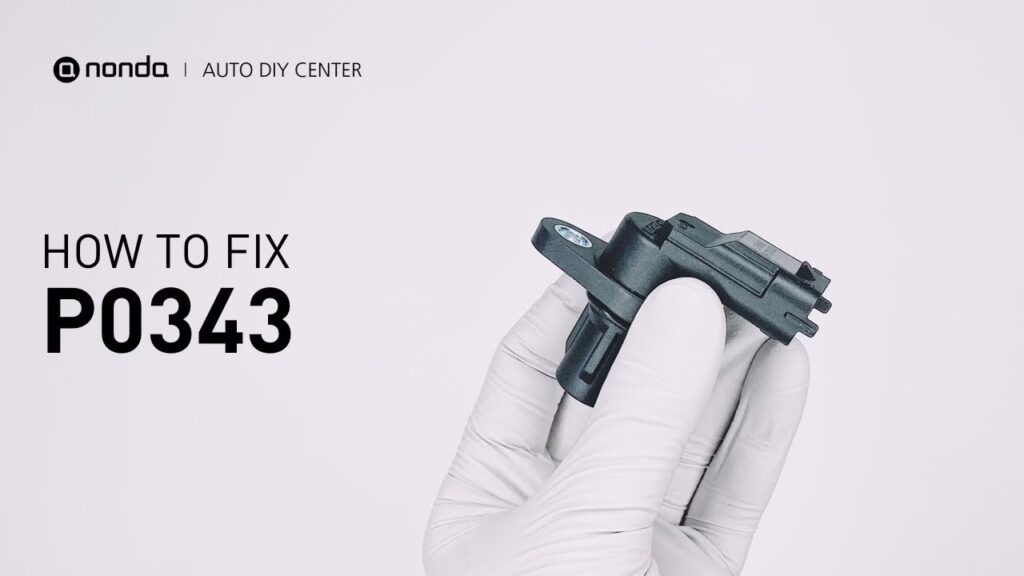

Faulty Camshaft Position Sensor

This is by far the most common culprit. The sensor itself can fail due to wear, internal damage, or exposure to heat and contaminants. A malfunctioning sensor will send an incorrect signal to the ECM.

Wiring and Connector Issues

The electrical circuit connecting the camshaft position sensor to the ECM is susceptible to damage. This can include:

• Damaged Wiring: Frayed, cut, or shorted wires in the harness can disrupt the signal.
• Loose Connections: A corroded or loose connector at the sensor or ECM can lead to intermittent or high resistance readings.
• Corrosion: Moisture ingress into the connector can cause corrosion, leading to poor electrical conductivity.

Timing Belt or Chain Issues

The camshaft position sensor relies on the engine's mechanical timing being correct. If the timing belt or chain has skipped a tooth, or if there's excessive wear in the timing components, the relative position of the camshaft to the crankshaft will be incorrect, leading to a faulty signal from the sensor.

Other Potential Causes

• Faulty Replacement Sensor: Sometimes, a new, aftermarket sensor may not meet the precise specifications required by the vehicle's ECM, leading to issues.
• ECM/PCM Malfunction: While less common, a fault within the engine control module itself can misinterpret signals or fail to communicate correctly with the sensor.
• Blocked Catalytic Converter: In some rare instances, a severely blocked catalytic converter can cause excessive backpressure, which might indirectly affect camshaft timing and sensor readings.

Diagnosing the P0343 Code: A Mechanic's Approach

Diagnosing the P0343 code requires a systematic approach. Mechanics typically follow these steps:

1. Visual Inspection

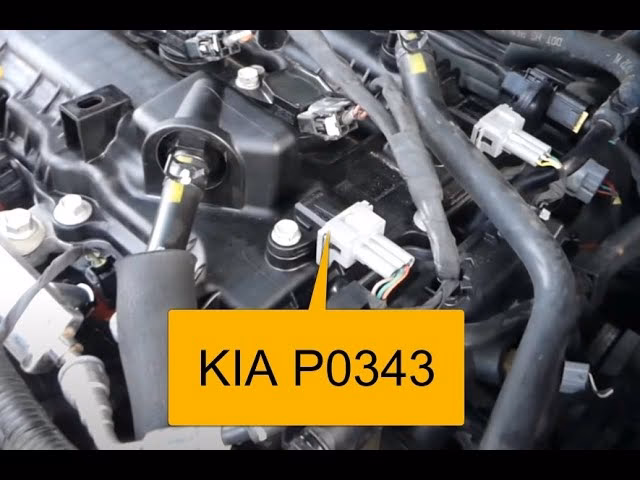

Start with a thorough visual inspection of the camshaft position sensor and its wiring harness. Look for any obvious signs of damage, such as chafed wires, melted insulation, or corroded connector pins. Ensure the sensor is securely mounted.

2. Scan Tool Data Analysis

Using an OBD-II scan tool is essential. Connect the scanner and observe the live data stream for the camshaft position sensor. A healthy sensor will show a clear, consistent signal as the engine is cranked or running. Look for erratic readings or a complete lack of signal.

3. Testing the Camshaft Position Sensor

A multimeter can be used to test the sensor's electrical integrity. This often involves checking for voltage at the sensor connector (power and ground), and then checking the output signal wire. When a metal object is brought near the sensor's tip (with ignition on), the signal voltage should drop to zero and return to its normal reading when the object is removed. Refer to your vehicle's specific service manual for exact testing procedures and expected voltage ranges.

4. Inspecting the Wiring Harness

If the sensor tests good, the focus shifts to the wiring harness and connectors. Use a multimeter to check for continuity, shorts to ground, and opens in the signal wire between the sensor and the ECM. Also, verify that the ECM has proper ground connections.

5. Checking Engine Timing

Verify the mechanical timing of the engine. This involves checking the alignment of the timing marks on the crankshaft and camshaft sprockets. A skipped tooth on the timing belt or chain is a common cause of this code, especially if the sensor itself has been recently replaced.

6. Evaluating Other Systems

If the above steps do not reveal the fault, consider other possibilities:

• Crankshaft Position Sensor: While the code specifically points to the camshaft sensor, a faulty crankshaft position sensor can sometimes indirectly affect camshaft sensor readings or cause similar symptoms.
• Fuel System: Low fuel pressure or a malfunctioning fuel pump can lead to poor engine performance that might be mistaken for timing issues.
• Exhaust System: A severely clogged catalytic converter could cause backpressure issues that impact engine timing.
• ECM/PCM: As a last resort, if all other components test good, the ECM itself may be the source of the problem. This is less common and often requires specialised testing.

How to Fix P0343: Real-World Scenarios

Mechanics often encounter this code in various situations. Here are a few case studies illustrating common fixes:

Frequently Asked Questions (FAQs)

What should I do if my car has a P0343 code?

If you encounter a P0343 code, it's advisable to diagnose and repair it promptly. While the engine might still run, prolonged driving with this fault can lead to increased wear on the starter and battery due to extended cranking, and potentially leave you stranded if the sensor fails completely.

Is it safe to drive with a P0343 code?

It's generally not recommended to drive extensively with a P0343 code. The symptoms can worsen, and a complete failure of the camshaft position sensor can prevent the engine from starting.

Can a bad battery cause P0343?

A weak or failing battery is unlikely to directly cause a P0343 code, which relates to a high input signal from the camshaft sensor circuit. However, a low battery voltage could potentially lead to erratic signals from various sensors, but it's not a primary cause of a 'high input' fault.

How much does it cost to replace a camshaft position sensor?

The cost can vary depending on the vehicle make and model and whether you opt for OEM or aftermarket parts. The sensor itself typically ranges from £20 to £150. Labour costs for replacement usually fall between £50 and £200, as it's often a relatively straightforward job that takes less than an hour.

Conclusion

The P0343 code, indicating a 'Camshaft Position Sensor ‘A’ Circuit High Input', points to an electrical anomaly within the camshaft position sensing system. While a faulty sensor is the most frequent cause, issues with wiring, connectors, or even engine timing can trigger this code. A thorough diagnostic process involving visual inspection, scan tool data, and electrical testing is crucial for accurately identifying the root cause. Addressing this code promptly will ensure optimal engine performance, prevent potential starting issues, and safeguard against further damage to other engine components.
