Cylinder Head Repair: Your UK Guide to Engine Health

A healthy engine is the heart of any vehicle, and at its core lies the cylinder head, a critical component responsible for sealing the combustion chamber and managing the vital flow of air, fuel, and exhaust gases. Over time, due to immense heat, pressure, and general wear, cylinder heads can develop issues such as cracks, warps, or worn components, leading to significant engine problems. Cylinder head repair is a common practice among car owners in the UK, involving various intricate processes like welding cracks, machining warps, or fixing failed valve train components. For the dedicated DIY car repair enthusiast, understanding these processes is key to maintaining your vehicle's longevity and performance. This comprehensive guide will explain the cylinder head refurbishment and resurfacing process in an easy-to-understand way, starting with why you might need to fix a cylinder head in the first place.

Why Cylinder Head Repair is Essential

The decision to recondition or resurface a cylinder head often boils down to several practical reasons, offering a smart alternative to outright replacement. These reasons are particularly pertinent for UK car owners looking for efficient and cost-effective solutions.

• Cost Savings: Arguably the most compelling reason, cylinder head repair cost is significantly lower than purchasing a brand-new head. While a new cylinder head might set you back anywhere from £150 to £400 (plus labour for installation, typically £40-£80), the cost of resurfacing or minor repairs is substantially less. This saving can be a considerable relief for your wallet, especially when facing unexpected repair bills.
• Product Unavailability: For owners of older or classic vehicles, finding a new cylinder head can be a monumental challenge. The part might be a discontinued design and simply no longer available on the market. If your vehicle uses an older 'flathead' cylinder head, for example, repair might be the only viable option to keep your cherished motor running. This preserves the originality and functionality of vintage cars.
• Damage to Mounted Parts Only: Sometimes, the core cylinder head itself is perfectly sound, but only a few attached components, such as valve seals or guides, are damaged. In such cases, cylinder head refurbishment is a far more logical and economical choice than replacing the entire unit. It targets the specific problem without incurring unnecessary expense.

Many cylinder head repair tasks are relatively straightforward in principle, though some, like resurfacing or milling, require specialised tools and expertise, making them less suitable for the average DIY mechanic. However, professional services are widely available across the UK. Simple online searches like "cylinder head repair near me" or "cylinder head repair shop UK" will yield numerous reputable options. The cost of repair can vary depending on the specific task; for instance, cracked cylinder head repair might differ from a full reconditioning, as the latter often involves addressing multiple components.

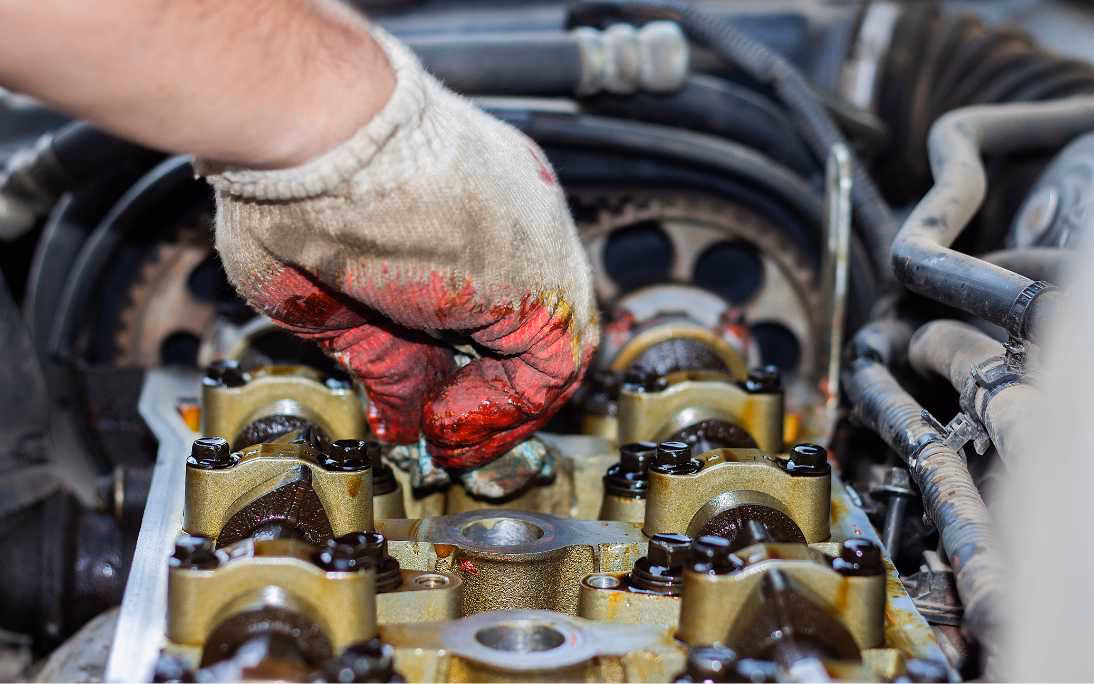

Understanding Cylinder Head Reconditioning

Cylinder head reconditioning, or refurbishment, essentially means giving the cylinder head a new lease of life. A professionally refurbished cylinder head can extend its operational lifespan by several years, saving you the expense of buying a new part. This process effectively repairs problems such as cracks, warps, and worn components like valve seals, valve guides, and other replaceable parts within the cylinder head assembly.

The reconditioning process typically involves several key stages:

1. Disassembly: The cylinder head is carefully taken apart, with all components meticulously removed and organised.
2. Cleaning: All parts, and the head itself, undergo thorough cleaning to remove carbon deposits, sludge, and other contaminants from both external surfaces and internal oil and coolant passageways.
3. Inspection: Each component is rigorously inspected for wear, cracks, or damage. This includes checking valve angles, valve seats, and identifying any warped spots on the head's surface.
4. Repair and Replacement: Damaged or excessively worn components are either repaired or replaced with new ones. This might involve welding cracks, machining warped surfaces, or installing new valve guides and seals.
5. Resurfacing (if needed): Certain parts, or the entire mating surface of the head, may need to be resurfaced to restore flatness and ensure an optimal seal with the engine block.

Beyond simply extending the life of the part, cylinder head repair optimises engine operation and helps prevent issues like fuel wastage or damage from a partially burnt air/fuel mixture. While some aspects require professional tools, understanding the steps can empower DIY enthusiasts to handle parts of the process.

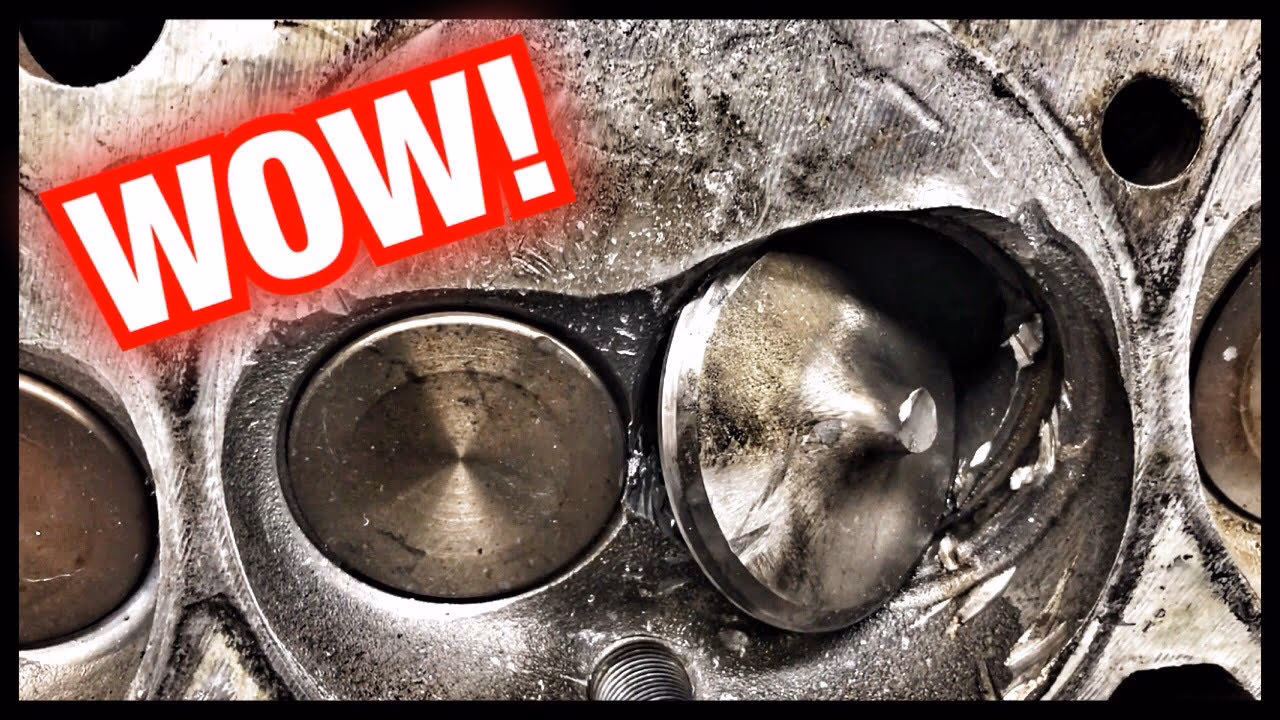

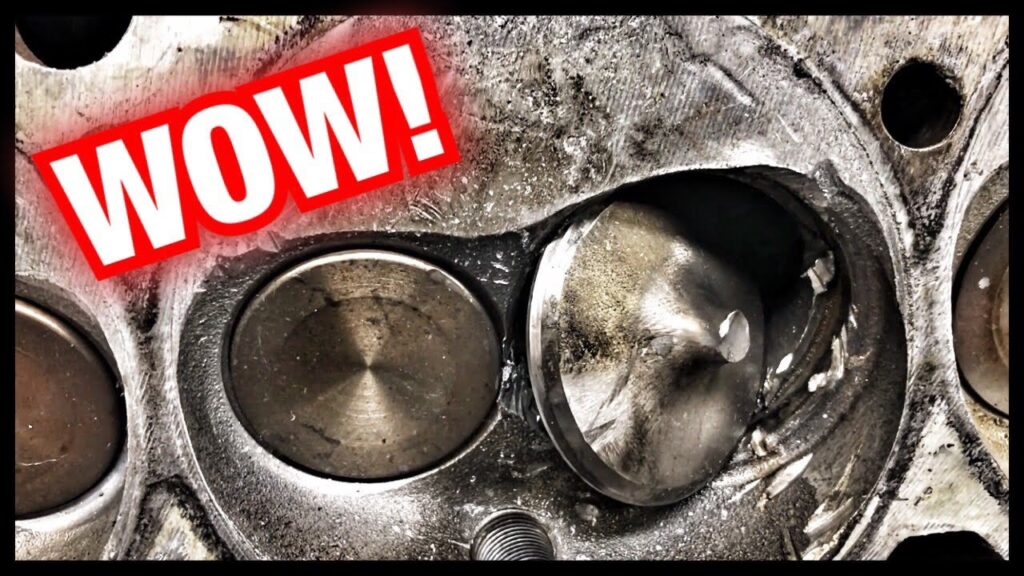

Steps to Repair a Cracked Cylinder Head (DIY Approach)

For those brave enough to tackle a cracked cylinder head themselves, preparation is key. Here's a general guide, but always consult your vehicle's specific service manual for precise instructions and torque specifications.

Materials Needed: Ratchet and socket set, valve spring compressor, needle-nose pliers, cleaning materials (solvent, wire brush, gasket scraper), new engine oil, new coolant, and appropriate sealant (e.g., epoxy for cracks).

Warning: Always disconnect the negative terminal of the battery first to avoid electrical shock.

1. Step 1: Drain Oil and Coolant
   Begin by safely draining the engine's coolant from the radiator drain cap and the engine oil by removing the plug on the oil pan. Ensure proper disposal of these fluids.
2. Step 2: Remove Cylinder Head Parts
   Using your tools, carefully disassemble components connected to the cylinder head. This typically includes the intake and exhaust manifolds, timing belt (or chain components), and rocker arm assembly. Then, remove the valves, valve keepers, valve springs, and seals. Label each part and place them in separate, labelled containers to simplify reassembly.
3. Step 3: Remove the Cylinder Head
   Following your manufacturer's recommended sequence (crucial for preventing warping), untighten and remove the cylinder head's mounting bolts. Once all bolts are loose, carefully lift the head off the engine block. It can be heavy, so consider assistance.
4. Step 4: Clean the Cylinder Head
   The head will likely be covered in carbon deposits, sludge, or other material build-up. Thoroughly clean both the exterior and interior surfaces. Pay particular attention to cleaning the oil and coolant passageways using appropriate solvents and brushes. This step is vital for proper inspection.
5. Step 5: Examine the Cylinder Head
   Once sparkling clean, meticulously inspect the cylinder head for any cracks or pits. For minor cracks, a suitable sealant, such as a high-temperature epoxy designed for automotive use, can be applied. Note that there's generally no difference between aluminium cylinder head repair epoxy and that used on cast iron heads. Use a micrometer to measure the camshaft dimensions against manufacturer specifications (found in your car manual) and inspect for signs of wear.
6. Step 6: Inspect Cylinder Head Parts
   Examine all removed components—valve guides, rocker arms, studs, and others—for excessive wear or damage. Replace any parts that show significant wear beyond acceptable tolerances.
7. Step 7: Assemble the Cylinder Head
   After confirming the head is clean and all parts are in good condition, begin assembling the components. Follow the reverse of the disassembly procedure. Ensure valves and other parts are in their correct positions; incorrect placement will prevent the cylinder head from functioning as required.
8. Step 8: Re-install the Cylinder Head
   Carefully mount the assembled cylinder head back onto the engine block. Follow the manufacturer's specific torque sequence and specifications for tightening the head bolts. This is crucial for a proper seal and to prevent future warping. Don't forget to refill with new engine oil and fresh coolant.

A word of caution: Some components can be confusing during assembly. If you are ever in doubt about a part's location or procedure, it is highly advisable to seek professional cylinder head repair service from a qualified mechanic. This complex task often requires significant expertise.

Cylinder Head Resurfacing Explained

Cylinder head resurfacing is a precision machining process that involves removing a minuscule amount of material from the head's mating surface. Its primary purpose is to restore the head's flatness, which can be compromised by overheating or uneven bolt tension. Resurfacing also helps remove deposits, prepare surfaces for welding joints, or improve the overall surface finish for optimal gasket sealing. In some performance applications, heads are milled to reduce effective cylinder height and increase the engine's compression ratio.

When performing cylinder head gasket repair, it's crucial that the head's surface is perfectly flat to ensure an airtight seal. An uneven surface can lead to leaks of coolant or oil. However, it's vital to avoid excessive resurfacing, as too much material removal can alter engine specifications. Resurfacing requires specialised equipment, such as a resurfacing machine, and precise knowledge of the correct Roughness Average (Ra) specifications for your particular cylinder head, which depends on its material. Incorrect machining can result in poor sealing at the gasket, leading to repeat issues.

Resurfacing Techniques

Several professional techniques are employed for cylinder head resurfacing:

• Wet Grinding: This technique is popular among cylinder head refurbishment experts due to the exceptionally smooth surface finish it provides. It typically uses a silicon carbide grinding wheel. However, when resurfacing aluminium heads, wet grinding requires the constant use of lubricant and coolant to prevent overheating and material distortion.
• Dry Milling: Often considered one of the best cylinder head repair methods available today, dry milling is significantly faster than grinding. A single pass can remove a larger piece of metal, unlike grinding which often requires multiple cuts. Dry milling is also less messy, and the advent of polycrystalline diamond (PCD) tools has vastly improved its precision and efficiency.
• Belt Sanding: While not as popular as milling or grinding for precision, belt sanding is a simpler technique that doesn't require complex fittings to mount the cylinder head. Its precision is somewhat limited, and results largely depend on the skill of the operator. Abrasives used in sanding belts range from silicon carbide and aluminium oxide to ceramics.

Tackling a Blown Cylinder Head Gasket

The head gasket is a crucial seal positioned between the cylinder head and the engine block. Its primary role is to seal the combustion chambers, preventing combustion gases, engine oil, and coolant from mixing or escaping. Like the cylinder head itself, the gasket can succumb to damage, often due to high temperatures or engine stress, leading to a "blown" head gasket. A blown head gasket typically causes coolant and lubricant to leak, leading to engine overheating and potentially more severe engine problems.

Diagnosing a blown head gasket often starts with observing common symptoms:

• Persistently high engine temperature.
• Low coolant levels requiring frequent topping up.
• Contaminated oil, which may appear milky or frothy (often described as "mayonnaise" like).
• White smoke billowing from the exhaust, indicating coolant burning in the combustion chambers.
• Engine misfires or a general loss of engine power.

A definitive diagnostic test is a "leak-down test," which checks for the presence of combustion gases in the car’s cooling system. Once a blown gasket is confirmed, immediate action is necessary.

Cylinder Head Gasket Repair Procedure

Things Needed: Wrenches, a suitable sealant (if applicable for minor repairs), new coolant, and new engine oil.

1. Step 1: Preparation
   Disconnect the battery's negative terminal. Drain the radiator by opening the drain valve and placing a container underneath to collect the coolant.
2. Step 2: Accessing the Head Gasket
   Use wrenches to loosen bolts and carefully remove any parts that obstruct access to the head gasket. This usually includes the air intake assembly, exhaust manifold, rocker arm assembly, and potentially the air conditioning pump and water pump. Loosen the alternator and disconnect relevant radiator pipes or hoses.
3. Step 3: Removing the Cylinder Head
   Following the engine manufacturer's specific installation torquing sequence (refer to your car's manual), carefully loosen and remove the cylinder head bolts. Then, gently lift the cylinder head off the engine block.
4. Step 4: Repairing/Replacing the Head Gasket
   Once the cylinder head gasket is exposed, inspect it thoroughly for damage. In most cases of a blown gasket, replacement is the recommended action, as resurfacing a gasket is not typical; the head is resurfaced to accept a new gasket. For minor, specific leaks, cleaning and applying a high-temperature sealant might be considered, but this is often a temporary fix. Ensure all mating surfaces are meticulously clean before fitting the new gasket.
5. Step 5: Reassembling the Head Gasket and Components
   After placing the new cylinder head gasket, carefully reinstall the cylinder head onto the engine block, following the manufacturer's specified bolt tightening sequence and torque settings. Reattach all previously removed components in reverse order. Finally, refill the engine with new coolant and engine oil.

Cylinder head gasket repair is a labour-intensive procedure, often requiring a qualified professional with the right tools and processes. It can take several hours to a few days, especially if other related parts need fixing or replacing. For most, this is not a DIY task due to its complexity and the precision required.

Symptoms and Diagnosis of Cylinder Head Damage

Recognising the symptoms of a damaged cylinder head is crucial for prompt action, preventing minor issues from escalating into catastrophic engine failure. The cylinder head's vital role in sealing the compression chamber and managing fluid flows means its malfunction has immediate, noticeable effects.

Common Symptoms of a Cracked or Damaged Cylinder Head:

1. Overheating Engine: A persistent increase in engine temperature is a hallmark sign. This occurs when coolant escapes through a crack, impairing the engine's ability to regulate its temperature effectively.
2. White Smoke from the Exhaust: If you observe thick, white smoke billowing from the exhaust, it strongly indicates that coolant is leaking into the combustion chamber and being burnt along with the fuel.
3. Loss of Engine Power: A noticeable decrease in acceleration or rough idling suggests a loss of compression within the engine, often caused by a crack in the head or a faulty gasket.
4. Coolant in the Oil: When coolant mixes with engine oil, the oil often turns into a milky, frothy substance. This is a serious issue as it compromises the oil's lubricating properties, leading to accelerated wear and potential engine damage.
5. Visible Cracks or Leaks: A careful visual inspection of the cylinder head might reveal visible cracks in the metal or coolant stains around the head's surface or engine block.
6. Bubbling in the Radiator: Bubbles in the radiator or expansion tank indicate that combustion gases are escaping from the crack and entering the cooling system, disrupting its normal operation.

How to Diagnose a Cracked Cylinder Head:

For accurate diagnosis, a combination of methods is often employed:

1. Visual Inspection: Begin by thoroughly inspecting the engine for obvious signs like coolant puddles, stains, cracks, or discolouration around the cylinder head.
2. Compression Test: This reliable test measures the engine's compression levels. A significant drop in compression in one or more cylinders can indicate a crack in the cylinder head or a faulty gasket, as pressure is escaping.
3. Cooling System Pressure Test: By pressurising the cooling system, this test helps identify coolant leaks or the presence of combustion gases within the cooling system, both strong indicators of a cracked head.

Repair vs. Replacement: Making the Right Choice

Once cylinder head damage is confirmed, the critical decision is whether to repair the existing head or opt for a full replacement. This choice often involves a detailed cost-benefit analysis.

Cylinder Head Repair Options & Costs:

For minor cracks or isolated damage, repair is a viable and often more economical option. This might involve:

• Welding: For smaller cracks, specialised welding can restore the head's integrity.
• Resurfacing: To correct warpage and ensure a flat mating surface.
• Specialised Sealants: For very minor, superficial cracks, some sealants can provide a temporary or semi-permanent fix, though their long-term reliability for critical components like cylinder heads is debated.

Typical Repair Cost: For minor cracks, you might expect to pay between £400 to £1200, covering welding, resurfacing, or sealing, plus labour. However, if more extensive work is required, such as replacing multiple internal components, costs can increase significantly.

Cylinder Head Replacement:

In cases of extensive damage, severe warping, or if the cost of repair approaches that of a new head, replacement becomes the more practical and reliable option. This ensures the engine's performance is fully restored. You can opt for a brand-new cylinder head or consider a remanufactured one, which offers a cost-effective alternative without compromising on quality.

Typical Replacement Cost: Replacing a cylinder head can range from £1200 to £3000 or more, depending on the vehicle's make, model, and engine complexity. This price includes the new cylinder head, labour, and any additional engine work, such as new gaskets, seals, or manifold replacements. While a higher upfront cost, it often provides greater long-term reliability.

DIY Repairs vs. Professional Help:

While DIY repairs can save money, they demand specialised knowledge, tools, and significant time. Improper repairs can lead to further, more costly damage. Cylinder head repair is a highly technical task that, if done incorrectly, can cause long-term issues for your engine. A professional mechanic, on the other hand, possesses the expertise and equipment to accurately diagnose and repair the issue, ensuring quality and preventing future problems, despite the higher service cost. The decision ultimately hinges on the severity of the damage and your confidence in handling complex engine mechanics.

Preventing Cylinder Head Cracks and Failures

The best repair is often no repair at all. Implementing regular preventative maintenance is crucial for extending the lifespan of your cylinder head and avoiding costly issues. Cylinder heads are designed to withstand significant stress, but natural wear and tear, combined with poor maintenance, can shorten their lifespan.

• Regular Coolant Checks: Always maintain correct coolant levels. Low coolant can lead to engine overheating, a primary cause of cylinder head warping and cracking.
• Monitor Engine Temperature: Pay close attention to your vehicle's temperature gauge. If it consistently runs hot, investigate the cause immediately.
• Timely Servicing: Adhere to your vehicle's recommended service schedule. A skilled mechanic can identify early signs of wear, potential leaks, or issues with gaskets and seals before they escalate into major cylinder head problems.
• Address Leaks Promptly: Any signs of oil or coolant leaks should be addressed without delay. Even minor leaks can indicate underlying issues that, if ignored, can lead to cylinder head failure.

With proper care, a cylinder head can last as long as the engine itself, typically five years or more, depending on mileage and driving conditions. Regular inspections and routine maintenance are your best defence against cylinder head failure.

Finding a Qualified Mechanic for Cylinder Head Repair

When your vehicle exhibits symptoms of cylinder head failure, finding a reputable and qualified mechanic is paramount. While online videos might suggest DIY solutions for head gaskets, complex cylinder head repairs are best left to professionals. An improperly installed or repaired cylinder head can lead to more severe, long-term engine damage.

When searching for a mechanic or auto shop in the UK, consider the following:

• Specialisation: Look for garages that advertise engine repair or reconditioning services. They are more likely to have the specific tools and experience required for cylinder head work.
• Reputation and Reviews: Check online reviews (Google, Trustpilot, local forums) and ask for recommendations from friends or family. A shop with consistent positive feedback for engine work is a good sign.
• Warranty: Inquire about warranties on parts and labour for the repair. Reputable mechanics typically offer guarantees on their work.
• Diagnostic Capabilities: Ensure they have the equipment to perform accurate diagnostic tests (compression test, cooling system pressure test) to pinpoint the exact issue.
• Transparency: A good mechanic will clearly explain the problem, the proposed solution, and provide a detailed quote before commencing work.

While the initial cost of professional repair might seem high, it's an investment in your vehicle's longevity and performance, preventing potentially catastrophic and more expensive damage down the line. Don't compromise on quality when it comes to such a vital engine component.

Frequently Asked Questions About Cylinder Head Repair

Q1: How long does cylinder head repair typically take?

A1: The duration varies significantly depending on the extent of the damage and the specific repair needed. A simple resurfacing might take a day or two once the head is removed, while a full reconditioning or a cracked cylinder head repair (including removal and reinstallation) can take several days, sometimes up to a week, due to the complexity and precision involved.

Q2: Can I drive my car with a cracked cylinder head?

A2: It is strongly advised not to drive your car with a cracked cylinder head. Continuing to drive can lead to severe engine damage, including piston damage, connecting rod failure, or even complete engine seizure, turning a repairable problem into a much more expensive, or even irreparable, situation.

Q3: Is it always better to replace a cracked cylinder head than repair it?

A3: Not necessarily. For minor, superficial cracks, a professional welding repair followed by resurfacing can be a durable and cost-effective solution. However, for extensive cracks, deep damage, or significant warping, replacement (either new or remanufactured) is often the more reliable long-term solution.

Q4: What's the difference between a cylinder head and a head gasket?

A4: The cylinder head is a large metal component bolted to the top of the engine block, housing valves, camshafts, and combustion chambers. The head gasket is a thin, multi-layered seal that sits between the cylinder head and the engine block, creating a tight seal for the combustion process and preventing fluid mixing.

Q5: How can I tell if my cylinder head is warped?

A5: Warping is typically diagnosed by a mechanic using a straight edge and feeler gauges on the cylinder head's mating surface after it has been removed and thoroughly cleaned. Symptoms might include persistent overheating, coolant leaks, or uneven engine compression.

Conclusion

Cylinder heads and head gaskets are indispensable components of your engine, and their failure can trigger a cascade of problems, including leaks, persistent overheating, and overall compromised engine performance. The good news is that many cylinder head or head gasket issues are repairable, often more easily and inexpensively than you might initially think.

Armed with the information in this article, you now have a clearer understanding of how these critical components are diagnosed and fixed. Whether you embark on a DIY repair or opt for professional assistance, ensure you have access to the right tools and, crucially, the correct repair knowledge. For complex and vital engine repairs, always remember that seeking the expertise of a qualified mechanic is often the wisest decision, safeguarding your vehicle's health and your peace of mind.
