Understanding the Comprehensive Component Monitor (CCM)

The Guardian of Your Powertrain: Unpacking the Comprehensive Component Monitor (CCM)

In the sophisticated world of modern automotive engineering, a silent guardian is constantly at work, ensuring the optimal performance and emissions compliance of your vehicle's powertrain. This vigilant overseer is known as the Comprehensive Component Monitor, or CCM. Far from being a mere diagnostic tool, the CCM is an integral part of your car's On-Board Diagnostics (OBD II) system, performing continuous checks on a vast array of electronic components and circuits. Understanding its function is key to appreciating the intricate way your vehicle self-monitors and alerts you to potential issues.

What Exactly is a CCM Test and How Does it Operate?

At its core, the Comprehensive Component Monitor is a sophisticated software-driven diagnostic program. Its primary objective is to detect malfunctions in any electronic powertrain component or circuit that can affect emissions. Crucially, it focuses on those elements not already covered by other specific OBD II monitors. This means the CCM acts as a crucial catch-all, ensuring no critical component goes unchecked. The monitoring process isn't a one-size-fits-all approach; it's tailored to the specific hardware, function, and signal type of each component.

For instance, analogue inputs like the Throttle Position (TP) sensor or the Engine Coolant Temperature (ECT) sensor are typically evaluated for basic circuit integrity – checking for opens (breaks in the circuit) or shorts (unintended connections). These checks are often performed continuously during normal vehicle operation. Digital inputs, such as Vehicle Speed or Crankshaft Position, often undergo 'rationality checks'. This involves verifying if the sensor's input value makes sense in the context of current engine operating conditions. These more complex tests might require the coordination of multiple components and can only be executed under specific operating parameters.

Output components, such as the Idle Air Control (IAC) solenoid, are also rigorously tested. The CCM often achieves this by monitoring a feedback circuit or a 'smart driver' associated with the output. For components like relays, additional feedback circuits are employed to monitor the secondary side of the relay. In some cases, the CCM even assesses the proper functionality of an output by observing how the control system reacts to a commanded change. For example, the Idle Air Control solenoid's performance can be gauged by monitoring the engine's idle speed in relation to the target idle speed.

Components Under the CCM's Watchful Eye

The CCM's scope is extensive, encompassing a wide range of components across various vehicle subsystems. Here's a glimpse into some of the key players:

When Diagnostic Tools Meet the CCM

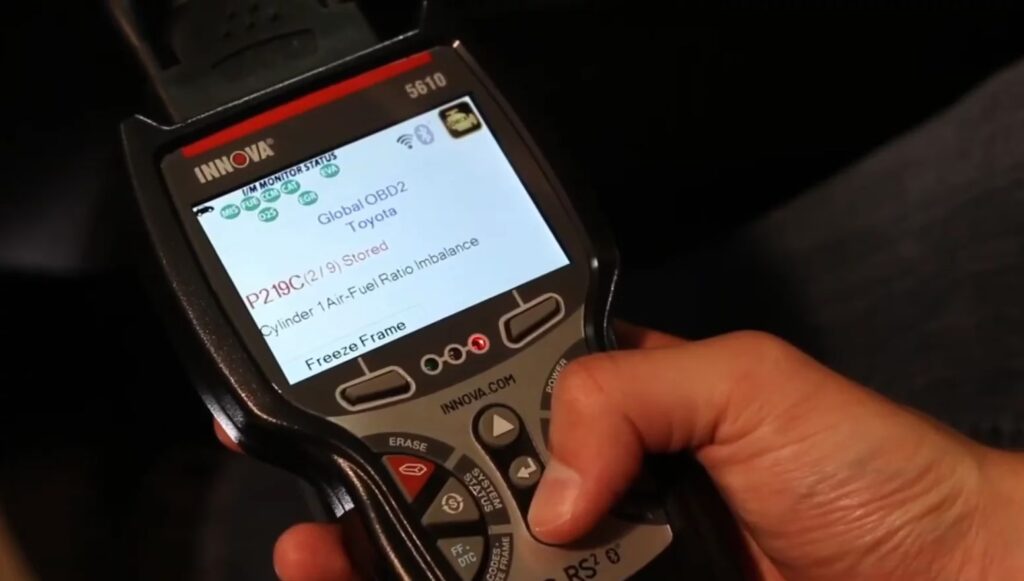

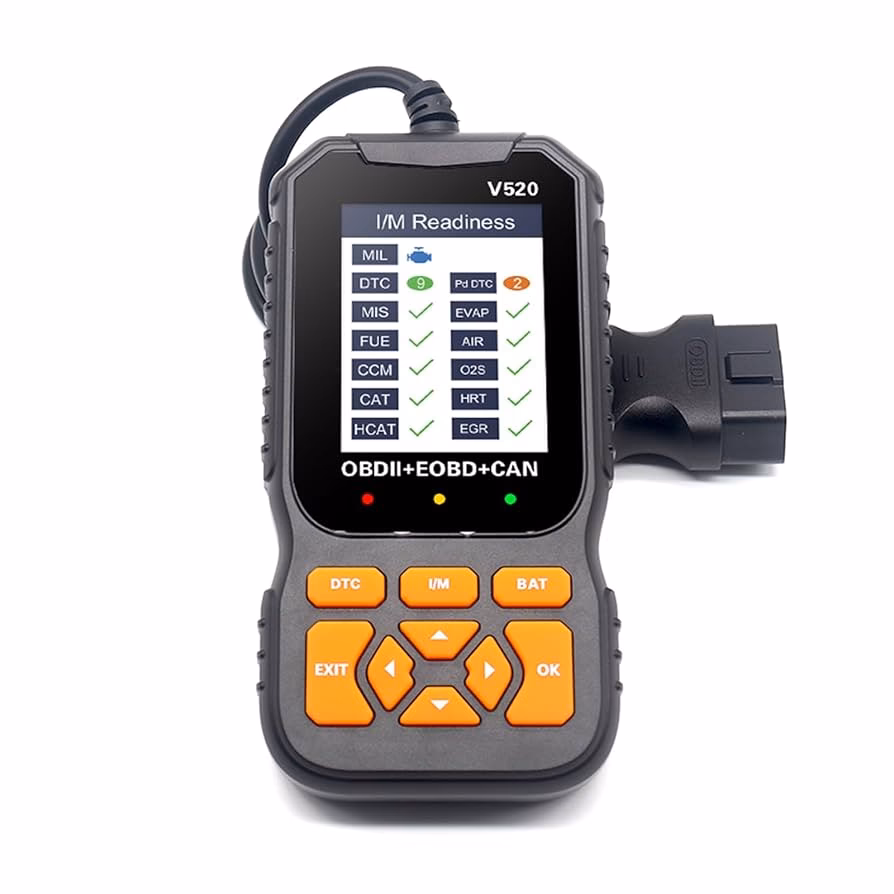

The question often arises: 'Does CCM use diagnostic tools?' The answer is a resounding yes, but perhaps not in the way one might initially imagine. The CCM itself is a diagnostic system embedded within the vehicle's Powertrain Control Module (PCM) or Engine Control Unit (ECU). However, to interact with and interpret the data generated by the CCM, external diagnostic tools are essential. These tools, commonly referred to as OBD II scanners or code readers, connect to the vehicle's diagnostic port. They allow technicians (and knowledgeable enthusiasts) to retrieve Diagnostic Trouble Codes (DTCs) that the CCM may have stored when it detects a fault. Furthermore, advanced diagnostic tools can display live data from the CCM's monitored sensors, providing real-time insights into the powertrain's operation and helping to pinpoint the root cause of any detected anomalies.

Which Sensors are Excluded from a CCM Test?

While the CCM is comprehensive, it's not all-encompassing. Certain sensors are excluded from its direct monitoring because they are already subject to their own dedicated OBD II monitors. This prevents redundant testing and ensures efficiency within the diagnostic system. A prime example of this exclusion involves Exhaust Gas Recirculation (EGR) sensors and Heated Oxygen Sensors (HO2S). These components have their own specific monitors that handle their diagnostic routines. The CCM's role is to complement these, not to duplicate their efforts. The EECV software, for instance, explicitly checks that sensors are functioning correctly before the CCM utilises them for its tests, ensuring the integrity of the monitoring process.

Deep Dive: Specific Component Monitoring Examples

Let's explore some of the detailed monitoring processes for key components:

Mass Air Flow (MAF) Sensor

The MAF sensor measures the amount of air entering the engine. The CCM checks its input voltage for low or high readings (typically <0.20V or >4.80V), which would indicate a circuit malfunction. It also performs a crucial rationality check in conjunction with the Throttle Position sensor. Since the MAF reading should be proportional to the throttle opening, deviations can signal a problem. For example, if the engine load is high (>60%) but the throttle position is very low (<2.4V), or vice versa, it can trigger a P1121 code, indicating a potential issue with either the MAF or TP sensor, or their relationship.

Throttle Position (TP) Sensor

This sensor, a rotary potentiometer, directly reflects the throttle plate's angle. The CCM monitors its circuit for low or high input voltages (P0122, P0123) during a brief test. As mentioned, its correlation with the MAF sensor is also a key diagnostic point.

Engine Coolant Temperature (ECT) Sensor

The ECT sensor, a thermistor, provides a voltage output inversely proportional to coolant temperature. The CCM monitors its input voltage for out-of-range conditions (<0.20V or >4.80V). This data is vital for the PCM to adjust ignition timing, EGR flow, and air-fuel ratios. A faulty ECT reading can not only affect engine performance but also prevent other diagnostic tests, like the idle speed check, from running if it falsely indicates a cold engine.

Intake Air Temperature (IAT) Sensor

Similar to the ECT sensor, the IAT sensor is a thermistor whose voltage output varies with air temperature. The CCM checks for out-of-range voltages (<0.20V or >4.80V). This information is essential for the PCM's airflow calculations and fuel enrichment strategies.

Ignition System Monitoring

The CCM plays a role in ensuring the ignition system's health. It monitors key signals like the Profile Ignition Pickup (PIP) from the Crankshaft Position (CKP) sensor, the Camshaft Identification (CID) signal from the Camshaft Position (CMP) sensor, and the Ignition Diagnostic Monitor (IDM) signal. The IDM signal, originating from the ignition control module, indicates if the ignition coil has fired. The CCM assesses the relationship between these signals to detect issues like missing or noisy CKP/CMP signals (P0320, P0340) or ignition coil primary/secondary circuit malfunctions (P0351, P0352).

Idle Air Control (IAC) Valve

The CCM monitors the IAC valve electrically for opens and shorts (P0505, P1504, P1508, P1509). More importantly, it performs a functional check by monitoring the closed-loop idle correction speed. If the engine cannot maintain the target idle RPM (either too high or too low), the CCM can flag it. Factors like vacuum leaks, a loose throttle air bypass pipe, or even a loose fuel filler cap can contribute to idle issues and may not always initially generate a DTC if the CCM's specific test conditions aren't met.

Fuel Injectors

Each fuel injector circuit is monitored for opens and shorts (P0200 series codes). The CCM also monitors individual injector events to detect specific injector circuit malfunctions (P0201-P0206). It's important to note that gummed-up injectors might not atomise fuel properly, leading to misfires (P0300 series codes) without necessarily triggering an injector-specific DTC. Never apply battery voltage to injectors during diagnostics.

Transmission Monitoring

The CCM's reach extends to the automatic transmission. While a dedicated Transmission Indicator Light (TIL) might flash to alert the driver of a fault, the CCM records Transmission DTCs. Key components monitored include:

• Transmission Range Sensor (TRS): Checks for circuit malfunctions, range/performance issues, and out-of-range inputs (P0705-P0709).
• Transmission Fluid Temperature (TFT) Sensor: Monitors for circuit malfunctions, range/performance issues, and out-of-range temperatures (P0710-P0714). An incorrect TFT reading can prevent Torque Converter Clutch (TCC) engagement.
• Turbine Shaft Speed (TSS) and Vehicle Speed Sensor (VSS): These sensors provide crucial data for smooth gear changes. The CCM checks their rationality. A faulty VSS can lead to a P0500 code, while a TSS issue might result in a P0715 code.
• Shift Solenoids (SS): Monitored electrically for opens and shorts (P0750, P0755, etc.). Mechanically, the CCM assesses their function by calculating gear ratios during shifts and comparing them to expected values.
• Torque Converter Clutch (TCC): Checked for electrical circuit issues (P0743) and mechanical performance (P1744), ensuring proper lock-up for fuel efficiency.
• Electronic Pressure Control (EPC) Solenoid: Monitored for short circuits (P1747) or general malfunctions (P1745, P1748, P1746), which can lead to a 'Limited Operation Strategy' (LOS) or 'Limp-Home Mode' to protect the transmission.

Frequently Asked Questions about CCM

Q1: What does a CCM test do?
CCM tests are part of the vehicle's OBD II system that continuously monitors powertrain components and circuits for malfunctions that could affect emissions, focusing on elements not covered by other specific monitors.

Q2: Does CCM use diagnostic tools?
While the CCM is an internal diagnostic system, external diagnostic tools (OBD II scanners) are necessary to read the DTCs generated by the CCM and to view live data from the monitored components.

Q3: Which sensors are excluded from CCM tests?
Sensors that have their own dedicated OBD II monitors, such as EGR and HO2S sensors, are typically excluded from the CCM's direct monitoring.

Q4: Can a faulty MAF sensor cause issues other than MAF-specific codes?
Yes, the CCM performs rationality checks, like the MAF/TP correlation. A fault here can trigger codes related to either sensor or their combined performance.

Q5: What happens if the CCM detects a transmission fault?
In many systems, a transmission fault detected by the CCM can lead to the activation of a 'Limited Operation Strategy' (LOS) or 'Limp-Home Mode', drastically reducing performance to protect the transmission and alert the driver to seek service.

The Comprehensive Component Monitor is a testament to the advanced diagnostic capabilities built into modern vehicles. By continuously scrutinising critical systems, it plays a vital role in maintaining performance, fuel efficiency, and environmental compliance, ensuring your vehicle runs as smoothly and reliably as possible.
