Manual vs. Automatic Gearbox Rebuilds

When your car's gearbox starts to exhibit signs of wear and tear, such as grinding gears, slipping out of gear, or unusual noises, a rebuild often becomes a necessary consideration. However, the decision between rebuilding a manual or an automatic gearbox presents a unique set of challenges and considerations. Both systems are intricate, vital components of your vehicle's drivetrain, but the processes, complexities, and eventual outcomes of their respective rebuilds can differ significantly. This article will delve into the intricacies of both manual and automatic gearbox rebuilds, helping you understand the key differences, potential costs, and what to expect, so you can make the most informed decision for your beloved vehicle.

Understanding the Core Differences

Before we dive into the specifics of rebuilding, it's crucial to grasp the fundamental differences between manual and automatic gearboxes. A manual gearbox, often referred to as a 'stick shift', relies on the driver to select gears using a clutch pedal and a gear lever. It's a mechanically straightforward system comprising gears, shafts, synchronizers, and bearings. An automatic gearbox, on the other hand, shifts gears automatically without driver intervention. It's a far more complex system, utilising a torque converter, planetary gear sets, clutches, bands, and a sophisticated hydraulic control system, often managed by an electronic control unit (ECU).

Manual Gearbox Rebuilds: Precision and Durability

Rebuilding a manual gearbox typically involves dismantling the unit to inspect and replace worn components. The most common culprits for wear include:

• Synchronizer rings: These are crucial for smooth gear changes. Worn synchronizers lead to grinding.
• Bearings: Input shaft, output shaft, and layshaft bearings can wear out, causing noise and play.
• Gears: While less common, gear teeth can chip or wear, especially with aggressive driving or poor maintenance.
• Clutch components: Although not part of the gearbox itself, the clutch is intrinsically linked. Worn clutch plates, pressure plates, or release bearings often accompany gearbox issues.
• Seals and gaskets: These prevent fluid leaks and their deterioration can lead to lubrication problems.

The process of rebuilding a manual gearbox is often seen as more mechanically intuitive. It requires meticulous attention to detail, precise measurements, and the correct tools. A skilled technician will:

1. Remove the gearbox from the vehicle.
2. Disassemble it completely, cleaning each component.
3. Inspect all parts for wear, damage, or defects.
4. Replace worn or damaged parts, such as bearings, synchronizers, seals, and potentially gears.
5. Reassemble the gearbox with new gaskets and fluid.
6. Refit the gearbox and test its operation thoroughly.

Advantages of rebuilding a manual gearbox:

• Generally less expensive than automatic rebuilds.
• Often results in a highly reliable and durable transmission.
• The mechanical nature means a more predictable and often simpler repair process.

Disadvantages:

• Requires a skilled technician with specific knowledge of manual transmissions.
• Can still be a significant expense.

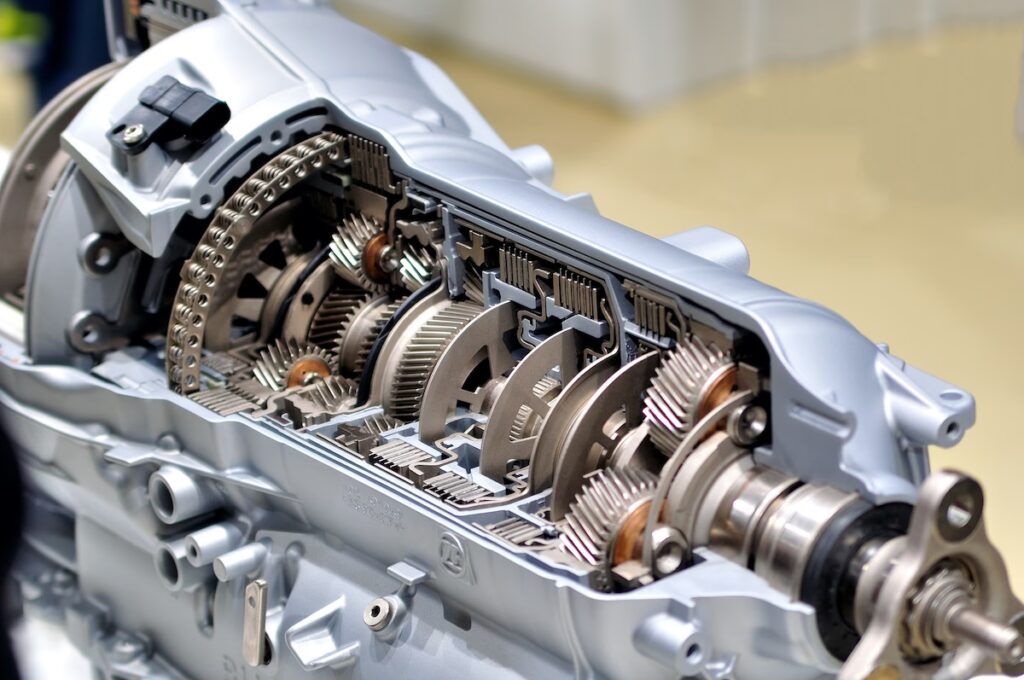

Automatic Gearbox Rebuilds: Complexity and Sophistication

Automatic gearboxes are marvels of engineering, but their complexity makes them inherently more challenging and costly to rebuild. The multitude of interconnected parts means that a failure in one area can often cascade into others. Key components that are frequently replaced during an automatic gearbox rebuild include:

• Clutch packs: These friction discs engage and disengage gears. Wear and tear are common.
• Bands: Used in conjunction with clutch packs to control gear selection.
• Torque converter: This fluid coupling can develop leaks or internal wear.
• Valve body: The 'brain' of the automatic transmission, directing hydraulic fluid. It can become clogged or malfunction.
• Seals and gaskets: Crucial for maintaining hydraulic pressure.
• Electronic sensors and solenoids: Modern automatics rely heavily on these for smooth operation.

The rebuild process for an automatic gearbox is significantly more involved:

1. The gearbox is removed and meticulously disassembled.
2. Every single component is inspected, including intricate hydraulic passages and electronic sensors.
3. Worn clutch packs, seals, bands, and often the torque converter are replaced.
4. The valve body may require cleaning, repair, or replacement.
5. Electronic components are tested and replaced if faulty.
6. The gearbox is reassembled with new seals, gaskets, and appropriate transmission fluid.
7. Reinstallation and comprehensive testing, often involving diagnostic scans.

Advantages of rebuilding an automatic gearbox:

• Restores the comfort and convenience of automatic shifting.
• Can significantly extend the life of the vehicle.

Disadvantages:

• Considerably more expensive than manual gearbox rebuilds due to complexity and parts.
• Requires highly specialised knowledge and diagnostic equipment.
• The success of the rebuild is heavily dependent on the quality of the parts and the technician's expertise.

Cost Comparison: A Rough Guide

It's challenging to provide exact figures as costs vary wildly depending on the make and model of your car, the extent of the damage, and your geographic location. However, as a general rule of thumb:

Remember, these are estimates. Always obtain detailed quotes from reputable specialists.

When to Consider a Rebuild vs. Replacement

A rebuild is often a viable option when the gearbox has suffered internal wear or minor damage. However, if the gearbox has experienced catastrophic failure, such as a broken casing or severely damaged gears, replacement with a reconditioned unit or a new gearbox might be more cost-effective and reliable in the long run.

Signs your gearbox might need attention:

• Difficulty engaging gears.
• Grinding noises when shifting.
• Slipping out of gear.
• Whining or humming noises that change with speed.
• Burning smells, often indicating overheating or fluid issues.
• Leaking transmission fluid.

Choosing a Specialist: The Importance of Expertise

Whether you have a manual or automatic gearbox, selecting the right garage is paramount. Look for specialists who have a proven track record with your specific type of transmission. Ask about their warranty on rebuilds and inquire about the quality of the parts they use. A good specialist will be transparent about the process and provide a clear breakdown of costs.

Frequently Asked Questions

Q1: How long does a gearbox rebuild typically take?

A1: A manual gearbox rebuild can often be completed within 2-4 days, while an automatic gearbox rebuild, due to its complexity, might take 5-10 days or even longer.

Q2: What is the lifespan of a rebuilt gearbox?

A2: With proper maintenance and depending on the quality of the rebuild, a rebuilt gearbox can last for many years and thousands of miles, often comparable to a new unit.

Q3: Is it always cheaper to rebuild than replace?

A3: Not necessarily. For severe damage, a replacement unit might be more economical, especially if you can source a reliable used or reconditioned gearbox.

Q4: Can I drive my car with a faulty gearbox?

A4: It's generally not advisable. Driving with a failing gearbox can lead to further, more extensive damage, potentially rendering the entire transmission irreparable and posing safety risks.

Conclusion

The decision to rebuild a manual or automatic gearbox hinges on understanding the inherent differences in their complexity, the extent of the damage, and the associated costs. Manual gearboxes, while requiring precision, are generally more straightforward and less expensive to rebuild. Automatic gearboxes, with their intricate hydraulic and electronic systems, demand a higher level of expertise and investment but restore the convenience of automatic driving. Regardless of your transmission type, investing in a quality rebuild by a reputable specialist is key to ensuring the longevity and performance of your vehicle's most crucial drivetrain component. Always prioritise expert diagnosis and transparent communication with your chosen mechanic to navigate this important repair.
