Clutch Woes? Repair or Replace: Your UK Guide

The clutch is an indispensable component of any manual transmission vehicle, acting as the vital link between your engine and gearbox. It facilitates smooth gear changes, allowing you to control the flow of power to the wheels and bring your vehicle to a complete stop without stalling. Given its fundamental role, the clutch must always be in excellent working order for both the safety of your journey and the optimal performance of your vehicle. However, like all mechanical parts, clutches are subject to wear and tear, age, and high mileage, which can inevitably lead to faults. Recognising these issues early is crucial, as a compromised clutch can severely impact your vehicle's drivability and roadworthiness.

Ignoring early symptoms of clutch trouble can lead to more extensive and costly repairs down the line, potentially leaving you stranded. Whether you're experiencing subtle changes or obvious difficulties, understanding the signs of a faulty clutch and knowing when to seek professional help for a repair or full replacement is paramount. Let's delve into the mechanics of your clutch, identify common problems, and guide you through the decision-making process for ensuring your vehicle remains safe and reliable on the road.

Understanding Your Car's Clutch and Its Function

At its core, a clutch is a mechanical device that connects and disconnects the engine from the transmission system. When the clutch pedal is pressed, the connection is broken, allowing you to change gears without grinding them. When the pedal is released, the connection is re-established, transferring power from the engine to the wheels. This seemingly simple action involves several key components working in harmony: the clutch plate (or friction disc), the pressure plate, the flywheel, and the release (or 'throw-out') bearing. The clutch plate is sandwiched between the flywheel (connected to the engine) and the pressure plate (connected to the gearbox input shaft). When engaged, these components clamp together, allowing torque to be transmitted. When disengaged, they separate, allowing for gear changes.

This intricate system is under constant stress, especially in stop-start traffic or if subjected to aggressive driving. Over time, the friction material on the clutch plate wears down, much like brake pads, reducing its ability to grip effectively. This wear is the most common reason for clutch failure, but issues can also arise from other components within the clutch system, such as hydraulic problems in the pedal mechanism or damage to the flywheel.

Recognising the Warning Signs of a Failing Clutch

Your vehicle often provides clear indicators when its clutch is developing an issue. Being aware of these symptoms can help you address the problem before it escalates into a breakdown or compromises your safety. Here are the most common signs that your vehicle is likely in need of clutch attention:

• The Engine is Racing Despite the Car Moving Slowly (Clutch Slip): This is perhaps the most common and noticeable symptom of a worn clutch. You'll press the accelerator, the engine RPMs will rise significantly, but the car's speed won't increase proportionally. This happens because the clutch plate's friction material is worn, causing it to 'slip' against the flywheel and pressure plate instead of gripping firmly. It's particularly evident when accelerating uphill or under heavy load.
• The Clutch Pedal Makes a Noise: If you hear squeaking, grinding, or chirping noises when you press or release the clutch pedal, it often indicates a problem with the release bearing (also known as the 'throw-out' bearing) or the pilot bearing. A noisy pedal can also point to issues with the clutch fork or pivot ball, suggesting that components are worn or lacking lubrication.
• The Clutch Pedal is Stiff or Vibrating: A clutch pedal that feels unusually stiff or heavy to press can be a sign of a failing pressure plate, a seizing release bearing, or problems within the hydraulic system (master or slave cylinder). If the pedal vibrates excessively, especially when engaged, it could indicate a warped flywheel or a damaged pressure plate, leading to uneven contact.
• The Biting Point is Different: The 'biting point' is the specific position of the clutch pedal where the clutch begins to engage and transmit power to the wheels. If your clutch is nearing the end of its life, you might notice the biting point becoming much higher (closer to the top of the pedal's travel) than it used to be. Conversely, a very low biting point could indicate an issue with the clutch's hydraulic system or a misadjusted clutch cable.
• You Have Difficulty Changing Gears: If shifting gears becomes difficult, notchy, or requires excessive force, your clutch may not be disengaging fully. This can lead to gear grinding, especially when selecting reverse or first gear. This often points to a problem with the clutch plate not separating cleanly from the flywheel, a faulty pressure plate, or hydraulic system issues preventing full disengagement.
• Burning Smell: A distinct burning smell, often described as burnt toast or rubber, especially after prolonged clutch use (e.g., in heavy traffic or during hill starts), is a strong indicator of excessive clutch slip and overheating. This means the friction material is burning due to insufficient grip.

If any of these symptoms sound familiar, it's highly advisable to have your vehicle inspected by a qualified mechanic without delay. Addressing these issues promptly can prevent further damage to your transmission and ensure your vehicle remains safe for the road.

Why Do Clutches Fail? Common Causes Explained

While the most common reason for clutch failure is simply the natural wear of the friction material over time and mileage, several factors and specific component failures can accelerate this process or cause other clutch-related issues:

• Driving Habits: This is arguably the biggest factor influencing clutch longevity. 'Riding the clutch' (keeping your foot on the pedal, even lightly, between shifts or at traffic lights) causes constant, unnecessary friction and heat. Similarly, aggressive driving, rapid acceleration, heavy towing, or consistently holding the car on a hill using the clutch instead of the handbrake will significantly shorten its lifespan.
• Natural Wear and Tear: As mentioned, the clutch plate's friction material is designed to wear down over time, much like brake pads. Eventually, it becomes too thin to provide adequate grip, leading to slip.
• Release Bearing Failure: The release bearing pushes against the pressure plate's diaphragm springs to disengage the clutch. If this bearing seizes or wears out, it can cause noise, stiff pedal action, or prevent proper clutch disengagement.

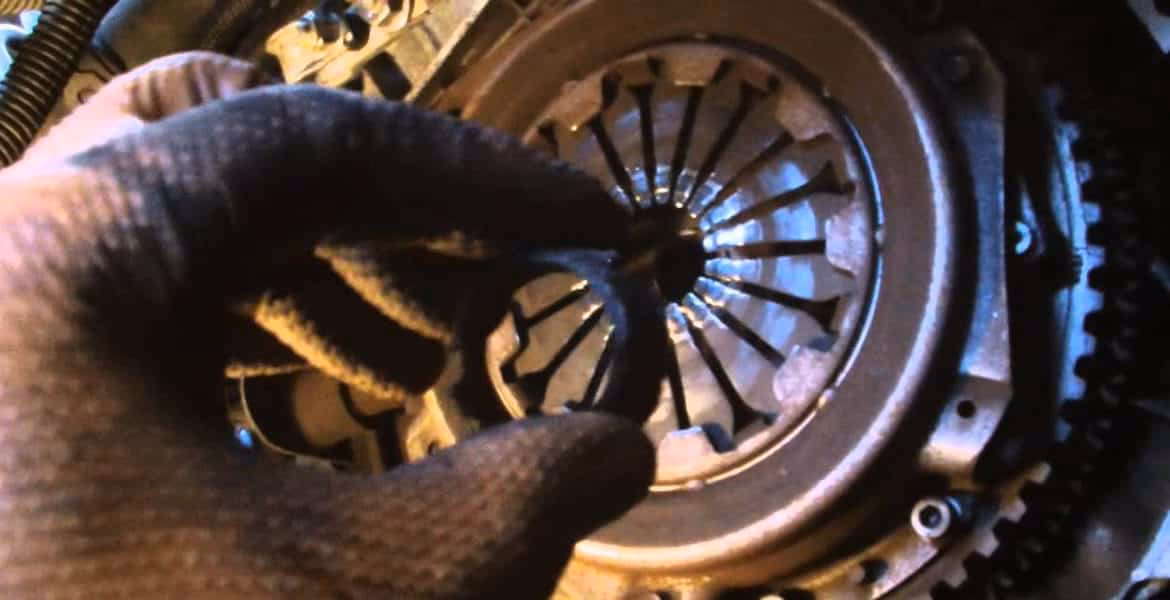

• Pressure Plate Damage: The pressure plate provides the clamping force that holds the clutch plate against the flywheel. Overheating, excessive force, or manufacturing defects can warp or damage the pressure plate, leading to uneven clamping, vibrations, or difficulty disengaging the clutch.
• Flywheel Issues: The flywheel is a heavy disc attached to the engine's crankshaft. If it becomes warped, cracked, or develops 'hot spots' (glazed areas from excessive heat), it can lead to clutch slip, shuddering, or uneven engagement. While some flywheels can be resurfaced, many modern vehicles use dual-mass flywheels (DMFs) which are typically replaced, not repaired, if damaged.
• Hydraulic System Failure: Many modern clutches use hydraulic fluid to operate the clutch pedal mechanism. Leaks in the master cylinder (at the pedal) or slave cylinder (at the gearbox), or air in the hydraulic lines, can lead to a soft or spongy pedal, difficulty disengaging the clutch, or even a completely unresponsive pedal.

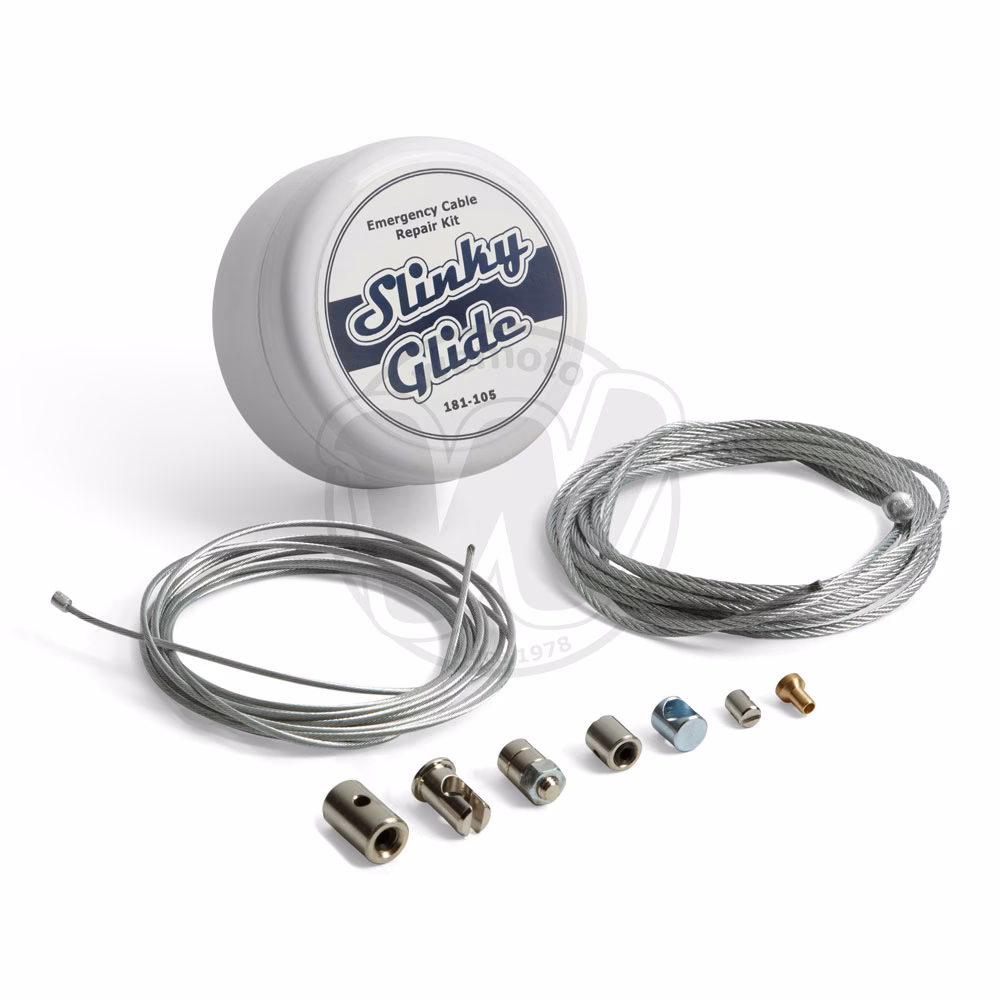

• Clutch Cable Issues (Older Vehicles): For vehicles with cable-operated clutches, a stretched, frayed, or broken clutch cable will directly impact pedal feel and clutch engagement.

Understanding these causes can help drivers adopt better habits and be more vigilant about potential issues, ensuring their clutch lasts as long as possible.

Clutch Repair or Full Replacement? The Expert's Dilemma

When faced with a clutch problem, one of the first questions is whether a repair will suffice or if a complete replacement is necessary. This decision largely depends on the specific component that has failed and the overall condition of the clutch system.

• When is a Repair Sufficient? In some cases, only a single component within the clutch system might be faulty, and a repair can be a more cost-effective solution. For example, if the issue is solely with the hydraulic master or slave cylinder, replacing just that part may resolve the problem. Similarly, a broken clutch cable or a worn-out release bearing might be repairable without needing to replace the entire clutch assembly. However, accessing these components often still requires significant labour, as the gearbox may need to be removed.
• When is a Full Replacement Essential? A full clutch replacement involves replacing the clutch plate, pressure plate, and release bearing as a set. This is typically necessary when the clutch plate's friction material is worn out, the pressure plate is damaged (e.g., warped, cracked, or springs are weak), or if the flywheel itself is damaged beyond resurfacing (especially with dual-mass flywheels). Given the significant labour involved in removing the gearbox to access these components, it is almost always recommended to replace the entire clutch kit (plate, pressure plate, and bearing) once the gearbox is out, even if only one part seems to be the primary cause of failure. This prevents having to pay for the same extensive labour again if another component fails shortly afterwards.

Here's a comparative overview to help illustrate the differences:

Ultimately, a professional assessment by an experienced mechanic is vital. They can accurately diagnose the problem and advise on the most effective and economical solution for your specific vehicle and situation.

The Clutch Replacement Process: What to Expect

A clutch replacement is one of the more labour-intensive repairs your vehicle might undergo, primarily because the clutch assembly is located between the engine and the gearbox. Here's a general overview of the steps involved:

1. Vehicle Hoisting: The car is lifted onto a ramp or hoist to allow access to the underside.
2. Drain Fluids: Depending on the vehicle, the gearbox oil might need to be drained.
3. Disconnect Components: Various components connected to the gearbox, such as drive shafts, electrical connectors, gear linkages, and hydraulic lines (for hydraulic clutches), are carefully disconnected.
4. Support Engine/Gearbox: The engine will be supported, as the gearbox is usually bolted directly to it.
5. Remove Gearbox: This is the most significant step. The gearbox is unbolted from the engine and carefully lowered out of the vehicle. This often requires specialist lifting equipment and considerable skill.

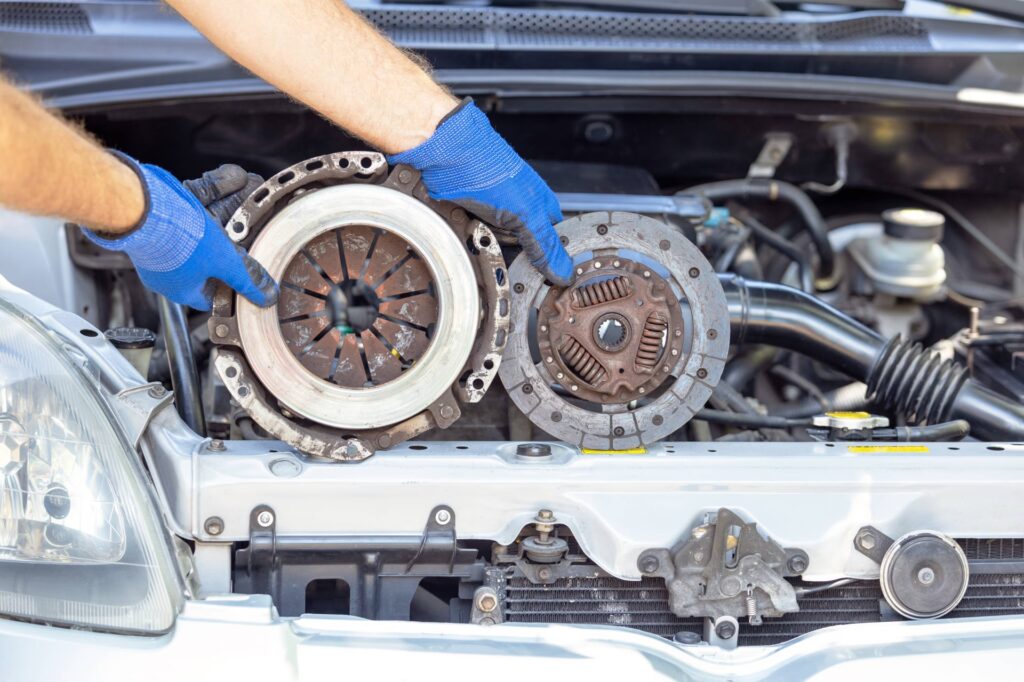

6. Access Clutch Assembly: Once the gearbox is removed, the old clutch assembly (pressure plate, clutch plate, and release bearing) is exposed and unbolted from the flywheel.
7. Flywheel Inspection/Replacement: The flywheel is inspected for signs of wear, warping, or hot spots. If it's a dual-mass flywheel and damaged, it will typically be replaced. Conventional flywheels might be resurfaced if suitable.
8. Install New Clutch Kit: The new clutch plate, pressure plate, and release bearing are carefully installed. The clutch plate must be precisely aligned with a special tool to ensure the gearbox input shaft can engage correctly.
9. Reinstall Gearbox: The gearbox is carefully lifted back into position and rebolted to the engine.
10. Reconnect Components: All previously disconnected components (drive shafts, linkages, electrics, hydraulics) are reconnected.
11. Refill Fluids: The gearbox oil is refilled to the correct level.
12. Test Drive: A thorough test drive is performed to ensure the new clutch engages smoothly, gears shift correctly, and there are no abnormal noises or vibrations.

Due to the complexity and time involved, this is not a job recommended for amateur mechanics, but rather for skilled professionals with the right tools and experience.

Demystifying Clutch Replacement Costs

The cost of a clutch replacement can vary significantly, making it one of the more expensive routine maintenance items. Several factors contribute to the overall price:

• Vehicle Make and Model: Some vehicles are inherently more complex to work on than others. For instance, front-wheel-drive cars often require more labour to remove the gearbox than rear-wheel-drive vehicles. Certain luxury or performance vehicles also have more expensive, specialised clutch components.
• Parts Cost: The cost of the new clutch kit itself varies widely. OEM (Original Equipment Manufacturer) parts are generally more expensive than aftermarket alternatives, though quality aftermarket kits can offer excellent value. If a dual-mass flywheel (DMF) also needs replacing, this can add several hundred pounds to the total cost.
• Labour Rates: Labour is a significant portion of the cost. Garage labour rates vary by region within the UK and by the type of garage (main dealer vs. independent specialist vs. mobile mechanic). Clutch replacements are labour-intensive, typically requiring between 3 to 8 hours of work, sometimes more for complex vehicles.
• Additional Repairs: Sometimes, other components are found to be worn or damaged during the clutch replacement process (e.g., gearbox seals, driveshaft seals, engine mounts). Addressing these while the gearbox is out can save future labour costs, but adds to the immediate expense.
• Type of Garage: Main dealerships generally have the highest labour rates, while independent garages or mobile mechanics often offer more competitive pricing. While mobile mechanics offer convenience, ensure they are fully equipped and experienced for such a significant job.

It's always advisable to get a detailed quote before proceeding with any work, ensuring it includes parts, labour, and VAT. While it's a significant outlay, a properly replaced clutch ensures the safety and continued smooth operation of your vehicle for many years.

Extending the Life of Your Clutch: Tips for Drivers

While clutches are designed to wear, your driving habits play a crucial role in how long yours will last. By adopting a few simple techniques, you can significantly extend the lifespan of your clutch and potentially save on costly replacements:

• Avoid Riding the Clutch: Never rest your foot on the clutch pedal while driving, even lightly. This creates unnecessary friction and heat, leading to premature wear. Your foot should only be on the pedal when you are actively changing gears or coming to a stop.
• Don't Hold the Car on a Hill Using the Clutch: Instead of slipping the clutch to prevent rolling back on an incline, use your handbrake. Engage the handbrake, then gradually release the clutch until you feel the car wanting to move forward, then release the handbrake. This eliminates excessive clutch wear.
• Shift Gears Smoothly and Decisively: Avoid jerky or hesitant gear changes. When shifting, depress the clutch fully, make your gear change, and then release the clutch smoothly and progressively, matching engine RPMs to road speed as best as possible.
• Avoid Unnecessary Aggressive Acceleration: While it might be tempting to 'dump' the clutch for a quick getaway, this puts immense strain on the clutch plate and can cause rapid wear. Accelerate smoothly, allowing the clutch to fully engage before applying full power.
• Use Neutral at Stops: When stopped in traffic for more than a few seconds, shift into neutral and release the clutch pedal. Holding the clutch down for extended periods puts unnecessary strain on the release bearing.
• Don't Overload Your Vehicle: Carrying excessive weight puts more strain on the clutch, especially during acceleration and hill starts. Be mindful of your vehicle's weight limits.

By incorporating these practices into your daily driving, you can help your clutch serve you reliably for many more miles.

Why Professional Expertise Matters

Clutch repair and replacement are complex mechanical tasks that require specific tools, in-depth knowledge, and considerable experience. Attempting a DIY clutch replacement without the necessary expertise can lead to serious issues, including improper installation, damage to other vehicle components, and ultimately, unsafe driving conditions. Professional mechanics have:

• Specialised Tools: They possess the specific lifting equipment, alignment tools, and diagnostic equipment required for precise and safe clutch work.
• Technical Knowledge: They understand the intricacies of different clutch systems, including hydraulic and cable-operated types, and the nuances of dual-mass flywheels.
• Experience: Years of working on various makes and models give them the practical experience to diagnose problems accurately and perform replacements efficiently.
• Warranty: Reputable garages offer warranties on both parts and labour, providing you with peace of mind should any issues arise after the repair.

Entrusting your clutch repair or replacement to professional experts ensures the job is done correctly, safely, and to the highest standards, safeguarding your vehicle's long-term reliability.

Frequently Asked Questions (FAQs) About Clutches

How long does a clutch typically last?

The lifespan of a clutch varies significantly based on driving style, vehicle type, and typical driving conditions. On average, a clutch can last anywhere from 50,000 to 100,000 miles. However, aggressive driving, heavy traffic, frequent hill starts, or towing can drastically reduce this to as little as 20,000 miles, while a careful driver might see a clutch last well over 150,000 miles.

Can I drive with a slipping clutch?

While you might be able to drive a short distance with a slipping clutch, it is strongly not advisable. Driving with a slipping clutch can lead to further damage to the flywheel, transmission, and other expensive components due to excessive heat and wear. More importantly, a slipping clutch compromises your vehicle's ability to accelerate and climb hills, making it unpredictable and potentially unsafe in traffic. It's best to get it inspected and repaired as soon as symptoms appear.

What causes a stiff clutch pedal?

A stiff clutch pedal can be caused by several issues. In hydraulic systems, it might indicate a failing master or slave cylinder, or air in the hydraulic line. In cable-operated systems, a frayed or seizing clutch cable is a common culprit. A worn or damaged pressure plate can also make the pedal feel much stiffer than usual, as it requires more force to disengage the clutch.

Is it always worth replacing the entire clutch kit, or can I just repair one part?

While some minor issues (like a faulty hydraulic cylinder or clutch cable) can be repaired without replacing the entire clutch kit, if the gearbox needs to be removed to access the clutch assembly (which is often the case), it is almost always recommended to replace the entire clutch kit (clutch plate, pressure plate, and release bearing). The labour cost for removing and reinstalling the gearbox is significant, so replacing all wear components at once prevents you from paying for the same labour again if another part of the clutch fails shortly after.

How long does a clutch replacement take?

The time required for a clutch replacement varies depending on the vehicle's make, model, and complexity. On average, a professional mechanic can complete a clutch replacement in 3 to 6 hours. However, some vehicles, particularly those with complex layouts or dual-mass flywheels, might take 8 hours or more. This time estimate typically refers to labour hours, not the total time your car is at the garage, which might include diagnostic time and parts ordering.

What is a dual-mass flywheel (DMF) and why is it important?

A dual-mass flywheel (DMF) is a more advanced type of flywheel found in many modern vehicles, especially diesels and powerful petrol engines. It consists of two masses connected by springs and dampeners, designed to absorb engine vibrations and provide smoother power delivery. While they improve comfort and reduce strain on the gearbox, DMFs are more complex and expensive. If a DMF fails, it typically needs to be replaced entirely, as they cannot be resurfaced like traditional solid flywheels, adding significantly to the overall clutch replacement cost.
