Elmasteam 8: Precision Steam Cleaning

In the pursuit of immaculate cleanliness, particularly within industrial, jewellery, and medical sectors, the Elmasteam 8 benchtop steam jet cleaner stands out as a remarkably effective and versatile solution. This advanced piece of equipment is engineered to tackle stubborn contaminants, offering a powerful yet precise method for preparing parts for further processing, assembly, or sterilisation. Unlike traditional cleaning methods that might rely on harsh chemicals or laborious manual scrubbing, the Elmasteam 8 harnesses the potent force of steam to deliver a thorough, efficient, and environmentally conscious clean.

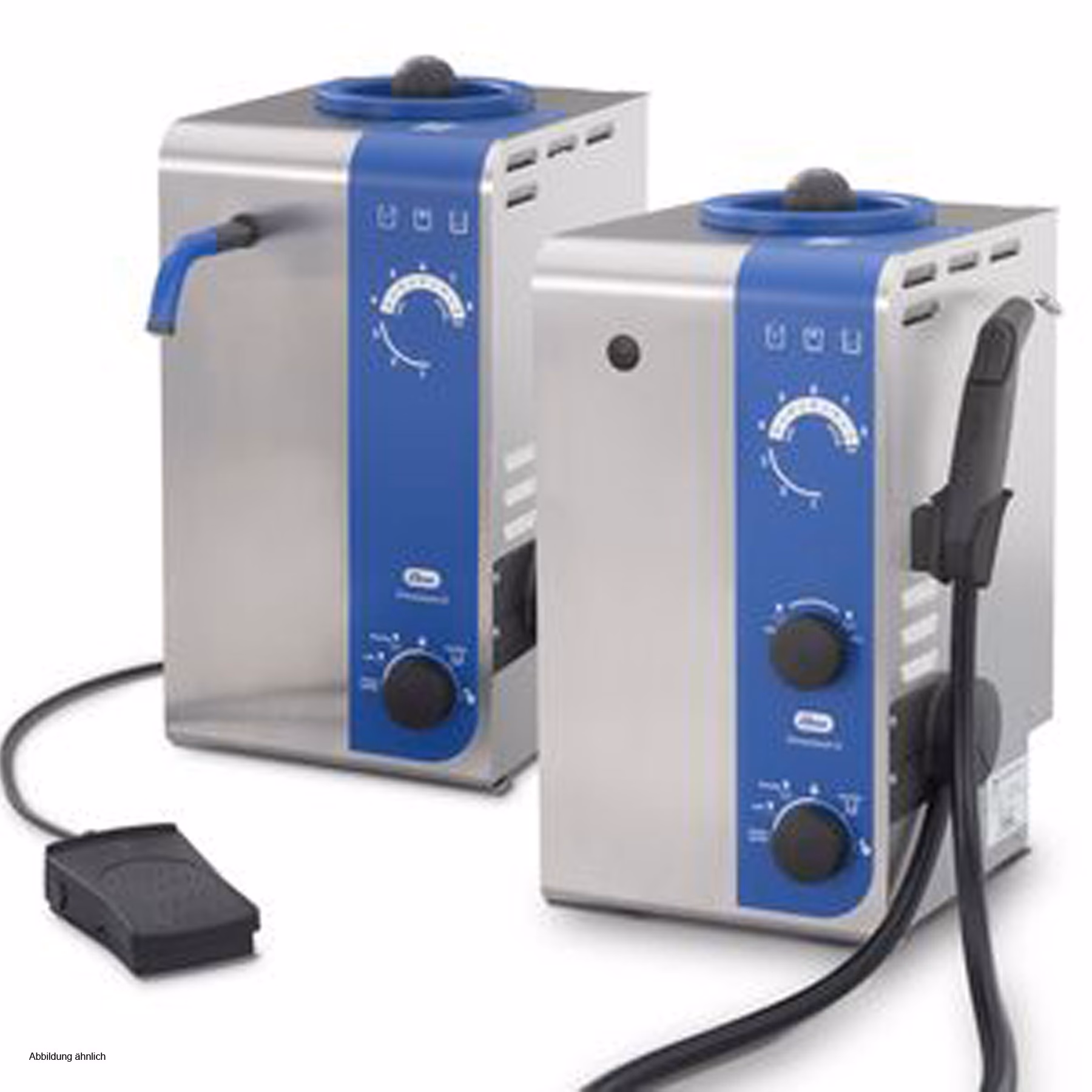

What is the Elmasteam 8 Benchtop Steam Jet Cleaner?

The Elmasteam 8 is a compact, benchtop steam jet cleaner designed for the rapid removal of a wide array of deposits. These can include oils, lubricants, polishing pastes, waxes, chips, and filings from various materials such as cast, machined, and other fabricated parts. Its primary function is to provide a fast, safe, and thorough cleaning process, making it an invaluable asset in quality control and precision manufacturing environments. The compact nature of the Elmasteam 8 allows for precise application of steam, directing the cleaning power exactly where it is needed, even in intricate or hard-to-reach areas.

Key Applications and Benefits

The versatility of the Elmasteam 8 is one of its most significant advantages. It finds extensive use in:

• Industrial Manufacturing: Removing grease, oils, and debris from machined components, gears, and assemblies ensures optimal performance and longevity.
• Jewellery and Watchmaking: Polishing pastes, oils, and fine dust can be meticulously removed from intricate jewellery pieces and watch mechanisms.
• Medical and Dental Instrument Cleaning: This is a critical application where the Elmasteam 8 excels. It is proven effective in Central Sterile Supply Departments (CSSD) and similar facilities for cleaning complex medical, dental, and surgical instruments before disinfection or sterilisation.

Top Benefits of Benchtop Steam Jet Cleaners:

The Elmasteam 8, and benchtop steam jet cleaners in general, offer a compelling list of advantages:

• Environmentally Friendly: Operates without the need for chemicals, thereby eliminating associated disposal concerns and environmental impact.
• Fumeless Operation: Provides a comfortable working environment for operators, as the steam cleaning process is free from harmful fumes.
• Precise Cleaning: The ability to direct the steam jet precisely ensures that even the most complex geometries and tight spaces are thoroughly cleaned.
• Compact and Lightweight: Facilitates easy placement on a workbench and offers portability if needed.
• Minimal Lime Buildup: When distilled water is used, lime scale accumulation within the reservoir is significantly reduced, promoting longer unit life.
• 3-Year Warranty: Offers peace of mind and protects your investment.
• Useful Accessories: A range of optional accessories can further enhance cleaning productivity and efficiency.

Elmasteam 8 vs. Elmasteam 45: A Comparative Overview

While both the Elmasteam 45 and Elmasteam 8 are capable benchtop steam jet cleaners, the Elmasteam 8 offers enhanced features and capabilities, making it suitable for more demanding applications.

Elmasteam 8 MED: Specialised for Medical Instruments

A specific variant, the Elmasteam 8 MED, is tailored for the rigorous demands of cleaning medical instruments. This model is particularly adept at reaching and cleaning difficult areas such as instrument joints, hinges, fluted surfaces, lumens in hollow instruments, and removing residual tissue or bone meal from drills and cutters. For cleaning hollow instruments, the Elmasteam 8 MED is equipped with a Luer Lock connector, several adaptors, and a catheter attachment, ensuring that steam can be directed precisely into these confined spaces. It's crucial to note that while this cleaning prepares instruments for the next stage, it is not a replacement for the subsequent disinfection or sterilisation processes.

Elmasteam 8 Basic: Simplicity and Efficiency

The Elmasteam 8 basic offers a streamlined yet powerful steam cleaning solution for pre- and final cleaning tasks. It operates at up to 8 bar of steam pressure and features selectable pressure modes ("soft" and "strong"), adjustable moisture control (wet or dry steam), and high heating power. An integrated Eco-mode automatically reduces operating pressure to save energy when not in intensive use. For enhanced drying, an optional compressed air function is available. User safety is paramount, with an integrated automatic Lock-mode preventing accidental steam release. Water can be filled manually via an integrated funnel or through an optional rear water connection with an integrated pump. The unit also includes a decalcification programme for easier maintenance, contributing to its reliability and longevity. Like all Elma products, the Elmasteam 8 basic is built with high-quality materials and comes with a 3-year warranty.

Operational Features and Maintenance

Both the Elmasteam 45 and Elmasteam 8 are designed with user convenience and operational efficiency in mind. They feature:

• Operating Status Display: Key indicators are visible at a glance, allowing operators to monitor the unit's status easily.
• Nozzle Options: Users can choose between a foot-activated fixed nozzle for consistent application or a flexible 3-foot hand piece nozzle for greater manoeuvrability and precision. The Elmasteam 8 offers both options.
• Hand Piece Trigger: Controls the amount of steam released, with a lock lever to prevent accidental discharge.
• Drain Valve: An actuation clamp allows for safe draining of boiler pressure before refilling or after use.

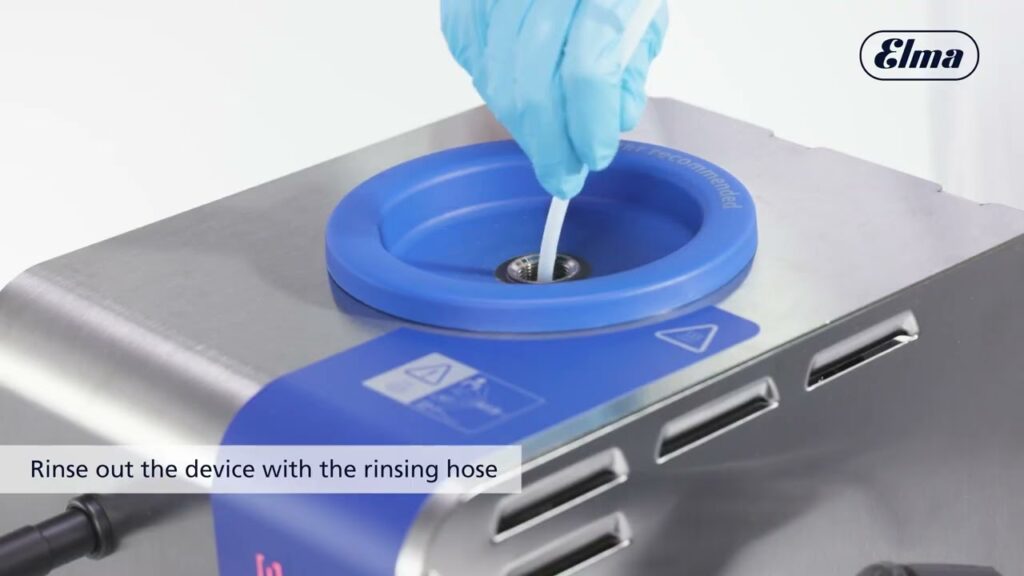

• Maintenance: Regular decalcification is recommended to maintain operational reliability and extend the product's lifespan. The Elmasteam 8 basic has an easily initiated decalcification programme accessible via Service-mode. Sediments can be rinsed out following the operating instructions and using the provided rinsing set.

Included Accessories and Warranty

Standard accessories typically included with Elmasteam units are tweezers, a filling sieve, a ball valve activated drain tube, a rinsing set, and a tank filling cap with a safety pressure release valve. An optional wall mounting bracket is also available for space-saving installation. All Elmasteam units are shipped with a comprehensive instruction manual and benefit from a 3-year warranty, underscoring the manufacturer's confidence in their quality and durability.

Frequently Asked Questions

Q1: Can I use tap water in my Elmasteam 8?

A1: While the unit can operate with tap water, it is strongly recommended to use distilled or demineralised water. This significantly reduces lime scale buildup in the heating element and boiler, ensuring optimal performance and extending the lifespan of the cleaner.

Q2: Is the Elmasteam 8 suitable for cleaning delicate materials?

A2: Yes, the Elmasteam 8 is designed for precise cleaning. The adjustable pressure and the ability to control the wetness of the steam allow for safe and effective cleaning of a variety of materials, including those that are sensitive. However, it's always advisable to test on an inconspicuous area first if unsure.

Q3: Does the Elmasteam 8 MED replace the need for autoclaving?

A3: No, the Elmasteam 8 MED is a pre-cleaning device. It effectively removes organic and inorganic contaminants from instruments, preparing them for disinfection or sterilisation processes like autoclaving. It is not a sterilisation method itself.

Q4: How long does a tank of water last?

A4: The duration of a cleaning cycle depends on the selected pressure and the intensity of steam usage. The Elmasteam 8 has a larger tank capacity (3.8 litres) compared to the Elmasteam 45, supporting longer cleaning sessions. The unit's efficiency and the availability of optional filling systems further extend operational times.

Q5: What is the benefit of the optional compressed air function on the Elmasteam 8?

A5: The optional compressed air function provides a powerful blow-off capability. This is useful for quickly removing loose contaminants from surfaces and significantly speeds up the drying process after steam cleaning, making parts ready for the next stage of production or handling much faster.

For those seeking further information or requiring assistance with selecting the appropriate Elmasteam benchtop steam jet cleaner for their specific needs, contacting the manufacturer's scientific advisors is recommended. They can provide insights into the full range of Elma ultrasonic and steam cleaning solutions.
